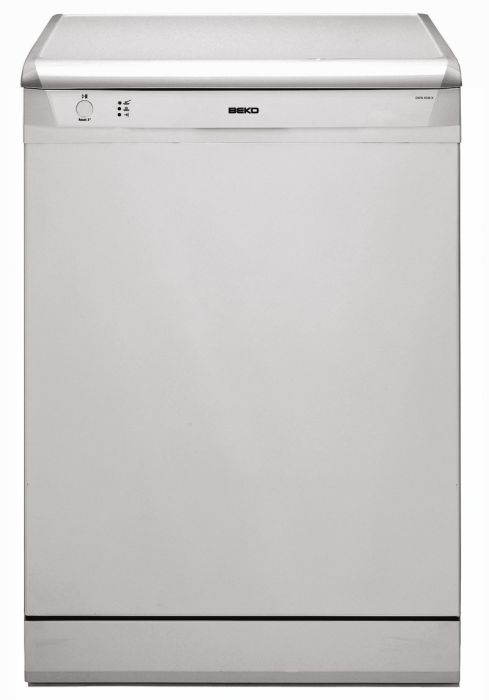

DSFN4530S VAATWASMACHINE

Artikelnr: 114469

Referentienr: DSFN4530S

Productomschrijving

SLIM PANNEL 5 progr. Silver

Specificaties

Meer informatie
Breedte	59.8
Diepte	57
Gewicht (Kg)	40
Verpakkingseenheid	1
ArtRef	DSFN4530S
AsogemID	114469
MPN	7636133942
Merk	BEKO
Soort	Vaatwasser
ArtEAN	8690842982194

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
1783130100	40	ANGORA BOTTOM TRAY	11	1	Meer info
1783130200	40	ANGORA BOTTOM TRAY	9	0	Meer info
2906860200	106	WATER INLET HOSE ASSEMBLY L=1550	10	1	Meer info
1883140300	110	FOOT GROUP-ADJUSTABLE	1	2	Meer info
1800863200	119	HOSE BETWEEN FAN AND SUMP	2	1	Meer info
1764110107	220	H├ä┬░T├ä┬░T SIDE PANEL F/S LEFT WHITE	16	1	Meer info
1764110207	221	H├ä┬░T├ä┬░T SIDE PANEL F/S RIGHT WHITE	16	1	Meer info
1767200800	300	ANGORA TOP PLATE GROUP DIF2	23	1	Meer info
1783030201	401	HINGE ARM-RIGHT	8	1	Meer info
1783030101	402	HINGE ARM-LEFT	8	1	Meer info
1888190200	403	HINGE ARM SUPPORT	4	1	Meer info
1783160100	440	ANGORA HINGE SPRING	5	2	Meer info
1783140100	470	ANGORA U GINGE ROLLER	2	2	Meer info
1881040200	470	HINGE WHEEL	1	2	Meer info
1881050300	471	HINGE ROPE GROUP L=333-PURPLE	4	2	Meer info
1733820406	500	KICK PLATE	14	1	Meer info
1783070200	530	ANGORA FS KICK PLATE STEEL	8	1	Meer info
1783170100	610	ANGORA BALANCE WEIGHT	9	1	Meer info
1882430900	650	INNER TUB INSULATION	11	1	Meer info
1783830100	655	ANGORA INNER TUB ISOLATION LEFT	10	1	Meer info
1886810100	659	DOOR INSULATION	9	1	Meer info
1783950100	660	ANGORA KICK PLATE ISOLATION	12	1	Meer info
1750210110	1030	OUTER DOOR	18	1	Meer info
1746970100	1034	HANDLE AUXILARY PART	1	1	Meer info
1737380100	1200	INNER DOOR BITUMEN GRD	23	1	Meer info
1783050100	1201	ANGORA FRONT LOWER SUPPORT SHEET	8	1	Meer info
1882410100	1230	DOOR INSULATION	11	1	Meer info
1510600300	1300	SELFRESETING LOCK GROUP	6	1	Meer info
1764130100	1310	HITIT_LOCK_HOOK-7016	2	1	Meer info
1760970100	1311	DOOR LOCK HOOK SUPPORT	3	1	Meer info
1749190100	1910	DOOR SEALING GASKET- L=1775	10	1	Meer info
1882470100	1920	DOOR SEALING GASKET - BOTTOM	7	1	Meer info
1783007300	2000	ANGORA STRUCTURE GROUP	35	1	Meer info
1783400100	2001	ANGORA CORNER BRACKET	1	1	Meer info
1783400200	2002	ANGORA CORNER BRACKET	1	1	Meer info
1783710100	2004	ANGORA FS BOTTOM TRAY GR	17	1	Meer info
1783710400	2004	ANGORA FS BOTTOM TRAY GR	20	0	Meer info
1740810400	2411	SHELF GROUP - ADJUSTABLE	4	4	Meer info
1885800600	2413	UPPER BASKET WHEEL GROUP	4	8	Meer info
1799500400	2414	UPPER BASKET GROUP	22	1	Meer info
1766810020	2420	LOWER RACK GR.	24	1	Meer info
1742960100	2421	lower basket stoper plastic whell gr.	1	2	Meer info
1782020100	2421	GRD LOWER BASKET WHEEL GROUP	4	6	Meer info
1513590101	2423	LOWER BASKET PLATE HOLDER BACK LEFT1	6	1	Meer info
1513610101	2424	LOWER BASKET PLATE HOLDER BACK RIGHT1	6	1	Meer info
1751500400	2430	CUTLERY BASKET GROUP	12	1	Meer info
1751520400	2434	CUTLERY BASKET HANDLE	4	1	Meer info
1751530200	2437	CUTLERY BASKET SEPARATOR-7037	8	2	Meer info
1513620101	2447	LOWER BASKET PLATE HOLDER BACK LEFT2	6	1	Meer info
1513670101	2450	LOWER BASKET PLATE HOLDER BACK RIGHT2	6	1	Meer info
1752600400	2609	RAIL WHEEL GROUP-RAL7037	2	4	Meer info
1880240300	2610	RAIL (430 STAINLESS STEEL)	8	2	Meer info
1732840100	2611	RAIL CAP- FRONT&BACK -RAL7037	2	2	Meer info
1887460200	2612	RAIL CAP-7037	1	2	Meer info
1748940200	2613	RAIL WHEEL SCREW	1	8	Meer info
1749910100	2615	RAIL WHEEL HOLDER	2	4	Meer info
1754825300	3010	PANEL GROUP	20	1	Meer info
1753720408	3320	BEKO SLIM ON OFF BUTTON STROKE 2.5mm	4	1	Meer info
1754650407	3321	START STOP BUTTON	4	1	Meer info
1754970700	3511	PROGRAM FOLLOW UP GLASS	3	1	Meer info
1768190100	3513	FS6 MIDDLE BUTTON PART	1	3	Meer info
1740703500	4000	MOTOR_SPRAY PUMP	31	1	Meer info
1783280100	4001	Angora motor connect├ä┬▒on part2	2	1	Meer info
1783290100	4003	ANGORA DAMPER DISK RUBBER	1	1	Meer info
1883790200	4200	CAPACITOR	10	1	Meer info
1757160100	4210	Iskra noise filter	10	1	Meer info
1740301000	4300	DRAIN PUMP GROUP	18	0	Meer info
1748200100	4300	ALUMINIUM WRAPPED DISCHARGE ENGINE	17	1	Meer info
1888130100	4500	FLOW THROUGH HEATER	22	0	Meer info
1888130200	4500	FLOW THROUGH HEATER	21	1	Meer info
1888130300	4500	FLOW THROUGH HEATER	21	0	Meer info
1888150100	4500	FLOW THROUGH HEATER	21	0	Meer info
1719970100	4504	SOLO PUMP INLET HOSE - 2	4	1	Meer info
1765540400	4800	FS6 CABLE HARNESS	22	1	Meer info
1745542000	4801	RELAY CABLE HARNESS	5	1	Meer info
1745690300	4801	CABLE HARNESS	2	1	Meer info
1745691800	4801	CABLE HARNESS	4	1	Meer info
1751590200	4901	MAIN PLUG-CABLE PROTECTION GR	0	1	Meer info
1768150110	5050	ELECTRONIC CARD FS621501	26	1	Meer info
1780232000	5053	FS6 PROGRAM FOLLOWING FILM	10	1	Meer info
1768170200	5061	FS6 CARD HOLDER FRONT PART	7	1	Meer info
1768180200	5062	FS6 CARD HOLDER BACK PART	5	1	Meer info
1883550200	5710	WATER INLET VALVE	13	1	Meer info
1883570300	5710	WATER INLET VALVE	11	0	Meer info
1886740200	5710	WATER INLET VALVE	13	0	Meer info
1887760100	5710	WATER INLET VALVE	8	0	Meer info
1764950100	5750	REGENERATION VALVE GR SNAP FIT	11	1	Meer info
1761920100	5760	HITIT OVER FLOATING CASING	2	1	Meer info
1760900100	5830	COUNTER GROUP	9	1	Meer info
1732490200	5867	BOTTOM TRAY GASKET GR.	4	1	Meer info
1768000100	6160	SALT INDICATOR SWITCH	8	1	Meer info
1718830100	6161	RINSE AID SWITCH	6	1	Meer info
1754220112	6201	SLIM ON OFF SWITCH HOLDER 2	5	1	Meer info
1732090100	6210	ROLD ON OFF SWITCH 2.5 mm	9	1	Meer info
1761940100	6311	hitit_micro_switch	8	1	Meer info
1761940200	6311	hitit_micro_switch_zingear	5	0	Meer info
1760940100	6315	COUNTER PCB_4	7	1	Meer info
1731980300	6330	NEW DOOR SWITCH	7	1	Meer info
1718601700	6800	DETERGENT DISPENSER GROUP	18	1	Meer info
1719000700	6800	DETERGENT DISPENSER GROUP -RAL 7037	22	0	Meer info
1712730100	6801	DETERGENT DISPENSER GASKET	5	0	Meer info
1718670100	6801	DETERGENT DISPENSER GASKET	9	1	Meer info
1831470000	6802	THERMOACTUATOR D3731 D3421	13	1	Meer info
1712710100	6811	RINSE AID GASKET	8	0	Meer info
1718750100	6811	RINSE AID GASKET	3	1	Meer info
1718640100	6812	COVER SPRING	1	2	Meer info
1887740400	6920	NTC GROUP	7	1	Meer info
1764900100	7100	WATER_SOFTENER_ASSY_2012	20	1	Meer info
1742450100	7102	WATER SOFTENER NUT-RAL7037	2	1	Meer info
1766470100	7103	SOFTONER O-RING	2	1	Meer info
1744250100	7104	O-RING - SALT BOX- BELOW	3	2	Meer info
1883910300	7108	WATER SOFTENER CAP GASKET	3	1	Meer info
1766560100	7140	WATER SOFTONER CAP GROUP-RAL7016	5	1	Meer info
1741600500	7160	REGENERATION UNIT GR	11	1	Meer info
1882630200	7161	AIR FUNNEL GASKET	2	2	Meer info
1882620700	7162	air funnel cup	1	2	Meer info
1746100300	7211	LOWER SPRAY ARM GROUP	6	1	Meer info
1746200600	7220	UPPER SPRAY ARM GROUP 7016	8	1	Meer info
1759600100	7221	UPPER SPRAY ARM FEED PIPE -RAL 7037	8	1	Meer info
1800720800	7228	GASKET	3	1	Meer info
1881101300	7260	WATER SUPPLY TUBE GROUP	8	1	Meer info
1749490200	7261	UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET	3	1	Meer info
1741503100	7510	SUMP GROUP	11	1	Meer info
1889860200	7514	CORNER PADDING GR-FRONT	9	1	Meer info
1889870100	7515	REAR CORNER PADDING GR-BACK	8	1	Meer info
1788060400	7517	UPPER PACKAGE COVER	7	1	Meer info
1764150400	7518	ATLANTIS PACKAGING BOTTOM STYROPHOR	11	1	Meer info
1740110100	7550	HOSE BETWEEN SUMP AND HEATER	5	1	Meer info
1752350100	7561	ANGORA OWERFLOW SIPHON	1	2	Meer info
1740040300	7610	PLASTIC FILTER	5	1	Meer info
1740900600	7611	FILTER SUPPORT GROUP-RAL 7037	4	1	Meer info
1740220700	7620	MICRO FILTER GROUP-7037	10	1	Meer info
1740230400	7630	COARSE FILTER-PURPLE	2	1	Meer info
1740800700	7640	FILTER GROUP	8	1	Meer info
1740161400	7810	DRAIN HOSE	8	1	Meer info
1731840100	7831	HOSE	5	1	Meer info
1800631600	7834	HOSE (VALVE-COUNTER)	2	1	Meer info
1800632000	7835	HOSE BETWEEN COUNTER AND REGENERATION U.	2	1	Meer info
1800866600	7839	HOSE.	4	1	Meer info
1740050300	7910	SUMP GASKET	6	1	Meer info
1754250100	8004	FAN SUCTION TUBE - WELDED	8	1	Meer info
2002370900	8318	HOSE CLAMP (├â╦£ 16.4)	1	4	Meer info
2002373200	8319	HOSE CLAMP (x 40.0)	1	1	Meer info
2002370800	8353	HOSE CLAMP (x 15.88)	1	3	Meer info
2002372100	8357	HOSE CLAMP.(├â╦£ 34_1)	1	1	Meer info
2002372200	8358	HOSE CLAMP (├© 35.6)	1	2	Meer info
2002372400	8359	HOSE CLAMP (├â╦£ 38.8)	1	1	Meer info
2002372500	8360	HOSE CLAMP (x 47.0)	1	1	Meer info
1761990100	8365	H├ä┬░T├ä┬░T DISCHARGE HOSE HOLDER	2	0	Meer info
1783370100	8365	ANGORA WATER INLET VALVE HOSE HOLDER	2	2	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	7	Meer info
1732850100	9013	Hose Clamps With Screw ├â╦£40 White	2	1	Meer info
1783180100	9022	ANGORA NETWORK CABLE HOLDER COVER	2	1	Meer info
1831680000	9101	SCREW (WATER INLET VALVE)	1	1	Meer info
1889340100	9102	SCREW 4x14	1	5	Meer info
1883430100	9105	SCREW (PANEL-DOOR LOCKED)	1	6	Meer info
1883470100	9113	BOLT M4X8 D3731 D3421	1	8	Meer info
1883460100	9114	SCREW (INNER-OUTER DOOR)	1	6	Meer info
1801080100	9115	SCREW (3.9x9.5)	1	6	Meer info
1802860200	9153	SCREW M5x8	1	4	Meer info
1882290200	9154	SCREW CAP-SIDE PANELS-GREY	1	2	Meer info
1883440400	9155	SCREW (5x14)	1	4	Meer info
1883440500	9155	PT screw	1	1	Meer info
1803430100	9203	SCREW (4x14)	1	8	Meer info
1803431300	9203	SCREW (TOP TABLE)	1	2	Meer info
1831780000	9213	WASHER	1	4	Meer info
1784160100	9640	ANGORA LARGE UPPER SOUND GASKET	5	1	Meer info
1513630100	9659	FOLDABLE PART LONG	1	4	Meer info
1513640200	9660	CLIPS LONG	1	4	Meer info
1732380100	9935	SALT FUNNEL 2	3	1	Meer info
1733830200	9952	KICK PLATE ISOLATION	4	1	Meer info
1764050100	9971	Hitit rear upper traverse	8	1	Meer info
1764050200	9971	Hitit rear upper traverse	8	0	Meer info
1783190100	9973	ANGORA 1MM NETWORK CABLE LOCK	2	1	Meer info
1761930100	9975	H├ä┬░T├ä┬░T FLOAT STYROPOR	1	1	Meer info
1883490100	9981	BOLT M4X8	1	2	Meer info
1718990200	9992	DETERGENT DISPENCER CAB HAR HOLD 7037	1	1	Meer info
