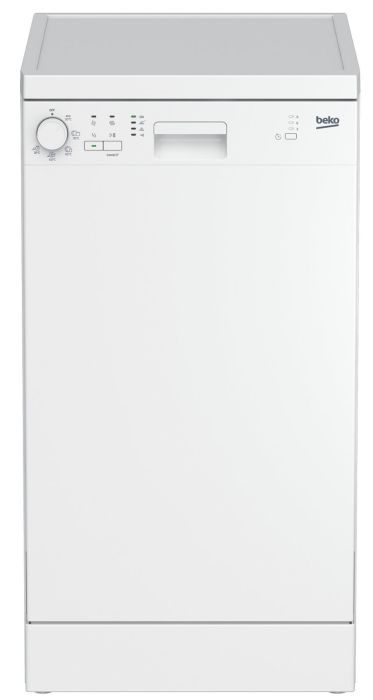

DFS05013W VAATWASMACHINE

Comfort

Artikelnr: 115883

Referentienr: DFS05013W

Aanbevolen verkoopprijs: € 349,99 (BTW & recupel inbegrepen)

Productomschrijving

Slim line wit 5 progr. 10,5L 49 DBA

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
1786320100	40	POSEIDON BOTTOM TRAY 45CM	10	1	Meer info
1786320200	40	POSEIDON BOTTOM TRAY 45CM	11	0	Meer info
2906860200	106	WATER INLET HOSE ASSEMBLY L=1550	10	1	Meer info
1883140300	110	FOOT GROUP-ADJUSTABLE	1	2	Meer info
1763190101	220	SIDE PANEL FS LONG FORM 60CM	17	1	Meer info
1763190201	221	SIDE PANEL FS LONG FORM 60CM	17	1	Meer info
1783030201	401	HINGE ARM-RIGHT	8	1	Meer info
1783030101	402	HINGE ARM-LEFT	8	1	Meer info
1743240300	403	HINGE ARM SUPPORT	7	1	Meer info
1783160500	440	ANGORA HINGE SPRING	4	2	Meer info
1783140100	470	ANGORA U GINGE ROLLER	2	2	Meer info
1881040200	470	HINGE WHEEL	1	2	Meer info
1881050400	471	HINGE ROPE GROUP L=333-PURPLE	2	2	Meer info
1768020100	500	BEKO2014 KICK PLATE 45cm WITH SPONGE	10	1	Meer info
1513780200	530	POSEIDON FREE STAND KICK PLATE SHEET	8	1	Meer info
1786170100	610	BALANCE WEIGHT	11	1	Meer info
1743930100	650	INNER TUB ISOLATION	9	1	Meer info
1783830100	655	ANGORA INNER TUB ISOLATION LEFT	10	1	Meer info
1769010101	1030	BEKO OUTER DOOR 45CM	15	1	Meer info
1746970100	1034	HANDLE AUXILARY PART	1	1	Meer info
1517100100	1200	45PSD INNER DOOR BITUMEN GR 2mm	23	1	Meer info
1513760300	1201	POSEIDON FRONT LOWER SUPPORT SHEET	8	1	Meer info
1781060400	1230	DOOR INSULATION POSEIDON 25mm	11	1	Meer info
1510600300	1300	SELFRESETING LOCK GROUP	6	1	Meer info
1764130100	1310	HITIT_LOCK_HOOK-7016	2	1	Meer info
1760970100	1311	DOOR LOCK HOOK SUPPORT	3	1	Meer info
1749190200	1910	DOOR SEALING GASKET- L=1625	10	1	Meer info
1882470200	1920	DOOR SEALING GASKET - BOTTOM	4	1	Meer info
1887560400	1920	DOOR SEALING GASKET - BOTTOM	5	1	Meer info
1513800200	2000	POSEIDON STRUCTURE GR	32	1	Meer info
1783400100	2001	ANGORA CORNER BRACKET	1	1	Meer info
1783400200	2002	ANGORA CORNER BRACKET	1	1	Meer info
1786390100	2004	PSD FS BOTTOM TRAY GR	21	1	Meer info
1513080100	2411	EU3 BEKO TOP BASKET SHELF GR	4	2	Meer info
1761160500	2413	EU3 UPPER BASKET WHELL GROUP	2	4	Meer info
1765700003	2414	EU3 UST SEPET GROUP 45CM	27	1	Meer info
1510300005	2420	EU3 LOWER BASKET GROUP 45CM	25	1	Meer info
1763680200	2421	LOWER BASKET WHEEL GROUP 45CM	5	8	Meer info
1516960101	2423	POSEIDON LOWER BASKET FOLDING WIRE BACK1	9	1	Meer info
1516970101	2423	POSEIDON LOWER BASKET FOLDING WIRE BACK2	9	1	Meer info
1513940500	2430	SLIDING CUTLERY BASKET 45CM	13	1	Meer info
1513970100	2431	CUTLERY BASKET BODY 45CM	10	1	Meer info
1513980200	2437	45CM SEPERATOR	2	2	Meer info
1752600400	2609	RAIL WHEEL GROUP-RAL7037	2	4	Meer info
1880240300	2610	RAIL (430 STAINLESS STEEL)	8	2	Meer info
1732840100	2611	RAIL CAP- FRONT&BACK -RAL7037	2	4	Meer info
1748940200	2613	RAIL WHEEL SCREW	1	8	Meer info
1749910100	2615	RAIL WHEEL HOLDER	2	4	Meer info
1769700100	3310	BEKO GOOD PROGRAM BUTTON GROUP	4	1	Meer info
1769660100	3321	Beko good start stop tusu	4	1	Meer info
1769670100	3322	BEKO GOOD FUNCTION BUTTON	2	1	Meer info
1769730100	3512	Beko good function buttom glass	1	1	Meer info
1769680100	3514	BEKO GOOD FUNCTION GLASS	3	1	Meer info
1740704200	4000	MOTOR_SPRAY PUMP	30	0	Meer info
1513840100	4001	POSEIDON MOTOR CONNECTION PART	1	1	Meer info
1783290100	4003	ANGORA DAMPER DISK RUBBER	1	1	Meer info
1883790200	4200	CAPACITOR	10	1	Meer info
1740301000	4300	DRAIN PUMP GROUP	18	0	Meer info
1748200100	4300	ALUMINIUM WRAPPED DISCHARGE ENGINE	17	1	Meer info
1888130100	4500	FLOW THROUGH HEATER	22	0	Meer info
1888130200	4500	FLOW THROUGH HEATER	21	1	Meer info
1888130300	4500	FLOW THROUGH HEATER	21	0	Meer info
1888150100	4500	FLOW THROUGH HEATER	21	0	Meer info
1719970100	4504	SOLO PUMP INLET HOSE - 2	4	1	Meer info
1751692100	4800	A5 CABLE HARNESS GROUP 45cm	23	1	Meer info
1745540300	4801	PROGRAM DELAY CABLE GROUP	11	1	Meer info
1751593100	4901	MAIN PLUG-CABLE PROTECTION GR	1	1	Meer info
1785052160	5050	ELECTRONIC CARD A536500	23	1	Meer info
1769650200	5051	BEKO GOOD CARD HOLDER FRONT PART	4	1	Meer info
1899620100	5060	TIME DELAY CARD	8	1	Meer info
1515690100	5061	A5 CARD HOLDER BACK PART	3	1	Meer info
1746311300	5061	A3 DISPLAY CARD HOLDER	4	1	Meer info
1769690100	5064	BEKO GOOD TIME DELAY BUTTON	3	1	Meer info
1883550200	5710	WATER INLET VALVE	13	1	Meer info
1883570300	5710	WATER INLET VALVE	11	0	Meer info
1887760100	5710	WATER INLET VALVE	8	0	Meer info
1764950300	5750	REGENERATION VALVE GR SNAP FIT	11	1	Meer info
1761920100	5760	HITIT OVER FLOATING CASING	2	1	Meer info
1760900100	5830	COUNTER GROUP	9	1	Meer info
1732490200	5867	BOTTOM TRAY GASKET GR.	4	1	Meer info
1734600200	6211	STAGE SELECT BUTTON GROUP	3	1	Meer info
1761940100	6311	hitit_micro_switch	8	1	Meer info
1761940200	6311	hitit_micro_switch_zingear	5	0	Meer info
1760940100	6315	COUNTER PCB_4	7	2	Meer info
1731980300	6330	NEW DOOR SWITCH	7	1	Meer info
1512300100	6800	BITRON DETERGENT BOX GROUP	18	1	Meer info
1887740400	6920	NTC GROUP	7	1	Meer info
1768300100	7100	WATER SOFTENER GROUP	18	1	Meer info
1742450100	7102	WATER SOFTENER NUT-RAL7037	2	1	Meer info
1766470100	7103	SOFTONER O-RING	2	1	Meer info
1744250100	7104	O-RING - SALT BOX- BELOW	3	2	Meer info
1883910300	7108	WATER SOFTENER CAP GASKET	3	1	Meer info
1766560100	7140	WATER SOFTONER CAP GROUP-RAL7016	5	1	Meer info
1741600200	7160	REGENERATION UNIT GR	11	1	Meer info
1882630200	7161	AIR FUNNEL GASKET	2	1	Meer info
1882620700	7162	air funnel cup	1	1	Meer info
1515200100	7211	POSEIDON LOWER SPRAY ARM GROUP	7	1	Meer info
1515260100	7220	POSEIDON TOP SPRAY ARM GROUP COMPLETE	8	2	Meer info
1515300100	7221	PSD UPPER SPRAY ARM FEED PIPE GROUP	9	1	Meer info
1512590200	7260	ATLANTIS WATER SUPPLY TUBE GR.	7	1	Meer info
1512510100	7261	UPPER SPRAY ARM FEED PIPE CENTERING PART	3	1	Meer info
1741503200	7510	SUMP GR	11	1	Meer info
1889860200	7514	CORNER PADDING GR-FRONT	9	1	Meer info
1889870100	7515	REAR CORNER PADDING GR-BACK	8	1	Meer info
1745190100	7516	PACKAGE COVER - BOTTOM	7	1	Meer info
1788430100	7517	PACKAGE COVER - UPPER	6	1	Meer info
1516120200	7518	45PSD PACKAGING BOTTOM STYROPHOR	12	1	Meer info
1743650100	7550	HOSE BETWEEN SUMP AND HEATER	8	1	Meer info
1752350100	7561	ANGORA OWERFLOW SIPHON	1	2	Meer info
1799990100	7562	2019 CABLE HOLDER UPPER PART	3	1	Meer info
1799980100	7563	2019 CABLE HOLDER TOP PART	2	1	Meer info
1786610200	7610	METAL FILTER HALF	13	1	Meer info
1757830100	7611	HALF FILTER SUPPORT 45CM	6	1	Meer info
1796080500	7620	MICRO FILTER GROUP_3 NO RING	7	1	Meer info
1740230300	7630	COARSE FILTER-7016	8	1	Meer info
1796092100	7640	FILTER GROUP COMPLETE 3 NO RING	9	1	Meer info
1740161400	7810	DRAIN HOSE	8	1	Meer info
1786150100	7831	hose	6	1	Meer info
1800632400	7834	HOSE (VALVE-COUNTER)	7	1	Meer info
1800632000	7835	HOSE BETWEEN COUNTER AND REGENERATION U.	2	1	Meer info
1800862600	7839	HOSE BETWEEN WATER SOFT AND REJEN. UNIT	3	1	Meer info
1740050300	7910	SUMP GASKET	6	1	Meer info
2002370900	8318	HOSE CLAMP (├â╦£ 16.4)	1	6	Meer info
2002373200	8319	HOSE CLAMP (x 40.0)	1	1	Meer info
2002372100	8357	HOSE CLAMP.(├â╦£ 34_1)	1	1	Meer info
2002372200	8358	HOSE CLAMP (├© 35.6)	1	2	Meer info
2002372400	8359	HOSE CLAMP (├â╦£ 38.8)	1	1	Meer info
2002372500	8360	HOSE CLAMP (x 47.0)	1	1	Meer info
1761990100	8365	H├ä┬░T├ä┬░T DISCHARGE HOSE HOLDER	2	0	Meer info
1783370100	8365	ANGORA WATER INLET VALVE HOSE HOLDER	2	2	Meer info
9001231200	8382	PLASTIC CLAMP. 298 mm	1	1	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	6	Meer info
1732850100	9013	Hose Clamps With Screw ├â╦£40 White	2	1	Meer info
1783180100	9022	ANGORA NETWORK CABLE HOLDER COVER	2	1	Meer info
1831680000	9101	SCREW (WATER INLET VALVE)	1	1	Meer info
1889340100	9102	SCREW 4x14	1	3	Meer info
1883430100	9105	SCREW (PANEL-DOOR LOCKED)	1	8	Meer info
1883430300	9105	SCREW (FILTER SUPPORT)	1	2	Meer info
1883470100	9113	BOLT M4X8 D3731 D3421	1	10	Meer info
1883460100	9114	SCREW (INNER-OUTER DOOR)	1	6	Meer info
1801080100	9115	SCREW (3.9x9.5)	1	6	Meer info
1802860200	9153	SCREW M5x8	1	4	Meer info
1882290100	9154	SCREW CAP-SIDE PANELS-WHITE	1	2	Meer info
1883440400	9155	SCREW (5x14)	1	4	Meer info
1883440500	9155	PT screw	1	1	Meer info
1803430100	9203	SCREW (4x14)	1	6	Meer info
1803431300	9203	SCREW (TOP TABLE)	1	2	Meer info
1831780000	9213	WASHER	1	4	Meer info
1784160600	9640	ANGORA LARGE UPPER SOUND GASKET	4	1	Meer info
1880270200	9641	NOISE ISOLATION-7037	4	2	Meer info
1513630100	9659	FOLDABLE PART LONG	1	2	Meer info
1513640200	9660	CLIPS LONG	1	4	Meer info
1732380100	9935	SALT FUNNEL 2	3	1	Meer info
1513750100	9971	POSEIDON BACK TRAVERSE	7	1	Meer info
1513750200	9971	POSEIDON BACK TRAVERSE	9	0	Meer info
1783190100	9973	ANGORA 1MM NETWORK CABLE LOCK	2	1	Meer info
1761930100	9975	H├ä┬░T├ä┬░T FLOAT STYROPOR	1	1	Meer info
1883490100	9981	BOLT M4X8	1	2	Meer info
