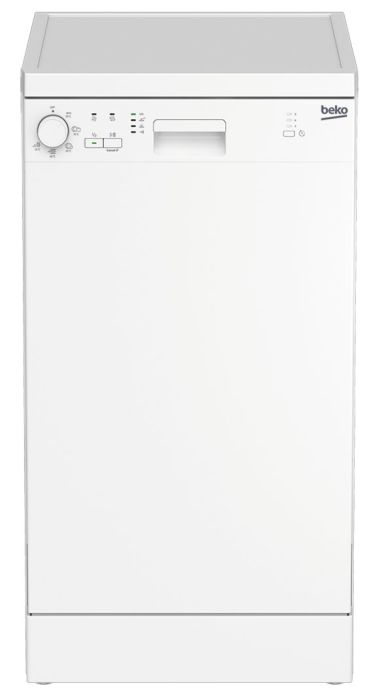

DFS05011W VAATWASMACHINE
Artikelnr:
114302
Referentienr:
DFS05011W
Aanbevolen verkoopprijs:
€ 999,99
(BTW & recupel inbegrepen)
Productomschrijving
45 cm wit 5 progr. 13L 49 DBA
| Hoogte | 85 |
|---|---|
| Breedte | 44.8 |
| Diepte | 60 |
| Gewicht (Kg) | 39.5 |
| Verpakkingseenheid | 1 |
| ArtRef | DFS05011W |
| AsogemID | 114302 |
| MPN | 7622683955 |
| Merk | BEKO |
| Going prijs | 999,99 |
| Soort | Vaatwasser |
| ArtEAN | 8690842018428 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 1887550100 | 11 | FREE STANDING FOOT SUPPORT LEFT | 5 | 1 | Meer info | |||
| 1887550200 | 12 | FREE STANDING FOOT SUPPORT RIGHT | 5 | 1 | Meer info | |||
| 1881790100 | 13 | FOOT SUPPORT PART | 4 | 2 | Meer info | |||
| 1743320192 | 40 | BOTTOM TRAY-45 cm | 11 | 1 | Meer info | |||
| 2906860200 | 106 | WATER INLET HOSE ASSEMBLY L=1550 | 10 | 1 | Meer info | |||
| 1883140300 | 110 | FOOT GROUP-ADJUSTABLE | 1 | 4 | Meer info | |||
| 1800864700 | 119 | HOSE BETWEEN FAN AND SUMP | 2 | 1 | Meer info | |||
| 1759490501 | 220 | SIDE PANEL-LEFT | 15 | 1 | Meer info | |||
| 1759490601 | 221 | SIDE PANEL-RIGHT | 15 | 1 | Meer info | |||
| 1743270100 | 240 | REAR BOTTOM SUPPORT | 8 | 1 | Meer info | |||
| 1781460100 | 300 | GRD TOP PLATE GR 45cm | 19 | 1 | Meer info | |||
| 1882350300 | 301 | TOP PLATE SUPPORT PART | 2 | 1 | Meer info | |||
| 2003030000 | 335 | SEAL | 1 | 1 | Meer info | |||
| 1741810202 | 401 | HINGE ARM-RIGHT | 8 | 1 | Meer info | |||
| 1741810102 | 402 | HINGE ARM-LEFT | 8 | 1 | Meer info | |||
| 1743240100 | 403 | HINGE ARM SUPPORT | 4 | 1 | Meer info | |||
| 1743980100 | 440 | HINGE SPRING | 4 | 2 | Meer info | |||
| 1881040300 | 470 | HINGE WHEEL-RED | 1 | 2 | Meer info | |||
| 1881050100 | 471 | HINGE ROPE GROUP L=440(GREY) | 4 | 2 | Meer info | |||
| 1881090100 | 472 | HINGE SPRING HOLDER-LEFT | 3 | 1 | Meer info | |||
| 1881090200 | 473 | HINGE SPRING HOLDER-RIGHT | 4 | 1 | Meer info | |||
| 1769040400 | 500 | BEKO kick plate 45cm | 10 | 1 | Meer info | |||
| 1743250600 | 530 | KICK PLATE SHEET | 8 | 1 | Meer info | |||
| 1743750200 | 610 | BALANCE WEIGHT | 10 | 1 | Meer info | |||
| 1743930300 | 650 | INNER TUB ISOLATION | 11 | 1 | Meer info | |||
| 1743950100 | 652 | KICK PLATE INSULATION | 3 | 1 | Meer info | |||
| 1884750200 | 653 | DOOR LOCK COTTON FLEECE | 1 | 1 | Meer info | |||
| 1886840100 | 655 | INNER TUB ISOLATION-LEFT | 8 | 1 | Meer info | |||
| 1882420200 | 656 | KICK PLATE FOAM | 10 | 1 | Meer info | |||
| 1769010101 | 1030 | BEKO OUTER DOOR 45CM | 15 | 1 | Meer info | |||
| 1737370200 | 1200 | INNER DOOR BITUMEN GRD | 21 | 1 | Meer info | |||
| 1743230100 | 1201 | LOWER SUPPORT - FRONT | 9 | 1 | Meer info | |||
| 1743940100 | 1230 | DOOR INSULATION | 8 | 1 | Meer info | |||
| 1510600300 | 1300 | SELFRESETING LOCK GROUP | 6 | 1 | Meer info | |||
| 1881970100 | 1310 | DOOR LOCK HOOK | 1 | 1 | Meer info | |||
| 1749190200 | 1910 | DOOR SEALING GASKET- L=1625 | 10 | 1 | Meer info | |||
| 1882470200 | 1920 | DOOR SEALING GASKET - BOTTOM | 4 | 1 | Meer info | |||
| 1750601900 | 2000 | STRUCTURE GROUP | 34 | 1 | Meer info | |||
| 1749050500 | 2001 | TOP CORNER BRACKET - LEFT | 1 | 1 | Meer info | |||
| 1749050600 | 2002 | TOP CORNER BRACKET - RIGHT | 1 | 1 | Meer info | |||
| 1768940200 | 2411 | BEKO TOP BASKET SHELF EU1 45CM-7016 | 4 | 4 | Meer info | |||
| 1885800600 | 2413 | UPPER BASKET WHEEL GROUP | 4 | 8 | Meer info | |||
| 1799101100 | 2414 | UPPER BASKET GROUP | 24 | 1 | Meer info | |||
| 1763401700 | 2420 | LOWER BASKET EU2 GROUP 45CM | 23 | 1 | Meer info | |||
| 1763680100 | 2421 | LOWER BASKET WHEEL GROUP 45CM | 4 | 8 | Meer info | |||
| 1763470100 | 2424 | 45CM PLATE HOLDER-BACK 1-7016 | 9 | 1 | Meer info | |||
| 1763480100 | 2424 | 45CM PLATE HOLDER BACK 2-7016 | 9 | 1 | Meer info | |||
| 1781870200 | 2425 | L.BASKET SHORT FOLDING PART 742/PURPLE | 2 | 2 | Meer info | |||
| 1758910200 | 2427 | LOWER BASKET CLIPS-7037 | 1 | 2 | Meer info | |||
| 1782100900 | 2430 | CUTLERY BASKET GROUP 45CM PURPLE HANDLE | 12 | 1 | Meer info | |||
| 1782120100 | 2437 | GRD CUTLERY BASKET SEPERATOR | 2 | 2 | Meer info | |||
| 1781890100 | 2521 | GRD LOWER BASKET SHORT CLIPS-RIGHT | 1 | 2 | Meer info | |||
| 1781890200 | 2522 | GRD LOWER BASKET SHORT CLIPS-LEFT | 1 | 2 | Meer info | |||
| 1752600400 | 2609 | RAIL WHEEL GROUP-RAL7037 | 2 | 4 | Meer info | |||
| 1880240300 | 2610 | RAIL (430 STAINLESS STEEL) | 8 | 2 | Meer info | |||
| 1732840100 | 2611 | RAIL CAP- FRONT&BACK -RAL7037 | 2 | 2 | Meer info | |||
| 1887460200 | 2612 | RAIL CAP-7037 | 1 | 2 | Meer info | |||
| 1748940200 | 2613 | RAIL WHEEL SCREW | 1 | 8 | Meer info | |||
| 1749910100 | 2615 | RAIL WHEEL HOLDER | 2 | 4 | Meer info | |||
| 1753290001 | 3010 | PANEL GROUP | 14 | 1 | Meer info | |||
| 1769700100 | 3310 | BEKO GOOD PROGRAM BUTTON GROUP | 4 | 1 | Meer info | |||
| 1769660100 | 3321 | Beko good start stop tusu | 4 | 1 | Meer info | |||
| 1769670100 | 3322 | BEKO GOOD FUNCTION BUTTON | 2 | 1 | Meer info | |||
| 1769730100 | 3512 | Beko good function buttom glass | 1 | 1 | Meer info | |||
| 1769680100 | 3514 | BEKO GOOD FUNCTION GLASS | 3 | 1 | Meer info | |||
| 1740701900 | 4000 | MOTOR_SPRAY PUMP | 31 | 0 | Meer info | |||
| 1880390100 | 4001 | MOTOR FIXING CAP D3731 D3421 | 2 | 1 | Meer info | |||
| 1743280100 | 4002 | MOTOR BRACKET GROUP | 3 | 1 | Meer info | |||
| 1881440200 | 4003 | DAMPENING RUBBER TPV | 3 | 1 | Meer info | |||
| 1740600200 | 4004 | MOTOR BRACKET GROUP | 10 | 1 | Meer info | |||
| 1883790200 | 4200 | CAPACITOR | 10 | 1 | Meer info | |||
| 1757160100 | 4210 | Iskra noise filter | 10 | 1 | Meer info | |||
| 1740301000 | 4300 | DRAIN PUMP GROUP | 18 | 0 | Meer info | |||
| 1748200100 | 4300 | ALUMINIUM WRAPPED DISCHARGE ENGINE | 17 | 1 | Meer info | |||
| 1888130100 | 4500 | FLOW THROUGH HEATER | 22 | 0 | Meer info | |||
| 1888130200 | 4500 | FLOW THROUGH HEATER | 21 | 1 | Meer info | |||
| 1888130300 | 4500 | FLOW THROUGH HEATER | 21 | 0 | Meer info | |||
| 1888150100 | 4500 | FLOW THROUGH HEATER | 21 | 0 | Meer info | |||
| 1719970100 | 4504 | SOLO PUMP INLET HOSE - 2 | 4 | 1 | Meer info | |||
| 1765461100 | 4800 | A4 CABLE HARNESS 45cm | 21 | 1 | Meer info | |||
| 1745540300 | 4801 | PROGRAM DELAY CABLE GROUP | 11 | 1 | Meer info | |||
| 1892101600 | 4901 | MAIN PLUG GROUP 220-230 V smart 1 | 11 | 1 | Meer info | |||
| 1784094220 | 5050 | ELECTRONIC CARD A436501 | 21 | 1 | Meer info | |||
| 1769650200 | 5051 | BEKO GOOD CARD HOLDER FRONT PART | 4 | 1 | Meer info | |||
| 1899620100 | 5060 | TIME DELAY CARD | 8 | 1 | Meer info | |||
| 1746311300 | 5061 | A3 DISPLAY CARD HOLDER | 4 | 1 | Meer info | |||
| 1764390200 | 5061 | HITIT A4 CARD HOLDER BACK PART | 4 | 1 | Meer info | |||
| 1769690100 | 5064 | BEKO GOOD TIME DELAY BUTTON | 3 | 1 | Meer info | |||
| 1883550200 | 5710 | WATER INLET VALVE | 13 | 1 | Meer info | |||
| 1883570300 | 5710 | WATER INLET VALVE | 11 | 0 | Meer info | |||
| 1887760100 | 5710 | WATER INLET VALVE | 8 | 0 | Meer info | |||
| 1764950300 | 5750 | REGENERATION VALVE GR SNAP FIT | 11 | 1 | Meer info | |||
| 1744290100 | 5760 | over_floating_house_3 | 1 | 1 | Meer info | |||
| 1760900100 | 5830 | COUNTER GROUP | 9 | 1 | Meer info | |||
| 1732490200 | 5867 | BOTTOM TRAY GASKET GR. | 4 | 1 | Meer info | |||
| 1718830100 | 6161 | RINSE AID SWITCH | 6 | 1 | Meer info | |||
| 1734600200 | 6211 | STAGE SELECT BUTTON GROUP | 3 | 1 | Meer info | |||
| 1883240100 | 6311 | OVER FLOW SWITCH (LOW END) D3731 D3421 | 6 | 1 | Meer info | |||
| 1760940100 | 6315 | COUNTER PCB_4 | 7 | 2 | Meer info | |||
| 1731980300 | 6330 | NEW DOOR SWITCH | 7 | 1 | Meer info | |||
| 1718601700 | 6800 | DETERGENT DISPENSER GROUP | 18 | 1 | Meer info | |||
| 1719000700 | 6800 | DETERGENT DISPENSER GROUP -RAL 7037 | 22 | 0 | Meer info | |||
| 1712730100 | 6801 | DETERGENT DISPENSER GASKET | 5 | 0 | Meer info | |||
| 1718670100 | 6801 | DETERGENT DISPENSER GASKET | 9 | 1 | Meer info | |||
| 1831470000 | 6802 | THERMOACTUATOR D3731 D3421 | 13 | 1 | Meer info | |||
| 1712710100 | 6811 | RINSE AID GASKET | 8 | 0 | Meer info | |||
| 1718750100 | 6811 | RINSE AID GASKET | 3 | 1 | Meer info | |||
| 1718640100 | 6812 | COVER SPRING | 1 | 2 | Meer info | |||
| 1887740400 | 6920 | NTC GROUP | 7 | 1 | Meer info | |||
| 1805100700 | 7010 | WATER INLET HOSE | 11 | 1 | Meer info | |||
| 2906861200&n | 7010 | - | 0 | 1 | Meer info | |||
| 1883740200 | 7011 | DRAIN HOSE HOLDER 7037 | 2 | 2 | Meer info | |||
| 1768300100 | 7100 | WATER SOFTENER GROUP | 18 | 1 | Meer info | |||
| 1742450100 | 7102 | WATER SOFTENER NUT-RAL7037 | 2 | 1 | Meer info | |||
| 1766470100 | 7103 | SOFTONER O-RING | 2 | 1 | Meer info | |||
| 1744250100 | 7104 | O-RING - SALT BOX- BELOW | 3 | 2 | Meer info | |||
| 1883910300 | 7108 | WATER SOFTENER CAP GASKET | 3 | 1 | Meer info | |||
| 1766560100 | 7140 | WATER SOFTONER CAP GROUP-RAL7016 | 5 | 1 | Meer info | |||
| 1741600200 | 7160 | REGENERATION UNIT GR | 11 | 1 | Meer info | |||
| 1882630200 | 7161 | AIR FUNNEL GASKET | 2 | 2 | Meer info | |||
| 1882620700 | 7162 | air funnel cup | 1 | 2 | Meer info | |||
| 1800864400 | 7169 | HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) | 1 | 1 | Meer info | |||
| 1744400200 | 7211 | LOWER SPRAY ARM GROUP-7037 | 7 | 1 | Meer info | |||
| 1745300400 | 7220 | UPPER SPRAY ARM GROUP 7037-7016 | 8 | 1 | Meer info | |||
| 1759600100 | 7221 | UPPER SPRAY ARM FEED PIPE -RAL 7037 | 8 | 1 | Meer info | |||
| 1800720800 | 7228 | GASKET | 3 | 1 | Meer info | |||
| 1737930200 | 7232 | NOZZLE HOLDER FOR TOP SPRAY ARM-7037 | 2 | 1 | Meer info | |||
| 1737960200 | 7234 | TOP SPRAY ARM CAP-7037 | 2 | 1 | Meer info | |||
| 1738001600 | 7260 | WATER SUPPLY TUBE-7037 | 12 | 1 | Meer info | |||
| 1749490200 | 7261 | UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET | 3 | 1 | Meer info | |||
| 1737950200 | 7332 | TOP SPRAY ARM FEED BODY-7037 | 2 | 1 | Meer info | |||
| 1741503400 | 7510 | SUMP GR | 14 | 1 | Meer info | |||
| 1889860200 | 7514 | CORNER PADDING GR-FRONT | 9 | 1 | Meer info | |||
| 1889870100 | 7515 | REAR CORNER PADDING GR-BACK | 8 | 1 | Meer info | |||
| 1745190100 | 7516 | PACKAGE COVER - BOTTOM | 7 | 1 | Meer info | |||
| 1788430100 | 7517 | PACKAGE COVER - UPPER | 6 | 1 | Meer info | |||
| 1745010200 | 7518 | PACKAGE STRAFOR - BOTTOM | 11 | 1 | Meer info | |||
| 1743650100 | 7550 | HOSE BETWEEN SUMP AND HEATER | 8 | 1 | Meer info | |||
| 1888100100 | 7560 | OVERFLOW FLOAT GROUP | 8 | 1 | Meer info | |||
| 1884280100 | 7561 | SIFHON | 2 | 2 | Meer info | |||
| 1786610200 | 7610 | METAL FILTER HALF | 13 | 1 | Meer info | |||
| 1757830100 | 7611 | HALF FILTER SUPPORT 45CM | 6 | 1 | Meer info | |||
| 1796080500 | 7620 | MICRO FILTER GROUP_3 NO RING | 7 | 1 | Meer info | |||
| 1740230400 | 7630 | COARSE FILTER-PURPLE | 2 | 1 | Meer info | |||
| 1796090700 | 7640 | FILTER GROUP 3 NO RING | 9 | 1 | Meer info | |||
| 1740160300 | 7810 | DRAIN HOSE | 8 | 1 | Meer info | |||
| 1743640100 | 7831 | HOSE | 7 | 1 | Meer info | |||
| 1800632400 | 7834 | HOSE (VALVE-COUNTER) | 7 | 1 | Meer info | |||
| 1800632000 | 7835 | HOSE BETWEEN COUNTER AND REGENERATION U. | 2 | 1 | Meer info | |||
| 1800862600 | 7839 | HOSE BETWEEN WATER SOFT AND REJEN. UNIT | 3 | 1 | Meer info | |||
| 1800862300 | 7844 | HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) | 2 | 1 | Meer info | |||
| 1740050300 | 7910 | SUMP GASKET | 6 | 1 | Meer info | |||
| 1754250100 | 8004 | FAN SUCTION TUBE - WELDED | 8 | 1 | Meer info | |||
| 2002370900 | 8318 | HOSE CLAMP (Ø 16.4) | 1 | 6 | Meer info | |||
| 2002373200 | 8319 | HOSE CLAMP (x 40.0) | 1 | 1 | Meer info | |||
| 1800710000 | 8351 | HOSE FILTER D3422 | 6 | 1 | Meer info | |||
| 2002370800 | 8353 | HOSE CLAMP (x 15.88) | 1 | 1 | Meer info | |||
| 2002372100 | 8357 | HOSE CLAMP.(Ø 34_1) | 1 | 1 | Meer info | |||
| 2002372200 | 8358 | HOSE CLAMP (├© 35.6) | 1 | 2 | Meer info | |||
| 2002372400 | 8359 | HOSE CLAMP (Ø 38.8) | 1 | 1 | Meer info | |||
| 2002372500 | 8360 | HOSE CLAMP (x 47.0) | 1 | 1 | Meer info | |||
| 2002740100 | 8365 | DRAIN HOSE HOLDER | 2 | 1 | Meer info | |||
| 9003270400 | 8385 | PLASTIC SCREW (4_10) | 1 | 4 | Meer info | |||
| 1732850100 | 9013 | Hose Clamps With Screw Ø40 White | 2 | 1 | Meer info | |||
| 1883170100 | 9022 | MAIN PLUG HOLDER | 1 | 1 | Meer info | |||
| 1831680000 | 9101 | SCREW (WATER INLET VALVE) | 1 | 1 | Meer info | |||
| 1889340100 | 9102 | SCREW 4x14 | 1 | 3 | Meer info | |||
| 1883430100 | 9105 | SCREW (PANEL-DOOR LOCKED) | 1 | 6 | Meer info | |||
| 1883430300 | 9105 | SCREW (FILTER SUPPORT) | 1 | 2 | Meer info | |||
| 1883470100 | 9113 | BOLT M4X8 D3731 D3421 | 1 | 16 | Meer info | |||
| 1883460100 | 9114 | SCREW (INNER-OUTER DOOR) | 1 | 6 | Meer info | |||
| 1801080100 | 9115 | SCREW (3.9x9.5) | 1 | 24 | Meer info | |||
| 1889330100 | 9116 | SCREW FOR REAR BOTTOM SUPPORT | 1 | 2 | Meer info | |||
| 1802860200 | 9153 | SCREW M5x8 | 1 | 4 | Meer info | |||
| 1882290100 | 9154 | SCREW CAP-SIDE PANELS-WHITE | 1 | 2 | Meer info | |||
| 1883440300 | 9155 | SCREW (5x22)(MOTOR) | 1 | 1 | Meer info | |||
| 1831780000 | 9213 | WASHER | 1 | 2 | Meer info | |||
| 1882280600 | 9640 | NOISE ISOLATION FOR TUB-7037 | 3 | 1 | Meer info | |||
| 1882281100 | 9640 | NOISE ISOLATION FOR TUB | 1 | 1 | Meer info | |||
| 1732380100 | 9935 | SALT FUNNEL 2 | 3 | 1 | Meer info | |||
| 1886750200 | 9937 | SCREW | 1 | 2 | Meer info | |||
| 1883490100 | 9981 | BOLT M4X8 | 1 | 2 | Meer info | |||
| 1718990200 | 9992 | DETERGENT DISPENCER CAB HAR HOLD 7037 | 1 | 1 | Meer info |
