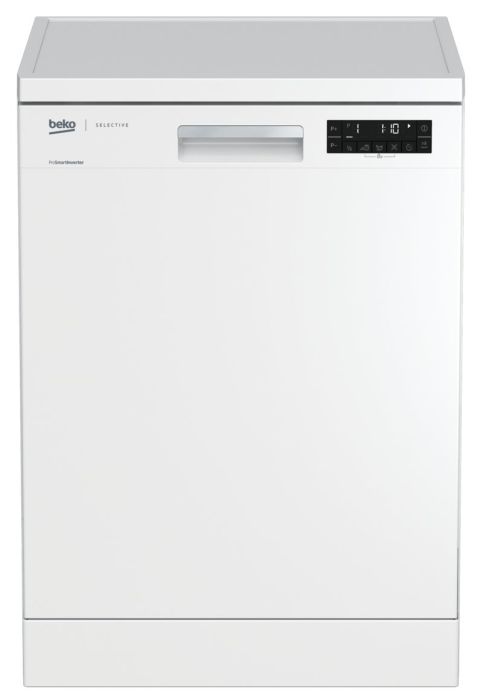

DFN28422W VAATWASMACHINE

Selective

Artikelnr: 114241

Referentienr: DFN28422W

Aanbevolen verkoopprijs: € 399,99 (BTW & recupel inbegrepen)

Productomschrijving

Steamgloss 8 progr. 9,5L - 43 DBA

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
1783130100	40	ANGORA BOTTOM TRAY	11	1	Meer info
1783130200	40	ANGORA BOTTOM TRAY	9	0	Meer info
2906860200	106	WATER INLET HOSE ASSEMBLY L=1550	10	1	Meer info
1883140300	110	FOOT GROUP-ADJUSTABLE	1	2	Meer info
1800863200	119	HOSE BETWEEN FAN AND SUMP	2	1	Meer info
1763190101	220	SIDE PANEL FS LONG FORM 60CM	17	1	Meer info
1763190201	221	SIDE PANEL FS LONG FORM 60CM	17	1	Meer info
1515040100	300	TOP PLATE GROUP	20	1	Meer info
1783030201	401	HINGE ARM-RIGHT	8	1	Meer info
1783030101	402	HINGE ARM-LEFT	8	1	Meer info
1888190200	403	HINGE ARM SUPPORT	4	1	Meer info
1783160100	440	ANGORA HINGE SPRING	5	2	Meer info
1783140100	470	ANGORA U GINGE ROLLER	2	2	Meer info
1881040200	470	HINGE WHEEL	1	2	Meer info
1881050300	471	HINGE ROPE GROUP L=333-PURPLE	4	2	Meer info
1768010100	500	BEKO2014 KICK PLATE WITH SPONGE	12	1	Meer info
1783070200	530	ANGORA FS KICK PLATE STEEL	8	1	Meer info
1783170200	610	ANGORA BALANCE WEIGHT	10	1	Meer info
1744930100	649	REAR FRAME COTTON FLEECE	16	1	Meer info
1783950100	660	ANGORA KICK PLATE ISOLATION	12	1	Meer info
1762650100	953	ATLANTIS MOTOR CLAMP GROUP	34	1	Meer info
1769000101	1030	BEKO OUTER DOOR 60CM-WHITE	16	1	Meer info
1783050200	1201	ANGORA FRONT LOWER SUPPORT SHEET	9	1	Meer info
1781060100	1230	DOOR INSULATION GRD 25mm	12	1	Meer info
1510600200	1300	SELFRESETING LOCK GROUP	5	1	Meer info
1764130100	1310	HITIT_LOCK_HOOK-7016	2	1	Meer info
1760970100	1311	DOOR LOCK HOOK SUPPORT	3	1	Meer info
1749190100	1910	DOOR SEALING GASKET- L=1775	10	1	Meer info
1882470100	1920	DOOR SEALING GASKET - BOTTOM	7	1	Meer info
1887560300	1920	DOOR SEALING GASKET - BOTTOM	5	1	Meer info
1513401402	2000	ATLANTIS STRUCTURE GR.	35	1	Meer info
1783400100	2001	ANGORA CORNER BRACKET	1	1	Meer info
1783400200	2002	ANGORA CORNER BRACKET	1	1	Meer info
1783710100	2004	ANGORA FS BOTTOM TRAY GR	17	1	Meer info
1783710400	2004	ANGORA FS BOTTOM TRAY GR	20	0	Meer info
1752970300	2408	TRAY HOLDER	1	2	Meer info
1752970400	2409	TRAY HOLDER	1	2	Meer info
1513080100	2411	EU3 BEKO TOP BASKET SHELF GR	4	2	Meer info
1513360016	2414	EU3 UPPER BASKET GROUP	26	1	Meer info
1513100100	2416	EU3 MECHANISM GROUP	12	1	Meer info
1513100200	2417	EU3 MECHANISM GROUP	12	1	Meer info
1766810021	2420	LOWER BASKET GROUP	24	1	Meer info
1742960100	2421	lower basket stoper plastic whell gr.	1	2	Meer info
1782020100	2421	GRD LOWER BASKET WHEEL GROUP	4	6	Meer info
1513590101	2423	LOWER BASKET PLATE HOLDER BACK LEFT1	6	1	Meer info
1513610101	2424	LOWER BASKET PLATE HOLDER BACK RIGHT1	6	1	Meer info
1753460200	2428	LOWER BASKET HANDLE FRONT PART-7016	3	1	Meer info
1753470200	2429	LOWER BASKET HANDLE BACK PART-7016	3	1	Meer info
1781500600	2430	SLIDING CUTLERY BASKET GR-PURPLE HANDLE	13	1	Meer info
1781520100	2437	GRD 60CM CUTLERY BASKET SEPERATOR	4	2	Meer info
1513250200	2438	EU3 BEKO HANDLE FRONT PART PLASTIC	3	1	Meer info
1513260200	2439	EU3 BEKO HANDLE BACK PART	2	1	Meer info
1513620101	2447	LOWER BASKET PLATE HOLDER BACK LEFT2	6	1	Meer info
1513670101	2450	LOWER BASKET PLATE HOLDER BACK RIGHT2	6	1	Meer info
1513010101	2457	EU3 FOLDABLE WIRE OF THE BOWL HOLDER	9	1	Meer info
1513020101	2458	EU3 FOLDABLE WIRE OF THE BOWL HOLDER	9	1	Meer info
1513050101	2461	EU3 FOLDABLE WIRE OF THE GLASS HOLDER	8	1	Meer info
1752600400	2609	RAIL WHEEL GROUP-RAL7037	2	4	Meer info
1880240300	2610	RAIL (430 STAINLESS STEEL)	8	4	Meer info
1732840100	2611	RAIL CAP- FRONT&BACK -RAL7037	2	8	Meer info
1748940200	2613	RAIL WHEEL SCREW	1	8	Meer info
1749910100	2615	RAIL WHEEL HOLDER	2	4	Meer info
1512980100	2719	EU3 TOP BASKET BOWL FOLDABLE PART 7016	1	2	Meer info
1512990100	2720	EU3 TOP BASKET GLASS FOLDABLE PART 7016	1	1	Meer info
1765070011	3010	PANEL GROUP	15	1	Meer info
1512040100	4000	ATLNAT├ä┬░S MOTOR GROUP	32	0	Meer info
1752480100	4000	ATLANTIS FERRIT MOTOR GROUP	33	1	Meer info
1757420100	4001	CIRCULATION PUMP DAMPENING RUBBER	2	3	Meer info
1512080100	4007	KAR├ä┬░NA QUADRO MOTOR HANGING BRACKET	10	1	Meer info
1757190100	4210	AMERICA BOBBIN TERFERENCE FILTER	16	1	Meer info
1740301000	4300	DRAIN PUMP GROUP	18	0	Meer info
1748200100	4300	ALUMINIUM WRAPPED DISCHARGE ENGINE	17	1	Meer info
1759323100	4800	MESE CABLE HARNESS	18	1	Meer info
1745691000	4801	CABLE HARNESS-1.5MM	2	1	Meer info
1758431300	4810	MESE CABLE HARNESS	21	1	Meer info
1751591800	4901	MAIN PLUG-CABLE PROTECTION GR	1	1	Meer info
1769360100	5012	BEKO BETTER BUTTON GASKET	5	1	Meer info
1510153061	5050	ELECTRONIC CARD D114854	23	1	Meer info
1758680100	5051	MESE CARD HOLDER FRONT PART ASENKRON	4	1	Meer info
1758690100	5052	MESE CARD HOLDER BACK PART ASENKRON	4	1	Meer info
1749580100	5056	TURBIDITY FRAME_2K	4	1	Meer info
1898900400	5058	TURBIDITY CARD AND LED HOLDER GR-WHITE	11	1	Meer info
1741130100	5060	D1 DISPLAY CARD	22	1	Meer info
1513090100	5061	DISPLAY CARD HOLDER BACK PART D1 B6	3	1	Meer info
1883550200	5710	WATER INLET VALVE	13	1	Meer info
1883570300	5710	WATER INLET VALVE	11	0	Meer info
1886740200	5710	WATER INLET VALVE	13	0	Meer info
1887760100	5710	WATER INLET VALVE	8	0	Meer info
1764950100	5750	REGENERATION VALVE GR SNAP FIT	11	1	Meer info
1761920100	5760	HITIT OVER FLOATING CASING	2	1	Meer info
1760900100	5830	COUNTER GROUP	9	1	Meer info
1732490200	5867	BOTTOM TRAY GASKET GR.	4	1	Meer info
1768000100	6160	SALT INDICATOR SWITCH	8	1	Meer info
1761940100	6311	hitit_micro_switch	8	1	Meer info
1761940200	6311	hitit_micro_switch_zingear	5	0	Meer info
1760940100	6315	COUNTER PCB_4	7	1	Meer info
1731980300	6330	NEW DOOR SWITCH	7	1	Meer info
1784130100	6506	ANGORA UPPER ISOLATION	11	1	Meer info
1512300100	6800	BITRON DETERGENT BOX GROUP	18	1	Meer info
1887740400	6920	NTC GROUP	7	1	Meer info
1764900100	7100	WATER_SOFTENER_ASSY_2012	20	1	Meer info
1742450100	7102	WATER SOFTENER NUT-RAL7037	2	1	Meer info
1766470100	7103	SOFTONER O-RING	2	1	Meer info
1744250100	7104	O-RING - SALT BOX- BELOW	3	2	Meer info
1883910300	7108	WATER SOFTENER CAP GASKET	3	1	Meer info
1766560100	7140	WATER SOFTONER CAP GROUP-RAL7016	5	1	Meer info
1741600700	7160	REGENERATION UNIT GR	11	1	Meer info
1882630200	7161	AIR FUNNEL GASKET	2	2	Meer info
1882620700	7162	air funnel cup	1	2	Meer info
1764790200	7211	ATLANTS LOWER SPRAY ARM GROUP 2	8	1	Meer info
1512700100	7220	ATLANTIS TOP SPRAY ARM GROUP COMPLETE	8	1	Meer info
1512280100	7221	ATLANTIS UPPER SPRAY ARM FEEDING HOSE GR	8	1	Meer info
1512590100	7260	ATLANTIS WATER SUPPLY TUBE GR.	16	1	Meer info
1512590400	7260	ATLANTIS WATER SUPPLY TUBE GR.	15	0	Meer info
1512510100	7261	UPPER SPRAY ARM FEED PIPE CENTERING PART	3	1	Meer info
1511900200	7510	KAR├ä┬░NA SUMP GROUP	37	1	Meer info
1889860200	7514	CORNER PADDING GR-FRONT	9	1	Meer info
1889870100	7515	REAR CORNER PADDING GR-BACK	8	1	Meer info
1788060400	7517	UPPER PACKAGE COVER	7	1	Meer info
1764150400	7518	ATLANTIS PACKAGING BOTTOM STYROPHOR	11	1	Meer info
1752350100	7561	ANGORA OWERFLOW SIPHON	1	2	Meer info
1799990100	7562	2019 CABLE HOLDER UPPER PART	3	1	Meer info
1799980100	7563	2019 CABLE HOLDER TOP PART	2	1	Meer info
1786610200	7610	METAL FILTER HALF	13	1	Meer info
1512150100	7611	KAR├ä┬░NA FILTER SUPPORT GROUP	7	1	Meer info
1512000200	7612	KAR├ä┬░NA VALVE GROUP	21	1	Meer info
1796080500	7620	MICRO FILTER GROUP_3 NO RING	7	1	Meer info
1740230300	7630	COARSE FILTER-7016	8	1	Meer info
1796092100	7640	FILTER GROUP COMPLETE 3 NO RING	9	1	Meer info
1740161400	7810	DRAIN HOSE	8	1	Meer info
1800631600	7834	HOSE (VALVE-COUNTER)	2	1	Meer info
1800632000	7835	HOSE BETWEEN COUNTER AND REGENERATION U.	2	1	Meer info
1800866600	7839	HOSE.	4	1	Meer info
1740050300	7910	SUMP GASKET	6	1	Meer info
1734730100	7919	CAD ITEM	1	2	Meer info
1783300100	8000	ANGORA FAN GROUP	17	1	Meer info
1754250100	8004	FAN SUCTION TUBE - WELDED	8	1	Meer info
2002370900	8318	HOSE CLAMP (├â╦£ 16.4)	1	4	Meer info
2002370800	8353	HOSE CLAMP (x 15.88)	1	3	Meer info
2002372100	8357	HOSE CLAMP.(├â╦£ 34_1)	1	1	Meer info
2002372500	8360	HOSE CLAMP (x 47.0)	1	1	Meer info
1761990100	8365	H├ä┬░T├ä┬░T DISCHARGE HOSE HOLDER	2	0	Meer info
1783370100	8365	ANGORA WATER INLET VALVE HOSE HOLDER	2	2	Meer info
9001231200	8382	PLASTIC CLAMP. 298 mm	1	1	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	6	Meer info
1757470300	9019	CRIMP CLAMP	2	1	Meer info
1831680000	9101	SCREW (WATER INLET VALVE)	1	1	Meer info
1889340100	9102	SCREW 4x14	1	3	Meer info
1803430300	9104	SCREW 16mm	2	5	Meer info
1883430100	9105	SCREW (PANEL-DOOR LOCKED)	1	8	Meer info
1883430300	9105	SCREW (FILTER SUPPORT)	1	2	Meer info
1889270100	9106	SCREW TERMINAL GROUP - REAR BRACKET	1	2	Meer info
1883470100	9113	BOLT M4X8 D3731 D3421	1	11	Meer info
1883460100	9114	SCREW (INNER-OUTER DOOR)	1	6	Meer info
1801080100	9115	SCREW (3.9x9.5)	1	6	Meer info
1802860200	9153	SCREW M5x8	1	4	Meer info
1882290100	9154	SCREW CAP-SIDE PANELS-WHITE	1	2	Meer info
1883440400	9155	SCREW (5x14)	1	4	Meer info
1803430100	9203	SCREW (4x14)	1	9	Meer info
1803431300	9203	SCREW (TOP TABLE)	1	3	Meer info
1831780000	9213	WASHER	1	4	Meer info
1784160100	9640	ANGORA LARGE UPPER SOUND GASKET	5	1	Meer info
1880270200	9641	NOISE ISOLATION-7037	4	2	Meer info
1767650900	9654	FLEXIBLE CUTLERY TRAY WHEEL MECHANISM GR	6	1	Meer info
1767651000	9655	FLEXIBLE CUTLERY TRAY WHEEL MECHANISM GR	6	1	Meer info
1513630100	9659	FOLDABLE PART LONG	1	4	Meer info
1513640200	9660	CLIPS LONG	1	4	Meer info
1732380100	9935	SALT FUNNEL 2	3	1	Meer info
1748780400	9941	TOP LIGHTING GROUP COATING	21	1	Meer info
1512710600	9950	ATLANTIS CUTLERY TRAY GR	21	1	Meer info
1733830200	9952	KICK PLATE ISOLATION	4	1	Meer info
1764050100	9971	Hitit rear upper traverse	8	1	Meer info
1764050200	9971	Hitit rear upper traverse	8	0	Meer info
1783190100	9973	ANGORA 1MM NETWORK CABLE LOCK	2	1	Meer info
1761930100	9975	H├ä┬░T├ä┬░T FLOAT STYROPOR	1	1	Meer info
1883490100	9981	BOLT M4X8	1	2	Meer info
1786700100	9991	ZONE WASH GROUP-7016-PURPLE	9	1	Meer info
1780308700	9993	PRINTED KEY GROUP	15	1	Meer info
1512220300	9997	MESE CARD HOLDER CASING	10	1	Meer info
1762670200	9998	KAR├ä┬░NA SUMP GROUP	21	1	Meer info

Documenten

Productfiche (190.84 kB)

Mode d'emploi (12.99 MB)

Handleiding (5.98 MB)
