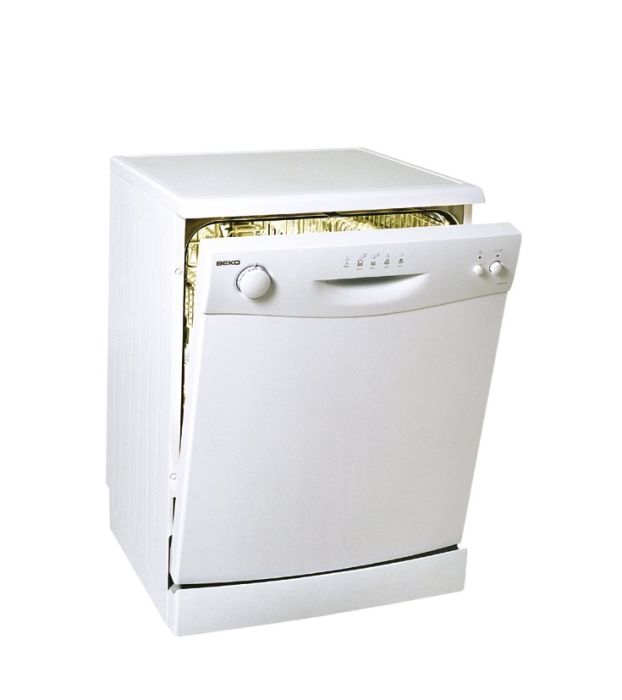

D5520FW VAATWASMACHINE

Artikelnr: 114798

Referentienr: D5520FW

Productomschrijving

5 progr. 2 temp. 50

Specificaties

Meer informatie
Hoogte	85
Breedte	60
Diepte	57
Gewicht (Kg)	52
Verpakkingseenheid	1
ArtRef	D5520FW
AsogemID	114798
Merk	BEKO
Soort	Vaatwasser
ArtEAN	8690769606289

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
1800681300	0	O-RING	2	1	Meer info
1887550100	11	FREE STANDING FOOT SUPPORT LEFT	5	1	Meer info
1887550200	12	FREE STANDING FOOT SUPPORT RIGHT	5	1	Meer info
1881820100	13	FOOT SUPPORT PART	4	2	Meer info
1880080292	40	BOTTOM TRAY	10	1	Meer info
1880370100	110	FOOT GROUP-ADJUSTABLE	2	4	Meer info
1759490501	220	SIDE PANEL-LEFT	15	1	Meer info
1759490601	221	SIDE PANEL-RIGHT	15	1	Meer info
1880011000	240	REAR BOTTOM SUPPORT	11	1	Meer info
1889900600	300	TOP PLATE GROUP	23	1	Meer info
2003030000	335	SEAL	1	2	Meer info
1741810202	401	HINGE ARM-RIGHT	8	1	Meer info
1741810102	402	HINGE ARM-LEFT	8	1	Meer info
1888190100	403	HINGE ARM SUPPORT	3	1	Meer info
1881020100	440	HINGE SPRING	4	2	Meer info
1881040200	470	HINGE WHEEL	1	2	Meer info
1881040300	470	HINGE WHEEL-RED	1	2	Meer info
1881050100	471	HINGE ROPE GROUP L=440(GREY)	4	2	Meer info
1881090100	472	HINGE SPRING HOLDER-LEFT	3	1	Meer info
1881090200	473	HINGE SPRING HOLDER-RIGHT	4	1	Meer info
1884410100	500	KICK PLATE	26	1	Meer info
1731440100	610	BALANCE WEIGHT	9	1	Meer info
1880180510	1030	OUTER DOOR	15	1	Meer info
1732600200	1200	INNER DOOR GR	23	1	Meer info
1880020100	1201	LOWER SUPPORT- FRONT	8	1	Meer info
1882410100	1230	DOOR INSULATION	11	1	Meer info
1750900400	1300	DOOR LOCK GROUP PA6-NAT-I-V0 45-60 CM	7	1	Meer info
1881970100	1310	DOOR LOCK HOOK	1	1	Meer info
1884690100	1910	DOOR SEALING GASKET	9	1	Meer info
1882250100	1911	DOOR SEALING END ADDITION PART RIGHT,	3	1	Meer info
1882250200	1912	DOOR SEALING END ADDITION PART LEFT	3	1	Meer info
1882470100	1920	DOOR SEALING GASKET - BOTTOM	7	1	Meer info
1897501300	2000	STRUCTURE GROUP	33	1	Meer info
1887590100	2411	SHELF GROUP	3	2	Meer info
1885800100	2413	UPPER RACK ROLLER GROUP	3	4	Meer info
1884002500	2414	UPPER BASKET GROUP	20	1	Meer info
1883101000	2420	LOWER RACK GROUP	19	1	Meer info
1885900100	2421	LOWER RACK WHEEL GROUP	2	8	Meer info
1883200400	2430	CUTLERY BASKET GROUP-7037	12	1	Meer info
1881860200	2437	SEPERATOR.	7	1	Meer info
1880240300	2610	RAIL (430 STAINLESS STEEL)	8	2	Meer info
1880580400	2611	RAIL CAP	2	2	Meer info
1887460200	2612	RAIL CAP-7037	1	2	Meer info
1725702100	3010	PANEL GROUP	14	1	Meer info
1725600600	3310	KNOB GROUP	5	1	Meer info
1886450100	3320	ON OFF BUTTON	3	1	Meer info
1886460100	3321	FUNCTION BUTTON	5	1	Meer info
1887900400	3510	LAMP GROUP	4	2	Meer info
1891000400	4000	MOTOR_SPRAY PUMP	30	1	Meer info
1880390100	4001	MOTOR FIXING CAP D3731 D3421	2	1	Meer info
1880380100	4002	MOTOR BRACKET GROUP	6	1	Meer info
1881440200	4003	DAMPENING RUBBER TPV	3	1	Meer info
1884500100	4004	MOTOR BRACKET GROUP	9	1	Meer info
1883790200	4200	CAPACITOR	10	1	Meer info
1883790400	4200	CAPACITOR	9	0	Meer info
1886870100	4210	INTERFERENCE FILTER	8	1	Meer info
1882600300	4300	DRAIN PUMP GROUP COMPLETE	21	1	Meer info
1882100600	4320	DRAIN PUMP GROUP	21	1	Meer info
1804070000	4321	DRAIN PUMP GASKET	6	1	Meer info
1882860100	4322	DRAIN PUMP GASKET HOLDER	2	1	Meer info
1888130100	4500	FLOW THROUGH HEATER	22	0	Meer info
1888130200	4500	FLOW THROUGH HEATER	21	0	Meer info
1888150100	4500	FLOW THROUGH HEATER	21	1	Meer info
1719990100	4504	PUMP INLET HOSE	4	1	Meer info
1730670200	4800	CABLE HARNESS GROUP	16	1	Meer info
1892101600	4901	MAIN PLUG GROUP 220-230 V smart 1	11	1	Meer info
1898040200	5000	TIMER	25	1	Meer info
1883570100	5710	WATER INLET VALVE	12	1	Meer info
1835900200	5750	REGENERATION VALVE GR	11	1	Meer info
1744290100	5760	over_floating_house_3	1	1	Meer info
1898060100	5834	WATER PRESSURE SWITCH	15	1	Meer info
1886430100	6201	BUTTON HOLDER OEM 1	2	1	Meer info
1833120100	6210	SINGLE SWITCH D3731 D3421	9	2	Meer info
1883240100	6311	OVER FLOW SWITCH (LOW END) D3731 D3421	6	1	Meer info
1831830001	6330	DOOR SWITCH (LOW END)	4	1	Meer info
1718600900	6800	DETERGENT DISPENSER GROUP	18	1	Meer info
1718670100	6801	DETERGENT DISPENSER GASKET	9	1	Meer info
1831470000	6802	THERMOACTUATOR D3731 D3421	13	1	Meer info
1718750100	6811	RINSE AID GASKET	3	1	Meer info
1718640100	6812	COVER SPRING	1	2	Meer info
1805100700	7010	WATER INLET HOSE	11	1	Meer info
1883740200	7011	DRAIN HOSE HOLDER 7037	2	2	Meer info
1883800200	7100	WATER SOFTENER GROUP	19	1	Meer info
1888290100	7102	WATER SOFTENER NUT-7035	2	1	Meer info
1800720700	7103	WATER SOFTENER CAP GASKET	2	1	Meer info
1800681000	7106	REGENERATION VALVE GASKET	13	1	Meer info
1883910300	7108	WATER SOFTENER CAP GASKET	3	1	Meer info
1766560100	7140	WATER SOFTONER CAP GROUP-RAL7016	5	1	Meer info
1719400100	7160	REGENERATION UNIT GR	12	1	Meer info
1882630200	7161	AIR FUNNEL GASKET	2	1	Meer info
1882620300	7162	REGENERATION UNIT COVER	2	1	Meer info
1800862100	7169	HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT)	1	1	Meer info
1746100200	7211	LOWER SPRAY ARM GROUP	7	1	Meer info
1801210000	7215	DRAIN HOSE SPRING	1	1	Meer info
1746200300	7220	UPPER SPRAY GROUP	9	1	Meer info
1759600100	7221	UPPER SPRAY ARM FEED PIPE -RAL 7037	8	1	Meer info
1800720800	7228	GASKET	3	1	Meer info
1881100500	7260	WATER SUPPLY TUBE GROUP	9	1	Meer info
1892300500	7510	SUMP GROUP	8	1	Meer info
1719980100	7550	HOSE BETWEEN SUMP AND HEATER - 2	5	1	Meer info
1888100100	7560	OVERFLOW FLOAT GROUP	8	1	Meer info
1884280100	7561	SIFHON	2	2	Meer info
1881230100	7610	PLASTIC FILTER	6	1	Meer info
1889400300	7611	FILTER SUPPORT GROUP	10	1	Meer info
1882700200	7612	WATER GUIDE GROUP	14	1	Meer info
1894300100	7620	MICRO FILTER GROUP	10	1	Meer info
1882880100	7630	COARSE FILTER	2	1	Meer info
1894600100	7640	FILTER GROUP	0	1	Meer info
1853200200	7810	DRAIN HOSE	8	1	Meer info
1881170100	7831	HOSE (PUMP - SUMP)	6	1	Meer info
1800631200	7834	HOSE	3	1	Meer info
1800863000	7836	HOSE BETWEEN WATER SOFT AND REJEN. UNIT	3	1	Meer info
1800862500	7837	HOSE	3	1	Meer info
1800862400	7838	HOSE	2	1	Meer info
1800860400	7840	PVC HOSE (DISCHARGE)	7	1	Meer info
1800862300	7844	HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT)	2	1	Meer info
1800862700	7845	HOSE	3	1	Meer info
1880440100	7910	SUMP GASKET	9	1	Meer info
2002373200	8319	HOSE CLAMP (x 40.0)	1	2	Meer info
1800710000	8351	HOSE FILTER D3422	6	1	Meer info
2002370800	8353	HOSE CLAMP (x 15.88)	1	6	Meer info
2002372500	8360	HOSE CLAMP (x 47.0)	1	2	Meer info
2002373800	8364	HOSE CLAMP( ├â╦£ 15_6 )	1	3	Meer info
2002740100	8365	DRAIN HOSE HOLDER	2	1	Meer info
1732850100	9013	Hose Clamps With Screw ├â╦£40 White	2	2	Meer info
1889280100	9013	SUMP CLAMP SCREW TYPE	7	1	Meer info
1882480100	9022	POWER CORD FIXING PART.	10	1	Meer info
1831680000	9101	SCREW (WATER INLET VALVE)	1	1	Meer info
1883430100	9105	SCREW (PANEL-DOOR LOCKED)	1	6	Meer info
1880680100	9112	SCREW	1	2	Meer info
1883470100	9113	BOLT M4X8 D3731 D3421	1	22	Meer info
1883460100	9114	SCREW (INNER-OUTER DOOR)	1	6	Meer info
1801080100	9115	SCREW (3.9x9.5)	1	18	Meer info
1889330100	9116	SCREW FOR REAR BOTTOM SUPPORT	1	2	Meer info
1883410100	9118	SCREW (SIDE WALLS - INNER TUB)	1	4	Meer info
1801080200	9123	SCREW	1	1	Meer info
1802860200	9153	SCREW M5x8	1	4	Meer info
1882290100	9154	SCREW CAP-SIDE PANELS-WHITE	1	4	Meer info
1883440300	9155	SCREW (5x22)(MOTOR)	1	1	Meer info
1803430100	9203	SCREW (4x14)	1	2	Meer info
1831780000	9213	WASHER	1	4	Meer info
1882150100	9520	O-RING (FLOW DIVERTER)	1	2	Meer info
1800680700	9521	O-RING (DRAIN PUMP) D371-D341_	2	1	Meer info
1800680100	9522	O-RING (DRAIN HOSE)	2	2	Meer info
1882280400	9640	NOISE ISOLATION FOR TUB Ral 7037 Blomber	2	1	Meer info
1732380100	9935	SALT FUNNEL 2	3	1	Meer info
