Productomschrijving
**** 182.5x70x63 cm - 330/100 L
| Jaarlijks verbruik (kWh) | 312 |
|---|---|
| ArtRef | DS145100 |
| AsogemID | 114594 |
| MPN | 7252748713 |
| Merk | BEKO |

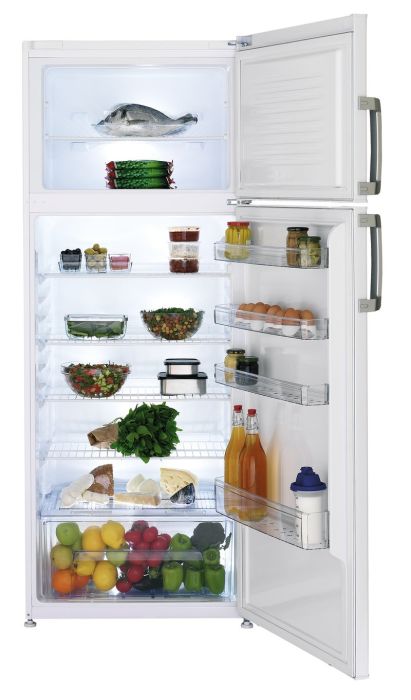

| Soort | Koelkast 2 deuren (top freezer) |
| ArtEAN | 8690842369889 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 4223430100 | 0 | CHARGING TUBE | 3 | 1 | Meer info | |||
| 4094880285 | 0 | INTERIOR LIGHT SWITCH | 5 | 1 | Meer info | |||
| 4055881600 | 0 | HANDLE PLUG (ARC P1) | 1 | 2 | Meer info | |||
| 4852580100 | 0 | HINGE HOLDER (FF_DOOR_ARC2009_NATURAL) | 1 | 1 | Meer info | |||
| 4117650300 | 0 | ADJUSTABLE GLIDER GROUP | 2 | 1 | Meer info | |||
| 4834220185 | 0 | INTERIOR LIGHT SWITCH (LAMP_DEFOND_ROHS) | 5 | 0 | Meer info | |||
| 4306470100 | 3 | THERMOSTAT KNOB PRINTED LINE 2001 | 4 | 1 | Meer info | |||
| 4852153885 | 4 | THERMOSTAT (KDF29X)_FOSHAN | 14 | 1 | Meer info | |||
| 9002753885 | 4 | TERMOSTAT K59-L2084 ARCELIK | 16 | 0 | Meer info | |||
| 4852470100 | 5 | FRONT PANEL(70 CM-ARC2009) | 8 | 1 | Meer info | |||
| 4359160200 | 13 | LOWER HINGE GROUP | 5 | 1 | Meer info | |||
| 4382480100 | 14 | TOP HINGE GROUP | 9 | 1 | Meer info | |||
| 4117651600 | 15 | ADJUSTABLE GLIDER GROUP | 2 | 1 | Meer info | |||
| 4243120400 | 19 | DOUBLE ENTRY DRAYER | 4 | 1 | Meer info | |||
| 4056670000 | 29 | SPACER (NATURAL - SN_T) | 1 | 2 | Meer info | |||
| 5222110011 | 30 | COMPRESSOR (MTS 170 MT 208-220V)(R600a) | 38 | 1 | Meer info | |||
| 4848610100 | 31 | TERMINAL COVER | 5 | 1 | Meer info | |||
| 4847070100 | 33 | COMPRESSOR RUBBER GROMMET | 1 | 4 | Meer info | |||
| 4057080200 | 34 | COMPRESSOR WASHER | 1 | 3 | Meer info | |||
| 4133841185 | 38 | POWER CORD GROUP | 10 | 1 | Meer info | |||
| 4049730100 | 40 | SCREW 3.9x12 | 1 | 2 | Meer info | |||
| 5736330100 | 43 | COMBO PTC | 11 | 0 | Meer info | |||
| 4846470185 | 43 | PTC RELAY_SENSATA_8EA19E61 | 10 | 0 | Meer info | |||
| 5731010100 | 43 | PTC RELAY | 9 | 1 | Meer info | |||
| 5736330200 | 43 | COMBO PTC | 11 | 0 | Meer info | |||
| 4853840185 | 43 | PTC RELAY_Arylux | 10 | 0 | Meer info | |||
| 4085523185 | 44 | OVERLOAD PROTECTOR(4TM189 NFBYY-73) | 9 | 1 | Meer info | |||
| 4121072086 | 48 | CAPASITOR GROUP | 11 | 0 | Meer info | |||
| 4920930100 | 53 | CONDENSER ASSEMBLY | 20 | 1 | Meer info | |||
| 4047900700 | 100 | PLASTIC WASHER | 1 | 1 | Meer info | |||
| 5781220100 | 101 | SELF WASHERED BOLT | 1 | 4 | Meer info | |||
| 4024820100 | 125 | CHARGING TUBE | 3 | 1 | Meer info | |||
| 4846070100 | 132 | EVAPORATING PAN _ EMBRACO MTS | 10 | 1 | Meer info | |||
| 4803670100 | 132 | EVAPORATING PAN | 8 | 0 | Meer info | |||
| 4047840400 | 135 | MIDDLE HINGE PLUG | 1 | 1 | Meer info | |||
| 4074170200 | 135 | PLUG (ARC P1) (UPPER HINGE) | 1 | 1 | Meer info | |||
| 5723410100 | 146 | NEW MIDDLE HINGE PLUG | 2 | 1 | Meer info | |||
| 4216620700 | 152 | ADJUSTABLE GLIDER CAP | 1 | 1 | Meer info | |||
| 4250130100 | 200 | FRONT WHELL(LINE 2001) | 1 | 2 | Meer info | |||
| 4048870200 | 201 | WHEEL PIN (50MM) | 1 | 2 | Meer info | |||
| 4357770100 | 202 | COMPRESSOR TRAVERSE | 14 | 1 | Meer info | |||
| 4109812000 | 205 | GROUND CABLE GROUP | 1 | 1 | Meer info | |||
| 5737560100 | 211 | LOGO | 7 | 1 | Meer info | |||
| 5711160300 | 218 | EGG TRAY (GRUNDIG_ARC P1_6PCS) | 4 | 2 | Meer info | |||
| 4880031600 | 227 | MECHANISM COVER FUSE_BYG_ARC745 | 2 | 4 | Meer info | |||
| 4852560100 | 232 | PC DOOR LOWER ENDCAP HINGE HOLDER | 1 | 1 | Meer info | |||
| 4803860200 | 237 | BOLT (M4x12) | 1 | 4 | Meer info | |||
| 4900061200 | 238 | HANDLE GROUP | 15 | 2 | Meer info | |||
| 4852590100 | 241 | PLUG | 1 | 1 | Meer info | |||
| 4830680100 | 250 | TOP HINGE HOUSING. ( NATURAL) | 1 | 2 | Meer info | |||
| 4150050600 | 251 | UPPER DOOR GASKET ASSY-SLOT IN-ARC-P1 | 15 | 1 | Meer info | |||
| 4324852400 | 252 | B-680_690 LOWER DOOR GASKET ASSY | 15 | 1 | Meer info | |||
| 4875090400 | 255 | 55 MM DOOR SHELF_70CM | 11 | 2 | Meer info | |||
| 4232230100 | 300 | ICE CUBE TRAY (ARC-P1) (NEW) | 5 | 1 | Meer info | |||
| 4397302200 | 311 | STAMP_SALAD_CRISPER ASSY_70CM_T605-1-3 | 18 | 1 | Meer info | |||
| 4307570200 | 400 | THERMOSTAT CABLE GROUP | 5 | 1 | Meer info | |||
| 4249370100 | 401 | LAMP_THERMOSTAT HOUSING | 7 | 1 | Meer info | |||
| 4241520185 | 403 | LAMP HOLDER | 3 | 1 | Meer info | |||
| 5760500100 | 404 | LED BULB | 13 | 1 | Meer info | |||
| 5760500200 | 404 | LED BULB | 9 | 0 | Meer info | |||
| 5760500300 | 404 | LED BULB | 13 | 0 | Meer info | |||
| 5760500400 | 404 | LAMP(15 WATTS E 14 SCREW ) | 10 | 0 | Meer info | |||
| 4212777900 | 405 | ALUMINIUM FOIL TAPE 70mmx70mm | 1 | 1 | Meer info | |||
| 4249380100 | 406 | LAMP_TERMOSTAT HOUSING GLASS (LINE 2001) | 3 | 1 | Meer info | |||
| 4294950100 | 516 | FREEZER WIRE SHELF B-670_690 | 12 | 1 | Meer info | |||
| 4358580300 | 601 | MIDDLE HINGE GR.(ARC2009_33mm AXIS) | 6 | 1 | Meer info | |||
| 4057030100 | 604 | PLASTIC PLUNGER (DRAIN HOLE) | 1 | 1 | Meer info | |||
| 4248740100 | 766 | AIR DAMPER | 1 | 2 | Meer info | |||
| 4397292400 | 838 | DOOR SHELF GROUP | 12 | 1 | Meer info | |||
| 4864610200 | 861 | GLASS_PROFILE_70CM_ARC2009_WITHOUT RAIL | 5 | 4 | Meer info | |||
| 4864620200 | 862 | GLASS_PROFILE_70CM_ARC2009_WITHOUT RAIL | 7 | 4 | Meer info | |||
| 4362723000 | 863 | GLASS SHELF GROUP | 13 | 4 | Meer info | |||
| 4803240300 | 864 | WINE RACK(B-795FF_70CM_WITH 5) | 13 | 1 | Meer info | |||
| 4853110100 | 947 | HINGE COVER_RIGHT_ARC2009_ARC P1 | 4 | 1 | Meer info | |||
| 4853120100 | 948 | HINGE COVER-LEFT_ARC_2009_(ARC P1 | 4 | 1 | Meer info | |||
| 4811830100 | 955 | SERRATED SCREW (M5x20) | 1 | 2 | Meer info | |||
| 4885850100 | 964 | CONTAINER | 9 | 1 | Meer info | |||
| 4885860100 | 965 | CONTAINER CARRIER | 10 | 1 | Meer info | |||
| 4389970119 | 966 | FOAMED_DOOR_ASS_B670_680_690_WHITE | 29 | 1 | Meer info | |||
| 4389990109 | 967 | UPPER DOOR | 32 | 1 | Meer info | |||
| 4852570100 | 975 | HINGE HOUSING | 1 | 1 | Meer info | |||
| 4800390100 | 976 | LOWER DOOR STOPPER-LINE 2001_SHORT | 2 | 1 | Meer info | |||
| 4891180100 | 984 | UPPER DOOR BROW HINGE COVER | 1 | 1 | Meer info | |||
| 4299060200 | 985 | UPPER DOOR HINGE STOPPER (LG) | 1 | 1 | Meer info | |||
| 9000130400 | 995 | RUBBER HOLDER | 1 | 2 | Meer info | |||
| 4880030200 | 997 | MECHANISM COVER FUSE_BYG_ARC434 | 1 | 8 | Meer info | |||
| 4875090300 | 1012 | 55 MM DOOR SHELF_70CM | 11 | 1 | Meer info | |||
| 4936740400 | 1401 | DOOR KIT GROUP | 8 | 1 | Meer info |
