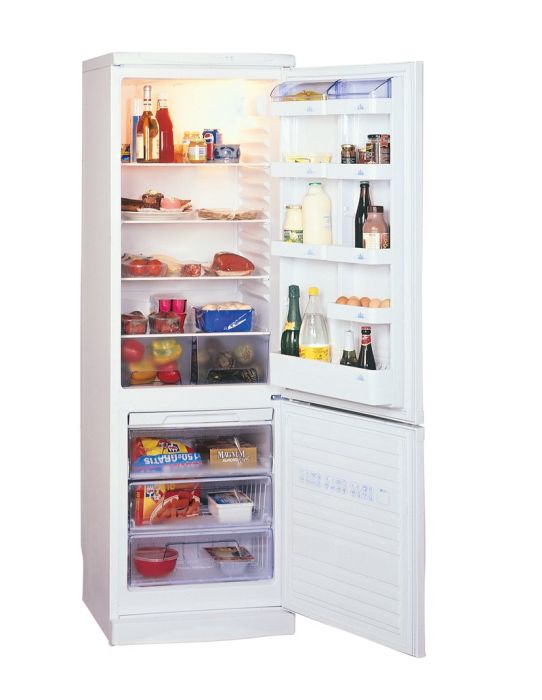

CCH4860HCA TWEEDEURS COMBI-KOELKAST

Artikelnr: 114849

Referentienr: CCH4860HCA

Productomschrijving

**** 59,5 cm 220

Meer informatie
Hoogte	186
Breedte	59.5
Diepte	60
Gewicht (Kg)	64
Jaarlijks verbruik (kWh)	336
ArtRef	CCH4860HCA
AsogemID	114849
Merk	BEKO
Soort	Koelkast 2 deuren (top freezer)
ArtEAN	8690842061486

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
100601920	0	SCREW (BZ 4.2_16 DIN 7981-H)	1	4	Meer info
4223430100	0	CHARGING TUBE	3	1	Meer info
4117650300	0	ADJUSTABLE GLIDER GROUP	2	2	Meer info
4834220185	0	INTERIOR LIGHT SWITCH (LAMP_DEFOND_ROHS)	5	0	Meer info
4094880200	0	INTERIOR LIGHT SWITCH	6	1	Meer info
4816160100	0	CONDENSER PAINT_BLACK	0	1	Meer info
4802120300	0	COPPER PIPE-6_35x0_6	1	2000	Meer info
4209510000	0	EN	0	2	Meer info
4213200700	0	CRISPER T.BLUE	14	2	Meer info
4203880000	0	-	0	2	Meer info
4138010100	3	THERMOSTAT KNOB ASSY.	4	1	Meer info
5124111001	4	THERMOSTAT(B7-6169)	11	0	Meer info
9002754100	4	THERMOSTAD(K59-L2704 / RANCO)FRESHFOOD	16	1	Meer info
4141493400	5	TOP CONTROL PANEL ASSY..	10	1	Meer info
4141480300	6	CONTROL PANEL CABLE ASSEMBLY	8	1	Meer info
4086221000	8	LIGHT INDICATOR(GREEN)	5	2	Meer info
4303080000	13	LOWER HINGE ASSEMBLY	4	1	Meer info
4151700100	14	UPPER HINGE ASSY.	5	1	Meer info
4243120400	19	DOUBLE ENTRY DRAYER	4	1	Meer info
4087270200	20	BOTTOM AIR GRILL	6	1	Meer info
4210670300	28	TOP PLATE	15	1	Meer info
4079480500	29	AIR GRILL SUPPORT	2	2	Meer info
4151510100	30	COMPRESSOR (LX 110 NAEM/220-240 V)	35	1	Meer info
4252450000	31	TERMINAL COVER (LG COMPRESSOR)	5	1	Meer info
4078620000	32	BUSHING (COMPRESSOR)	1	3	Meer info
4078630100	33	RUBBER GROMMET	2	4	Meer info
4298920000	34	WASHER_LINE_2001	1	3	Meer info
111500120	36	BOLT (M6X25 DIN 912)	1	3	Meer info
4133841185	38	POWER CORD GROUP	10	1	Meer info
4151542585	39	COMBO UNIT(LG_MB98)	14	1	Meer info
4151541200	39	COMBO UNIT(LG/MB98)	13	0	Meer info
4151540500	39	COMBO UNIT(LG/LX 110)	15	0	Meer info
4132401400	41	CABLE ASSEMBLY	6	0	Meer info
4252310485	43	INTEGRATED PTC STARTING DEVICE P330_4.8	10	1	Meer info
4121071785	48	CAPASITOR GROUP	10	1	Meer info
4121071300	48	CAPASITOR ASSEMBLY (4mF)	7	0	Meer info
4151340100	57	COMPLETE EVAP.GR.(B-485 WOT)	25	1	Meer info
4812150100	68	SOCKET COVER	3	1	Meer info
4090680100	77	LOCKING PART	1	2	Meer info
4251570100	78	LOCKING CLIPS	0	2	Meer info
4141650300	83	CONTROL PANEL LIFT UP COVER	9	1	Meer info
4226350100	85	CONNECTING PIPE	9	1	Meer info
4047900400	100	PLASTIC WASHER	1	2	Meer info
4213280200	111	TOP PLATE STUD	1	4	Meer info
4236080100	113	HINGE COVER	1	1	Meer info
9000060200	115	SELF WASHERED SCREW 4.2x13	1	8	Meer info
4248290100	120	EVAPORATOR SUPPORT(RIGHT)	1	3	Meer info
4248300100	121	EVAPORATOR SUPPORT(LEFT)	1	3	Meer info
4024820100	125	CHARGING TUBE	3	1	Meer info
4251600100	132	DRIP TRAY TE150YT	0	1	Meer info
4819020400	135	MIDDLE HINGE PLUG (WHITE)	1	3	Meer info
4070002700	149	PLASTIC SLEEVE	0	2	Meer info
4048860200	200	WHEEL	1	2	Meer info
4048870000	201	WHEEL PIN	1	2	Meer info
4050530200	202	COMPRESSOR TRAVERSE	10	1	Meer info
4142030600	210	FOAMED FRZ.DOOR ASSY.(CCH485/EMBOSSED)	21	1	Meer info
4136260400	212	R/H DOOR SHELF ASSY.	7	4	Meer info
4136270500	213	L/H DOOR SHELF ASSY.	6	3	Meer info
4136280500	214	LOWER SHELF ASSEMBLY	12	1	Meer info
4208470700	216	DAIRY COVER (RIGHT)	4	1	Meer info
4209240700	217	DAIRY COVER (LEFT)	0	1	Meer info
4208491000	218	EGG TRAY	5	1	Meer info
4209360800	222	BOTTLE GRIPPER	5	1	Meer info
4089680200	241	HINGE PLUG	1	3	Meer info
4089670200	250	HINGE BUSHING	1	3	Meer info
4142140500	251	DOOR GASKET (B-485 FRIDGE)	15	1	Meer info
4117883600	252	DOOR GASKET (B-485 FREEZER)	14	1	Meer info
4091550000	257	LENS	1	2	Meer info
4092050100	260	PLUG (RIGHT)	1	1	Meer info
4092060100	261	HINGE PLUG (LEFT)	1	1	Meer info
4232230100	300	ICE CUBE TRAY (ARC-P1) (NEW)	5	1	Meer info
4251890100	301	EVAPORATOR FRONT TRIM (B-485/WOT)	3	3	Meer info
4120062300	310	GLASS SHELF ASSEMBLY	14	3	Meer info
4078470200	314	FULL DEPTH WIRE BASKET	14	1	Meer info
4213460300	325	ICE BANK	13	1	Meer info
4240500800	326	WIRE BASKET COVER	0	1	Meer info
4240500500	326	WIRE BASKET COVER	11	2	Meer info
4213540200	331	COVER HINGE R CG970 CN260 CG960 NC751	1	1	Meer info
4213550200	332	COVER HINGE L CG970 CN260 CG960 NC751	1	1	Meer info
4078480200	336	HALF DEPTH WIRE BASKET	14	1	Meer info
4139680000	397	LOKRING (6.35)	10	2	Meer info
4117910300	400	CABLE ASSEMBLY	6	1	Meer info
4210340200	401	LAMP/THERMOSTAT HOUSING	10	1	Meer info
4210420200	402	THERMOSTAT HOLE COVER	1	1	Meer info
4212430000	403	LAMP HOLDER E14	7	0	Meer info
4035890385	404	INTERIOR LAMP (15W)	5	1	Meer info
4130720200	405	REFLECTIVE FOIL	4	1	Meer info
4210350000	406	LAMP / THERMOSTAT HOUSING COVER	2	1	Meer info
4210380200	408	PLUG	1	1	Meer info
4204992400	510	CRISPER COVER	10	1	Meer info
4125100300	600	FOAMED FRIDGE DOOR ASSY.(CCH4860)	21	1	Meer info
4303070000	601	MIDDLE HINGE ASSY.	8	1	Meer info
4043360100	602	BOLT (M5*16)	1	2	Meer info
4057030100	604	PLASTIC PLUNGER (DRAIN HOLE)	1	1	Meer info
4083560600	854	DRAIN HOSE	4	1	Meer info
4151590100	959	CABLE HOLDER ASSY.(LG COMPRESSOR)	6	0	Meer info
4151590200	959	CABLE HOLDER ASSY.(LG COMPRESSOR)	4	1	Meer info
130200530	8323	WASHER (B6 DIN127)	1	2	Meer info
9001230200	8420	PLASTIC CLAMP	1	1	Meer info
