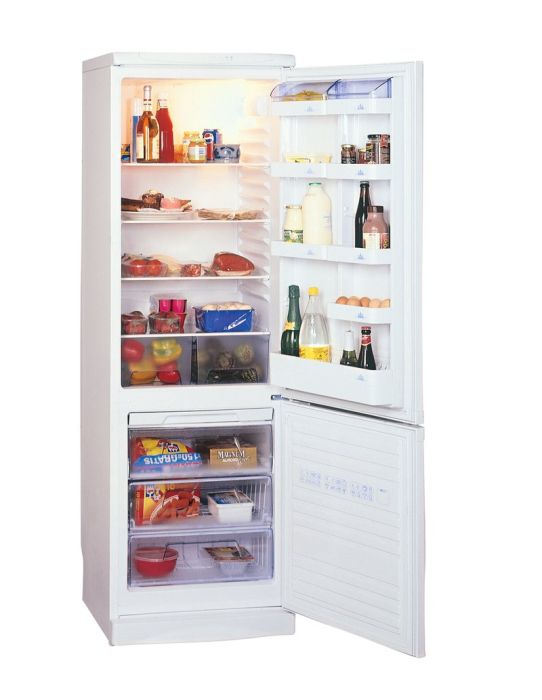

Productomschrijving
| Hoogte | 186 |
|---|---|
| Breedte | 59.5 |
| Diepte | 60 |
| Gewicht (Kg) | 87 |
| Jaarlijks verbruik (kWh) | 438 |
| ArtRef | CCH4860 |
| AsogemID | 114833 |
| Merk | BEKO |
| Soort | Koelkast 2 deuren (top freezer) |
| ArtEAN | 8690842135309 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 100601920 | 0 | SCREW (BZ 4.2_16 DIN 7981-H) | 1 | 4 | Meer info | |||
| 4223430100 | 0 | CHARGING TUBE | 3 | 1 | Meer info | |||
| 4117650300 | 0 | ADJUSTABLE GLIDER GROUP | 2 | 2 | Meer info | |||
| 4834220185 | 0 | INTERIOR LIGHT SWITCH (LAMP_DEFOND_ROHS) | 5 | 0 | Meer info | |||
| 4094880200 | 0 | INTERIOR LIGHT SWITCH | 6 | 1 | Meer info | |||
| 4816160100 | 0 | CONDENSER PAINT_BLACK | 0 | 1 | Meer info | |||
| 4802120300 | 0 | COPPER PIPE-6_35x0_6 | 1 | 2000 | Meer info | |||
| 4209510000 | 0 | EN | 0 | 2 | Meer info | |||
| 4213200700 | 0 | CRISPER T.BLUE | 14 | 2 | Meer info | |||
| 4203880000 | 0 | - | 0 | 2 | Meer info | |||
| 4138010100 | 3 | THERMOSTAT KNOB ASSY. | 4 | 1 | Meer info | |||
| 5124111001 | 4 | THERMOSTAT(B7-6169) | 11 | 0 | Meer info | |||
| 9002754100 | 4 | THERMOSTAD(K59-L2704 / RANCO)FRESHFOOD | 16 | 1 | Meer info | |||
| 4141493400 | 5 | TOP CONTROL PANEL ASSY.. | 10 | 1 | Meer info | |||
| 4141480300 | 6 | CONTROL PANEL CABLE ASSEMBLY | 8 | 1 | Meer info | |||
| 4086221000 | 8 | LIGHT INDICATOR(GREEN) | 5 | 2 | Meer info | |||
| 4303080000 | 13 | LOWER HINGE ASSEMBLY | 4 | 1 | Meer info | |||
| 4151700100 | 14 | UPPER HINGE ASSY. | 5 | 1 | Meer info | |||
| 4243120400 | 19 | DOUBLE ENTRY DRAYER | 4 | 1 | Meer info | |||
| 4087270200 | 20 | BOTTOM AIR GRILL | 6 | 1 | Meer info | |||
| 4210670300 | 28 | TOP PLATE | 15 | 1 | Meer info | |||
| 4079480500 | 29 | AIR GRILL SUPPORT | 2 | 2 | Meer info | |||
| 4151510100 | 30 | COMPRESSOR (LX 110 NAEM/220-240 V) | 35 | 1 | Meer info | |||
| 4252450000 | 31 | TERMINAL COVER (LG COMPRESSOR) | 5 | 1 | Meer info | |||
| 4078620000 | 32 | BUSHING (COMPRESSOR) | 1 | 3 | Meer info | |||
| 4078630100 | 33 | RUBBER GROMMET | 2 | 4 | Meer info | |||
| 4298920000 | 34 | WASHER_LINE_2001 | 1 | 3 | Meer info | |||
| 111500120 | 36 | BOLT (M6X25 DIN 912) | 1 | 3 | Meer info | |||
| 4133841185 | 38 | POWER CORD GROUP | 10 | 1 | Meer info | |||
| 4151542585 | 39 | COMBO UNIT(LG_MB98) | 14 | 1 | Meer info | |||
| 4151541200 | 39 | COMBO UNIT(LG/MB98) | 13 | 0 | Meer info | |||
| 4151540500 | 39 | COMBO UNIT(LG/LX 110) | 15 | 0 | Meer info | |||
| 4132401400 | 41 | CABLE ASSEMBLY | 6 | 0 | Meer info | |||
| 4252310485 | 43 | INTEGRATED PTC STARTING DEVICE P330_4.8 | 10 | 1 | Meer info | |||
| 4121071785 | 48 | CAPASITOR GROUP | 10 | 1 | Meer info | |||
| 4121071300 | 48 | CAPASITOR ASSEMBLY (4mF) | 7 | 0 | Meer info | |||
| 4151340100 | 57 | COMPLETE EVAP.GR.(B-485 WOT) | 25 | 1 | Meer info | |||
| 4812150100 | 68 | SOCKET COVER | 3 | 1 | Meer info | |||
| 4090680100 | 77 | LOCKING PART | 1 | 2 | Meer info | |||
| 4251570100 | 78 | LOCKING CLIPS | 0 | 2 | Meer info | |||
| 4141650300 | 83 | CONTROL PANEL LIFT UP COVER | 9 | 1 | Meer info | |||
| 4226350100 | 85 | CONNECTING PIPE | 9 | 1 | Meer info | |||
| 4047900400 | 100 | PLASTIC WASHER | 1 | 2 | Meer info | |||
| 4213280200 | 111 | TOP PLATE STUD | 1 | 4 | Meer info | |||
| 4236080100 | 113 | HINGE COVER | 1 | 1 | Meer info | |||
| 9000060200 | 115 | SELF WASHERED SCREW 4.2x13 | 1 | 8 | Meer info | |||
| 4248290100 | 120 | EVAPORATOR SUPPORT(RIGHT) | 1 | 3 | Meer info | |||
| 4248300100 | 121 | EVAPORATOR SUPPORT(LEFT) | 1 | 3 | Meer info | |||
| 4024820100 | 125 | CHARGING TUBE | 3 | 1 | Meer info | |||
| 4251600100 | 132 | DRIP TRAY TE150YT | 0 | 1 | Meer info | |||
| 4819020400 | 135 | MIDDLE HINGE PLUG (WHITE) | 1 | 3 | Meer info | |||
| 4070002700 | 149 | PLASTIC SLEEVE | 0 | 2 | Meer info | |||
| 4048860200 | 200 | WHEEL | 1 | 2 | Meer info | |||
| 4048870000 | 201 | WHEEL PIN | 1 | 2 | Meer info | |||
| 4050530200 | 202 | COMPRESSOR TRAVERSE | 10 | 1 | Meer info | |||
| 4142030600 | 210 | FOAMED FRZ.DOOR ASSY.(CCH485/EMBOSSED) | 21 | 1 | Meer info | |||
| 4136260400 | 212 | R/H DOOR SHELF ASSY. | 7 | 4 | Meer info | |||
| 4136270500 | 213 | L/H DOOR SHELF ASSY. | 6 | 3 | Meer info | |||
| 4136280500 | 214 | LOWER SHELF ASSEMBLY | 12 | 1 | Meer info | |||
| 4208470700 | 216 | DAIRY COVER (RIGHT) | 4 | 1 | Meer info | |||
| 4209240700 | 217 | DAIRY COVER (LEFT) | 0 | 1 | Meer info | |||
| 4208491000 | 218 | EGG TRAY | 5 | 1 | Meer info | |||
| 4209360800 | 222 | BOTTLE GRIPPER | 5 | 1 | Meer info | |||
| 4089680200 | 241 | HINGE PLUG | 1 | 3 | Meer info | |||
| 4089670200 | 250 | HINGE BUSHING | 1 | 3 | Meer info | |||
| 4142140500 | 251 | DOOR GASKET (B-485 FRIDGE) | 15 | 1 | Meer info | |||
| 4117883600 | 252 | DOOR GASKET (B-485 FREEZER) | 14 | 1 | Meer info | |||
| 4091550000 | 257 | LENS | 1 | 2 | Meer info | |||
| 4092050100 | 260 | PLUG (RIGHT) | 1 | 1 | Meer info | |||
| 4092060100 | 261 | HINGE PLUG (LEFT) | 1 | 1 | Meer info | |||
| 4232230100 | 300 | ICE CUBE TRAY (ARC-P1) (NEW) | 5 | 1 | Meer info | |||
| 4251890100 | 301 | EVAPORATOR FRONT TRIM (B-485/WOT) | 3 | 3 | Meer info | |||
| 4120062300 | 310 | GLASS SHELF ASSEMBLY | 14 | 3 | Meer info | |||
| 4078470200 | 314 | FULL DEPTH WIRE BASKET | 14 | 1 | Meer info | |||
| 4213460300 | 325 | ICE BANK | 13 | 1 | Meer info | |||
| 4240500800 | 326 | WIRE BASKET COVER | 0 | 1 | Meer info | |||
| 4240500500 | 326 | WIRE BASKET COVER | 11 | 2 | Meer info | |||
| 4213540200 | 331 | COVER HINGE R CG970 CN260 CG960 NC751 | 1 | 1 | Meer info | |||
| 4213550200 | 332 | COVER HINGE L CG970 CN260 CG960 NC751 | 1 | 1 | Meer info | |||
| 4078480200 | 336 | HALF DEPTH WIRE BASKET | 14 | 1 | Meer info | |||
| 4139680000 | 397 | LOKRING (6.35) | 10 | 2 | Meer info | |||
| 4117910300 | 400 | CABLE ASSEMBLY | 6 | 1 | Meer info | |||
| 4210340200 | 401 | LAMP/THERMOSTAT HOUSING | 10 | 1 | Meer info | |||
| 4210420200 | 402 | THERMOSTAT HOLE COVER | 1 | 1 | Meer info | |||
| 4212430000 | 403 | LAMP HOLDER E14 | 7 | 0 | Meer info | |||
| 4035890385 | 404 | INTERIOR LAMP (15W) | 5 | 1 | Meer info | |||
| 4130720200 | 405 | REFLECTIVE FOIL | 4 | 1 | Meer info | |||
| 4210350000 | 406 | LAMP / THERMOSTAT HOUSING COVER | 2 | 1 | Meer info | |||
| 4210380200 | 408 | PLUG | 1 | 1 | Meer info | |||
| 4204992400 | 510 | CRISPER COVER | 10 | 1 | Meer info | |||
| 4125100300 | 600 | FOAMED FRIDGE DOOR ASSY.(CCH4860) | 21 | 1 | Meer info | |||
| 4303070000 | 601 | MIDDLE HINGE ASSY. | 8 | 1 | Meer info | |||
| 4043360100 | 602 | BOLT (M5*16) | 1 | 2 | Meer info | |||
| 4057030100 | 604 | PLASTIC PLUNGER (DRAIN HOLE) | 1 | 1 | Meer info | |||
| 4083560600 | 854 | DRAIN HOSE | 4 | 1 | Meer info | |||
| 4151590100 | 959 | CABLE HOLDER ASSY.(LG COMPRESSOR) | 6 | 0 | Meer info | |||
| 4151590200 | 959 | CABLE HOLDER ASSY.(LG COMPRESSOR) | 4 | 1 | Meer info | |||
| 130200530 | 8323 | WASHER (B6 DIN127) | 1 | 2 | Meer info | |||
| 9001230200 | 8420 | PLASTIC CLAMP | 1 | 1 | Meer info |
