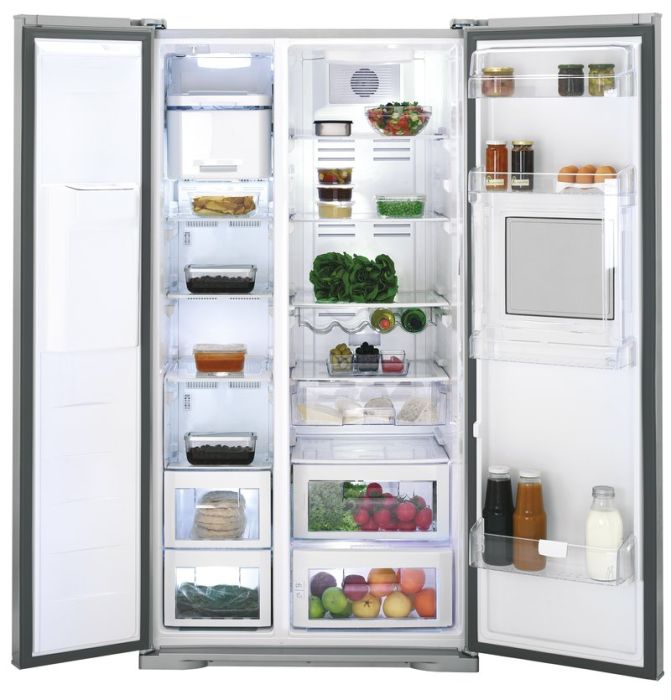

GNEV422X SIDE BY SIDE NO FROST INOX LOOK

Artikelnr: 114492
Referentienr: GNEV422X
Vergelijk

Productomschrijving

**** No Frost Side by side, 177,5 cm 371/179 L water en ijsverdeler - Mini-bar
Meer informatie
Gewicht (Kg) 124
Jaarlijks verbruik (kWh) 447
ArtRef GNEV422X
AsogemID 114492
MPN 7245147692
Merk BEKO
Soort Side by side koelkast
ArtEAN 8690842345364
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4250010400 0 MOTOR HOUSE SUPPORT-LINE 2001. 2 2 Meer info
4223430100 0 CHARGING TUBE 3 1 Meer info
4810690100 0 M4 WASHER 1 2 Meer info
4823280100 0 ICEBOX SENSOR COVER 1 1 Meer info
4094880285 0 INTERIOR LIGHT SWITCH 5 1 Meer info
4858350185 0 RADIAL FAN BLADE_CCW-95MM 3 1 Meer info
5720990100 0 FAN MOTOR 21 1 Meer info
4890070200 0 FAN MOTOR 18 0 Meer info
4362090300 0 FAN GROUP 20 1 Meer info
4094920285 0 INTERIOR LIGHT+FAN SWITCH 6 1 Meer info
4212410285 0 INTERIOR LIGHT+FAN SWITCH 8 0 Meer info
4860610100 0 MULTIFLOW COVER DFFUSER 6 1 Meer info
4854100100 0 FAN BLADE 7 1 Meer info
4364270285 0 FAN MOTOR_FDQR207Y3L_PANASONIC_MLX 27 1 Meer info
4877370100 0 INNER BODY STOPPER 1 1 Meer info
4334410100 0 ROLLER GR_SBS 4 10 Meer info
4829250110 0 SEALING ADAPTER 3 1 Meer info
4328510100 14 UPPER HINGE ASSY_SBS_RIGHT 8 1 Meer info
4250000400 15 ADJUSTABLE GLIDER 4 2 Meer info
4243121600 19 DOUBLE ENTRY DRAYER 8 1 Meer info
4243120400 19 DOUBLE ENTRY DRAYER 4 0 Meer info
4822610400 20 Air Grill Cover Assy. 18 1 Meer info
5223110011 30 COMPRESSOR (MTS200MT 208-220V)(R600a) 37 1 Meer info
4848610100 31 TERMINAL COVER 5 1 Meer info
4244690200 32 BUSHING (EMBRACO COMPRESSOR). 1 3 Meer info
4296130100 33 RUBBER GROMMET. 1 4 Meer info
4133843000 38 POWER CORD GROUP 12 1 Meer info
4846470185 43 PTC RELAY_SENSATA_8EA19E61 10 0 Meer info
5731010100 43 PTC RELAY 9 1 Meer info
4853840185 43 PTC RELAY_Arylux 10 0 Meer info
4085521685 44 OVERLOAD PROTECTOR (TERMIK (4TM302NFBYY- 8 0 Meer info
4085524585 44 OVERLOAD PROTECTOR (4TM302NFBYY-73) 8 1 Meer info
4121075086 48 CAPASITOR ASSEMBLY (5MF_FAST FIX). 11 0 Meer info
4121075085 48 CAPASITOR ASSEMBLY (5MF_FAST FIX). 8 1 Meer info
4810520100 51 EVAP. COVER STOPPER 1 2 Meer info
4820060600 110 TOP HINGE COVER RIGHT 5 1 Meer info
4215790100 125 CHARGING TUBE 4 1 Meer info
4047840400 135 MIDDLE HINGE PLUG 1 1 Meer info
4227230100 200 BACK WHEEL 4 2 Meer info
4076350300 201 WHEEL PIN 1 2 Meer info
4333400100 202 COMPRESSOR TRAVERSE GROUP 21 1 Meer info
4109812000 205 GROUND CABLE GROUP 1 1 Meer info
5737560100 211 LOGO 7 1 Meer info
4859090300 218 EGG TRAY_ARC_2009 4 1 Meer info
4826190100 219 BOTTLE GRIPPER_SBS 1 1 Meer info
4049961000 227 HANDLE SCREW COVER_RAL 7037 1 6 Meer info
4825010100 245 DOOR SHELF / SEFFAF 97 9 1 Meer info
4331811400 251 SBS FF DOOR GASKET ASSY 16 1 Meer info
4331811300 252 SBS FF DOOR GASKET ASSY 17 1 Meer info
4842110200 279 TAP ADAPTER GASKET 1 1 Meer info
4220760200 279 PROFILE 10 1 Meer info
4823270100 300 ICEBOX 5 1 Meer info
5921800100 303 Air blowtube 5 1 Meer info
4875250200 350 ICE FEEDING SLIDER_LEFT_SBS 3 1 Meer info
4875250100 351 Ice (KIZAGI)_(SAG)_YENI_SBS 3 1 Meer info
4826020100 368 NUT OF ICE FEEDING HOOK_SBS 4 1 Meer info
4342960185 400 ICE CRASHER CABLE GR_SBS_V3 10 1 Meer info
5760500100 404 LED BULB 13 3 Meer info
5760500200 404 LED BULB 9 0 Meer info
5760500300 404 LED BULB 13 0 Meer info
5760500400 404 LAMP(15 WATTS E 14 SCREW ) 10 0 Meer info
4831730100 509 HOME FRZ_METAL TRAY_SBS 16 1 Meer info
4825960800 512 DISPENSER WATER RESORVOIR_SBS 6 1 Meer info
4317080200 606 BOTTOM HINGE ASS_Y 8 1 Meer info
4317080100 607 BOTTOM HINGE ASS_Y 8 1 Meer info
4836010500 624 PE SPONGE 2 1 Meer info
4824620100 625 FRZ ILLUMINATING COVER 6 1 Meer info
4864980100 639 CHARCOAL FILTER BOX 1 1 Meer info
4390470185 713 EVAPORATOR ASSY_MAC200 28 1 Meer info
4385620285 715 THERMAL INSURANCE 14 1 Meer info
4919820200 716 THERMAL INSURANCE 12 0 Meer info
4881440185 716 EVA ISITICISI G92586_230V_125W_SBS_YSS 16 1 Meer info
4824250100 720 FAN BLADE_SBS 0 0 Meer info
4391660185 724 FAN MOTOR_BLDC_FDQC28AL1C_PANASONIC 24 1 Meer info
4385910100 730 VENTILATION SPACER GROUP 4 1 Meer info
4823420100 755 ADJUSTABLE GLIDER 1 2 Meer info
4334430100 765 FF _CRISPER_COVER GR_SBS _ TRANSP. 97 13 1 Meer info
4362950185 777 LIGHT SOCKET 5 2 Meer info
4344740285 778 SENSOR GR_ICE MAKER SBS 10 1 Meer info
4875300100 779 FF ILLUMINATING COVER 7 1 Meer info
4335650285 784 CONTROL BOARD_YENI SBS_V3_BITRON 31 1 Meer info
4391620100 804 MULTIFLOW ASSY . SBS4K 25 1 Meer info
4335952300 827 MAIN_CARD_COVER GR_SBS_RAL 7037/ENG. 10 1 Meer info
4333570600 831 BACK COVER GROUP 17 1 Meer info
4333580310 832 FRONT FOOT PLATE GROUP 11 1 Meer info
4333580410 833 FRONT FOOT PLATE GROUP 11 1 Meer info
4317100200 836 EVAPORATING TRAY 16 1 Meer info
4334330400 838 PAINTED DOOR SHELF GR_SBS_100MM_NATUREL 12 1 Meer info
4395340100 848 COIL CONDENSER ASS_Y_MAC200 24 1 Meer info
4333500100 850 WATER DSCHARGE HOSE GROUP 5 2 Meer info
4839590100 864 WINE HOLDER 14 1 Meer info
4853050300 876 HANDLE FASTENER OUTER_ARC 552 9 0 Meer info
4841320300 955 SCREW(M5x25) 1 8 Meer info
4853310100 955 SCREWM5x10 1 0 Meer info
4846480100 959 CABLE HOLDER 2 1 Meer info
4228060400 960 PHOTOCATALYST FILTER 9 1 Meer info
4336970500 964 FF_PLASTIC_CONTAINER GR_TRANSP 97 16 1 Meer info
4395277000 966 FOAMED DOOR ASSY 45 1 Meer info
4330351210 967 DOOR ASS. 0 1 Meer info
4382890300 972 HANDLE BEKO_ GR. 27 0 Meer info
4382890400 972 HANDLE BEKO, GR.MAT NIKEL 26 2 Meer info
4856540400 972 HANDLE PIPE BEKO MATE NICEL 0 2 Meer info
4305891785 973 FAN ASS_SBS LG 26 1 Meer info
4239400100 974 CONDENSER SHEET RUBBER(B-975) 1 2 Meer info
9000130400 995 RUBBER HOLDER 1 2 Meer info
9000130500 995 RUBBER HOLDER 1 1 Meer info
4390290100 1015 LOVER EVA COVER 24 1 Meer info
4330840500 1026 TRIGGER ASSY 8 1 Meer info
4823130500 1027 WATER DISPENSER DRIP TRAY 6 1 Meer info
4394150100 1029 WATER_TANK_ASSY_SBS 15 1 Meer info
4395240400 1094 GLASS SHELF ASSY_SBS 15 4 Meer info
4393690585 1097 DISPLAY PANEL ASSY 25 1 Meer info
4239850200 1098 SCREW 1 2 Meer info
4334330300 1107 PAINTED DOOR SHELF GR_SBS_50MM_NATUREL 11 3 Meer info
4317995200 1124 IONIZER 15 1 Meer info
4317990200 1124 IONIZER 15 0 Meer info
4317995400 1124 IONIZER 15 0 Meer info
4317990400 1124 IONIZER 15 0 Meer info
4362700185 1124 IONIZER GROUP 17 1 Meer info
4337190100 1135 CRISPER_FRAME_COVER_W_ 11 1 Meer info
4333522100 1138 GLASS SHELF ASSY_SBS_363_5 13 2 Meer info
4333522400 1139 GLASS SHELF ASSY_SBS_271_5 13 2 Meer info
4328510200 1142 UPPER HINGE ASSY_SBS_LEFT 8 1 Meer info
4834680100 1143 EVA BLOWTUBE (UPPER) 2 1 Meer info
4834690100 1144 EVA BLOWTUBE (BOTTOM 2 1 Meer info
4820070600 1146 TOP HINGE COVER-LEFT 5 1 Meer info
4335310500 1160 ICE _ WATER DISOENSER FRAME ASSY 14 1 Meer info
4862850100 1164 BLUE LIGHT GLASS 4 1 Meer info
4847990500 1167 WATER DISPENS GATE 5 1 Meer info
4399980100 1169 ICE PATH SHUTTER ASSY. 16 1 Meer info
4826740100 1170 DISPENSER SOLENOID (DISP SN2) 17 1 Meer info
4823780100 1171 FRZ DOOR ICE HOLE COVER 3 1 Meer info
4246070100 1172 ICE HOLE COVER 1 1 Meer info
4831710100 1173 HOME FRZ COVER_SBS 7 1 Meer info
4831720200 1174 HOME FRZ TRAY_SBS 11 1 Meer info
4823260100 1175 ICE BANK DECORATIVE COVER_SBS 12 1 Meer info
4823180100 1176 CRASHER SEGMENT_SBS 9 1 Meer info
4874940100 1177 ICE_STOCK_SPIRAL 10 1 Meer info
4875140100 1180 ICE BANK_SBS 13 1 Meer info
4346600385 1181 WATER VALVE GROUP 26 1 Meer info
4826720100 1181 WATER VALVE GROUP 23 0 Meer info
5945310200 1181 WATER VALVE GROUP 27 1 Meer info
4832650600 1182 WATER PIPE _SBS_VALVE_FRZ 6 1 Meer info
4339790385 1184 ICE_MACHINE_WATER_ADAPTOR_ ASSY_SBS 14 1 Meer info
4833180100 1185 ICE ELBOW 7 1 Meer info
4823800100 1186 ICEBOX TOP BODY 8 1 Meer info
4822980100 1187 ICE MOTOR FIXING RUBBER 1 1 Meer info
4827350100 1188 ICEMATIC MOTOR 26 1 Meer info
4823830100 1189 ICE LEVEL ARM _SBS 3 1 Meer info
4823290100 1190 INSULATING PART OF ICE CUBE TRAY SENSOR_ 4 1 Meer info
4890590200 1195 HOSE 1 1 Meer info
4890590300 1195 HOLE 4 1 Meer info
4826750100 1196 quick fit connector 10 1 Meer info
4330950100 1199 ICE CRASHER PISTON GR_SBS 13 1 Meer info
5727200100 1200 ICE CRUSHER MOTOR (ISG-3235ACA) 24 0 Meer info
4330980185 1200 ICE CRUSHER MOTOR (ISG-3240ACA) 25 0 Meer info
5727210100 1200 ICE CRUSHER MOTOR (ISG-3240ACC) 24 1 Meer info
4822360100 1203 ICE FEEDING MOTOR HOOK_SBS 8 1 Meer info
4869530100 1204 WATER HOSE HOLDER (BACK WALL) 1 3 Meer info
4819430200 1204 SBS PIPE CLAMP 2 5 Meer info
4842100100 1205 TAP ADAPTER UNION 1 1 Meer info
4346640100 1206 TAP CONNECTION KIT GROUP 20 1 Meer info
4832610100 1207 SOCKET HOUSING COVER 3 1 Meer info
4816510100 1264 MICROSWITCH (CHERRY D451 V1KD) 8 1 Meer info
4336151010 1267 DID ASS. 29 1 Meer info
4123280700 1268 EVAPORATOR / FREEZER DOOR GASKET, 10 1 Meer info
4334550400 1270 FREEZER_DRAWER_FRAME_ASSY 15 1 Meer info
4334551400 1270 FREEZER_DRAWER_FRAME_ASSY 14 1 Meer info
4338150900 1271 FRIDGE_BOTTOM_CRISPER_BODY_ASSY 16 2 Meer info
4295210100 1283 BITUM_125x120x2 2 1 Meer info
4333550100 1313 DID_INTERIOR ASSEMBLY_NATURAL 17 1 Meer info
4338150100 1331 2nd LAYER DRAWER ASS. SBS 15 1 Meer info
4338150200 1332 SMALL DRAWER ASS. SBS 15 1 Meer info
4334550200 1334 FREEZER_SMALL_DRAWER_FRAME_ASSY 13 2 Meer info
4395240800 1337 GLASS SHELF ASSY_SBS 15 1 Meer info
4346650800 1360 WATER SYSTEM KIT GR. 25 0 Meer info
4946910100 1360 INLINE_WATER_SYSTEM_KIT_GROUP 23 1 Meer info
4842120100 1361 HOSE FILTERSBS-V3 9 1 Meer info
4853040100 1374 HANDLE FASTENER INNER 6 0 Meer info
4855560300 1374 HANDLE FASTENER INNER ARC 552 7 6 Meer info
4852660100 1375 DID 2 1 Meer info
4823020100 1381 ICE CUBE ADJUSTMENT LEVER 10 1 Meer info
4834670185 1403 BLUE LIGHT LED CARD (HUALIAN) 11 1 Meer info
4854830100 1417 WATER VALVE SPRING 2 1 Meer info
4854830200 1418 WATER VALVE SPRING 3 1 Meer info
4330580185 1440 ICE_TRAY_ ASSY_SBS 29 1 Meer info
4394570100 1473 ICE_SLIDING_MOTOR_ASSY_SBS 31 1 Meer info
4394550100 1474 Ice stock GR_YENI_SBS 27 1 Meer info
4390280200 1475 TOP_EVAP_COVER GR_SBS_NEW_V1_V2 15 1 Meer info
4819980100 1500 HINGE BEARING 2 2 Meer info
4819990200 1501 UPPER DOOR INNER LINER- 4 1 Meer info
4386410100 1508 IN_LINE_FILTER_GRUBU 21 0 Meer info
4881250100 1511 WATERPROOFNG RUBBER 1 2 Meer info
4857690100 1514 QUICK FIT CONNECTOR 11 1 Meer info
4346580200 1521 DISPENSER DRIPING CRENEL GR. ARC552 10 1 Meer info
4906140101 1583 WATER SYSTEM FILTER GROUP 22 0 Meer info
