main product photo

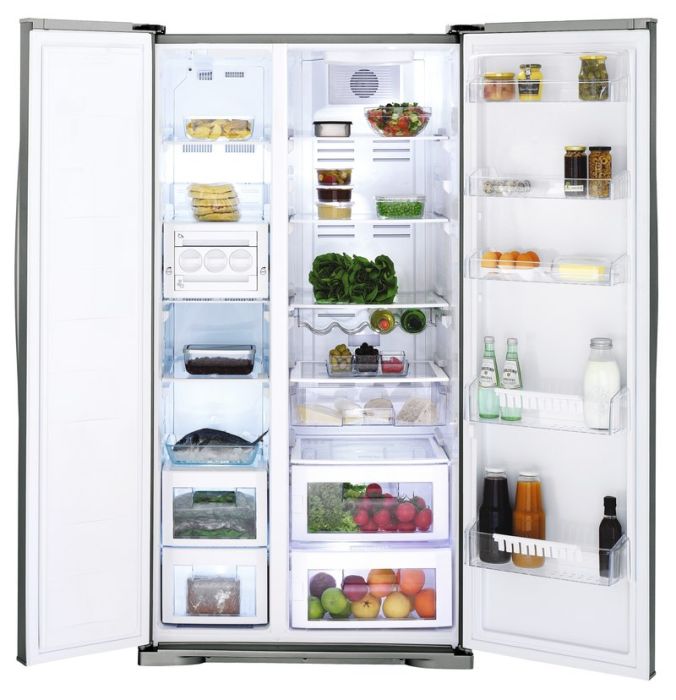

GNEV122X SIDE BY SIDE KOELKAST NO FROST INOX

Artikelnr: 114528
Referentienr: GNEV122X
Vergelijk

Productomschrijving

**** No Frost Side by side, 177,5 cm 378/178 L Inox
Meer informatie
Gewicht (Kg) 119
Jaarlijks verbruik (kWh) 476
ArtRef GNEV122X
AsogemID 114528
MPN 7246248792
Merk BEKO
Soort Side by side koelkast
ArtEAN 8690769372146
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4250010400 0 MOTOR HOUSE SUPPORT-LINE 2001. 2 2 Meer info
4223430100 0 CHARGING TUBE 3 1 Meer info
4810690100 0 M4 WASHER 1 2 Meer info
4094880285 0 INTERIOR LIGHT SWITCH 5 1 Meer info
4858350185 0 RADIAL FAN BLADE_CCW-95MM 3 1 Meer info
5720990100 0 FAN MOTOR 21 1 Meer info
4890070200 0 FAN MOTOR 18 0 Meer info
4362090300 0 FAN GROUP 20 1 Meer info
4094920285 0 INTERIOR LIGHT+FAN SWITCH 6 1 Meer info
4854100100 0 FAN BLADE 7 1 Meer info
4364270285 0 FAN MOTOR_FDQR207Y3L_PANASONIC_MLX 27 1 Meer info
4334410100 0 ROLLER GR_SBS 4 10 Meer info
4328510100 14 UPPER HINGE ASSY_SBS_RIGHT 8 1 Meer info
4250000400 15 ADJUSTABLE GLIDER 4 2 Meer info
4243121600 19 DOUBLE ENTRY DRAYER 8 1 Meer info
4243120400 19 DOUBLE ENTRY DRAYER 4 0 Meer info
4822611200 20 Air Grill Cover Assy. 16 1 Meer info
5223110011 30 COMPRESSOR (MTS200MT 208-220V)(R600a) 37 1 Meer info
4848610100 31 TERMINAL COVER 5 1 Meer info
4244690200 32 BUSHING (EMBRACO COMPRESSOR). 1 3 Meer info
4296130100 33 RUBBER GROMMET. 1 4 Meer info
4133843000 38 POWER CORD GROUP 12 1 Meer info
4846470185 43 PTC RELAY_SENSATA_8EA19E61 10 0 Meer info
5731010100 43 PTC RELAY 9 1 Meer info
4853840185 43 PTC RELAY_Arylux 10 0 Meer info
4085521685 44 OVERLOAD PROTECTOR (TERMIK (4TM302NFBYY- 8 0 Meer info
4085524585 44 OVERLOAD PROTECTOR (4TM302NFBYY-73) 8 1 Meer info
4121075086 48 CAPASITOR ASSEMBLY (5MF_FAST FIX). 11 0 Meer info
4121075085 48 CAPASITOR ASSEMBLY (5MF_FAST FIX). 8 1 Meer info
4810520100 51 EVAP. COVER STOPPER 1 2 Meer info
4820061500 110 EXTERNAL DOOR 6 1 Meer info
4215790100 125 CHARGING TUBE 4 1 Meer info
4227230100 200 BACK WHEEL 4 2 Meer info
4076350300 201 WHEEL PIN 1 2 Meer info
4333400100 202 COMPRESSOR TRAVERSE GROUP 21 1 Meer info
4109812000 205 GROUND CABLE GROUP 1 1 Meer info
5737560100 211 LOGO 7 1 Meer info
4859090300 218 EGG TRAY_ARC_2009 4 2 Meer info
4049961000 227 HANDLE SCREW COVER_RAL 7037 1 6 Meer info
4825010100 245 DOOR SHELF / SEFFAF 97 9 1 Meer info
4818830200 250 HINGE BEARING 1 1 Meer info
4331811400 251 SBS FF DOOR GASKET ASSY 16 1 Meer info
4331811300 252 SBS FF DOOR GASKET ASSY 17 1 Meer info
4220760200 279 PROFILE 10 1 Meer info
5921800100 303 Air blowtube 5 1 Meer info
4831510100 382 SCREW 1 2 Meer info
5760500100 404 LED BULB 13 3 Meer info
5760500200 404 LED BULB 9 0 Meer info
5760500300 404 LED BULB 13 0 Meer info
5760500400 404 LAMP(15 WATTS E 14 SCREW ) 10 0 Meer info
4317080200 606 BOTTOM HINGE ASS_Y 8 1 Meer info
4317080100 607 BOTTOM HINGE ASS_Y 8 1 Meer info
4824620100 625 FRZ ILLUMINATING COVER 6 1 Meer info
4864980100 639 CHARCOAL FILTER BOX 1 1 Meer info
4390470185 713 EVAPORATOR ASSY_MAC200 28 1 Meer info
4385620285 715 THERMAL INSURANCE 14 1 Meer info
4919820200 716 THERMAL INSURANCE 12 0 Meer info
4881440185 716 EVA ISITICISI G92586_230V_125W_SBS_YSS 16 1 Meer info
4824250100 720 FAN BLADE_SBS 0 0 Meer info
4391660185 724 FAN MOTOR_BLDC_FDQC28AL1C_PANASONIC 24 1 Meer info
4385910100 730 VENTILATION SPACER GROUP 4 1 Meer info
4336990100 738 ICE_BANK GR 11 1 Meer info
4345620100 745 ICE CUBE TRAY CHASSIS 14 1 Meer info
4823420100 755 ADJUSTABLE GLIDER 1 2 Meer info
4334430100 765 FF _CRISPER_COVER GR_SBS _ TRANSP. 97 13 1 Meer info
4362950185 777 LIGHT SOCKET 5 2 Meer info
4875300100 779 FF ILLUMINATING COVER 7 1 Meer info
4326997200 784 CONTROL BOARD ASSY_G92612NE 23 1 Meer info
4326992285 784 CONTROL BOARD ASSY_G92612NE 24 0 Meer info
4391620100 804 MULTIFLOW ASSY . SBS4K 25 1 Meer info
4334470100 809 ICE_CUBE_TRAY_ASSY_SBS 16 1 Meer info
4335952300 827 MAIN_CARD_COVER GR_SBS_RAL 7037/ENG. 10 1 Meer info
4333570500 831 BACK COVER GROUP 17 1 Meer info
4333580310 832 FRONT FOOT PLATE GROUP 11 1 Meer info
4333580410 833 FRONT FOOT PLATE GROUP 11 1 Meer info
4317100200 836 EVAPORATING TRAY 16 1 Meer info
4334330400 838 PAINTED DOOR SHELF GR_SBS_100MM_NATUREL 12 2 Meer info
4395470585 840 COMPLETE_DISPLAY GR_YENI_SBS_BEKO_V1 23 1 Meer info
4395340100 848 COIL CONDENSER ASS_Y_MAC200 24 1 Meer info
4839590100 864 WINE HOLDER 14 1 Meer info
4864410300 876 HANDLE FASTENER INNER 10 6 Meer info
4841320200 955 SPIRAL FORM SCREW - M5x18 CONLOK 1 13 Meer info
4841320300 955 SCREW(M5x25) 1 4 Meer info
4846480100 959 CABLE HOLDER 2 1 Meer info
4228060400 960 PHOTOCATALYST FILTER 9 1 Meer info
4336970500 964 FF_PLASTIC_CONTAINER GR_TRANSP 97 16 1 Meer info
4395262800 966 FOAMED FRZ DOOR ASSY_AFINGER_RAL7039 43 1 Meer info
4397770800 967 FF DOOR ASSY_V1_V3_A.FINGER_ 45 1 Meer info
4382890400 972 HANDLE BEKO, GR.MAT NIKEL 26 2 Meer info
4856540400 972 HANDLE PIPE BEKO MATE NICEL 0 2 Meer info
4305891785 973 FAN ASS_SBS LG 26 1 Meer info
4239400100 974 CONDENSER SHEET RUBBER(B-975) 1 2 Meer info
9000130500 995 RUBBER HOLDER 1 2 Meer info
4390290100 1015 LOVER EVA COVER 24 1 Meer info
4831170200 1088 SHELF_SBS_375 9 1 Meer info
4395240400 1094 GLASS SHELF ASSY_SBS 15 5 Meer info
4239850200 1098 SCREW 1 2 Meer info
4334330300 1107 PAINTED DOOR SHELF GR_SBS_50MM_NATUREL 11 3 Meer info
4337190100 1135 CRISPER_FRAME_COVER_W_ 11 1 Meer info
4338151000 1137 FRIDGE_TOP_CRISPER_BODY_ASSY 16 1 Meer info
4333522100 1138 GLASS SHELF ASSY_SBS_363_5 13 2 Meer info
4333521900 1139 GLASS SHELF ASSY_SBS_402 13 1 Meer info
4333522000 1140 GLASS SHELF ASSY_SBS_375 13 1 Meer info
4334460100 1141 ICE_CUBE_TRAY_CARTRIDGE_SBS 12 1 Meer info
4328510200 1142 UPPER HINGE ASSY_SBS_LEFT 8 1 Meer info
4834680100 1143 EVA BLOWTUBE (UPPER) 2 1 Meer info
4834690100 1144 EVA BLOWTUBE (BOTTOM 2 1 Meer info
4820071500 1146 EXTERNAL DOOR 6 1 Meer info
4334550400 1270 FREEZER_DRAWER_FRAME_ASSY 15 1 Meer info
4334551400 1270 FREEZER_DRAWER_FRAME_ASSY 14 1 Meer info
4338150900 1271 FRIDGE_BOTTOM_CRISPER_BODY_ASSY 16 1 Meer info
4295210100 1283 BITUM_125x120x2 2 1 Meer info
4338150100 1331 2nd LAYER DRAWER ASS. SBS 15 1 Meer info
4338150200 1332 SMALL DRAWER ASS. SBS 15 1 Meer info
4334550200 1334 FREEZER_SMALL_DRAWER_FRAME_ASSY 13 2 Meer info
4855560300 1374 HANDLE FASTENER INNER ARC 552 7 6 Meer info
4390280100 1475 TOP_EVAP_COVER GR_SBS_NEW_V1_V2 15 1 Meer info
4819980100 1500 HINGE BEARING 2 2 Meer info
4819990200 1501 UPPER DOOR INNER LINER- 4 1 Meer info
4874830100 1509 EVA.FRONT_BACK COVER ASSY- 10 1 Meer info
4874840100 1510 EVA.FRONT_BACK COVER ASSY- 13 1 Meer info
