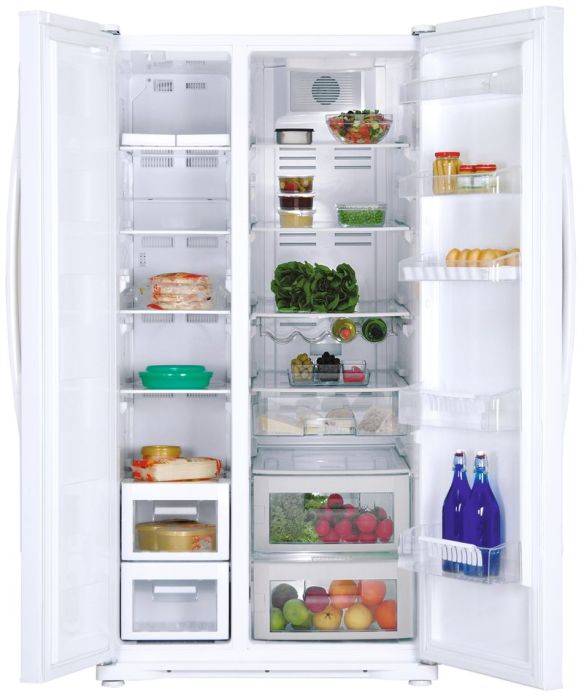

GNEV120W SIDE BY SIDE KOELKAST NO FROST

Artikelnr: 114653
Referentienr: GNEV120W
Vergelijk

Productomschrijving

**** No Frost Side by side, 177,5 cm 371/194 L
Meer informatie
Gewicht (Kg) 115
Jaarlijks verbruik (kWh) 560
ArtRef GNEV120W
AsogemID 114653
MPN 7243848714
Merk BEKO
Soort Side by side koelkast
ArtEAN 8690842349799
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4250010400 0 MOTOR HOUSE SUPPORT-LINE 2001. 2 4 Meer info
4223430100 0 CHARGING TUBE 3 1 Meer info
4810690100 0 M4 WASHER 1 2 Meer info
4094880285 0 INTERIOR LIGHT SWITCH 5 1 Meer info
4834220185 0 INTERIOR LIGHT SWITCH (LAMP_DEFOND_ROHS) 5 0 Meer info
4858350185 0 RADIAL FAN BLADE_CCW-95MM 3 1 Meer info
5720990100 0 FAN MOTOR 21 1 Meer info
4890070200 0 FAN MOTOR 18 0 Meer info
4362090300 0 FAN GROUP 20 1 Meer info
4212400285 0 INTERIOR LIGHT SWITCH (NORMALLY CLOSE-P1 3 0 Meer info
4834240185 0 INTERIOR LIGHT+FAN SWITCH 5 0 Meer info
4094920285 0 INTERIOR LIGHT+FAN SWITCH 6 1 Meer info
4212410285 0 INTERIOR LIGHT+FAN SWITCH 8 0 Meer info
4860610100 0 MULTIFLOW COVER DFFUSER 6 1 Meer info
4854100100 0 FAN BLADE 7 1 Meer info
4364270285 0 FAN MOTOR_FDQR207Y3L_PANASONIC_MLX 27 1 Meer info
4334410100 0 ROLLER GR_SBS 4 8 Meer info
4328510100 14 UPPER HINGE ASSY_SBS_RIGHT 8 1 Meer info
4250000500 15 ADJUSTABLE GLIDER 4 1 Meer info
4243121600 19 DOUBLE ENTRY DRAYER 8 1 Meer info
4243120400 19 DOUBLE ENTRY DRAYER 4 0 Meer info
4822610100 20 Air Grill Cover Assy. 15 1 Meer info
5223110011 30 COMPRESSOR (MTS200MT 208-220V)(R600a) 37 1 Meer info
4848610100 31 TERMINAL COVER 5 1 Meer info
4244690200 32 BUSHING (EMBRACO COMPRESSOR). 1 3 Meer info
4296130100 33 RUBBER GROMMET. 1 4 Meer info
4133843000 38 POWER CORD GROUP 12 1 Meer info
4846470185 43 PTC RELAY_SENSATA_8EA19E61 10 0 Meer info
5731010100 43 PTC RELAY 9 1 Meer info
4853840185 43 PTC RELAY_Arylux 10 0 Meer info
4085521685 44 OVERLOAD PROTECTOR (TERMIK (4TM302NFBYY- 8 0 Meer info
4085524585 44 OVERLOAD PROTECTOR (4TM302NFBYY-73) 8 1 Meer info
4121075086 48 CAPASITOR ASSEMBLY (5MF_FAST FIX). 11 0 Meer info
4121075085 48 CAPASITOR ASSEMBLY (5MF_FAST FIX). 8 1 Meer info
4810520100 51 EVAP. COVER STOPPER 1 2 Meer info
4820060100 110 EXTERNAL DOOR 2 1 Meer info
4215790100 125 CHARGING TUBE 4 1 Meer info
4227230100 200 BACK WHEEL 4 2 Meer info
4076350300 201 WHEEL PIN 1 2 Meer info
4333400100 202 COMPRESSOR TRAVERSE GROUP 21 1 Meer info
4109812000 205 GROUND CABLE GROUP 1 1 Meer info
5737560100 211 LOGO 7 1 Meer info
4859090300 218 EGG TRAY_ARC_2009 4 2 Meer info
4816050100 222 BOTTLE HOLDER (NTT_LRD_ FRD_OPAC ARC-P1) 3 2 Meer info
4818830200 250 HINGE BEARING 1 1 Meer info
4331810200 251 SBS FRZ DOOR GASKET ASSY 15 1 Meer info
4331810100 252 SBS FF DOOR GASKET ASSY 16 1 Meer info
4220760200 279 PROFILE 10 1 Meer info
4211480200 300 ICEBOX 8 2 Meer info
5921800100 303 Air blowtube 5 1 Meer info
5760500100 404 LED BULB 13 2 Meer info
5760500200 404 LED BULB 9 0 Meer info
5760500300 404 LED BULB 13 0 Meer info
5760500400 404 LAMP(15 WATTS E 14 SCREW ) 10 0 Meer info
4317080200 606 BOTTOM HINGE ASS_Y 8 1 Meer info
4317080100 607 BOTTOM HINGE ASS_Y 8 1 Meer info
4864980100 639 CHARCOAL FILTER BOX 1 1 Meer info
4390470185 713 EVAPORATOR ASSY_MAC200 28 1 Meer info
4385620285 715 THERMAL INSURANCE 14 1 Meer info
4919820200 716 THERMAL INSURANCE 12 0 Meer info
4881440185 716 EVA ISITICISI G92586_230V_125W_SBS_YSS 16 1 Meer info
4854110100 720 FAN BLADE_SBS 6 1 Meer info
4385910100 730 VENTILATION SPACER GROUP 4 1 Meer info
4823420100 755 ADJUSTABLE GLIDER 1 2 Meer info
4334430100 765 FF _CRISPER_COVER GR_SBS _ TRANSP. 97 13 1 Meer info
4362950185 777 LIGHT SOCKET 5 2 Meer info
4875300100 779 FF ILLUMINATING COVER 7 1 Meer info
4326997200 784 CONTROL BOARD ASSY_G92612NE 23 1 Meer info
4326992285 784 CONTROL BOARD ASSY_G92612NE 24 0 Meer info
4391620100 804 MULTIFLOW ASSY . SBS4K 25 1 Meer info
4335952400 827 MAIN_CARD_COVER GR_SBS_ARC-P1/ENG. 9 1 Meer info
4333570500 831 BACK COVER GROUP 17 1 Meer info
4333580110 832 FRONT FOOT PLATE GROUP 10 1 Meer info
4333580210 833 FRONT FOOT PLATE GROUP 10 1 Meer info
4317100200 836 EVAPORATING TRAY 16 1 Meer info
4334330400 838 PAINTED DOOR SHELF GR_SBS_100MM_NATUREL 12 2 Meer info
4395470285 840 COMPLETE_DISPLAY GR_SBS_BEKO_ARC P1 24 1 Meer info
4216600385 846 SENSOR (QUICK FREEZE) 8 1 Meer info
4395340100 848 COIL CONDENSER ASS_Y_MAC200 24 1 Meer info
4333500100 850 WATER DSCHARGE HOSE GROUP 5 2 Meer info
5715970100 857 SENSOR HOUSING COVER 2 1 Meer info
4841320300 955 SCREW(M5x25) 1 8 Meer info
4240620100 959 CABLE HOLDER 2 1 Meer info
4846480100 959 CABLE HOLDER 2 1 Meer info
4228060400 960 PHOTOCATALYST FILTER 9 1 Meer info
4395262900 966 FRZ _DOOR GR_SBS_V1_V2_ARC91 43 0 Meer info
4395262950 966 FRZ _DOOR GR_SBS_V1_V2_ARC91 41 1 Meer info
4326020550 967 FRESH FOOD DOOR ASS. 41 1 Meer info
4326020500 967 FRESH FOOD DOOR ASS. 40 0 Meer info
4853630100 968 EXTERNAL DOOR 4 2 Meer info
4336320100 972 EXTURNEL DOOR ASSY_SBS 12 2 Meer info
4305891385 973 FAN ASS_SBS 21 1 Meer info
4239400100 974 CONDENSER SHEET RUBBER(B-975) 1 2 Meer info
9000130400 995 RUBBER HOLDER 1 2 Meer info
9000130500 995 RUBBER HOLDER 1 2 Meer info
9000130300 995 RUBBER HOLDER 1 1 Meer info
4390290200 1015 LOVER EVA COVER 21 1 Meer info
4820000100 1033 UPPER DOOR INNER LINER LEFT 2 1 Meer info
4395240400 1094 GLASS SHELF ASSY_SBS 15 5 Meer info
4239850200 1098 SCREW 1 2 Meer info
4853640100 1103 EXTERNAL DOOR 5 2 Meer info
4334330300 1107 PAINTED DOOR SHELF GR_SBS_50MM_NATUREL 11 3 Meer info
4338151000 1137 FRIDGE_TOP_CRISPER_BODY_ASSY 16 1 Meer info
4333522100 1138 GLASS SHELF ASSY_SBS_363_5 13 1 Meer info
4333521900 1139 GLASS SHELF ASSY_SBS_402 13 3 Meer info
4333522000 1140 GLASS SHELF ASSY_SBS_375 13 1 Meer info
4328510200 1142 UPPER HINGE ASSY_SBS_LEFT 8 1 Meer info
4834680100 1143 EVA BLOWTUBE (UPPER) 2 1 Meer info
4834690100 1144 EVA BLOWTUBE (BOTTOM 2 1 Meer info
4820070100 1146 EXTERNAL DOOR 2 1 Meer info
4334550400 1270 FREEZER_DRAWER_FRAME_ASSY 15 2 Meer info
4338150900 1271 FRIDGE_BOTTOM_CRISPER_BODY_ASSY 16 1 Meer info
4295210100 1283 BITUM_125x120x2 2 1 Meer info
4338150100 1331 2nd LAYER DRAWER ASS. SBS 15 1 Meer info
4338150200 1332 SMALL DRAWER ASS. SBS 15 1 Meer info
4334550200 1334 FREEZER_SMALL_DRAWER_FRAME_ASSY 13 2 Meer info
4390280100 1475 TOP_EVAP_COVER GR_SBS_NEW_V1_V2 15 1 Meer info
4819980100 1500 HINGE BEARING 2 2 Meer info
4819990100 1501 UPPER DOOR INNER LINER- 2 1 Meer info
4874830100 1509 EVA.FRONT_BACK COVER ASSY- 10 1 Meer info
4874840100 1510 EVA.FRONT_BACK COVER ASSY- 13 1 Meer info
4818490200 1764 BITUM FOR EVAPARATOR TUBES 8 1 Meer info
9001230200 8420 PLASTIC CLAMP 1 3 Meer info
