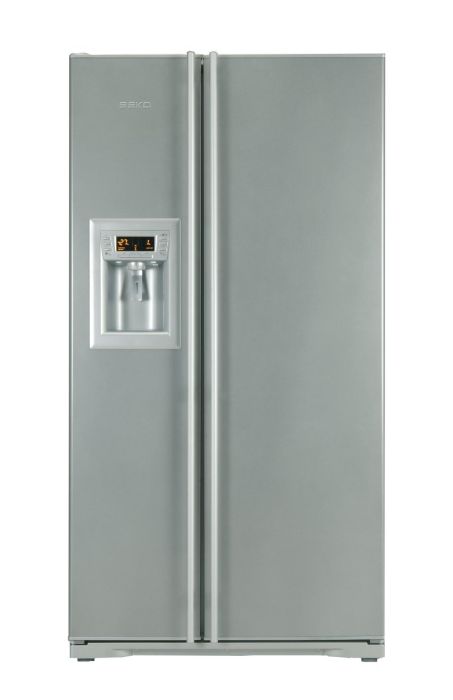

GNE35700S SIDE BY SIDE KOELKAST NO FROST

Artikelnr: 114713
Referentienr: GNE35700S
Vergelijk

Productomschrijving

**** FF Side by side, 177,5 cm 383
Meer informatie
Jaarlijks verbruik (kWh) 529
ArtRef GNE35700S
AsogemID 114713
Merk BEKO
Soort Koelkast 2 deuren (top freezer)
ArtEAN 8690842301230
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4250010400 0 MOTOR HOUSE SUPPORT-LINE 2001. 2 2 Meer info
4223430100 0 CHARGING TUBE 3 1 Meer info
4823280100 0 ICEBOX SENSOR COVER 1 1 Meer info
4834220185 0 INTERIOR LIGHT SWITCH (LAMP_DEFOND_ROHS) 5 2 Meer info
4854100100 0 FAN BLADE 7 1 Meer info
4364270285 0 FAN MOTOR_FDQR207Y3L_PANASONIC_MLX 27 1 Meer info
4334410100 0 ROLLER GR_SBS 4 10 Meer info
4829250110 0 SEALING ADAPTER 3 1 Meer info
4848780100 0 Cover 1 1 Meer info
4822390100 0 KNIFE STAMP 1 2 Meer info
9711420 0 PC-I-NAT-HB-MR 16 0 Meer info
4833340100 0 SBS BACK COIL CONDANSER SUPPORT 2 1 Meer info
4852350100 0 - 0 1 Meer info
4824750100 0 - 2 1 Meer info
4844430100 0 - 0 1 Meer info
4837070100 0 - 0 1 Meer info
4832680100 0 - 1 1 Meer info
4832650100 0 - 1 1 Meer info
4823030100 0 - 0 1 Meer info
4823060100 0 MOVING KNIFE 3 1 Meer info
4823000100 0 - 0 1 Meer info
4822320100 0 - 0 1 Meer info
4334391300 0 crisper assy blue light 0 1 Meer info
4330560100 0 - 0 1 Meer info
4822370100 0 ICE ARM PIN 4 1 Meer info
4084960300 0 ADHESIVE TAPE 15 0 Meer info
4823160100 0 - 18 1 Meer info
4823100100 0 KNIFE STAMP 1 2 Meer info
4822330100 0 ICE ARM SPRING 1 1 Meer info
9712055 0 PPCO-NAT-I-HB-HG-FDA 0 1 Meer info
4864330500 0 PVC CAP 4.4x50 0 2 Meer info
4833330100 0 SBS FROT COIL CONDANSER SUPPORT 2 1 Meer info
4844530100 0 - 0 1 Meer info
4841680100 0 BEKO DISPLAY 0 1 Meer info
4832690100 0 - 0 1 Meer info
4832650200 0 - 3 1 Meer info
4829490100 0 hose storage 0 1 Meer info
4823050100 0 MOVING KNIFE 0 1 Meer info
4823070100 0 MOVING KNIFE 3 1 Meer info
4823010100 0 - 0 1 Meer info
4822400100 0 KNIFE PLASTIC 0 1 Meer info
4816160100 0 CONDENSER PAINT_BLACK 0 1 Meer info
4330860100 0 - 0 1 Meer info
4822410100 0 en 4 1 Meer info
4339760100 0 BY_PASS ASSY_SBS 6 1 Meer info
4824590100 0 EVA.FRONT/BACK COVER ASSY- 7 1 Meer info
4823840300 0 ICE MAKER DISPLAY COVER 0 1 Meer info
4328510100 14 UPPER HINGE ASSY_SBS_RIGHT 8 1 Meer info
4250000400 15 ADJUSTABLE GLIDER 4 2 Meer info
4822610200 20 Air Grill Cover Assy. 18 1 Meer info
4318010200 30 COMPRESSOR EGZS 90 HLP 220V 50-60 Hz 42 1 Meer info
4073120000 31 TERMINAL COVER (EMBRACCO) 4 1 Meer info
4244690200 32 BUSHING (EMBRACO COMPRESSOR). 1 3 Meer info
4296130100 33 RUBBER GROMMET. 1 4 Meer info
4298920000 34 WASHER_LINE_2001 1 3 Meer info
4133843000 38 POWER CORD GROUP 12 1 Meer info
4387640200 41 CABLE ASSEMBLY 10 1 Meer info
4121910985 84 ACCESSORIES(EMBRACO_EGUS80HLP_4_8) 17 1 Meer info
4820060400 110 TOP HINGE COVER - RIGHT 1 1 Meer info
4215790200 125 CHARGING TUBE 4 1 Meer info
4227230100 200 BACK WHEEL 4 2 Meer info
4076350300 201 WHEEL PIN 1 2 Meer info
4333400100 202 COMPRESSOR TRAVERSE GROUP 21 1 Meer info
4397800100 211 NAME PLATE 12 1 Meer info
4838490100 218 EGG TRAY (NTT_OPAC ARC-P1) 2 2 Meer info
4826190100 219 BOTTLE GRIPPER_SBS 1 2 Meer info
4049961000 227 HANDLE SCREW COVER_RAL 7037 1 6 Meer info
4825010100 245 DOOR SHELF / SEFFAF 97 9 1 Meer info
4818830200 250 HINGE BEARING 1 1 Meer info
4331810200 251 SBS FRZ DOOR GASKET ASSY 15 1 Meer info
4331810100 252 SBS FF DOOR GASKET ASSY 16 1 Meer info
4842110200 279 TAP ADAPTER GASKET 1 1 Meer info
4220760200 279 PROFILE 10 1 Meer info
4823270100 300 ICEBOX 5 1 Meer info
5921800100 303 Air blowtube 5 1 Meer info
4332940100 321 FREEZER DRAIN TRAY 16 1 Meer info
4346580100 321 WATER_TANK_ASSY_SBS 10 1 Meer info
4825990200 350 ICE FEEDING SLIDER_LEFT_SBS 5 1 Meer info
4825990100 351 ICE FEEDING SLIDER_RIGHT_SBS 5 1 Meer info
4826020100 368 NUT OF ICE FEEDING HOOK_SBS 4 1 Meer info
4823170100 373 CRASHER WASHER_SBS 2 1 Meer info
4342960185 400 ICE CRASHER CABLE GR_SBS_V3 10 1 Meer info
5760500100 404 LED BULB 13 2 Meer info
5760500200 404 LED BULB 9 0 Meer info
5760500300 404 LED BULB 13 0 Meer info
5760500400 404 LAMP(15 WATTS E 14 SCREW ) 10 0 Meer info
4831730100 509 HOME FRZ_METAL TRAY_SBS 16 1 Meer info
4825960800 512 DISPENSER WATER RESORVOIR_SBS 6 1 Meer info
4317080200 606 BOTTOM HINGE ASS_Y 8 1 Meer info
4317080100 607 BOTTOM HINGE ASS_Y 8 1 Meer info
4824620100 625 FRZ ILLUMINATING COVER 6 1 Meer info
4818030185 713 DEFROST HEATER 20 1 Meer info
4386830185 716 THERMAL FUSE 11 1 Meer info
4854110100 720 FAN BLADE_SBS 6 1 Meer info
4823420100 755 ADJUSTABLE GLIDER 1 2 Meer info
4334430100 765 FF _CRISPER_COVER GR_SBS _ TRANSP. 97 13 1 Meer info
4348970100 767 STYROPHOR 11 1 Meer info
4344740285 778 SENSOR GR_ICE MAKER SBS 10 1 Meer info
4823720100 779 FF ILLUMINATING COVER 8 1 Meer info
4335650185 784 CONTROL BOARD(SBS_HIGHEND)_rohs 0 1 Meer info
4823710200 804 MULTIFLOW COVER 14 1 Meer info
4823730100 805 MULTIFLOW COVER 5 1 Meer info
4354180100 821 Mechanism Gr. 8 1 Meer info
4335951200 827 MAIN_CARD_COVER GR_SBS_RAL 7037/ENG. 10 1 Meer info
4333570200 831 BACK COVER ASSY_SBS 19 1 Meer info
4333580310 832 FRONT FOOT PLATE GROUP 11 1 Meer info
4333580410 833 FRONT FOOT PLATE GROUP 11 1 Meer info
4317100200 836 EVAPORATING TRAY 16 1 Meer info
4334330400 838 PAINTED DOOR SHELF GR_SBS_100MM_NATUREL 12 2 Meer info
4216600285 842 SENSOR 8 1 Meer info
4216600385 846 SENSOR (QUICK FREEZE) 8 1 Meer info
4332150100 848 COIL CONDENSER ASS_Y_SBS 24 1 Meer info
4333500100 850 WATER DSCHARGE HOSE GROUP 5 1 Meer info
4822290200 851 SUPPRESSION FILTER 8 1 Meer info
4839590100 864 WINE HOLDER 14 1 Meer info
4853050200 876 HANDLE FASTENER OUTER_ARC 528 9 0 Meer info
4326080185 881 EVAPORATOR ASSY (SBS V1_V2) 32 1 Meer info
4801670185 934 NOT ILLUMUNATED SWITCH (GRAY) 9 1 Meer info
4888850100 934 SWITCH 8 0 Meer info
4841320300 955 SCREW(M5x25) 1 4 Meer info
4853310100 955 SCREWM5x10 1 0 Meer info
4826890100 960 PHOTOCATALYST FILTRE.._SBS 14 1 Meer info
4336970100 964 FF_PLASTIC_CONTAINER GR_TRANSP 97 14 1 Meer info
4822680100 964 CONTAINER(BELOW DOOR SHELF 16 1 Meer info
4330411300 966 FOAMED_FRZ DOOR GR_V3_V4_BONDED_AL.HANDL 36 1 Meer info
4326021300 967 FF DOOR_SBS 31 1 Meer info
4382890100 972 HANDLE BEKO, GR.NATUREL AL.. 26 2 Meer info
4323040100 972 ALUMINYUM_SAP_GR_NATURAL_FRZ 28 0 Meer info
4305891385 973 FAN ASS_SBS 21 1 Meer info
4239400100 974 CONDENSER SHEET RUBBER(B-975) 1 2 Meer info
4334480185 983 THERMOSTAT _BOX_ GR_SBS_ROHS 30 1 Meer info
9000130400 995 RUBBER HOLDER 1 2 Meer info
9000130300 995 RUBBER HOLDER 1 1 Meer info
4334500100 1015 UPPER EVA COVER GR_SBS_V3_V4 0 1 Meer info
4330840300 1026 TRIGGER ASSY 11 1 Meer info
4823130300 1027 WATER DISPENSER DRIP TRAY 6 1 Meer info
4339950100 1029 WATER_TANK_ASSY_SBS 16 1 Meer info
4333530600 1094 glass shelf assy_ colorless 13 4 Meer info
4330810385 1097 DISPLAY PANEL ASSY 22 1 Meer info
4334490185 1104 LOVER EVA COVER 22 1 Meer info
4334330300 1107 PAINTED DOOR SHELF GR_SBS_50MM_NATUREL 11 3 Meer info
4317995200 1124 IONIZER 15 0 Meer info
4317990200 1124 IONIZER 15 1 Meer info
4317995400 1124 IONIZER 15 0 Meer info
4317990400 1124 IONIZER 15 0 Meer info
4337190100 1135 CRISPER_FRAME_COVER_W_ 11 1 Meer info
4333523300 1138 GLASS SHELF ASSY_SBS_363,5 16 2 Meer info
4333523600 1139 GLASS SHELF ASSY_SBS_271,5 12 2 Meer info
4328510200 1142 UPPER HINGE ASSY_SBS_LEFT 8 1 Meer info
4834680100 1143 EVA BLOWTUBE (UPPER) 2 1 Meer info
4834690100 1144 EVA BLOWTUBE (BOTTOM 2 1 Meer info
4824450200 1145 SUCTION DUCT INLET/WITHOUT IONEZER 3 1 Meer info
4820070400 1146 TOP HINGE COVER - LEFT 3 1 Meer info
4335310300 1160 ICE _ WATER DISOENSER FRAME ASSY 15 1 Meer info
4339750185 1164 SBS IONIZER _ LED ASSY. (IONIZER_ LI) 19 1 Meer info
4847990300 1167 CLAPET 5 1 Meer info
4399980100 1169 ICE PATH SHUTTER ASSY. 16 1 Meer info
4826740100 1170 DISPENSER SOLENOID (DISP SN2) 17 1 Meer info
4823780100 1171 FRZ DOOR ICE HOLE COVER 3 1 Meer info
4246070100 1172 ICE HOLE COVER 1 1 Meer info
4831710100 1173 HOME FRZ COVER_SBS 7 1 Meer info
4831720200 1174 HOME FRZ TRAY_SBS 11 1 Meer info
4823260100 1175 ICE BANK DECORATIVE COVER_SBS 12 1 Meer info
4823180100 1176 CRASHER SEGMENT_SBS 9 1 Meer info
4822310100 1177 BACK SIDE BEARING OF ICE FEEDING SHAFT_S 3 1 Meer info
4330850100 1178 ICE CRASHER COMPARTMENT GR_SBS 14 1 Meer info
4330550100 1179 ICE FEEDING SHAFT GR_SBS 0 1 Meer info
4822340100 1179 IICE ARM SPRING 3 1 Meer info
4823870100 1180 ICE BANK_SBS 13 1 Meer info
5945310200 1181 WATER VALVE GROUP 27 1 Meer info
4346600285 1181 WATER VALVE GROUP 25 0 Meer info
4832650600 1182 WATER PIPE _SBS_VALVE_FRZ 6 1 Meer info
4339790185 1184 ICE_MACHINE_WATER_ADAPTOR_ ASSY_SBS 0 1 Meer info
4833180100 1185 ICE ELBOW 7 1 Meer info
4823800100 1186 ICEBOX TOP BODY 8 1 Meer info
4822980100 1187 ICE MOTOR FIXING RUBBER 1 1 Meer info
4827350100 1188 ICEMATIC MOTOR 26 1 Meer info
4823830100 1189 ICE LEVEL ARM _SBS 3 1 Meer info
4823290100 1190 INSULATING PART OF ICE CUBE TRAY SENSOR_ 4 1 Meer info
4335300100 1191 WATER PIPE GR_SBS 8 1 Meer info
4333560100 1193 WATER FILTER HEAD GR_SBS 25 1 Meer info
4346610100 1194 WATER FILTER GR_SBS_V3_ENGLISH 8 1 Meer info
4832650700 1195 WATER PIPE_SBS_VALVE_MAIN SUPPLY 8 1 Meer info
4826750100 1196 quick fit connector 10 1 Meer info
4822350200 1198 ICE SLIDING MOTOR ASSY HOLDER 7 2 Meer info
4822940100 1198 SUPPORT_BRAKET 3 2 Meer info
4330950100 1199 ICE CRASHER PISTON GR_SBS 13 1 Meer info
5727200100 1200 ICE CRUSHER MOTOR (ISG-3235ACA) 24 0 Meer info
4330980185 1200 ICE CRUSHER MOTOR (ISG-3240ACA) 25 0 Meer info
5727210100 1200 ICE CRUSHER MOTOR (ISG-3240ACC) 24 1 Meer info
4817960100 1201 ELECTROMAGNETIC ACTUATOR SLIDER_SBS 4 1 Meer info
4823250100 1202 MAIN BODY OF ICE FEEDING MOTOR_SHEET MET 13 1 Meer info
4822360100 1203 ICE FEEDING MOTOR HOOK_SBS 8 1 Meer info
4819430200 1204 SBS PIPE CLAMP 2 3 Meer info
4346640100 1206 TAP CONNECTION KIT GROUP 20 1 Meer info
4832610100 1207 SOCKET HOUSING COVER 3 1 Meer info
4334552100 1226 FREEZER_DRAWER_FRAME_ASSY 15 1 Meer info
4334551400 1270 FREEZER_DRAWER_FRAME_ASSY 14 1 Meer info
4338150900 1271 FRIDGE_BOTTOM_CRISPER_BODY_ASSY 16 2 Meer info
4295210100 1283 BITUM_125x120x2 2 1 Meer info
4334380100 1330 FRZ_2ND_LAYER_DRAWER GR_SBS 15 1 Meer info
4338150100 1331 2nd LAYER DRAWER ASS. SBS 15 1 Meer info
4334360100 1331 FRZ _SMALL_DRAWER GR_SBS_TRANSP 97_ARCP1 14 1 Meer info
4338150200 1332 SMALL DRAWER ASS. SBS 15 1 Meer info
4334550200 1334 FREEZER_SMALL_DRAWER_FRAME_ASSY 13 2 Meer info
4333530700 1337 glass shelf assy_ colorless_ icy 13 1 Meer info
4323040200 1359 ALUMINYUM_SAP_GR_NATURAL_FF 28 0 Meer info
4346650100 1360 WATER SYSTEM KIT GR. 32 1 Meer info
4842120100 1361 HOSE FILTERSBS-V3 9 1 Meer info
4853040100 1374 HANDLE FASTENER INNER 6 0 Meer info
4855560100 1374 HANDLE FASTENER INNER 4 6 Meer info
4823020100 1381 ICE CUBE ADJUSTMENT LEVER 10 1 Meer info
4330580185 1440 ICE_TRAY_ ASSY_SBS 29 1 Meer info
4821900100 1477 Filter Box 5 1 Meer info
4819980100 1500 HINGE BEARING 2 2 Meer info
4819990200 1501 UPPER DOOR INNER LINER- 4 1 Meer info
Mode d'emploi (2.54 MB)
Handleiding (2.54 MB)
Accessoires
