main product photo

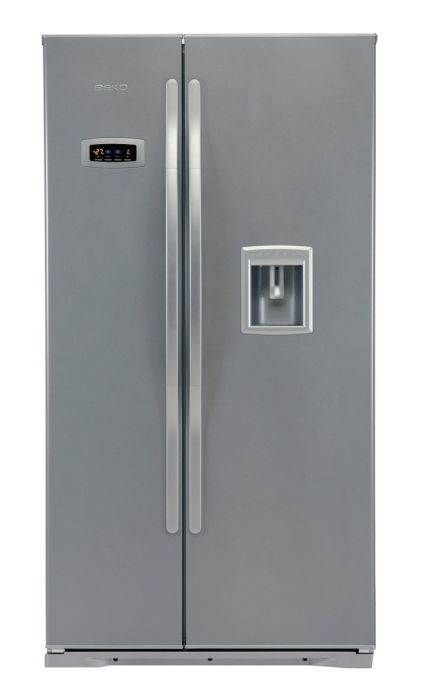

GNE25800S SIDE BY SIDE KOELKAST NO FROST

Artikelnr: 114712
Referentienr: GNE25800S
Vergelijk

Productomschrijving

**** FF Side by side, 177,5 cm 375
Meer informatie
Gewicht (Kg) 115
Jaarlijks verbruik (kWh) 556
ArtRef GNE25800S
AsogemID 114712
Merk BEKO
Soort Koelkast 2 deuren (top freezer)
ArtEAN 8690842029851
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4250010400 0 MOTOR HOUSE SUPPORT-LINE 2001. 2 2 Meer info
4223430100 0 CHARGING TUBE 3 1 Meer info
4212400285 0 INTERIOR LIGHT SWITCH (NORMALLY CLOSE-P1 3 0 Meer info
4854100100 0 FAN BLADE 7 1 Meer info
4364270285 0 FAN MOTOR_FDQR207Y3L_PANASONIC_MLX 27 1 Meer info
4334410100 0 ROLLER GR_SBS 4 10 Meer info
4848780100 0 Cover 1 1 Meer info
4833340100 0 SBS BACK COIL CONDANSER SUPPORT 2 1 Meer info
4852350100 0 - 0 1 Meer info
4844430100 0 - 0 1 Meer info
4837070100 0 - 0 1 Meer info
4084960300 0 ADHESIVE TAPE 15 0 Meer info
4864330500 0 PVC CAP 4.4x50 0 2 Meer info
4833330100 0 SBS FROT COIL CONDANSER SUPPORT 2 1 Meer info
4844530100 0 - 0 1 Meer info
4816160100 0 CONDENSER PAINT_BLACK 0 1 Meer info
4800010000 0 SERVICE WARNING LABEL 1 1 Meer info
4837170100 0 en 0 1 Meer info
4825590100 0 DISPLAY COVER ASSY 0 1 Meer info
4322843400 0 packet 0 0 Meer info
4824750200 0 - 2 1 Meer info
4825760200 0 UPPER HINGE COVER_SILVER 3 1 Meer info
4824590200 0 EVA.FRONT/BACK COVER ASSY- 4 1 Meer info
4334280300 0 COMMON 0 1 Meer info
4366550300 0 FRZ. KAPAK GR 0 1 Meer info
4334400700 0 FF_TOP_CRISPER GR_TRANSP97_B.LIGHT 16 1 Meer info
4334300400 0 1 12 1 Meer info
4334310400 0 1 0 1 Meer info
4328510100 14 UPPER HINGE ASSY_SBS_RIGHT 8 1 Meer info
4250000400 15 ADJUSTABLE GLIDER 4 2 Meer info
4243120400 19 DOUBLE ENTRY DRAYER 4 1 Meer info
4822610200 20 Air Grill Cover Assy. 18 1 Meer info
4318010200 30 COMPRESSOR EGZS 90 HLP 220V 50-60 Hz 42 1 Meer info
4073120000 31 TERMINAL COVER (EMBRACCO) 4 1 Meer info
4244690200 32 BUSHING (EMBRACO COMPRESSOR). 1 3 Meer info
4296130100 33 RUBBER GROMMET. 1 4 Meer info
4298920000 34 WASHER_LINE_2001 1 3 Meer info
4133843000 38 POWER CORD GROUP 12 1 Meer info
4387640200 41 CABLE ASSEMBLY 10 1 Meer info
4121910985 84 ACCESSORIES(EMBRACO_EGUS80HLP_4_8) 17 1 Meer info
4846380100 86 WATER DISPENSER WASHER 3 1 Meer info
4820060400 110 TOP HINGE COVER - RIGHT 1 1 Meer info
4215790200 125 CHARGING TUBE 4 1 Meer info
4227230100 200 BACK WHEEL 4 2 Meer info
4076350300 201 WHEEL PIN 1 2 Meer info
4333400100 202 COMPRESSOR TRAVERSE GROUP 21 1 Meer info
4397800100 211 NAME PLATE 12 1 Meer info
4838490100 218 EGG TRAY (NTT_OPAC ARC-P1) 2 2 Meer info
4816050100 222 BOTTLE HOLDER (NTT_LRD_ FRD_OPAC ARC-P1) 3 1 Meer info
4825010100 245 DOOR SHELF / SEFFAF 97 9 1 Meer info
4818830200 250 HINGE BEARING 1 1 Meer info
4331810200 251 SBS FRZ DOOR GASKET ASSY 15 1 Meer info
4331810100 252 SBS FF DOOR GASKET ASSY 16 1 Meer info
4839580200 266 WINE HOLDER 7 1 Meer info
4839580100 267 WINE HOLDER 7 1 Meer info
4220760200 279 PROFILE 10 1 Meer info
4834390100 279 WATER DISPENSER WASHER 2 1 Meer info
5921800100 303 Air blowtube 5 1 Meer info
4332940100 321 FREEZER DRAIN TRAY 16 1 Meer info
5760500100 404 LED BULB 13 3 Meer info
5760500200 404 LED BULB 9 0 Meer info
5760500300 404 LED BULB 13 0 Meer info
5760500400 404 LAMP(15 WATTS E 14 SCREW ) 10 0 Meer info
4317080200 606 BOTTOM HINGE ASS_Y 8 1 Meer info
4317080100 607 BOTTOM HINGE ASS_Y 8 1 Meer info
4824620100 625 FRZ ILLUMINATING COVER 6 1 Meer info
4818030185 713 DEFROST HEATER 20 1 Meer info
4386830185 716 THERMAL FUSE 11 1 Meer info
4854110100 720 FAN BLADE_SBS 6 1 Meer info
4336990100 738 ICE_BANK GR 11 1 Meer info
4345620100 745 ICE CUBE TRAY CHASSIS 14 1 Meer info
4823420100 755 ADJUSTABLE GLIDER 1 2 Meer info
4334430100 765 FF _CRISPER_COVER GR_SBS _ TRANSP. 97 13 1 Meer info
4348970100 767 STYROPHOR 11 1 Meer info
4823720100 779 FF ILLUMINATING COVER 8 1 Meer info
4334580185 784 CONTROL BOARD ASSY. 25 1 Meer info
4823710200 804 MULTIFLOW COVER 14 1 Meer info
4823730100 805 MULTIFLOW COVER 5 1 Meer info
4334470100 809 ICE_CUBE_TRAY_ASSY_SBS 16 1 Meer info
4354180100 821 Mechanism Gr. 8 1 Meer info
4335950500 827 MAIN_CARD_COVER GR_SBS_RAL 7037/ ENG. 7 1 Meer info
4333570100 831 BACK COVER ASSY_SBS 18 1 Meer info
4333580310 832 FRONT FOOT PLATE GROUP 11 1 Meer info
4333580410 833 FRONT FOOT PLATE GROUP 11 1 Meer info
4317100200 836 EVAPORATING TRAY 16 1 Meer info
4825030200 838 DOOR SHELF 12 1 Meer info
4340980185 840 COMPLETE_DISPLAY GR_SBS_BEKO_ARC 528 23 1 Meer info
4216600285 842 SENSOR 8 1 Meer info
4216600385 846 SENSOR (QUICK FREEZE) 8 1 Meer info
4332150100 848 COIL CONDENSER ASS_Y_SBS 24 1 Meer info
4333500100 850 WATER DSCHARGE HOSE GROUP 5 1 Meer info
4822290200 851 SUPPRESSION FILTER 8 1 Meer info
4839590100 864 WINE HOLDER 14 1 Meer info
4326080185 881 EVAPORATOR ASSY (SBS V1_V2) 32 1 Meer info
4841320300 955 SCREW(M5x25) 1 4 Meer info
4826890100 960 PHOTOCATALYST FILTRE.._SBS 14 1 Meer info
4336970100 964 FF_PLASTIC_CONTAINER GR_TRANSP 97 14 1 Meer info
4822680100 964 CONTAINER(BELOW DOOR SHELF 16 1 Meer info
4326030310 966 FRZ _DOOR GR_SBS_V1_V2_BEKO_BONDED 40 1 Meer info
4330320400 967 FOAMED_FF_DOOR_GR_V2_SILVER_DAIRYCOV 39 1 Meer info
4828850300 968 UPPER HANDLE COVER 10 2 Meer info
4336320200 972 EXTURNEL DOOR ASSY_SBS 19 2 Meer info
4305891385 973 FAN ASS_SBS 21 1 Meer info
4239400100 974 CONDENSER SHEET RUBBER(B-975) 1 2 Meer info
4334480185 983 THERMOSTAT _BOX_ GR_SBS_ROHS 30 1 Meer info
9000130400 995 RUBBER HOLDER 1 2 Meer info
4334500200 1015 TOP_EVAP_COVER GR_SBS_V1_V2 12 1 Meer info
4334770600 1026 WATER DISPENSER NOZZLE ASSY. 10 1 Meer info
4825060400 1027 WATER DISPENSER DRIP TRAY ASSY. 7 1 Meer info
4365090100 1029 WATER DISPENSER WATER TANK ASSY. 13 1 Meer info
4352670600 1029 WATER DISPENSER WATER TANK ASSY. 16 1 Meer info
4297380100 1030 WATER DISPENSER INNER TAP 3 1 Meer info
4310860200 1031 WATER DISPENSER COVER ASS_Y 10 1 Meer info
4297280100 1072 WATER DISPENSER WATER TANK MID COVER 3 1 Meer info
4831170200 1088 SHELF_SBS_375 9 1 Meer info
4333530600 1094 glass shelf assy_ colorless 13 5 Meer info
4828870300 1103 LOWER HANDLE COVER 10 2 Meer info
4334490185 1104 LOVER EVA COVER 22 1 Meer info
4825000200 1107 DOOR SHELF 11 3 Meer info
4337190100 1135 CRISPER_FRAME_COVER_W_ 11 1 Meer info
4338151000 1137 FRIDGE_TOP_CRISPER_BODY_ASSY 16 1 Meer info
4333523300 1138 GLASS SHELF ASSY_SBS_363,5 16 2 Meer info
4333523100 1139 GLASS SHELF ASSY_SBS_402 0 1 Meer info
4333523200 1140 GLASS SHELF ASSY_SBS_375 12 1 Meer info
4334460100 1141 ICE_CUBE_TRAY_CARTRIDGE_SBS 12 1 Meer info
4328510200 1142 UPPER HINGE ASSY_SBS_LEFT 8 1 Meer info
4834680100 1143 EVA BLOWTUBE (UPPER) 2 1 Meer info
4834690100 1144 EVA BLOWTUBE (BOTTOM 2 1 Meer info
4824450200 1145 SUCTION DUCT INLET/WITHOUT IONEZER 3 1 Meer info
4820070400 1146 TOP HINGE COVER - LEFT 3 1 Meer info
4824820400 1160 WATER DISPENSER COVER 10 1 Meer info
4335200300 1161 MULTI_PURPOSE_COMP GR_RIGHT_2HOLE 11 1 Meer info
4335200400 1162 MULTI_PURPOSE_COMP GR_LEFT_2HOLE 10 1 Meer info
4339750285 1164 SBS IONIZER / LED ASSY. (IONIZER SIZ) 14 1 Meer info
4825940200 1165 WATER DISPENSER DRIP TRAY ASSY.ARC_434 3 1 Meer info
4334552100 1226 FREEZER_DRAWER_FRAME_ASSY 15 1 Meer info
4334551400 1270 FREEZER_DRAWER_FRAME_ASSY 14 1 Meer info
4338150900 1271 FRIDGE_BOTTOM_CRISPER_BODY_ASSY 16 1 Meer info
4295210100 1283 BITUM_125x120x2 2 1 Meer info
4334380100 1330 FRZ_2ND_LAYER_DRAWER GR_SBS 15 1 Meer info
4338150100 1331 2nd LAYER DRAWER ASS. SBS 15 1 Meer info
4334360100 1331 FRZ _SMALL_DRAWER GR_SBS_TRANSP 97_ARCP1 14 1 Meer info
4338150200 1332 SMALL DRAWER ASS. SBS 15 1 Meer info
4334550200 1334 FREEZER_SMALL_DRAWER_FRAME_ASSY 13 2 Meer info
4821900100 1477 Filter Box 5 1 Meer info
4819980100 1500 HINGE BEARING 2 2 Meer info
4819990200 1501 UPPER DOOR INNER LINER- 4 1 Meer info
4383370100 1536 ICE MATIC ASSY 23 1 Meer info
