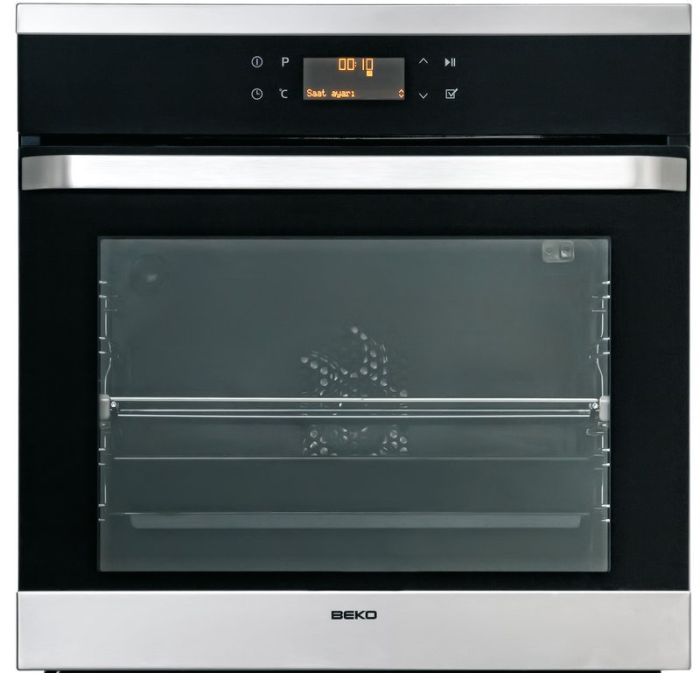

OIM25702X MULTIFUNCTIE OVEN STEAM ASSISTED

Artikelnr: 115420
Referentienr: OIM25702X
Vergelijk

Productomschrijving

Multifunctie oven INOX-STEAM ASSISTED A DIGITAL PROGR.
Meer informatie
Hoogte 59.5
Breedte 59.4
Diepte 56.7
Gewicht (Kg) 36
ArtRef OIM25702X
AsogemID 115420
MPN 7793088601
Merk BEKO
Soort Oven
ArtEAN 8690769381995
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
215440011 11 REAR WALL 15 1 Meer info
215440104 12 SIDE WALL - RIGHT 14 1 Meer info
215440105 12 SIDE WALL_LEFT 14 1 Meer info
218440117 15 BOTTOM PLATE_60CM_BLACK 16 1 Meer info
166900015 19 TERMINAL BOX 7 1 Meer info
166900158 19 TERMINAL BLOCK 8 0 Meer info
291400003 21 OVEN BODY SURROUNDED GLASS WOOL 16 1 Meer info
291400029 22 GLASS WOOL REAR 15 1 Meer info
240440243 27 INTERNAL WIRE FRY STOPER RAFLI_BAR_AVUST 15 1 Meer info
219440105 28 BLACK ENAMELED DEEP TRAY 16 1 Meer info
219440110 28 CAKE TRAY_BLACK 16 1 Meer info
255440101 29 MAIN OVEN _O_ SEAL 12 1 Meer info
215440106 35 TOP WALL 13 1 Meer info
298440116 40 FRONT DOOR INNER GLASS 23 1 Meer info
250440395 41 PLACTIC DECOR 10 1 Meer info
218440102 44 DOOR BOTTOM COVER SHEET 8 1 Meer info
210441287 45 FRONT DOOR HINGE_SHORTER TYPE_LEFT 20 1 Meer info
210441288 45 FRONT DOOR HINGE_SHORTER TYPE_RIGHT 15 1 Meer info
210440169 47 HANDLE GROUP_INOX_COLOURED 22 1 Meer info
255440112 72 FRONT DOOR STOPER PLASTIC 1 2 Meer info
219440102 97 FAN PROTECTING SHEET 14 1 Meer info
219440104 97 FAN PROTECTING SHEET_CATALYTIC 16 1 Meer info
262900074 98 CIRCULAR HEATING ELEMENT_1800W-230V 15 1 Meer info
264440148 101 OVEN CIRCULATION BLOWER-220V-240V 18 1 Meer info
262900132 106 OVEN HEATING ELEMENT-230 16 1 Meer info
262900064 107 GRILL HEATING ELEMENT_(1100+1100)W_230V 19 1 Meer info
215440109 108 HEATING ELEMENT HOLDER SHEET 12 1 Meer info
266100048 118 DATA CABLE 10 1 Meer info
161100026 119 SUPPLY CORD 12 1 Meer info
455100018 131 BURNER PLATE REAR PROTECTIVE GASKET 3 1 Meer info
173100022 140 KNOB PROTECTING SHEET CLIP WASHER 2 2 Meer info
170100075 195 SCREW 3.9 X 22 YSB 1 3 Meer info
210440121 243 GRILL SHELF TELESCOPIC 3 LEVEL RIGHT 21 1 Meer info
210440122 243 GRILL SHELF TELECOPIC 3 LEVEL LEFT 21 1 Meer info
264440128 252 OVEN CIRCULATION BLOWER(100cm-RIGHT) 20 1 Meer info
450300012 261 HANDLE BOTTOM PLASTIC 2 2 Meer info
218440105 368 SIDE PROFILE-LEFT-BLACK 9 1 Meer info
218440103 369 SIDE PROFILE-RIGHT-BLACK 9 1 Meer info
265900026 374 OVEN LAMP 7 2 Meer info
265900025 375 DUY+CAM+AMPUL_25_W_BJB_CERAMIC 13 1 Meer info
265900040 375 SOCKET+GLASS+LAMP (SQUARE) 17 1 Meer info
250920069 460 CABLE TIE-BIG_M TYPE_A20 1 10 Meer info
265100046 476 SIGNAL LAMP GROUP 5 1 Meer info
290440431 479 MIDDLE_GLASS 18 1 Meer info
263410017 557 BODY BIMETAL THERMOSTAT ABNORMAL CONDITI 9 3 Meer info
263410022 587 PT 500 TEMPERATURE SENSOR KORU TIMER 19 1 Meer info
215440113 602 FLUE EXIT SHEET 3 1 Meer info
210450052 618 ENTEGRATE OVEN AIR DIRECTING SHEETGROU.. 16 1 Meer info
250440127 727 HINGE DECOR_RIGHT 4 1 Meer info
250440126 728 HINGE DECOR_LEFT 4 1 Meer info
250440102 883 DOOR GR SIDE HINGE PLASTIC HOUSING_LEFT 3 1 Meer info
250440344 883 DOOR GR SIDE HINGE PLASTIC HOUSING_RIGHT 5 1 Meer info
234440127 885 HANDLE FIXING PINTLE_D12_M4_34.5MM 3 2 Meer info
250440108 887 OVEN HANDLING PLASTIC 4 2 Meer info
250440109 888 FURNITURE MOUNTING PLASTIC 1 2 Meer info
266100047 892 SYMBOL LCD DATA CABLE 7 1 Meer info
255440118 916 FRONT DOOR STOPER PLASTIC_BOTTOM_Ø8 1 1 Meer info
172440103 949 WIRE SHELF FIXING NUT 4 2 Meer info
210441936 950 COOLING MOTOR PROPELLER 5 1 Meer info
217440103 950 BAR TURBO FAN BLADE 6 1 Meer info
255450006 986 TUBE 1 1 Meer info
255450029 986 TUBE Ø12X1.5-540mm-BUHAR DES 8 1 Meer info
255450030 986 TUBE Ø12X1.5-280mm-BUHAR DES 5 1 Meer info
242450001 987 DOUBLE WIRE HOSE CLAMP-STEAM OVEN-45 1 11 Meer info
242450005 987 DOUBLE WIRE HOSE CLAMP-STEAM OVEN-45-Ø19 1 5 Meer info
257450010 988 TUBE _L_ FIXING PLASTIC-STEAM ASSISTED 12 1 Meer info
210450054 989 STEAM INPUT TUBE GROUP-STEAM ASSISTED 15 1 Meer info
250450002 991 STEAM GENERATOR-STEAM ASSISTED 29 1 Meer info
257450004 994 WATER TANK COVER-45 CM-STEAM ASSISTED 13 1 Meer info
255450005 995 WATER TANK COVER SEAL--STEAM ASSISTED 5 1 Meer info
267450001 996 NTC - LEVEL PCB-STEAM ASSISTED 16 1 Meer info
218450022 997 MAGNETIC FLOATER 7 1 Meer info
250450004 998 WATER INLET GROUP-STEAM ASSISTED 20 1 Meer info
250450001 999 WATER LEVEL INDICATOR-STEAM ASSISTED 20 1 Meer info
263410032 1000 NTC STEAM TEMPARATURE SENSOR 15 1 Meer info
218450019 1001 WATER COVER-STEAM ASSISTED 13 1 Meer info
215450027 1002 GENERATOR FIXING PART-STEAM ASSISTED 15 2 Meer info
215440114 1008 OVEN COOLING FAN MOUNTING SHEET 4 1 Meer info
215440258 1027 BI METAL HIT PROTECTION SHEET 2 1 Meer info
255440126 1179 FRONT DOOR GAP SEAL 2 2 Meer info
250440819 1334 CALL RIGHT COVER GLASS PLASTIC 3 1 Meer info
250440817 1335 CALL LEFT COVER GLASS PLASTIC 3 1 Meer info
210410943 1349 SCREW GROUP 1 1 Meer info
240440109 1381 SLIDE RACK RIGHT 19 1 Meer info
272100001 1541 M 6 NUT- DIRECTION OF BOLD IS LEFT 1 1 Meer info
250460037 1615 PARAZIT FILTRE PROTECTION PLASTIC 3 1 Meer info
264450001 1651 WATER VALVE-STEAM ASSISTED 20 1 Meer info
250410318 3154 SWITCH GROUP 11 1 Meer info
