Productomschrijving

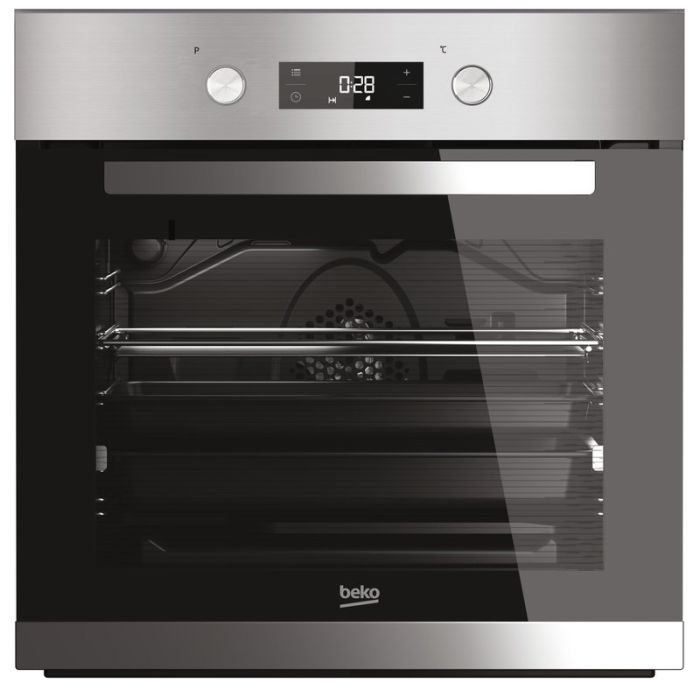

Multifunctie oven 8F INOX- minute minder
| Hoogte | 59.5 |
|---|---|
| Breedte | 59.4 |
| Diepte | 56.7 |
| Gewicht (Kg) | 35.9 |
| ArtRef | BIM22301X |
| AsogemID | 115637 |
| MPN | 7768286705 |
| Merk | BEKO |
| Soort | Oven |
| ArtEAN | 8690842017599 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 412930090 | 0 | CAVITY SIDE HINGE HOUSING | 4 | 1 | Meer info | |||
| 412930089 | 0 | CAVITY SIDE HINGE HOUSING | 4 | 1 | Meer info | |||
| 215440110 | 11 | REAR COVER SHEET | 13 | 1 | Meer info | |||
| 215440104 | 12 | SIDE WALL - RIGHT | 14 | 1 | Meer info | |||
| 215440105 | 12 | SIDE WALL_LEFT | 14 | 1 | Meer info | |||
| 218440117 | 15 | BOTTOM PLATE_60CM_BLACK | 16 | 1 | Meer info | |||
| 166900015 | 19 | TERMINAL BOX | 7 | 1 | Meer info | |||
| 166900158 | 19 | TERMINAL BLOCK | 8 | 0 | Meer info | |||
| 210440417 | 20 | OVEN BODY_MULTI_USA | 27 | 1 | Meer info | |||
| 291400003 | 21 | OVEN BODY SURROUNDED GLASS WOOL | 16 | 1 | Meer info | |||
| 291400010 | 22 | GLASS WOOL REAR | 10 | 1 | Meer info | |||
| 215440224 | 23 | SHEET | 13 | 1 | Meer info | |||
| 240440219 | 27 | INTERNAL WIRE FRY STOPER RAFLI_BAR_AVUST | 13 | 1 | Meer info | |||
| 219440101 | 28 | BLACK ENAMELED ST TRAY(W_462xD_365xH_39) | 15 | 1 | Meer info | |||
| 219440105 | 28 | BLACK ENAMELED DEEP TRAY | 16 | 1 | Meer info | |||
| 255440101 | 29 | MAIN OVEN _O_ SEAL | 12 | 1 | Meer info | |||
| 215440106 | 35 | TOP WALL | 13 | 1 | Meer info | |||
| 218440102 | 44 | DOOR BOTTOM COVER SHEET | 8 | 1 | Meer info | |||
| 210443248 | 45 | 60_60 FRONT DOOR HINGE_SHORTER TYPE_ | 12 | 2 | Meer info | |||
| 210441824 | 47 | HANDLE GR_BEKO2014 | 19 | 1 | Meer info | |||
| 255440112 | 72 | FRONT DOOR STOPER PLASTIC | 1 | 4 | Meer info | |||
| 263100032 | 93 | MULTIFUNCTION COMMUTATOR_8 POSITIONS | 16 | 1 | Meer info | |||
| 267440152 | 96 | GOOD TIMER GR | 26 | 1 | Meer info | |||
| 219440102 | 97 | FAN PROTECTING SHEET | 14 | 1 | Meer info | |||
| 262900074 | 98 | CIRCULAR HEATING ELEMENT_1800W-230V | 15 | 1 | Meer info | |||
| 264440148 | 101 | OVEN CIRCULATION BLOWER-220V-240V | 18 | 1 | Meer info | |||
| 262900061 | 106 | OVEN HEATING ELEMENT-230 | 16 | 1 | Meer info | |||
| 262900064 | 107 | GRILL HEATING ELEMENT_(1100+1100)W_230V | 19 | 1 | Meer info | |||
| 215440109 | 108 | HEATING ELEMENT HOLDER SHEET | 12 | 1 | Meer info | |||
| 161100026 | 119 | SUPPLY CORD | 12 | 1 | Meer info | |||
| 173100022 | 140 | KNOB PROTECTING SHEET CLIP WASHER | 2 | 2 | Meer info | |||
| 170100075 | 195 | SCREW 3.9 X 22 YSB | 1 | 3 | Meer info | |||
| 240440116 | 243 | WIRE SHELF RIGHT - 55 Lt OVEN | 12 | 1 | Meer info | |||
| 240440117 | 243 | WIRE SHELF LEFT - 55 Lt OVEN | 12 | 1 | Meer info | |||
| 264440128 | 252 | OVEN CIRCULATION BLOWER(100cm-RIGHT) | 20 | 1 | Meer info | |||
| 263100015 | 263 | EGO THERMOSTAT 551705303_280 HUAYI 285 C | 16 | 1 | Meer info | |||
| 218440105 | 368 | SIDE PROFILE-LEFT-BLACK | 9 | 1 | Meer info | |||
| 218440103 | 369 | SIDE PROFILE-RIGHT-BLACK | 9 | 1 | Meer info | |||
| 265900017 | 375 | HALOJEN OVEN LAMP | 19 | 1 | Meer info | |||
| 250920069 | 460 | CABLE TIE-BIG_M TYPE_A20 | 1 | 6 | Meer info | |||
| 265100044 | 475 | SIGNAL LAMP | 6 | 1 | Meer info | |||
| 290440431 | 479 | MIDDLE_GLASS | 18 | 1 | Meer info | |||
| 263410017 | 557 | BODY BIMETAL THERMOSTAT ABNORMAL CONDITI | 9 | 1 | Meer info | |||
| 215440113 | 602 | FLUE EXIT SHEET | 3 | 1 | Meer info | |||
| 210440103 | 618 | AIR CONDITION SHEET | 16 | 1 | Meer info | |||
| 250440102 | 883 | DOOR GR SIDE HINGE PLASTIC HOUSING_LEFT | 3 | 1 | Meer info | |||
| 250440103 | 883 | DOOR GR SIDE HINGE PLASTIC HOUSING_RIGHT | 3 | 1 | Meer info | |||
| 210442185 | 884 | FRONT INNER DOOR INNER GLASS GROUP | 22 | 1 | Meer info | |||
| 234440126 | 885 | DOOR TO HANDLE CONNECTION PIN_M4_D8_SIZE | 3 | 2 | Meer info | |||
| 250440108 | 887 | OVEN HANDLING PLASTIC | 4 | 2 | Meer info | |||
| 250440109 | 888 | FURNITURE MOUNTING PLASTIC | 1 | 2 | Meer info | |||
| 263410018 | 889 | thermal cutout 70 degrees | 8 | 1 | Meer info | |||
| 210440105 | 902 | THERMOSTAT BULB CLIP | 5 | 1 | Meer info | |||
| 255440118 | 916 | FRONT DOOR STOPER PLASTIC_BOTTOM_Ø8 | 1 | 2 | Meer info | |||
| 172440103 | 949 | WIRE SHELF FIXING NUT | 4 | 2 | Meer info | |||
| 210441936 | 950 | COOLING MOTOR PROPELLER | 5 | 1 | Meer info | |||
| 217440103 | 950 | BAR TURBO FAN BLADE | 6 | 1 | Meer info | |||
| 258440079 | 1005 | TIMER COVER PLASTIC | 8 | 1 | Meer info | |||
| 215440114 | 1008 | OVEN COOLING FAN MOUNTING SHEET | 4 | 1 | Meer info | |||
| 215440258 | 1027 | BI METAL HIT PROTECTION SHEET | 2 | 1 | Meer info | |||
| 258440102 | 1127 | BUILT-IN OVEN-SIGNAL LAMB HOLDER(SINGLE) | 6 | 1 | Meer info | |||
| 255440126 | 1179 | FRONT DOOR GAP SEAL | 2 | 2 | Meer info | |||
| 250440819 | 1334 | CALL RIGHT COVER GLASS PLASTIC | 3 | 1 | Meer info | |||
| 250440817 | 1335 | CALL LEFT COVER GLASS PLASTIC | 3 | 1 | Meer info | |||
| 210410943 | 1349 | SCREW GROUP | 1 | 1 | Meer info | |||
| 250440559 | 1351 | Good timer steel CP connector plastic | 2 | 1 | Meer info | |||
| 250400254 | 1518 | Good timer steel CP display plastic | 10 | 1 | Meer info | |||
| 272100001 | 1541 | M 6 NUT- DIRECTION OF BOLD IS LEFT | 1 | 1 | Meer info |
