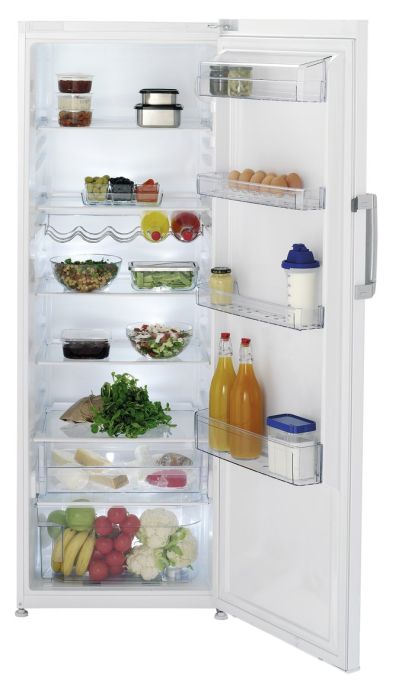

SS137030 KOELER

Artikelnr: 114389

Referentienr: SS137030

Productomschrijving

171x60x60 cm - 370 L

Specificaties

Meer informatie
Gewicht (Kg)	60
Hoogte met verpakking	179.4
Breedte met verpakking	66.4
Diepte met verpakking	67.9
Gewicht VPE (Kg)	65.7
ArtRef	SS137030
AsogemID	114389
MPN	7261847616
Merk	BEKO
Soort	Koelkast zonder vriesvak
ArtEAN	8690842361708

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
4094880285	0	INTERIOR LIGHT SWITCH	5	1	Meer info
4834220185	0	INTERIOR LIGHT SWITCH (LAMP_DEFOND_ROHS)	5	0	Meer info
4306471700	3	THERMOSTAT KNOB PRINTED-	3	1	Meer info
4859050100	5	FRONT_PANEL(ARC_2009_60 CM_WTHOUT_LIGHT)	8	1	Meer info
4359160200	13	LOWER HINGE GROUP	5	1	Meer info
4382480100	14	TOP HINGE GROUP	9	1	Meer info
4203930100	15	ADJUSTABLE GLIDER (LONG)(PLS+CIV) B-650	3	1	Meer info
4243120300	19	SINGLE ENTRY DRAYER	6	1	Meer info
4203930200	26	ADJUSTABLE GLIDER (SHORT)(PLS+CIV) B-650	3	1	Meer info
4056670000	29	SPACER (NATURAL - SN_T)	1	2	Meer info
4913130300	30	COMPRESSOR_PZ55H1X_220-240 V_R600a	36	1	Meer info
5739010100	31	TERMINAL COVER PZ GMCC	11	1	Meer info
4847070100	33	COMPRESSOR RUBBER GROMMET	1	4	Meer info
4057080200	34	COMPRESSOR WASHER	1	3	Meer info
4133841985	38	POWER CORD GROUP	10	1	Meer info
5930870200	39	COMBO UNIT 10LPC GMCC	18	1	Meer info
4930970300	39	COMBO UNIT GMCC	20	0	Meer info
4121072486	48	CAPASITOR GROUP	9	0	Meer info
4318450600	53	CONDANSER	23	1	Meer info
4801730300	85	CONNECTING PIPE	10	1	Meer info
4827150100	100	PLASTIC WASHER	1	1	Meer info
5781220100	101	SELF WASHERED BOLT	1	4	Meer info
4024820100	125	CHARGING TUBE	3	1	Meer info
4882720100	132	EVAPORATOR_PAN	10	1	Meer info
5758400100	132	EVAPORATING_TRAY_GMCC_2LT	13	0	Meer info
4216620700	152	ADJUSTABLE GLIDER CAP	1	1	Meer info
4048860200	200	WHEEL	1	2	Meer info
4048870200	201	WHEEL PIN (50MM)	1	2	Meer info
4349800100	205	GROUND CABLE GROUP	2	1	Meer info
4389761600	210	FOAMED_DOOR_ASS_B290	44	1	Meer info
5737560100	211	LOGO	7	1	Meer info
5711160300	218	EGG TRAY (GRUNDIG_ARC P1_6PCS)	4	1	Meer info
4880031600	227	MECHANISM COVER FUSE_BYG_ARC745	2	2	Meer info
4830680100	250	TOP HINGE HOUSING. ( NATURAL)	1	2	Meer info
5999772000	252	DOOR GASKET GROUP	16	1	Meer info
4875040400	255	60CM DOOR SHELF - 55mm (T605-1-3)	9	4	Meer info
4397302100	311	CRISPER GROUP	18	1	Meer info
4363460400	400	CABLE GROUP	5	1	Meer info
4249370100	401	LAMP_THERMOSTAT HOUSING	7	1	Meer info
4241520185	403	LAMP HOLDER	3	1	Meer info
4217980000	403	LAMP HOLDER E14_ BAYONET	3	0	Meer info
5760500300	404	LED BULB	13	1	Meer info
4249380100	406	LAMP_TERMOSTAT HOUSING GLASS (LINE 2001)	3	1	Meer info
4362723700	510	GLASS SHELF GROUP	12	1	Meer info
4841080800	511	CRISPER COVER EDGE PROFILE	3	1	Meer info
4057030100	604	PLASTIC PLUNGER (DRAIN HOLE)	1	1	Meer info
4360623100	784	K2-V04 B-957 KONTROL BOARD	20	1	Meer info
4360628100	784	CONTROL BOARD ASSY.(KARDELEN_NF)	18	0	Meer info
4936680100	827	CARD BOX COVER GROUP	11	1	Meer info
5715970100	857	SENSOR HOUSING COVER	2	1	Meer info
4221830100	861	GLASS SHELF PROFILE(FRONT_60CMB760_762	7	1	Meer info
4864590200	861	GLASS SHELF PROFILE(FRONT_60CM	7	4	Meer info
4221850100	862	GLASS SHELF PROFILE(REAR_60CM_760_762	7	1	Meer info
4864600200	862	GLASS SHELF PROFILE(REAR_60CM	7	4	Meer info
4362722800	863	GLASS SHELF GROUP	11	4	Meer info
4238580400	864	WIRE SHELF B-760_762	13	1	Meer info
4853110100	947	HINGE COVER_RIGHT_ARC2009_ARC P1	4	1	Meer info
4853120100	948	HINGE COVER-LEFT_ARC_2009_(ARC P1	4	1	Meer info
4248630100	951	LOCK PART	4	1	Meer info
4811830100	955	SERRATED SCREW (M5x20)	1	4	Meer info
4397250700	972	HANDLE GROUP_EOH_BYG_ARC528	16	1	Meer info
4852570100	975	HINGE HOUSING	1	1	Meer info
4800390200	976	LOWER DOOR STOPER-LINE 2001	1	1	Meer info
4891180100	984	UPPER DOOR BROW HINGE COVER	1	1	Meer info
4880030200	997	MECHANISM COVER FUSE_BYG_ARC434	1	2	Meer info
4886620100	1003	SUPPORTIVE WIRE	11	2	Meer info
4330250100	1013	THERMOMETER (BEKO_FRANCE_P.285C)	9	1	Meer info
4397301700	1039	CRISPER GROUP	17	1	Meer info
4873540200	1041	ZERO_DEGREE_RAIL_60CM_LARDER_LEFT	7	1	Meer info
4873540100	1042	ZERO_DEGREE_RAIL_60CM_LARDER_RIGHT	7	1	Meer info
4865750200	1043	GLASS SHELF HOLDER	3	1	Meer info
4865750100	1044	GLASS SHELF HOLDER	3	1	Meer info
4360635285	1364	KARDELEN POT BOARD	11	1	Meer info
4360630285	1364	ELECTRONIC BOARD(KARDELEN POT2-02)	6	0	Meer info
4888670100	1382	ISOLATION_PIPE	1	1	Meer info
4867740100	1400	KARDELEN TERM BUTTON PINTLE	1	1	Meer info
4936741700	1401	DOOR KIT GROUP	6	1	Meer info
5906380200	1431	COMPRESSOR TERMINAL GROUP	22	1	Meer info
4146143800	1587	GLASS SHELF GROUP	13	1	Meer info
5710880100	1643	MAGNET COVER_ARCP1	2	1	Meer info
