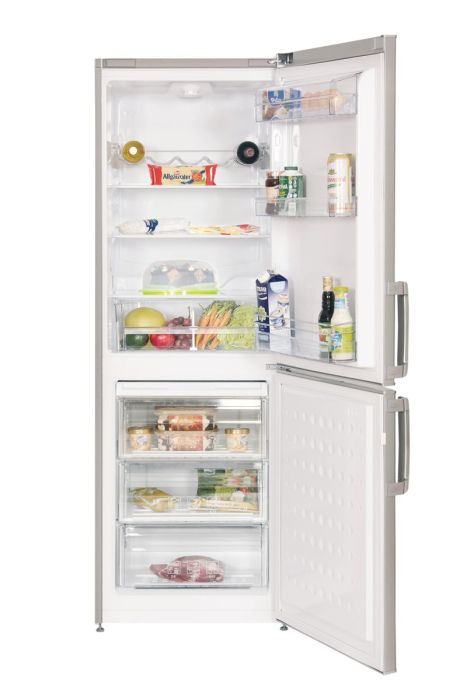

CS232020S KOEL-VRIES COMBINATIE SILVER

Artikelnr: 114496

Referentienr: CS232020S

Productomschrijving

**** 175x60x60cm-183/87 L Silver

Specificaties

Meer informatie
Gewicht (Kg)	53
Jaarlijks verbruik (kWh)	272
ArtRef	CS232020S
AsogemID	114496
MPN	7514720006
Merk	BEKO
Soort	Koelkast 2 deuren (bottom freezer)
ArtEAN	5944008911386

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
4094880200	0	INTERIOR LIGHT SWITCH	6	1	Meer info
4312420200	3	THERMOSTAT KNOB ASS. PRINTED (BEKO_UK)	3	1	Meer info
4359160200	13	LOWER HINGE GROUP	5	1	Meer info
4382480100	14	TOP HINGE GROUP	9	1	Meer info
4913131200	30	COMPRESSOR_PZ75E1B (220-240 V)	32	1	Meer info
4361198400	30	COMPRESSOR JIAXIPERA TG 1112_YL	38	0	Meer info
4913130900	30	COMPRESSOR_GMCC_PZ75H1C_220-240 V_R600a	32	0	Meer info
4361194800	30	COMPRESSOR JIAXIPERA TG 1112 Y_AL	37	0	Meer info
4913130100	30	COMPRESSOR_GMCC_PZ75H1C_220-240 V_R600a	33	0	Meer info
5739010100	31	TERMINAL COVER PZ GMCC	11	1	Meer info
5731440500	39	COMBO_PTC_RELAY_GMCC_PZ75E1B	15	0	Meer info
4346040285	39	COMBO UNIT(JIAXPERA)	15	0	Meer info
4930970800	39	COMBO UNIT_PZ99H1C_PZ75E1B_GMCC_AL	15	1	Meer info
4930970600	39	ELECTRICAL ACCESSORIES GMCC PZ75H1C AL	18	0	Meer info
4930970100	39	COMBO UNIT(JIAXPERA)	23	0	Meer info
4346040185	39	COMBO UNIT(JIAXPERA)	14	0	Meer info
4346040585	39	COMBO UNIT(JIAXPERA)	15	0	Meer info
4623980100	132	WATER COLECTOR TRAY JIAXIPERA	13	1	Meer info
4629950100	135	MIDDLE HINGE COVER ARCP1	1	4	Meer info
4629950200	135	MIDDLE HINGE COVER RAL7037	1	4	Meer info
4524500001	197	TRENCHING PART	1	1	Meer info
4652880100	216	Charging tube II 100mm Restrans	0	1	Meer info
4859090600	218	EGG TRAY_ARC_2009_T605-1-3	4	1	Meer info
4055880600	227	DOOR HANDLE PLUG	1	1	Meer info
4880031600	227	MECHANISM COVER FUSE_BYG_ARC745	2	4	Meer info
4852560300	232	HINGE HOLDER-LINE 2001	2	1	Meer info
4900410200	245	DAIRY COMPARTMENT COVER	8	1	Meer info
4875040400	255	60CM DOOR SHELF - 55mm (T605-1-3)	9	2	Meer info
4232250100	300	ICE CUBE TRAY_ARC P1_D	6	1	Meer info
4241520100	403	DULIE LAMPA	4	1	Meer info
5760500100	404	LED BULB	13	1	Meer info
4542690100	463	CONDENSER FIXING PART-I _ DIFFUSION	4	3	Meer info
4542690200	464	CONDENSER FIXING PART-I _ DIFFUSION	4	1	Meer info
4659390100	474	CRISPER COVER ASSY_G60 3.2mm	17	1	Meer info
4657040600	475	CRISPER COVER G600_490X293X3.2	15	1	Meer info
4657620100	476	CRISPER COVER TRIM (60CM) 3.2MM	7	1	Meer info
4546851700	487	REFRIG ASSY. GASKET K60295N/DIFF LIGHT G	18	1	Meer info
4546850100	496	FREEZER ASSY. GASKET K6330 K6360 DIFF LI	17	1	Meer info
4361190500	566	COMPRESSOR JIAXIPERA NS 1112 Y	37	0	Meer info
4358580300	601	MIDDLE HINGE GR.(ARC2009_33mm AXIS)	6	1	Meer info
4207910100	834	LAMP_THERMOSTAT HOUSING	7	1	Meer info
4207920100	835	LAMP_THERMOSTAT HOUSING COVER	3	1	Meer info
4875030200	838	60CM DOOR SHELF - 100mm (T605-1-3)	10	1	Meer info
4891810300	854	WATER DRAN HOSE WTH ADAPTER	6	1	Meer info
4853111400	947	HINGE COVER_RIGHT_ARC2009_ARC745	3	1	Meer info
4853121400	948	HINGE COVER-LEFT_ARC_2009_ARC745	4	1	Meer info
4866690300	971	HANDLE HOLE PLUG (WHITE)	1	4	Meer info
4891181900	984	UPPER DOOR BROW HINGE COVER_ARC745	4	1	Meer info
4299060200	985	UPPER DOOR HINGE STOPPER (LG)	1	1	Meer info
4502014400	1218	THERMOSTAT KDF30B1	12	0	Meer info
4397301500	1544	STAMP_SALAD_CRISPER ASSY_60CM_T605-1-3	21	1	Meer info
4613960100	1546	ICE CUBES TRAY BEKO 2010	15	1	Meer info
4657600100	1548	GLASS FRONT COVER 60 RANGE 3.2MM	7	3	Meer info
4657580100	1549	GLASS BACK COVER 60CM ARCP1 3.2MM	7	3	Meer info
4615020500	1550	TOP TRIM MECANIC BEKO 2010_ARC 745	11	1	Meer info
4657040100	1551	GLASS SHELF R600_457X285X3.2	22	3	Meer info
4616070200	1552	BIG PLASTIC FZ DRAWER ASS.BEKO2010 60CM	23	1	Meer info
4616070100	1552	BIG PLASTIC FZ DRAWER ASS.BEKO2010 60CM	24	1	Meer info
4616080200	1553	SMALL PLASTIC FR DRAWER ASS.BEKO 2010 60	23	1	Meer info
4659370100	1554	GLASS SH ASSY_G60_WHITE_Safety_3.2	17	3	Meer info
4872691600	1556	EAR HANDLE_ARC745	20	2	Meer info
4614110420	1563	PU DOOR FZ K60295 BEKO 2010 VH ARCP745	30	1	Meer info
4616330620	1588	ASSY. DOOR FZ K60295 BEKO2010 VH ARC745	32	1	Meer info
4614100400	1625	FF PU DOOR K60295N BEKO VH ARC745	32	1	Meer info
4617690500	1626	ASS.DOOR FF K60295_BNF_MV_ARC744	33	1	Meer info
4622786600	2476	EQUIPPED SUPPLY CORD PZ 75H1C 2.15m	19	0	Meer info
4622787200	2476	EQUIPPED SUPPLY CORD EU PZ 75 E1B 2.08 m	18	1	Meer info
4622788900	2476	EQ SUPPLY CORD EU TG1112YL(AL) 1.9m	19	0	Meer info
4622785000	2476	EQUIPPED SUPPLY CORD_TG1112Y (AL)_2m	19	0	Meer info
4622782700	2476	EQUIPPED SUPPLY CORD PZ 75H1C 2.08m	18	0	Meer info
4543615600	2477	EQ. SUPPLY CORD_NS1112Y_NX1110Y	19	0	Meer info
4502020001	3070	2-WAYS DRYER	10	1	Meer info
4548960400	3187	SLEEVE SCREW M 8X20 GREY	3	1	Meer info
4548960500	3188	LEVELLING FOOT M8X35 - GREY	3	1	Meer info
4612470100	3235	CONDENSER SPACER.	1	2	Meer info
4502011100	3951	K59 L2683 THERMOSTAT	17	1	Meer info
4610120510	4233	CONDENSER K6270NF_KARD_K6330A+ (PAINTED)	25	1	Meer info
4528210100	4250	REAR FIXED FOOT	1	2	Meer info
4559370100	8508	EVAPORATOR PANEL BLOCKING PART(NEW)	1	6	Meer info
4645980100	8537	SUP 1 COMPR_WITH FOOT_60CM	18	1	Meer info
4505150001	8538	MOTORCOMPRESSOR FIXING PART	1	2	Meer info
