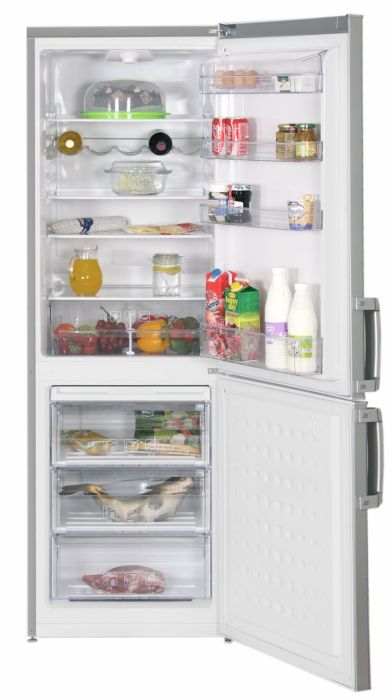

CS234020X KOEL-VRIES COMBINATIE INOX

Artikelnr: 114678
Referentienr: CS234020X
Vergelijk

Productomschrijving

**** 186.5x59.5x60cm-205/87 L INOX
Meer informatie
Gewicht (Kg) 61
Jaarlijks verbruik (kWh) 267
ArtRef CS234020X
AsogemID 114678
MPN 7508520099
Merk BEKO
Soort Koelkast 2 deuren (bottom freezer)
ArtEAN 5944008911157
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4094880200 0 INTERIOR LIGHT SWITCH 6 1 Meer info
4875040300 0 50 MM DOOR SHELF_60CM_55MM_TRANPARENT 9 1 Meer info
4399740100 0 CONTAINER GROUP 14 1 Meer info
4312420200 3 THERMOSTAT KNOB ASS. PRINTED (BEKO_UK) 3 1 Meer info
4359160200 13 LOWER HINGE GROUP 5 1 Meer info
4382480100 14 TOP HINGE GROUP 9 1 Meer info
4361198500 30 COMPRESSOR JIAXIPERA TG1114Y_YL 34 0 Meer info
4913131100 30 COMPRESSOR_PZ90E1B (220-240 V) 32 1 Meer info
4361190600 30 COMPRESSOR JIAXIPERA NS1114Y 37 0 Meer info
4361194900 30 COMPRESSOR JIAXIPERA TG1114Y_AL 34 0 Meer info
4913131000 30 COMPRESSOR_PZ90H1C AL (220-240 V) 34 0 Meer info
4913130200 30 COMPRESSOR_PZ90H1C (220-240 V) 46 0 Meer info
5739010100 31 TERMINAL COVER PZ GMCC 11 1 Meer info
4346040285 39 COMBO UNIT(JIAXPERA) 15 0 Meer info
4346041600 39 COMBO UNIT(JIAXPERA) 13 0 Meer info
5731440600 39 COMBO_GMCC_ZHB56-140P15C_PZ90E1B 18 0 Meer info
4346040485 39 COMBO UNIT(JIAXPERA) 13 0 Meer info
4930970900 39 COMBO UNIT GMCC PZ90E1B-6SP 9214 15 1 Meer info
4930970200 39 COMBO UNIT(JIAXPERA) 18 0 Meer info
4930970700 39 COMBO UNIT GMCC PZ90H1C ALUMINUM 18 0 Meer info
4623980100 132 WATER COLECTOR TRAY JIAXIPERA 13 1 Meer info
4629950100 135 MIDDLE HINGE COVER ARCP1 1 4 Meer info
4629950200 135 MIDDLE HINGE COVER RAL7037 1 2 Meer info
4524500001 197 TRENCHING PART 1 1 Meer info
4652880200 216 Charging tube II New 100 mm Drept 0 1 Meer info
4528400200 216 CHARGING TUBE II 6 0 Meer info
4859090600 218 EGG TRAY_ARC_2009_T605-1-3 4 1 Meer info
4055880600 227 DOOR HANDLE PLUG 1 1 Meer info
4852560300 232 HINGE HOLDER-LINE 2001 2 1 Meer info
4852580300 239 HINGE HOLDER_ARC 2009_RAL 7037 2 1 Meer info
4852590500 241 PLUG 1 1 Meer info
4900410200 245 DAIRY COMPARTMENT COVER 8 1 Meer info
4875040400 255 60CM DOOR SHELF - 55mm (T605-1-3) 9 2 Meer info
4232250100 300 ICE CUBE TRAY_ARC P1_D 6 1 Meer info
4241520100 403 DULIE LAMPA 4 1 Meer info
5760500100 404 LED BULB 13 1 Meer info
4528340100 416 SERVICE TUBE III (NEW) 6 0 Meer info
4542690100 463 CONDENSER FIXING PART-I _ DIFFUSION 4 3 Meer info
4542690200 464 CONDENSER FIXING PART-I _ DIFFUSION 4 1 Meer info
4610120610 473 CONDENSER K6270NF-KARD;K6330A(PAINTED) 0 1 Meer info
4659390100 474 CRISPER COVER ASSY_G60 3.2mm 17 1 Meer info
4657040600 475 CRISPER COVER G600_490X293X3.2 15 1 Meer info
4657620100 476 CRISPER COVER TRIM (60CM) 3.2MM 7 1 Meer info
4546850200 487 REFR. ASY. GASKET K6330_350_340NF LIGHT 18 1 Meer info
4546850100 496 FREEZER ASSY. GASKET K6330 K6360 DIFF LI 17 1 Meer info
4358580300 601 MIDDLE HINGE GR.(ARC2009_33mm AXIS) 6 1 Meer info
4207910100 834 LAMP_THERMOSTAT HOUSING 7 1 Meer info
4207920100 835 LAMP_THERMOSTAT HOUSING COVER 3 1 Meer info
4397291300 838 STAMPED DOOR SHELF ASSY_BYG_T605-1-3 16 1 Meer info
4891810300 854 WATER DRAN HOSE WTH ADAPTER 6 1 Meer info
4238580100 864 WIRE SHELF (FOR BOTTLE). 15 1 Meer info
4853120500 947 HINGE COVER-LEFT_ARC 552 2 1 Meer info
4853110500 948 HINGE COVER RIGHT_ARC552 4 1 Meer info
4866690300 971 HANDLE HOLE PLUG (WHITE) 1 4 Meer info
4891180700 984 UPPER DOOR BROW HINGE COVER_ARC 552 INOX 3 1 Meer info
4299060200 985 UPPER DOOR HINGE STOPPER (LG) 1 1 Meer info
4880030400 997 MECHANISM COVER FUSE 1 4 Meer info
4502014400 1218 THERMOSTAT KDF30B1 12 0 Meer info
4614110310 1402 PU FZ DOOR K6330_BEKO 2010_INOX 33 1 Meer info
4397301500 1544 STAMP_SALAD_CRISPER ASSY_60CM_T605-1-3 21 1 Meer info
4613960100 1546 ICE CUBES TRAY BEKO 2010 15 1 Meer info
4657600100 1548 GLASS FRONT COVER 60 RANGE 3.2MM 7 3 Meer info
4657580100 1549 GLASS BACK COVER 60CM ARCP1 3.2MM 7 3 Meer info
4615020400 1550 TOP TRIM MECANIC BEKO 2010_ARC 552 14 1 Meer info
4657040100 1551 GLASS SHELF R600_457X285X3.2 22 3 Meer info
4616070100 1552 BIG PLASTIC FZ DRAWER ASS.BEKO2010 60CM 24 1 Meer info
4616080200 1553 SMALL PLASTIC FR DRAWER ASS.BEKO 2010 60 23 1 Meer info
4659370100 1554 GLASS SH ASSY_G60_WHITE_Safety_3.2 17 3 Meer info
4872690400 1556 EAR HANDLE_ARC552 11 2 Meer info
4616300300 1564 ASSY. DOOR FF K6330 BEKO 2010 VH ARC552 35 1 Meer info
4614080300 1565 PU FF DOOR VH K6330 DIFFUSION ARC 552 33 1 Meer info
4616330310 1588 ASSY. FZ DOOR K6330_BEKO 2010_INOX 36 1 Meer info
4622789100 2476 EQ SUPPLY CORD EU TG1114YL(AL) 1.9m 19 0 Meer info
4622781300 2476 EQUIPPED SUPPLY CORD_TU_TG1114Y (AL) 18 0 Meer info
4622787400 2476 EQUIPPED SUPPLY CORD EU PZ 90 E1B 2.08 m 19 1 Meer info
4622786400 2476 EQUIPPED SUPPLY CORD PZ 90H1C 2.15m 19 0 Meer info
4622782800 2476 EQUIPPED SUPPLY CORD PZ 90H1C 2.08m 19 0 Meer info
4543615700 2477 EQUIPPED SUPPLY CORD_NU1114Y_NS1114Y 18 0 Meer info
4502020001 3070 2-WAYS DRYER 10 1 Meer info
4548960400 3187 SLEEVE SCREW M 8X20 GREY 3 1 Meer info
4548960500 3188 LEVELLING FOOT M8X35 - GREY 3 1 Meer info
4612470100 3235 CONDENSER SPACER. 1 2 Meer info
4502011100 3951 K59 L2683 THERMOSTAT 17 1 Meer info
4528210100 4250 REAR FIXED FOOT 1 2 Meer info
4559370100 8508 EVAPORATOR PANEL BLOCKING PART(NEW) 1 6 Meer info
4645980100 8537 SUP 1 COMPR_WITH FOOT_60CM 18 1 Meer info
4505150101 8538 MOTORCOMPRESSOR FIXING PART. 1 2 Meer info
Mode d'emploi (1.48 MB)
Handleiding (1.48 MB)
