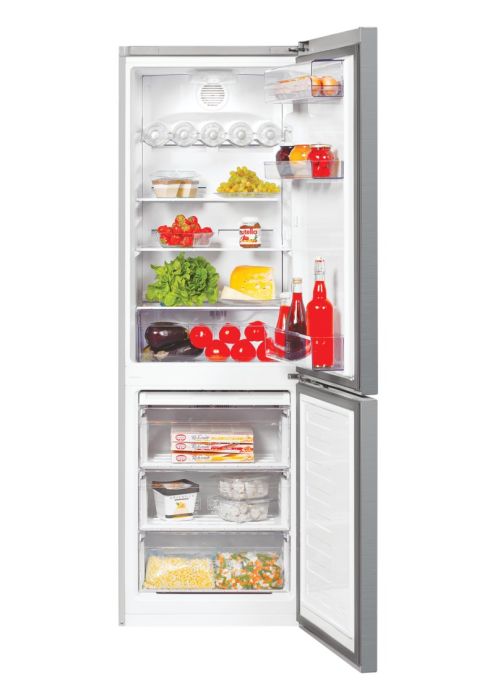

RCNA320K30PT KOEL-VRIES COMBINATIE FULL NO FROST INOX LOOK
Artikelnr:
114257
Referentienr:
RCNA320K30PT
Productomschrijving
**** 185,3x59,5x60 cm-FULL NO FROST 172/25/90L inox paint
| Gewicht (Kg) | 64 |
|---|---|
| Jaarlijks verbruik (kWh) | 250 |
| Hoogte met verpakking | 189 |
| Breedte met verpakking | 64 |
| Diepte met verpakking | 68 |
| Gewicht VPE (Kg) | 67 |
| ArtRef | RCNA320K30PT |
| AsogemID | 114257 |
| MPN | 7513820070 |
| Merk | BEKO |
| Soort | Koelkast 2 deuren (bottom freezer) |
| ArtEAN | 5944008918903 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 4391660285 | 0 | FAN MOTOR_BLDC_FDQC28AL2C_PANASONIC | 26 | 1 | Meer info | |||
| 4858350185 | 0 | RADIAL FAN BLADE_CCW-95MM | 3 | 1 | Meer info | |||
| 4250010100 | 0 | FC FAN MOTOR HOUSING GROMMET | 3 | 0 | Meer info | |||
| 4362090500 | 0 | FAN GROUP | 27 | 1 | Meer info | |||
| 4918650100 | 13 | LOWER HINGE GROUP | 4 | 1 | Meer info | |||
| 4382480100 | 14 | TOP HINGE GROUP | 9 | 1 | Meer info | |||
| 4211680100 | 23 | HOSE DAMPER | 1 | 1 | Meer info | |||
| 4913130400 | 30 | COMPRESSOR_PZ75H1X_220-240 V_R600a | 36 | 0 | Meer info | |||
| 4361196800 | 30 | COMPRESSOR JIAXIPERA_TB1112Y_AL | 31 | 1 | Meer info | |||
| 4361192900 | 30 | COMPRESSOR JIAXIPERA NB 1113Y | 47 | 0 | Meer info | |||
| 5823460200 | 30 | COMPRESSOR JIAXIPERA TB1112YL 3rd | 36 | 0 | Meer info | |||
| 5930870300 | 39 | COMBO UNIT 10LPC GMCC | 18 | 0 | Meer info | |||
| 4930970400 | 39 | COMBO UNIT GMCC | 19 | 0 | Meer info | |||
| 4900440500 | 39 | COMBO UNIT(JIAXPERA)_NB1090Y | 17 | 1 | Meer info | |||
| 4900440400 | 39 | COMBO UNIT(JIAXPERA)_NB1090Y | 13 | 0 | Meer info | |||
| 4900441100 | 39 | COMBO UNIT(JIAXPERA)_TB1112Y_3rd | 16 | 0 | Meer info | |||
| 4502020004 | 93 | 3-WAYS DRYER (CAP TUBE FI 1.9mm) | 9 | 0 | Meer info | |||
| 4623980100 | 132 | WATER COLECTOR TRAY JIAXIPERA | 13 | 1 | Meer info | |||
| 4629950100 | 135 | MIDDLE HINGE COVER ARCP1 | 1 | 4 | Meer info | |||
| 4629950200 | 135 | MIDDLE HINGE COVER RAL7037 | 1 | 2 | Meer info | |||
| 5737560300 | 211 | BEKO EMBLEM | 10 | 1 | Meer info | |||
| 4652880100 | 216 | Charging tube II 100mm Restrans | 0 | 1 | Meer info | |||
| 4528400100 | 216 | CHARGING TUBE II(new) | 6 | 0 | Meer info | |||
| 5734690100 | 218 | EGGCUP | 4 | 1 | Meer info | |||
| 4055880600 | 227 | DOOR HANDLE PLUG | 1 | 1 | Meer info | |||
| 4852560100 | 232 | PC DOOR LOWER ENDCAP HINGE HOLDER | 1 | 1 | Meer info | |||
| 4852580300 | 239 | HINGE HOLDER_ARC 2009_RAL 7037 | 2 | 1 | Meer info | |||
| 4852591400 | 241 | PLUG | 2 | 1 | Meer info | |||
| 5740470100 | 255 | DOOR_SHELVES | 11 | 2 | Meer info | |||
| 4232250100 | 300 | ICE CUBE TRAY_ARC P1_D | 6 | 1 | Meer info | |||
| 4528340100 | 416 | SERVICE TUBE III (NEW) | 6 | 0 | Meer info | |||
| 4542690100 | 463 | CONDENSER FIXING PART-I _ DIFFUSION | 4 | 3 | Meer info | |||
| 4542690200 | 464 | CONDENSER FIXING PART-I _ DIFFUSION | 4 | 1 | Meer info | |||
| 4657620100 | 476 | CRISPER COVER TRIM (60CM) 3.2MM | 7 | 1 | Meer info | |||
| 4358580300 | 601 | MIDDLE HINGE GR.(ARC2009_33mm AXIS) | 6 | 1 | Meer info | |||
| 4547750100 | 643 | WIRE SHELF FREEZER | 6 | 1 | Meer info | |||
| 4919820300 | 716 | THERMAL FUSE DUAL GR INCH DAR MLX 220 | 11 | 1 | Meer info | |||
| 4834660100 | 722 | MOTOR HOUSE SUPPORT (B-965 A+) | 3 | 2 | Meer info | |||
| 4936680100 | 827 | CARD BOX COVER GROUP | 11 | 1 | Meer info | |||
| 4207910100 | 834 | LAMP_THERMOSTAT HOUSING | 7 | 1 | Meer info | |||
| 4893130100 | 835 | Lighting Cover | 7 | 1 | Meer info | |||
| 4634620300 | 838 | DOOR SHELF 100MM B14 HOTSTAMP_NEW | 16 | 1 | Meer info | |||
| 4891810800 | 854 | WATER DRAN HOSE WTH ADAPTER | 5 | 1 | Meer info | |||
| 4237300100 | 857 | SENSOR HOUSING COVER | 1 | 1 | Meer info | |||
| 5711200200 | 858 | FAN PROTECTOR | 12 | 1 | Meer info | |||
| 4238580100 | 864 | WIRE SHELF (FOR BOTTLE). | 15 | 1 | Meer info | |||
| 4853121300 | 947 | HINGE COVER-LEFT_RAL 7039 | 2 | 1 | Meer info | |||
| 4805210100 | 948 | HINGE COVER-LEFT_ARCP1 | 1 | 1 | Meer info | |||
| 4853111300 | 948 | HINGE COVER_RIGHT_RAL7039 | 2 | 1 | Meer info | |||
| 4305895000 | 973 | FAN GROUP | 26 | 1 | Meer info | |||
| 4891181600 | 984 | UPPER DOOR BROW HINGE COVER_RAL_7039 | 3 | 1 | Meer info | |||
| 4299060200 | 985 | UPPER DOOR HINGE STOPPER (LG) | 1 | 1 | Meer info | |||
| 5920370100 | 1036 | FINNED EVAPORATOR GROUP | 21 | 1 | Meer info | |||
| 4397301700 | 1039 | CRISPER GROUP | 17 | 1 | Meer info | |||
| 4844260200 | 1043 | SHELF SUPPORT (LEFT_ARC P1) | 1 | 1 | Meer info | |||
| 4844260100 | 1044 | SHELF SUPPORT (RIGHT_ARC P1) | 1 | 1 | Meer info | |||
| 4881690100 | 1207 | SOCKET HOUSING FRONT COVER | 4 | 1 | Meer info | |||
| 4398080185 | 1232 | ATK LED BOARD_230V_HUALIAN | 16 | 0 | Meer info | |||
| 4398081100 | 1232 | ATK LED BOARD_230V_HUALIAN | 11 | 0 | Meer info | |||
| 4884210100 | 1236 | LED CARD PROTECTOR (UPPER INSIDE LIGHT) | 1 | 1 | Meer info | |||
| 4360635285 | 1364 | KARDELEN POT BOARD | 11 | 1 | Meer info | |||
| 4625020100 | 1438 | POTENTIOMETER BOX CABLE LED | 11 | 1 | Meer info | |||
| 4613960100 | 1546 | ICE CUBES TRAY BEKO 2010 | 15 | 1 | Meer info | |||
| 4657600100 | 1548 | GLASS FRONT COVER 60 RANGE 3.2MM | 7 | 3 | Meer info | |||
| 4657580100 | 1549 | GLASS BACK COVER 60CM ARCP1 3.2MM | 7 | 3 | Meer info | |||
| 4615020900 | 1550 | TOP TRIM MECANIC BEKO 2010_RAL 7039 | 9 | 1 | Meer info | |||
| 4657040100 | 1551 | GLASS SHELF R600_457X285X3.2 | 22 | 3 | Meer info | |||
| 4691660100 | 1552 | DOOR SWITCH 3 CONTACTS G54 | 9 | 1 | Meer info | |||
| 4616080400 | 1553 | SMALL PLASTIC FR DRAWER ASS.BNF NEW | 23 | 1 | Meer info | |||
| 4659370100 | 1554 | GLASS SH ASSY_G60_WHITE_Safety_3.2 | 17 | 3 | Meer info | |||
| 4873530100 | 1559 | BIOFRESH RAIL BEKO 2010 _RIGHT | 10 | 1 | Meer info | |||
| 4873530200 | 1560 | BIOFRESH RAIL BEKO 2010 _LEFT | 10 | 1 | Meer info | |||
| 4616090200 | 1617 | ASS BIG DRAWER NF BEKO 2010 | 23 | 1 | Meer info | |||
| 5710881300 | 1643 | MAGNET COVER | 1 | 1 | Meer info | |||
| 4657041100 | 1679 | GLASS COVER BIOFRESH_490X368X3.2 | 16 | 1 | Meer info | |||
| 4818490200 | 1764 | BITUM FOR EVAPARATOR TUBES | 8 | 1 | Meer info | |||
| 4855590100 | 1822 | FRONT BACK COVER_D70540N | 6 | 1 | Meer info | |||
| 4611660200 | 1906 | ASS EVAPORATOR COVER -K60320N | 24 | 1 | Meer info | |||
| 4624030100 | 2000 | CONDENSER K60320N_NE A++ | 27 | 1 | Meer info | |||
| 4623120100 | 2008 | FRZ. NF EVAP. ASS. K60320N_NE A+ CR | 27 | 0 | Meer info | |||
| 4623990100 | 2009 | DRAIN HEATER FRZ NF G60 | 16 | 1 | Meer info | |||
| 4623500100 | 2019 | FZ WIRE SHELF SHORT FNF 60CM | 15 | 1 | Meer info | |||
| 4622420100 | 2026 | EVAPORATOR COVER FNF 60CM | 20 | 1 | Meer info | |||
| 4624250200 | 2028 | CONTROL CARD K60320N K2 | 24 | 1 | Meer info | |||
| 4657680100 | 2037 | REAR ORNAMENT BF REMOVAL ARCP1 3.2MM | 9 | 1 | Meer info | |||
| 4627490100 | 2122 | THERMOSTAT KNOB PRINTED KARDELEN | 5 | 1 | Meer info | |||
| 4633083700 | 2391 | ASSEMBLY GASKET K6330 FF LIGHT GRAY | 18 | 1 | Meer info | |||
| 4633083800 | 2415 | ASSEMBLY GASKET COMBI FZ LIGHT GRAY | 17 | 1 | Meer info | |||
| 4622784300 | 2476 | EQUIPPED SUPPLY CORD_PZ75H1X_2.08m | 18 | 0 | Meer info | |||
| 4622787800 | 2476 | EQUIPPED SUPPLY CORD EU_TB 1112 Y_1.9 m | 19 | 1 | Meer info | |||
| 4622780800 | 2476 | EQUIPPED SUPPLY CORD_NB 1113Y | 16 | 0 | Meer info | |||
| 4652621600 | 2476 | EQUIPPED SUPPLY CORD (EU) | 13 | 0 | Meer info | |||
| 4638920100 | 2579 | COMPRESSOR EVAPORATIN PAN | 13 | 0 | Meer info | |||
| 4644360910 | 2720 | ASSY.FZ DOOR K6330_FH_BIOF_B14_NEW PET | 31 | 1 | Meer info | |||
| 4644370700 | 2724 | ASSY.FF DOOR K60320N_FH_BIOF_B14_NEW PET | 33 | 1 | Meer info | |||
| 4502020001 | 3070 | 2-WAYS DRYER | 10 | 1 | Meer info | |||
| 4548960400 | 3187 | SLEEVE SCREW M 8X20 GREY | 3 | 1 | Meer info | |||
| 4548960500 | 3188 | LEVELLING FOOT M8X35 - GREY | 3 | 1 | Meer info | |||
| 4612470100 | 3235 | CONDENSER SPACER. | 1 | 2 | Meer info | |||
| 4528210100 | 4250 | REAR FIXED FOOT | 1 | 2 | Meer info | |||
| 4645980100 | 8537 | SUP 1 COMPR_WITH FOOT_60CM | 18 | 1 | Meer info | |||
| 4505150101 | 8538 | MOTORCOMPRESSOR FIXING PART. | 1 | 2 | Meer info |
