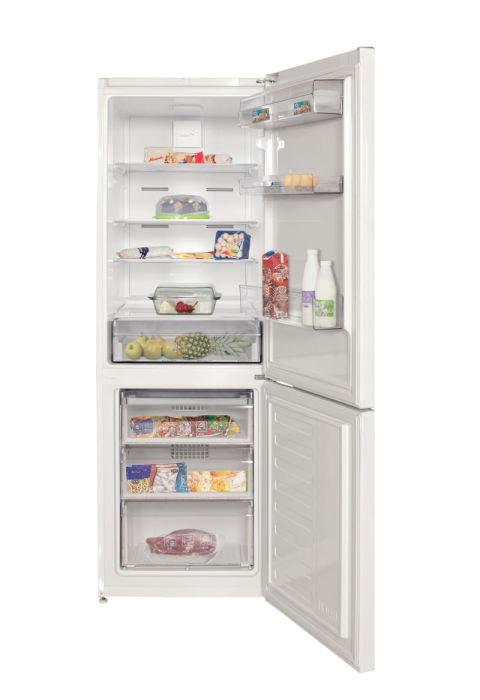

RCNA365K20W KOEL-VRIES COMBINATIE FULL NO FROST

Artikelnr: 114367
Referentienr: RCNA365K20W
Vergelijk

Productomschrijving

**** 185.3x59.5x65 cm- FULL NO FROST 219/99L
Meer informatie
Gewicht (Kg) 71
Jaarlijks verbruik (kWh) 336
ArtRef RCNA365K20W
AsogemID 114367
MPN 7517220029
Merk BEKO
Soort Koelkast 2 deuren (bottom freezer)
ArtEAN 5944008916596
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4852580100 0 HINGE HOLDER (FF_DOOR_ARC2009_NATURAL) 1 1 Meer info
4657560100 0 FRZ GLASS SHELF REAR PROFILE 7 2 Meer info
5391205241 0 NTZ145MT(220-240)IHR(R600,ALUM.WIN.) 41 0 Meer info
4634610100 0 FZ DRAWER COVER 190MM HOTSTAMP 16 2 Meer info
4634610200 0 FZ DRAWER COVER 235MM HOTSTAMP 17 1 Meer info
5910500200 3 LTK_KNOB_K_BUTTON_GR 4 1 Meer info
4918650100 13 LOWER HINGE GROUP 4 1 Meer info
4382480100 14 TOP HINGE GROUP 9 1 Meer info
4211680100 23 HOSE DAMPER 1 1 Meer info
4361198500 30 COMPRESSOR JIAXIPERA TG1114Y_YL 34 1 Meer info
4913131100 30 COMPRESSOR_PZ90E1B (220-240 V) 32 0 Meer info
4361194900 30 COMPRESSOR JIAXIPERA TG1114Y_AL 34 0 Meer info
4913131000 30 COMPRESSOR_PZ90H1C AL (220-240 V) 34 0 Meer info
5739010100 31 TERMINAL COVER PZ GMCC 11 0 Meer info
4346040285 39 COMBO UNIT(JIAXPERA) 15 0 Meer info
4346041600 39 COMBO UNIT(JIAXPERA) 13 1 Meer info
5731440600 39 COMBO_GMCC_ZHB56-140P15C_PZ90E1B 18 0 Meer info
4930970900 39 COMBO UNIT GMCC PZ90E1B-6SP 9214 15 0 Meer info
4930970700 39 COMBO UNIT GMCC PZ90H1C ALUMINUM 18 0 Meer info
5635402201 39 TERMINAL ASSY. 23 0 Meer info
5705910100 51 EVAP. COVER CAP_ARCP1 2 2 Meer info
4623980100 132 WATER COLECTOR TRAY JIAXIPERA 13 1 Meer info
5711230100 132 EVAPORATING PAN MTZ 9 0 Meer info
4629950100 135 MIDDLE HINGE COVER ARCP1 1 4 Meer info
5723410100 146 NEW MIDDLE HINGE PLUG 2 1 Meer info
5737560100 211 LOGO 7 1 Meer info
4652880200 216 Charging tube II New 100 mm Drept 0 1 Meer info
4652880100 216 Charging tube II 100mm Restrans 0 0 Meer info
5734690100 218 EGGCUP 4 2 Meer info
4852560100 232 PC DOOR LOWER ENDCAP HINGE HOLDER 1 1 Meer info
4852590100 241 PLUG 1 1 Meer info
4645580100 245 BEKO TPK T605-1-3_60CM 14 1 Meer info
5740470100 255 DOOR_SHELVES 11 2 Meer info
4232250100 300 ICE CUBE TRAY_ARC P1_D 6 2 Meer info
4657042600 310 GLASS SHELF R600 DEEP_440.5X321X3.2 15 2 Meer info
5710390100 325 ICE TRAY 10 1 Meer info
5704370100 327 BIG FREEZER DRAWER 190mm_WITH HOLES 14 2 Meer info
5704390100 328 DRAWER BODY 15 1 Meer info
5920590100 406 PRINTING_LIGHTING_COVER_GROUP 3 1 Meer info
4542690100 463 CONDENSER FIXING PART-I _ DIFFUSION 4 3 Meer info
4542690200 464 CONDENSER FIXING PART-I _ DIFFUSION 4 1 Meer info
4358580300 601 MIDDLE HINGE GR.(ARC2009_33mm AXIS) 6 1 Meer info
4634600100 635 CRISPER COVER 148MM HOTSTAMP VEGETABLE 16 1 Meer info
4862780100 639 FILTER COVER _ SBS4K 1 1 Meer info
4919820300 716 THERMAL FUSE DUAL GR INCH DAR MLX 220 11 1 Meer info
4943832800 784 KONTROL KART GR U-1 NF SF PIPO K 23 1 Meer info
5714830400 827 CARD BOX COVER 13 1 Meer info
5741370200 834 LTK_BODY_ARCTIC 10 1 Meer info
4634620300 838 DOOR SHELF 100MM B14 HOTSTAMP_NEW 16 1 Meer info
4891810300 854 WATER DRAN HOSE WTH ADAPTER 6 1 Meer info
5711200200 858 FAN PROTECTOR 12 1 Meer info
4656991000 861 GLASS SHELF PROFILE DEEP ARCP1 5 4 Meer info
5719650100 880 heater K60400 16 1 Meer info
4610270310 888 CONDENSER K6330ESV_K6360ESV(PAINTED) 24 1 Meer info
4853110100 947 HINGE COVER_RIGHT_ARC2009_ARC P1 4 1 Meer info
4853120100 948 HINGE COVER-LEFT_ARC_2009_(ARC P1 4 1 Meer info
4228060400 960 PHOTOCATALYST FILTER 9 1 Meer info
4655720200 973 FRZ FAN ASSY AC (KELI MOTOR - 5720995500 24 1 Meer info
4305897600 973 FAN ASS. DEEP 16 0 Meer info
4852570100 975 HINGE HOUSING 1 1 Meer info
4800390100 976 LOWER DOOR STOPPER-LINE 2001_SHORT 2 1 Meer info
4891180100 984 UPPER DOOR BROW HINGE COVER 1 1 Meer info
4299060200 985 UPPER DOOR HINGE STOPPER (LG) 1 1 Meer info
4650100100 1036 FRZ Evap Assy Deep 25 1 Meer info
5706020100 1039 CRISPER BODY 18 1 Meer info
4915080100 1041 RAIL GROUP 11 1 Meer info
4915030100 1042 RAIL GROUP 11 1 Meer info
5724072100 1232 ATK LED BOARD 12V 10 1 Meer info
5724071100 1232 ATK LED BOARD 12V 10 0 Meer info
4914270100 1495 EVAPORATOR FRONT COVER GROUP 19 1 Meer info
4615020100 1550 TOP TRIM MECANIC BEKO 2010_ARC P1 9 1 Meer info
4691660100 1552 DOOR SWITCH 3 CONTACTS G54 9 1 Meer info
4649220100 1630 SENSOR MINISENSOR COVER ARCP1 2 2 Meer info
5710880100 1643 MAGNET COVER_ARCP1 2 1 Meer info
4818490200 1764 BITUM FOR EVAPARATOR TUBES 8 1 Meer info
5712640100 1793 FF Fan_Motor_DC 12 V 17 1 Meer info
5710190100 1793 Refrigerator Fan Motor DC 12 V 17 0 Meer info
4927580800 1794 printed square fan cover 5 1 Meer info
5731610100 1797 SQUARE FAN DAMPER 2 4 Meer info
5704880100 1798 FAN COVER FRAME 2 1 Meer info
4630130100 2182 FF EVAPORATOR COVER GROUP K60360NE 26 1 Meer info
4633080200 2391 ASSEMBLY GASKET K60365 FF LIGHT GRAY 18 1 Meer info
4634580100 2412 ASS.FZ DOOR K60365_B14_FH_ARC P1_DEEP 34 1 Meer info
4633080100 2415 ASSEMBLY GASKET COMBI DEEP FZ LIGHT GRAY 17 1 Meer info
4631550500 2416 PU DOOR FZ K60365 FH B14 ARCP1 33 1 Meer info
4634570100 2448 ASSY.DOOR FF K60365N_B14_FH_ARC P1 33 1 Meer info
4634630100 2449 PU FF DOOR K60365 FH B14 ARCP1 MS 35 1 Meer info
4622789100 2476 EQ SUPPLY CORD EU TG1114YL(AL) 1.9m 19 1 Meer info
4622781300 2476 EQUIPPED SUPPLY CORD_TU_TG1114Y (AL) 18 0 Meer info
4622787400 2476 EQUIPPED SUPPLY CORD EU PZ 90 E1B 2.08 m 19 0 Meer info
4622788700 2476 EQUIPPED SUPPLY CORD EU_NTZ 145 MT_2.15m 16 0 Meer info
4622786400 2476 EQUIPPED SUPPLY CORD PZ 90H1C 2.15m 19 0 Meer info
5734642100 2532 ELECTRONIC BOARD POT4 9 0 Meer info
5734641100 2532 ELECTRONIC BOARD POT4 10 1 Meer info
4657630100 2555 FF GLASS SHELF REAR PROFILE ARCP1 7 4 Meer info
4657042400 2557 GLASS SHELF R600 DEEP_489X345X3.2 16 3 Meer info
4657042800 2558 GLASS SHELF R600 DEEP_ 489X474X3.2 18 1 Meer info
4502020001 3070 2-WAYS DRYER 10 1 Meer info
4548960100 3187 SLEEVE SCREW M 8X20 ARC P1 3 1 Meer info
4548960200 3188 SLEEVE SCREW M 8X35 ARC P1 3 1 Meer info
4612470100 3235 CONDENSER SPACER. 1 2 Meer info
4630952000 3310 ASSY. DRAWER 148MM B14 HOTST VEGETABLE 24 1 Meer info
4630942200 3311 AS DRAWER 190MM WITH HOL B14 HOTST 23 2 Meer info
4630942100 3312 AS DRAWER 235MM B14 HOTST 23 1 Meer info
4659340200 3317 GLASS SH ASSY FF 3_2_DEEP ARCP1 18 3 Meer info
4659340400 3317 CRISPER COVER ASSY FF 3_2_DEEP ARCP1 19 1 Meer info
4528210100 4250 REAR FIXED FOOT 1 2 Meer info
4645980100 8537 SUP 1 COMPR_WITH FOOT_60CM 18 1 Meer info
4505150101 8538 MOTORCOMPRESSOR FIXING PART. 1 2 Meer info
