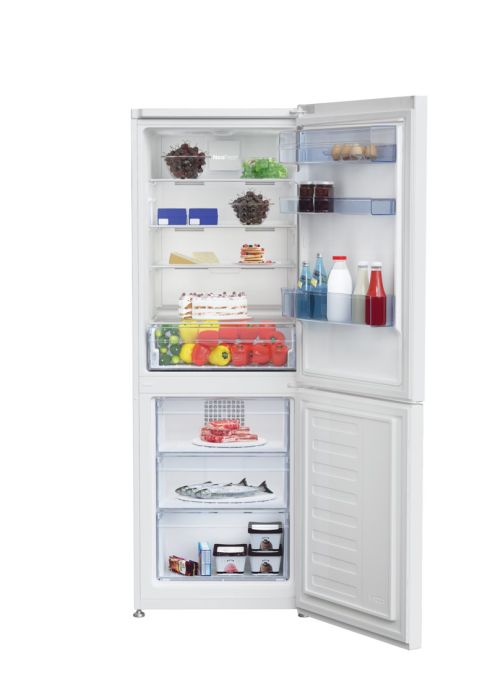

main product photo

RCNA340K20W KOEL-VRIES COMBINATIE FULL NO FROST

Artikelnr: 114312
Referentienr: RCNA340K20W
Vergelijk

Productomschrijving

**** 175.4x59.5x65 cm-FULL NO FROST 205/97L
Meer informatie
Gewicht (Kg) 62
Jaarlijks verbruik (kWh) 304
Hoogte met verpakking 179.2
Breedte met verpakking 64.2
Diepte met verpakking 74
Gewicht VPE (Kg) 64
ArtRef RCNA340K20W
AsogemID 114312
MPN 7518220001
Merk BEKO
Soort Koelkast 2 deuren (bottom freezer)
ArtEAN 5944008916688
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
5232205241 0 COMPRESOR NTU120MT(220-240V)ALUM.WIN. 41 0 Meer info
4852580100 0 HINGE HOLDER (FF_DOOR_ARC2009_NATURAL) 1 1 Meer info
4657560100 0 FRZ GLASS SHELF REAR PROFILE 7 2 Meer info
4634610100 0 FZ DRAWER COVER 190MM HOTSTAMP 16 2 Meer info
4634610200 0 FZ DRAWER COVER 235MM HOTSTAMP 17 1 Meer info
4123760300 0 WATER DSCHARGE ADAPTER GROUP 4 0 Meer info
5910500200 3 LTK_KNOB_K_BUTTON_GR 4 1 Meer info
4918650100 13 LOWER HINGE GROUP 4 1 Meer info
4382480100 14 TOP HINGE GROUP 9 1 Meer info
4211680100 23 HOSE DAMPER 1 1 Meer info
4913131200 30 COMPRESSOR_PZ75E1B (220-240 V) 32 1 Meer info
4361198400 30 COMPRESSOR JIAXIPERA TG 1112_YL 38 0 Meer info
4913130900 30 COMPRESSOR_GMCC_PZ75H1C_220-240 V_R600a 32 0 Meer info
4361194800 30 COMPRESSOR JIAXIPERA TG 1112 Y_AL 37 0 Meer info
5739010100 31 TERMINAL COVER PZ GMCC 11 1 Meer info
5635402000 39 TERMINAL ASSY. 13 0 Meer info
5731440500 39 COMBO_PTC_RELAY_GMCC_PZ75E1B 15 0 Meer info
4346040285 39 COMBO UNIT(JIAXPERA) 15 0 Meer info
4930970800 39 COMBO UNIT_PZ99H1C_PZ75E1B_GMCC_AL 15 1 Meer info
4930970600 39 ELECTRICAL ACCESSORIES GMCC PZ75H1C AL 18 0 Meer info
4346040185 39 COMBO UNIT(JIAXPERA) 14 0 Meer info
5705910100 51 EVAP. COVER CAP_ARCP1 2 2 Meer info
4623980100 132 WATER COLECTOR TRAY JIAXIPERA 13 1 Meer info
4846070100 132 EVAPORATING PAN _ EMBRACO MTS 10 0 Meer info
4629950100 135 MIDDLE HINGE COVER ARCP1 1 4 Meer info
5723410100 146 NEW MIDDLE HINGE PLUG 2 1 Meer info
5737560100 211 LOGO 7 1 Meer info
4652880100 216 Charging tube II 100mm Restrans 0 1 Meer info
5734690100 218 EGGCUP 4 2 Meer info
4852560100 232 PC DOOR LOWER ENDCAP HINGE HOLDER 1 1 Meer info
4852590100 241 PLUG 1 1 Meer info
4645580100 245 BEKO TPK T605-1-3_60CM 14 1 Meer info
5740470100 255 DOOR_SHELVES 11 2 Meer info
4232250100 300 ICE CUBE TRAY_ARC P1_D 6 2 Meer info
4657042600 310 GLASS SHELF R600 DEEP_440.5X321X3.2 15 2 Meer info
5710390100 325 ICE TRAY 10 1 Meer info
5704370100 327 BIG FREEZER DRAWER 190mm_WITH HOLES 14 2 Meer info
5704390100 328 DRAWER BODY 15 1 Meer info
5920590100 406 PRINTING_LIGHTING_COVER_GROUP 3 1 Meer info
4542690100 463 CONDENSER FIXING PART-I _ DIFFUSION 4 3 Meer info
4542690200 464 CONDENSER FIXING PART-I _ DIFFUSION 4 1 Meer info
4358580300 601 MIDDLE HINGE GR.(ARC2009_33mm AXIS) 6 1 Meer info
4634600100 635 CRISPER COVER 148MM HOTSTAMP VEGETABLE 16 1 Meer info
4862780100 639 FILTER COVER _ SBS4K 1 1 Meer info
4919820300 716 THERMAL FUSE DUAL GR INCH DAR MLX 220 11 1 Meer info
4943832800 784 KONTROL KART GR U-1 NF SF PIPO K 23 1 Meer info
5714830400 827 CARD BOX COVER 13 1 Meer info
5741370200 834 LTK_BODY_ARCTIC 10 1 Meer info
4634620300 838 DOOR SHELF 100MM B14 HOTSTAMP_NEW 16 1 Meer info
4891810300 854 WATER DRAN HOSE WTH ADAPTER 6 1 Meer info
5711200200 858 FAN PROTECTOR 12 1 Meer info
4656991000 861 GLASS SHELF PROFILE DEEP ARCP1 5 4 Meer info
5719650100 880 heater K60400 16 1 Meer info
4610270310 888 CONDENSER K6330ESV_K6360ESV(PAINTED) 24 1 Meer info
4853110100 947 HINGE COVER_RIGHT_ARC2009_ARC P1 4 1 Meer info
4853120100 948 HINGE COVER-LEFT_ARC_2009_(ARC P1 4 1 Meer info
4228060400 960 PHOTOCATALYST FILTER 9 1 Meer info
4655720200 973 FRZ FAN ASSY AC (KELI MOTOR - 5720995500 24 0 Meer info
4305897600 973 FAN ASS. DEEP 16 1 Meer info
4852570100 975 HINGE HOUSING 1 1 Meer info
4800390100 976 LOWER DOOR STOPPER-LINE 2001_SHORT 2 1 Meer info
4891180100 984 UPPER DOOR BROW HINGE COVER 1 1 Meer info
4299060200 985 UPPER DOOR HINGE STOPPER (LG) 1 1 Meer info
4330250400 1013 THERMOMETER (BEKO_FRANCE_P.285C) 8 1 Meer info
4650100100 1036 FRZ Evap Assy Deep 25 1 Meer info
5706020100 1039 CRISPER BODY 18 1 Meer info
4915080100 1041 RAIL GROUP 11 1 Meer info
4915030100 1042 RAIL GROUP 11 1 Meer info
5724072100 1232 ATK LED BOARD 12V 10 1 Meer info
5724071100 1232 ATK LED BOARD 12V 10 0 Meer info
4914270100 1495 EVAPORATOR FRONT COVER GROUP 19 1 Meer info
4615020100 1550 TOP TRIM MECANIC BEKO 2010_ARC P1 9 1 Meer info
4691660100 1552 DOOR SWITCH 3 CONTACTS G54 9 1 Meer info
4649220100 1630 SENSOR MINISENSOR COVER ARCP1 2 2 Meer info
5710880100 1643 MAGNET COVER_ARCP1 2 1 Meer info
4818490200 1764 BITUM FOR EVAPARATOR TUBES 8 1 Meer info
5712640100 1793 FF Fan_Motor_DC 12 V 17 0 Meer info
5790260100 1793 FAN_MOTORU_12V_SUNON_RAST5_EE9225 13 1 Meer info
4927580800 1794 printed square fan cover 5 1 Meer info
5731610100 1797 SQUARE FAN DAMPER 2 4 Meer info
5704880100 1798 FAN COVER FRAME 2 1 Meer info
4634580120 2412 ASS.FZ DOOR K60340_B14_FH_ARC P1_DEEP 34 1 Meer info
4633080100 2415 ASSEMBLY GASKET COMBI DEEP FZ LIGHT GRAY 17 1 Meer info
4631550520 2416 PU DOOR FZ COMBI FH B14 ARCP1 35 1 Meer info
4632370100 2423 PU FF DOOR K60340 FH B14 ARCP1 MS 34 1 Meer info
4635230100 2424 ASS.DOOR FF K60340N_B14_FH_ARC P1_HOTS 33 1 Meer info
4633080400 2425 ASSEMBLY GASKET K60340 FF LIGHT GRAY 18 1 Meer info
4636010100 2461 ASS EVAPORATOR COVER K60340N 25 1 Meer info
4622786600 2476 EQUIPPED SUPPLY CORD PZ 75H1C 2.15m 19 0 Meer info
4622787200 2476 EQUIPPED SUPPLY CORD EU PZ 75 E1B 2.08 m 18 1 Meer info
4622788900 2476 EQ SUPPLY CORD EU TG1112YL(AL) 1.9m 19 0 Meer info
4622785000 2476 EQUIPPED SUPPLY CORD_TG1112Y (AL)_2m 19 0 Meer info
5734642100 2532 ELECTRONIC BOARD POT4 9 0 Meer info
5734641100 2532 ELECTRONIC BOARD POT4 10 1 Meer info
4657630100 2555 FF GLASS SHELF REAR PROFILE ARCP1 7 4 Meer info
4657042400 2557 GLASS SHELF R600 DEEP_489X345X3.2 16 3 Meer info
4657042800 2558 GLASS SHELF R600 DEEP_ 489X474X3.2 18 1 Meer info
4652620100 2886 EQUIPPED SUPPLY CORD (EU) NTU120MT_0.5_2 16 0 Meer info
4502020001 3070 2-WAYS DRYER 10 1 Meer info
4548960100 3187 SLEEVE SCREW M 8X20 ARC P1 3 1 Meer info
4548960200 3188 SLEEVE SCREW M 8X35 ARC P1 3 1 Meer info
4612470100 3235 CONDENSER SPACER. 1 2 Meer info
4630952000 3310 ASSY. DRAWER 148MM B14 HOTST VEGETABLE 24 1 Meer info
4630942200 3311 AS DRAWER 190MM WITH HOL B14 HOTST 23 2 Meer info
4630942100 3312 AS DRAWER 235MM B14 HOTST 23 1 Meer info
4659340200 3317 GLASS SH ASSY FF 3_2_DEEP ARCP1 18 3 Meer info
4659340400 3317 CRISPER COVER ASSY FF 3_2_DEEP ARCP1 19 1 Meer info
4528210100 4250 REAR FIXED FOOT 1 2 Meer info
4645980100 8537 SUP 1 COMPR_WITH FOOT_60CM 18 1 Meer info
4541770100 8537 COMPR SUP 60CM 1COMPR WITHOUT ROLL 16 0 Meer info
4505150101 8538 MOTORCOMPRESSOR FIXING PART. 1 2 Meer info
