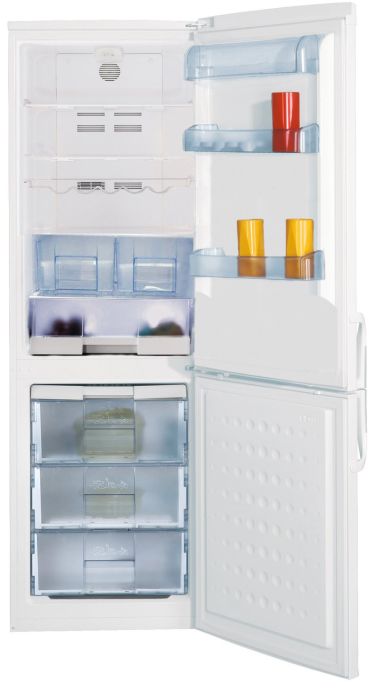

main product photo

CNA32421 KOEL-VRIES COMBINATIE FULL NO FROST

Artikelnr: 114650
Referentienr: CNA32421
Vergelijk

Productomschrijving

**** 186x60x60 cm- L FULL NO FROST 193/82L
Meer informatie
Gewicht (Kg) 64.5
Jaarlijks verbruik (kWh) 291
ArtRef CNA32421
AsogemID 114650
Merk BEKO
Soort Koelkast 2 deuren (bottom freezer)
ArtEAN 5944008909130
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4858020185 0 FAN BLADE 3 1 Meer info
4858350185 0 RADIAL FAN BLADE_CCW-95MM 3 1 Meer info
4250010100 0 FC FAN MOTOR HOUSING GROMMET 3 2 Meer info
5720990100 0 FAN MOTOR 21 1 Meer info
4890070200 0 FAN MOTOR 18 0 Meer info
4362090300 0 FAN GROUP 20 1 Meer info
4094920200 0 INTERIOR LIGHT SWITCH 6 1 Meer info
4810440100 0 UPPER DOOR BROW HINGE COVER-LEFT 1 1 Meer info
4850081185 0 FAN MOTOR. 18 0 Meer info
4362660100 3 THERMOSTAT KNOB ASS. PRINTED (BEKO_UK) 2 1 Meer info
4343420100 13 LOWER HINGE GROUP 6 1 Meer info
4152080100 14 UPPER HINGE GROUP 5 1 Meer info
4361191300 30 COMPRESSOR JIAXIPERA NX1114Y 39 1 Meer info
4346041085 39 COMBO UNIT(JIAXPERA) 12 1 Meer info
4502020004 93 3-WAYS DRYER (CAP TUBE FI 1.9mm) 9 1 Meer info
4623980100 132 WATER COLECTOR TRAY JIAXIPERA 13 1 Meer info
4047840400 135 MIDDLE HINGE PLUG 1 6 Meer info
4200470100 161 UPPER DOOR STOPPER PLATE 1 1 Meer info
4220790200 214 DAIRY SHELF(60 CM) 14 1 Meer info
4528400100 216 CHARGING TUBE II(new) 6 1 Meer info
4250580300 218 EGG CUP-BLUE 5 1 Meer info
4055880600 227 DOOR HANDLE PLUG 1 7 Meer info
4249400100 239 HINGE HOUSING 1 1 Meer info
4220780200 245 DAIRY SHELF COVER 60CM 12 1 Meer info
4810320100 256 HINGE BEARING WITH STOPPER (WITHOUT LOCK 1 1 Meer info
4216390100 300 ICE CUBE TRAY_B760 5 1 Meer info
4207680400 311 CRISPER_B760_762_DIF_BLUE 16 2 Meer info
4239690100 331 FLAP COVER HNGE 3 1 Meer info
4239700100 332 FLAP COVER HNGE 3 1 Meer info
4501200101 370 PTC_HQM 90AA 0 0 Meer info
4363460300 400 CABLE GROUP 5 0 Meer info
4241520100 403 DULIE LAMPA 4 1 Meer info
4035890300 404 INTERIOR LAMP (15W) 8 1 Meer info
4528340100 416 SERVICE TUBE III (NEW) 6 1 Meer info
4542690100 463 CONDENSER FIXING PART-I _ DIFFUSION 4 3 Meer info
4542690200 464 CONDENSER FIXING PART-I _ DIFFUSION 4 1 Meer info
4546850200 487 REFR. ASY. GASKET K6330_350_340NF LIGHT 18 1 Meer info
4546990150 492 ASSY .FZ DOOR K6330_DIF_EAR H_BIOF_P1 29 1 Meer info
4545440150 493 FOAMED FZ DOOR K6330_DIF_EAR H_BIOF_P1 28 1 Meer info
4546850100 496 FREEZER ASSY. GASKET K6330 K6360 DIFF LI 17 1 Meer info
4555200100 497 HINGE HOLDER STOPPER-ARC P1 1 2 Meer info
4565400100 516 TOP TRIM I_60CM 10 1 Meer info
4542540800 521 FZ DRAWER ASSY.(190)KNF30 BEKO BLUE DIF 23 1 Meer info
4540560400 522 SMALL PLASTIC FR DRAWER AS (190) BLUE D 23 1 Meer info
4551630100 523 FAST FREEZER COMPART.DOOR/BLUE DIF/BEKO 16 1 Meer info
4558370100 525 ICE CUBES TRAY 17 1 Meer info
4610520100 568 ASS.COVER BACK SIDE BOX/ELEC;FZ KAR;2COM 11 1 Meer info
4152160110 601 MIDDLE HINGE GROUP (LINE 2001).. 6 1 Meer info
4547750100 643 WIRE SHELF FREEZER 6 1 Meer info
4546060100 644 EVAPORATOR COVER -KNF30_KNF24-new 19 1 Meer info
4551680100 655 SENSOR FIXING PART 1 1 Meer info
4556580100 667 FREEZER ASSEMBLED EVAPORAT K6270_K6240NF 26 1 Meer info
4557900185 670 HEATER DRAINY K6270NF 20 1 Meer info
4211220200 721 FAN MOTOR FRONT COVER 6 1 Meer info
4802230100 722 MOTOR HOUSE SUPPORT 2 2 Meer info
4211210200 723 FAN MOTOR BACK COVER 5 1 Meer info
5720980300 724 FAN MOTOR 16 1 Meer info
4812440600 750 55 MM DOOR SHELF(60 CM). 15 1 Meer info
4360625185 784 CONTROL BOARD GROUP 19 1 Meer info
4200470200 811 UPPER DOOR STOPPER PLATE 1 1 Meer info
4207910100 834 LAMP_THERMOSTAT HOUSING 7 1 Meer info
4207920100 835 LAMP_THERMOSTAT HOUSING COVER 3 1 Meer info
4298130400 838 100 MM DOOR SHELF(60 CM_DIF.NAT.) 12 1 Meer info
4237300100 857 SENSOR HOUSING COVER 1 1 Meer info
4238580100 864 WIRE SHELF (FOR BOTTLE). 15 1 Meer info
4805200100 947 ORNAMENT FATA TOP DR. 1 1 Meer info
4805210100 948 HINGE COVER-LEFT_ARCP1 1 2 Meer info
4306710100 949 EVAPORATOR HOLDER GROUP 1 2 Meer info
4866690100 971 HANDLE HOLE PLUG (WHITE) 1 4 Meer info
4250680100 975 HINGE HOUSING 1 1 Meer info
4800390100 976 LOWER DOOR STOPPER-LINE 2001_SHORT 2 1 Meer info
4326391000 991 HANDLE ASSY ( TOP _ 60-54CM) 7 1 Meer info
4326390500 992 HANDLE ASSY. .( FF _ 60-54CM) 6 1 Meer info
4312920100 994 SUBZERO COMPARTMENT RAILASS_Y_RIGHT_B762 9 1 Meer info
4312920200 995 SUBZERO COMPARTMENT RAILASS_Y_LEFT_B762 8 1 Meer info
4312900100 1039 0 C ASSY. BIG_B762 20 1 Meer info
4312910700 1040 SUBZERO COMPARTMENT ASSY/0 ZONE 10 1 Meer info
4228580200 1043 STOPPER PIN_LEFT 1 1 Meer info
4228580100 1044 STOPPER PIN_RIGHT 1 1 Meer info
4501440200 1047 DRIP TRAY HTK 95AA 15 0 Meer info
4810430100 1073 UPPER DOOR BROW HINGE COVER-RIGHT 2 1 Meer info
4221152700 1123 COMPRESSOR_HKK95AA_R600_ACC 45 0 Meer info
4612830100 1355 FOAMED FF.DOOR K60320N MV DIFF BIO ARCP1 0 1 Meer info
4612840100 1356 ASSEMBLY REFRIG.DOOR K60320N/ MV/DIFF/A+ 32 1 Meer info
4360635285 1364 KARDELEN POT BOARD 11 1 Meer info
4561812600 1389 CRISPER COVER 4X266X490BEKO FULL PRINT 0 1 Meer info
4613680200 1438 POTENTIOMETER BOX CABLE KARDELEN COMBI 9 1 Meer info
4614750200 1548 FRONT GLASS TRIM /60CM/ARC P1/BNF 7 3 Meer info
4614760200 1549 GLASS BACK COVER/60CM/ARC P1/BNF 8 3 Meer info
4616140200 1551 GLASS SH ASSY_G60_OCRS 50158_BEKO Safety 17 3 Meer info
4615300200 1554 GLASS SHELF458X285 X5_Safety GlassG60 14 3 Meer info
4617950100 1601 WIRE SHELF SHORT FZ 60 14 1 Meer info
4612960100 1786 PROTECTION GRATING FAN 15 1 Meer info
4855590100 1822 FRONT BACK COVER_D70540N 6 1 Meer info
4611660200 1906 ASS EVAPORATOR COVER -K60320N 24 1 Meer info
4548960100 3187 SLEEVE SCREW M 8X20 ARC P1 3 1 Meer info
4548960200 3188 SLEEVE SCREW M 8X35 ARC P1 3 1 Meer info
4612470100 3235 CONDENSER SPACER. 1 2 Meer info
4610120510 4233 CONDENSER K6270NF_KARD_K6330A+ (PAINTED) 25 1 Meer info
4528210100 4250 REAR FIXED FOOT 1 2 Meer info
4541770100 8537 COMPR SUP 60CM 1COMPR WITHOUT ROLL 16 1 Meer info
4505150101 8538 MOTORCOMPRESSOR FIXING PART. 1 2 Meer info
