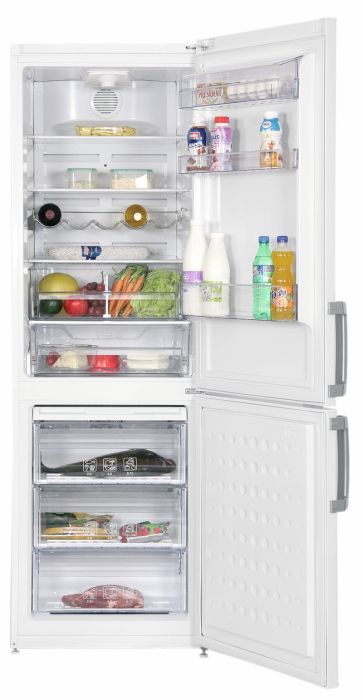

main product photo

CN232120 KOEL-VRIES COMBINATIE FULL NO FROST

Artikelnr: 114592
Referentienr: CN232120
Vergelijk

Productomschrijving

**** 185.3x59.5x60 cm- FULL NO FROST 193/80L
Meer informatie
Gewicht (Kg) 64.5
Jaarlijks verbruik (kWh) 318
ArtRef CN232120
AsogemID 114592
MPN 7513820036
Merk BEKO
Soort Koelkast 2 deuren (bottom freezer)
ArtEAN 5944008911065
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4852580100 0 HINGE HOLDER (FF_DOOR_ARC2009_NATURAL) 1 1 Meer info
4858350185 0 RADIAL FAN BLADE_CCW-95MM 3 1 Meer info
4250010100 0 FC FAN MOTOR HOUSING GROMMET 3 2 Meer info
5720990100 0 FAN MOTOR 21 1 Meer info
4890070200 0 FAN MOTOR 18 0 Meer info
4362090300 0 FAN GROUP 20 1 Meer info
4094920200 0 INTERIOR LIGHT SWITCH 6 1 Meer info
4616290100 5 PU DOOR FF K6330 BEKO 2010 VH ARC P1_BIO 34 1 Meer info
4359160200 13 LOWER HINGE GROUP 5 1 Meer info
4382480100 14 TOP HINGE GROUP 9 1 Meer info
4211680100 23 HOSE DAMPER 1 1 Meer info
4361198500 30 COMPRESSOR JIAXIPERA TG1114Y_YL 34 1 Meer info
4361190600 30 COMPRESSOR JIAXIPERA NS1114Y 37 0 Meer info
4361194900 30 COMPRESSOR JIAXIPERA TG1114Y_AL 34 0 Meer info
4346040285 39 COMBO UNIT(JIAXPERA) 15 0 Meer info
4346041600 39 COMBO UNIT(JIAXPERA) 13 1 Meer info
4346040485 39 COMBO UNIT(JIAXPERA) 13 0 Meer info
4623980100 132 WATER COLECTOR TRAY JIAXIPERA 13 1 Meer info
4629950100 135 MIDDLE HINGE COVER ARCP1 1 6 Meer info
4652880100 216 Charging tube II 100mm Restrans 0 1 Meer info
4528400100 216 CHARGING TUBE II(new) 6 0 Meer info
4859090600 218 EGG TRAY_ARC_2009_T605-1-3 4 1 Meer info
4055880600 227 DOOR HANDLE PLUG 1 1 Meer info
4880031600 227 MECHANISM COVER FUSE_BYG_ARC745 2 4 Meer info
4852560100 232 PC DOOR LOWER ENDCAP HINGE HOLDER 1 1 Meer info
4852590100 241 PLUG 1 1 Meer info
4900410200 245 DAIRY COMPARTMENT COVER 8 1 Meer info
4875040400 255 60CM DOOR SHELF - 55mm (T605-1-3) 9 2 Meer info
4232250100 300 ICE CUBE TRAY_ARC P1_D 6 1 Meer info
4528340100 416 SERVICE TUBE III (NEW) 6 0 Meer info
4542690100 463 CONDENSER FIXING PART-I _ DIFFUSION 4 3 Meer info
4542690200 464 CONDENSER FIXING PART-I _ DIFFUSION 4 1 Meer info
4657620100 476 CRISPER COVER TRIM (60CM) 3.2MM 7 1 Meer info
4546850200 487 REFR. ASY. GASKET K6330_350_340NF LIGHT 18 1 Meer info
4546850100 496 FREEZER ASSY. GASKET K6330 K6360 DIFF LI 17 1 Meer info
4358580300 601 MIDDLE HINGE GR.(ARC2009_33mm AXIS) 6 1 Meer info
4547750100 643 WIRE SHELF FREEZER 6 1 Meer info
4919820300 716 THERMAL FUSE DUAL GR INCH DAR MLX 220 11 1 Meer info
4936680100 827 CARD BOX COVER GROUP 11 1 Meer info
4207910100 834 LAMP_THERMOSTAT HOUSING 7 1 Meer info
4893130100 835 Lighting Cover 7 1 Meer info
4397291300 838 STAMPED DOOR SHELF ASSY_BYG_T605-1-3 16 1 Meer info
4237300100 857 SENSOR HOUSING COVER 1 1 Meer info
5711200200 858 FAN PROTECTOR 12 1 Meer info
4238580100 864 WIRE SHELF (FOR BOTTLE). 15 1 Meer info
4853110100 947 HINGE COVER_RIGHT_ARC2009_ARC P1 4 1 Meer info
4805210100 948 HINGE COVER-LEFT_ARCP1 1 1 Meer info
4853120100 948 HINGE COVER-LEFT_ARC_2009_(ARC P1 4 1 Meer info
4829450100 949 EVAPORATOR HOLDER(70NF A+) 1 2 Meer info
4866690100 971 HANDLE HOLE PLUG (WHITE) 1 8 Meer info
4305898100 973 FAN GROUP 19 1 Meer info
4655720300 973 FRZ FAN ASSY AC (KELI MOTOR-5720995400) 24 0 Meer info
4891180100 984 UPPER DOOR BROW HINGE COVER 1 1 Meer info
4299060200 985 UPPER DOOR HINGE STOPPER (LG) 1 1 Meer info
5920370100 1036 FINNED EVAPORATOR GROUP 21 1 Meer info
4397301700 1039 CRISPER GROUP 17 1 Meer info
4844260200 1043 SHELF SUPPORT (LEFT_ARC P1) 1 1 Meer info
4844260100 1044 SHELF SUPPORT (RIGHT_ARC P1) 1 1 Meer info
4881690100 1207 SOCKET HOUSING FRONT COVER 4 1 Meer info
4398080185 1232 ATK LED BOARD_230V_HUALIAN 16 0 Meer info
4398081100 1232 ATK LED BOARD_230V_HUALIAN 11 0 Meer info
4884210100 1236 LED CARD PROTECTOR (UPPER INSIDE LIGHT) 1 1 Meer info
4360635285 1364 KARDELEN POT BOARD 11 1 Meer info
4625020100 1438 POTENTIOMETER BOX CABLE LED 11 1 Meer info
4613500200 1542 CRISPER/T605-1-3 20 1 Meer info
4614110130 1543 PU DOOR FZ K6330 BEKO 2010 VH_ARCP1_BIOF 34 1 Meer info
4613960100 1546 ICE CUBES TRAY BEKO 2010 15 1 Meer info
4657600100 1548 GLASS FRONT COVER 60 RANGE 3.2MM 7 3 Meer info
4657580100 1549 GLASS BACK COVER 60CM ARCP1 3.2MM 7 3 Meer info
4615020100 1550 TOP TRIM MECANIC BEKO 2010_ARC P1 9 1 Meer info
4657040100 1551 GLASS SHELF R600_457X285X3.2 22 3 Meer info
4616080400 1553 SMALL PLASTIC FR DRAWER ASS.BNF NEW 23 1 Meer info
4659370100 1554 GLASS SH ASSY_G60_WHITE_Safety_3.2 17 3 Meer info
4872691600 1556 EAR HANDLE_ARC745 20 2 Meer info
4873530100 1559 BIOFRESH RAIL BEKO 2010 _RIGHT 10 1 Meer info
4873530200 1560 BIOFRESH RAIL BEKO 2010 _LEFT 10 1 Meer info
4616330120 1588 ASSY.DOOR FZ K6330 BEKO2010 VH ARCP1 BIO 36 1 Meer info
4616320100 1598 ASSY. DOOR FF K6330 BEKO 2010 VH_P1_BIO 33 1 Meer info
4616090200 1617 ASS BIG DRAWER NF BEKO 2010 23 1 Meer info
4818490200 1764 BITUM FOR EVAPARATOR TUBES 8 1 Meer info
4855590100 1822 FRONT BACK COVER_D70540N 6 1 Meer info
4611660200 1906 ASS EVAPORATOR COVER -K60320N 24 1 Meer info
4622310110 1910 CONDENSER K60320NE(PAINTED) 25 1 Meer info
4623990100 2009 DRAIN HEATER FRZ NF G60 16 1 Meer info
4623500100 2019 FZ WIRE SHELF SHORT FNF 60CM 15 1 Meer info
4622420100 2026 EVAPORATOR COVER FNF 60CM 20 1 Meer info
4624250200 2028 CONTROL CARD K60320N K2 24 1 Meer info
4627490100 2122 THERMOSTAT KNOB PRINTED KARDELEN 5 1 Meer info
4622789100 2476 EQ SUPPLY CORD EU TG1114YL(AL) 1.9m 19 1 Meer info
4622781300 2476 EQUIPPED SUPPLY CORD_TU_TG1114Y (AL) 18 0 Meer info
4543615700 2477 EQUIPPED SUPPLY CORD_NU1114Y_NS1114Y 18 0 Meer info
4502020001 3070 2-WAYS DRYER 10 1 Meer info
4548960100 3187 SLEEVE SCREW M 8X20 ARC P1 3 1 Meer info
4548960200 3188 SLEEVE SCREW M 8X35 ARC P1 3 1 Meer info
4612470100 3235 CONDENSER SPACER. 1 2 Meer info
4528210100 4250 REAR FIXED FOOT 1 2 Meer info
4645980100 8537 SUP 1 COMPR_WITH FOOT_60CM 18 1 Meer info
4505150101 8538 MOTORCOMPRESSOR FIXING PART. 1 2 Meer info
