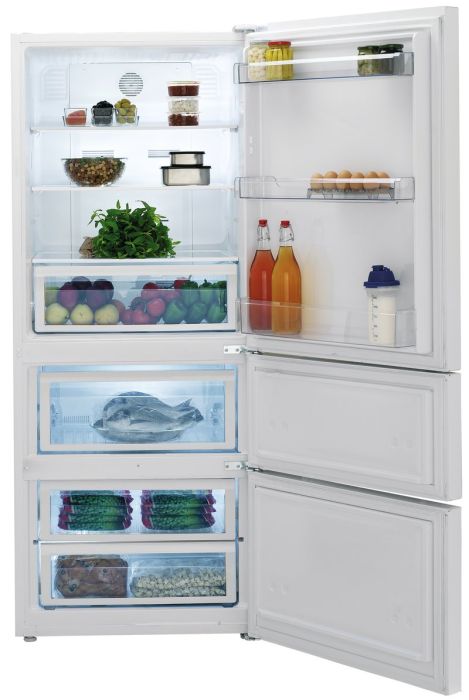

CN153920 KOEL-VRIES COMBINATIE FULL NO FROST

Artikelnr: 114665
Referentienr: CN153920
Vergelijk

Productomschrijving

**** 185x74x75 cm- FULL NO FR 313/95/ joker 71L+ DISPLAY
Meer informatie
ArtRef CN153920
AsogemID 114665
MPN 7264748713
Merk BEKO
Soort Koelkast 3 deuren of meer
ArtEAN 8690842366369
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4250010400 0 MOTOR HOUSE SUPPORT-LINE 2001. 2 2 Meer info
4811830200 0 SCREW(M5x12) 1 2 Meer info
4223430100 0 CHARGING TUBE 3 1 Meer info
4094880285 0 INTERIOR LIGHT SWITCH 5 2 Meer info
4858020185 0 FAN BLADE 3 1 Meer info
4391660285 0 FAN MOTOR_BLDC_FDQC28AL2C_PANASONIC 26 0 Meer info
4834220185 0 INTERIOR LIGHT SWITCH (LAMP_DEFOND_ROHS) 5 0 Meer info
4847060100 0 MIDDLE SECTION CAP 1 3 Meer info
4858350185 0 RADIAL FAN BLADE_CCW-95MM 3 1 Meer info
4362090500 0 FAN GROUP 27 1 Meer info
4364270285 0 FAN MOTOR_FDQR207Y3L_PANASONIC_MLX 27 1 Meer info
4850081185 0 FAN MOTOR. 18 0 Meer info
4850081685 0 FAN MOTOR (IS-27210QARCN-7) 17 0 Meer info
4331813200 0 GASKET 16 1 Meer info
4227510100 0 REAR HANDLE (RIGHT) 3 1 Meer info
4398240700 0 DOOR_HANDLE_ASSEMBLY 20 1 Meer info
4885240700 0 PROFILE 7 3 Meer info
4399800100 14 UPPER_HINGE_GROUP 10 1 Meer info
4203932200 15 ADJUSTABLE GLIDER 3 2 Meer info
4243121600 19 DOUBLE ENTRY DRAYER 8 1 Meer info
4243120400 19 DOUBLE ENTRY DRAYER 4 0 Meer info
4887740100 23 DRAIN DAMPER 1 1 Meer info
4351500900 30 COMPRESOR_ZBH1122CY 41 1 Meer info
4842330200 31 NEW TERMINAL COVER 7 1 Meer info
4847070100 33 COMPRESSOR RUBBER GROMMET 1 4 Meer info
4057080200 34 COMPRESSOR WASHER 1 3 Meer info
4133843000 38 POWER CORD GROUP 12 1 Meer info
4346041100 39 COMBO UNIT(JIAXPERA) 13 1 Meer info
4846060100 45 CABLE HOLDER 2 1 Meer info
4121072286 48 CAPASITOR GROUP 10 0 Meer info
4810520100 51 EVAP. COVER STOPPER 1 2 Meer info
4246270100 51 EVAPORATOR COVER PLUG (ARC P1) 1 3 Meer info
4890180100 55 CONDENSER+FAN HOLDER 8 1 Meer info
4902680100 57 FINNED EVAPORATOR GROUP 26 1 Meer info
5744750100 85 CONNECTING COPPER PIPE 10 1 Meer info
4047900700 100 PLASTIC WASHER 1 1 Meer info
5743870100 110 UPPER HINGE COVER 4 1 Meer info
4215790100 125 CHARGING TUBE 4 1 Meer info
4844650100 132 EVAPORATING PAN 10 1 Meer info
4047840400 135 MIDDLE HINGE PLUG 1 1 Meer info
4872890100 154 CABLE HOLDER 1 3 Meer info
4048860200 200 WHEEL 1 2 Meer info
4250130100 200 FRONT WHELL(LINE 2001) 1 2 Meer info
4048870200 201 WHEEL PIN (50MM) 1 2 Meer info
4250760100 201 FRONT WHELL PIN (LINE 2001) 1 2 Meer info
4939850100 202 COMPRESSOR_TRAVERSE_GROUP 13 1 Meer info
4349800100 205 GROUND CABLE GROUP 2 1 Meer info
5737560100 211 LOGO 7 1 Meer info
4859090600 218 EGG TRAY_ARC_2009_T605-1-3 4 2 Meer info
5752390100 232 PLASTIC STOPPER 2 3 Meer info
4049970300 237 HANDLE SCREW 1 3 Meer info
4227980100 250 MIDDLE HINGE HOUSING 1 2 Meer info
4331813100 251 GASKET 15 1 Meer info
4331813300 252 GASKET 13 1 Meer info
4396891600 255 DOOR_SHELF 15 2 Meer info
4891780100 300 ICEBOX 5 2 Meer info
4398420100 310 GLASS SHELF GROUP 18 3 Meer info
5752420100 348 METAL STOPPER 3 3 Meer info
4398270200 366 RAIL GROUP 12 1 Meer info
4398270100 367 RAIL GROUP 12 1 Meer info
4904960500 369 CRISPER 22 1 Meer info
4295210300 375 BITUM 1 1 Meer info
4906920100 388 PARTITION PLATE GROUP 16 1 Meer info
4399790300 601 MIDDLE HINGE GROUP 8 2 Meer info
4889200100 625 LIGHTING_COVER 3 1 Meer info
4396720100 625 LIGHTING_GLASS 20 2 Meer info
4904970500 632 JOKER_DRAWER 22 1 Meer info
4392280100 633 JOKER_DRAWER_FRAME_GR 14 1 Meer info
4864980100 639 CHARCOAL FILTER BOX 1 1 Meer info
4551680100 655 SENSOR FIXING PART 1 1 Meer info
4854110100 720 FAN BLADE_SBS 6 1 Meer info
4834660400 722 MOTOR HOUSE SUPPORT 24 2 Meer info
4249690100 723 FAN MOTOR FRONT BACK COVER 5 1 Meer info
5795380200 724 FAN MOTOR_AC-DC_SPG 25 1 Meer info
5720980100 724 FAN MOTOR 21 1 Meer info
5720980300 724 FAN MOTOR 16 0 Meer info
4298950100 730 VENTILATION SPACER 1 2 Meer info
4919820100 771 THERMAL INSURANCE 12 1 Meer info
4385620185 771 THERMAL INSURANCE 13 0 Meer info
4348080400 784 CONTROL BOARD GROUP 27 1 Meer info
4888440100 808 MANUEL ICEBOX FRAME 5 2 Meer info
4387790600 827 MAIN BOARD COVER GROUP 12 1 Meer info
4227520100 828 REAR HANDLE (LEFT) 3 1 Meer info
4920750100 831 COMPRESSOR BACK COVER GROUP 12 1 Meer info
4399720100 832 BOTTOM_HINGE_GROUP 12 1 Meer info
4396881100 838 DOOR_SHELF 16 1 Meer info
4398350510 843 DISPLAY GROUP 29 1 Meer info
4906710100 848 CONDENSER GROUP 18 1 Meer info
4822290200 851 SUPPRESSION FILTER 8 1 Meer info
4891811700 854 WATER DRAN HOSE WTH ADAPTER 5 1 Meer info
5715970100 857 SENSOR HOUSING COVER 2 3 Meer info
4894960400 864 WINE_RACK 17 1 Meer info
4891630100 879 EVAPORATOR HEATER 16 1 Meer info
4891770100 880 HEATER(B845) 14 1 Meer info
4903020100 953 T74530_EVA_COVER 33 1 Meer info
4306310100 954 FRONT WHELL GROUP 3 2 Meer info
4811830100 955 SERRATED SCREW (M5x20) 1 8 Meer info
4228060400 960 PHOTOCATALYST FILTER 9 1 Meer info
4398280100 961 RAIL GROUP 11 1 Meer info
4398280200 962 RAIL GROUP 11 1 Meer info
4392470100 966 PU_FF_DOOR_ASSEMBLY 41 1 Meer info
4305892185 973 FAN GROUP 19 1 Meer info
4398240500 991 DOOR_HANDLE_ASSEMBLY 20 1 Meer info
4398240600 992 DOOR_HANDLE_ASSEMBLY 22 1 Meer info
9000130400 995 RUBBER HOLDER 1 1 Meer info
4049960800 997 HANDLE SCREW COVER 1 1 Meer info
4317995200 1124 IONIZER 15 1 Meer info
4317990200 1124 IONIZER 15 0 Meer info
4317995400 1124 IONIZER 15 0 Meer info
4317990400 1124 IONIZER 15 0 Meer info
4362700185 1124 IONIZER GROUP 17 1 Meer info
4398080185 1232 ATK LED BOARD_230V_HUALIAN 16 0 Meer info
4398081100 1232 ATK LED BOARD_230V_HUALIAN 11 1 Meer info
4398081200 1232 ATK LED BOARD_230V_HUALIAN 10 0 Meer info
4384810600 1372 EVAPORATOR_COVER_GROUP 21 1 Meer info
4907270100 1399 LED BAR 18 2 Meer info
4349591400 1431 COMPRESSOR TERMINAL GROUP 20 1 Meer info
4392270100 1442 CRISPER_FRAME_GR 14 1 Meer info
5701390100 1449 MIDDLE_HINGE_PIN 5 2 Meer info
4392480100 1458 PU_JOKER_DOOR_ASSEMBLY 36 1 Meer info
4392490100 1459 PU_FRZ_DOOR_ASSEMBLY 38 1 Meer info
4821900100 1477 Filter Box 5 1 Meer info
4880680100 1489 LGHTING GLASS 7 2 Meer info
4888300100 1490 WIRE SHELF 12 1 Meer info
4946300100 1498 FAN_CONDENSER GROUP 29 1 Meer info
4398290300 1523 DRAWER_RAIL_GROUP 10 2 Meer info
4398290400 1524 DRAWER_RAIL_GROUP 10 2 Meer info
4904980500 1525 FRZ_BIG_DRAWER 21 1 Meer info
4392290100 1526 FRZ_DRAWER_FRAME_GR 15 1 Meer info
4862700300 1576 PLASTIC_STOPPER 1 3 Meer info
4862510300 1578 SLINDING PIN SPRING 3 3 Meer info
4398200100 1599 FOAMED_MIDDLE_SECTON_GROUP 33 1 Meer info
4904990500 1731 FRZ_SMALL_DRAWER_GR 19 1 Meer info
4392290500 1732 FRZ_DRAWER_FRAME_GR 14 1 Meer info
4818490200 1764 BITUM FOR EVAPARATOR TUBES 8 1 Meer info
9001230200 8420 PLASTIC CLAMP 1 3 Meer info
