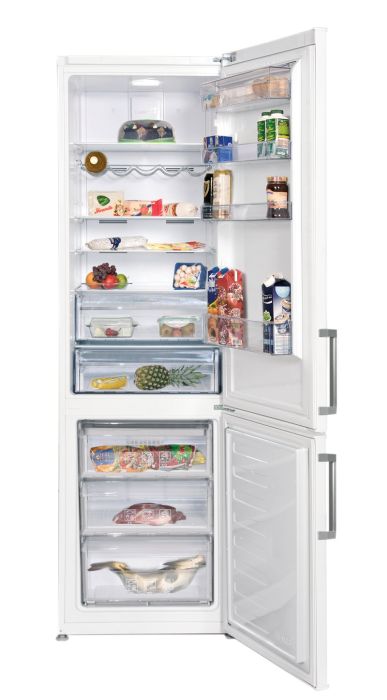

RCSA400K31W KOEL-VRIES COMBINATIE

Artikelnr: 114380
Referentienr: RCSA400K31W
Vergelijk

Productomschrijving

**** 201x560x65cm-267/113 L
Meer informatie
Gewicht (Kg) 61
Jaarlijks verbruik (kWh) 275
ArtRef RCSA400K31W
AsogemID 114380
MPN 7518120001
Merk BEKO
Soort Koelkast 2 deuren (bottom freezer)
ArtEAN 5944008916572
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4852580100 0 HINGE HOLDER (FF_DOOR_ARC2009_NATURAL) 1 1 Meer info
4657560100 0 FRZ GLASS SHELF REAR PROFILE 7 2 Meer info
4634610100 0 FZ DRAWER COVER 190MM HOTSTAMP 16 2 Meer info
4634610200 0 FZ DRAWER COVER 235MM HOTSTAMP 17 1 Meer info
5910490100 3 LTK_KNOB_T_BUTTON_GR_for Russia 4 1 Meer info
4918650100 13 LOWER HINGE GROUP 4 1 Meer info
4382480100 14 TOP HINGE GROUP 9 1 Meer info
4056670000 29 SPACER (NATURAL - SN_T) 1 2 Meer info
4913130500 30 COMPRESSOR_PZ90H1Y_220-240 V_R600a 36 1 Meer info
4361193800 30 COMPRESSOR JIAXIPERA TB1114Y 38 0 Meer info
4361196900 30 COMPRESSOR JIAXIPERA TB1114Y_AL 38 0 Meer info
5823460300 30 COMPRESSOR JIAXIPERA 39 0 Meer info
5739010100 31 TERMINAL COVER PZ GMCC 11 1 Meer info
5930870100 39 COMBO UNIT 10LPC GMCC 18 0 Meer info
4930970500 39 COMBO UNIT GMCC 18 1 Meer info
4900440400 39 COMBO UNIT(JIAXPERA)_NB1090Y 13 0 Meer info
4900441000 39 COMBO UNIT(JIAXPERA)_NB1117Y 14 0 Meer info
4900441200 39 COMBO UNIT(JIAXPERA)_TB1114Y_3rd 19 0 Meer info
5951361000 39 COMBO UNIT 0 0 Meer info
4924850100 53 CONDENSER GROUP 22 1 Meer info
4623980100 132 WATER COLECTOR TRAY JIAXIPERA 13 1 Meer info
4629950100 135 MIDDLE HINGE COVER ARCP1 1 4 Meer info
5723410100 146 NEW MIDDLE HINGE PLUG 2 1 Meer info
4524500001 197 TRENCHING PART 1 1 Meer info
5737560300 211 BEKO EMBLEM 10 1 Meer info
4652880100 216 Charging tube II 100mm Restrans 0 1 Meer info
5734690100 218 EGGCUP 4 2 Meer info
4852560100 232 PC DOOR LOWER ENDCAP HINGE HOLDER 1 1 Meer info
4656750100 238 VERTICAL HANDLE ASSEMBLY ARCP1 16 2 Meer info
4852590100 241 PLUG 1 1 Meer info
4645580100 245 BEKO TPK T605-1-3_60CM 14 1 Meer info
5740470100 255 DOOR_SHELVES 11 3 Meer info
4232250100 300 ICE CUBE TRAY_ARC P1_D 6 2 Meer info
4657042500 310 GLASS SHELF FZ STATIC DEEP_440.5X386X3.2 16 2 Meer info
5710390100 325 ICE TRAY 10 1 Meer info
5704370100 327 BIG FREEZER DRAWER 190mm_WITH HOLES 14 2 Meer info
5704390100 328 DRAWER BODY 15 1 Meer info
5920590100 406 PRINTING_LIGHTING_COVER_GROUP 3 1 Meer info
4358580300 601 MIDDLE HINGE GR.(ARC2009_33mm AXIS) 6 1 Meer info
4634600100 635 CRISPER COVER 148MM HOTSTAMP VEGETABLE 16 1 Meer info
5714830400 827 CARD BOX COVER 13 1 Meer info
5741370200 834 LTK_BODY_ARCTIC 10 1 Meer info
4634620300 838 DOOR SHELF 100MM B14 HOTSTAMP_NEW 16 1 Meer info
4891810300 854 WATER DRAN HOSE WTH ADAPTER 6 1 Meer info
4656991000 861 GLASS SHELF PROFILE DEEP ARCP1 5 5 Meer info
4891100100 864 WINE RACK 15 1 Meer info
4853110100 947 HINGE COVER_RIGHT_ARC2009_ARC P1 4 1 Meer info
4853120100 948 HINGE COVER-LEFT_ARC_2009_(ARC P1 4 1 Meer info
4866690100 971 HANDLE HOLE PLUG (WHITE) 1 4 Meer info
4852570100 975 HINGE HOUSING 1 1 Meer info
4800390100 976 LOWER DOOR STOPPER-LINE 2001_SHORT 2 1 Meer info
4891180100 984 UPPER DOOR BROW HINGE COVER 1 1 Meer info
4299060200 985 UPPER DOOR HINGE STOPPER (LG) 1 1 Meer info
4330250400 1013 THERMOMETER (BEKO_FRANCE_P.285C) 8 1 Meer info
5706020100 1039 CRISPER BODY 18 1 Meer info
4915080100 1041 RAIL GROUP 11 1 Meer info
4915030100 1042 RAIL GROUP 11 1 Meer info
4502014400 1218 THERMOSTAT KDF30B1 12 0 Meer info
4398080185 1232 ATK LED BOARD_230V_HUALIAN 16 0 Meer info
4398081100 1232 ATK LED BOARD_230V_HUALIAN 11 0 Meer info
4615020100 1550 TOP TRIM MECANIC BEKO 2010_ARC P1 9 1 Meer info
4691660100 1552 DOOR SWITCH 3 CONTACTS G54 9 1 Meer info
5710880100 1643 MAGNET COVER_ARCP1 2 1 Meer info
4925910110 1739 CONTROL BOARD GROUP 23 1 Meer info
4927581900 1794 printed square fan cover 5 1 Meer info
4942220200 1866 FF_FAN_HOUSING GROUP 17 1 Meer info
4633080300 2391 ASSEMBLY GASKET K60400 FF LIGHT GRAY 19 1 Meer info
4633080100 2415 ASSEMBLY GASKET COMBI DEEP FZ LIGHT GRAY 17 1 Meer info
4631540110 2437 PU DOOR FZ K60400 VH B14 ARCP1 33 1 Meer info
4634700110 2438 ASSY DOOR FZ K60400N B14_VH_ARC P1 34 1 Meer info
4634880100 2454 ASSY DOOR FF K60400N_VH_B14_ARCP1 37 1 Meer info
4631320100 2455 PU DOR FF K60400 MS PVH B14 ARCP1 35 1 Meer info
4622784500 2476 EQUIPPED SUPPLY CORD_PZ90H1Y_2.08m 18 1 Meer info
4622780300 2476 EQ SUPP CORD NB 1114Y TB 1114Y 2.15 m 19 0 Meer info
4622787900 2476 EQUIPPED SUPPLY CORD EU_TB 1114 Y_1.9 m 19 0 Meer info
4652621800 2476 EQUIPPED SUPPLY CORD (EU) 12 0 Meer info
4635460100 2533 ASSY. LTK BOX THERMOSTAT 25 1 Meer info
4657630100 2555 FF GLASS SHELF REAR PROFILE ARCP1 7 5 Meer info
4657042400 2557 GLASS SHELF R600 DEEP_489X345X3.2 16 4 Meer info
4657042800 2558 GLASS SHELF R600 DEEP_ 489X474X3.2 18 1 Meer info
4502020001 3070 2-WAYS DRYER 10 1 Meer info
4548960100 3187 SLEEVE SCREW M 8X20 ARC P1 3 1 Meer info
4548960200 3188 SLEEVE SCREW M 8X35 ARC P1 3 1 Meer info
4630952000 3310 ASSY. DRAWER 148MM B14 HOTST VEGETABLE 24 1 Meer info
4630942200 3311 AS DRAWER 190MM WITH HOL B14 HOTST 23 2 Meer info
4630942100 3312 AS DRAWER 235MM B14 HOTST 23 1 Meer info
4659340200 3317 GLASS SH ASSY FF 3_2_DEEP ARCP1 18 4 Meer info
4659340400 3317 CRISPER COVER ASSY FF 3_2_DEEP ARCP1 19 1 Meer info
4502011100 3951 K59 L2683 THERMOSTAT 17 1 Meer info
4528210100 4250 REAR FIXED FOOT 1 2 Meer info
4645980100 8537 SUP 1 COMPR_WITH FOOT_60CM 18 1 Meer info
4505150101 8538 MOTORCOMPRESSOR FIXING PART. 1 2 Meer info
