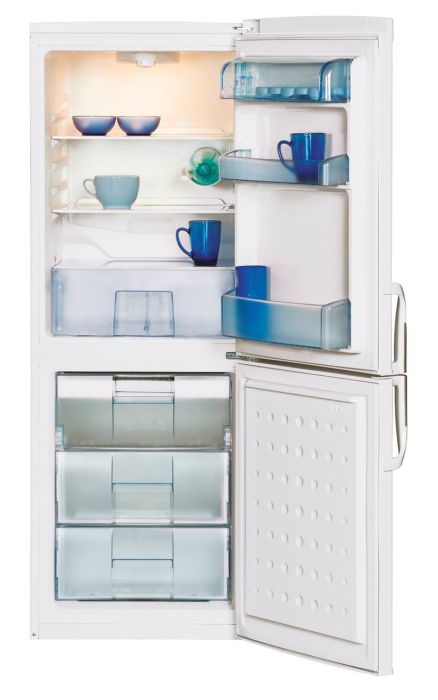

CSA24002 KOEL-VRIES COMBINATIE

Artikelnr: 114786
Referentienr: CSA24002
Vergelijk

Productomschrijving

**** 152,5x54x60cm-145/62 L
Meer informatie
Gewicht (Kg) 53
Jaarlijks verbruik (kWh) 285
ArtRef CSA24002
AsogemID 114786
MPN 7505220010
Merk BEKO
Soort Koelkast 2 deuren (bottom freezer)
ArtEAN 5944008902858
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4810440100 0 UPPER DOOR BROW HINGE COVER-LEFT 1 1 Meer info
5635400101 0 TERMINAL ASSY. 0 0 Meer info
5635400901 0 TERMINAL ASSY. 21 1 Meer info
4312420200 3 THERMOSTAT KNOB ASS. PRINTED (BEKO_UK) 3 1 Meer info
4343420100 13 LOWER HINGE GROUP 6 1 Meer info
4152080100 14 UPPER HINGE GROUP 5 1 Meer info
4502020004 93 3-WAYS DRYER (CAP TUBE FI 1.9mm) 9 1 Meer info
4239570200 132 EVAPORATING PAN 6 1 Meer info
4629950100 135 MIDDLE HINGE COVER ARCP1 1 6 Meer info
4200470100 161 UPPER DOOR STOPPER PLATE 1 1 Meer info
4524500001 197 TRENCHING PART 1 1 Meer info
4528400200 216 CHARGING TUBE II 6 1 Meer info
4838490300 218 EGG TRAY (PANTONE Q-290-5-2 BLUE) 3 1 Meer info
4055880600 227 DOOR HANDLE PLUG 1 1 Meer info
4249400100 239 HINGE HOUSING 1 1 Meer info
4810320100 256 HINGE BEARING WITH STOPPER (WITHOUT LOCK 1 1 Meer info
4232250100 300 ICE CUBE TRAY_ARC P1_D 6 1 Meer info
4239690100 331 FLAP COVER HNGE 3 1 Meer info
4239700100 332 FLAP COVER HNGE 3 1 Meer info
4501200201 370 PTC_HQY 80AA 0 0 Meer info
5525230700 371 COVER COMPRESSOR 5 1 Meer info
5525350100 373 SCREW COMPRESSOR ARCELIK 0 1 Meer info
5303205241 379 MTH100MT(230)IHR(R600A,R-T-C.AYR.PALET) 43 0 Meer info
4241520100 403 DULIE LAMPA 4 1 Meer info
4035890300 404 INTERIOR LAMP (15W) 8 1 Meer info
4528340100 416 SERVICE TUBE III (NEW) 6 1 Meer info
4541970800 471 SMALL PLASTIC FREEZER DRAWER ASS(54C)/DI 22 1 Meer info
4555200100 497 HINGE HOLDER STOPPER-ARC P1 1 1 Meer info
4565390100 500 TOP TRIM I_54CM 10 1 Meer info
4501200300 564 DRIP TRAY (0.6L) / HQY 80AA 8 0 Meer info
4152160110 601 MIDDLE HINGE GROUP (LINE 2001).. 6 1 Meer info
4551770100 633 INTERIOR LIGHT SWITCH FOR 50 CM 2CONTACT 8 1 Meer info
4542680100 698 CONDENSER FIXING PART-I_ DIFFUSION 4 2 Meer info
4542680200 699 CONDENSER FIXING PART-II_ DIFFUSION 4 2 Meer info
4541360400 711 UPPER DOOR SHELF_PS CRYSTAL_(54CM) 13 1 Meer info
4541370400 712 DOOR SHELF 100MM-54CM/ BLUE DIFF 12 1 Meer info
4541430400 713 UPPER SHELF COVER_54CM 11 1 Meer info
4544040400 714 UPPER DOOR SHELF I / DIFF. BLUE 13 1 Meer info
4543290100 715 CRISPER COVER TRIM_ DIFFUSION (54CM) 6 1 Meer info
4541850100 716 COMPRESSOR SUPPORT (NEW)/ 54CM 13 1 Meer info
4541960700 741 BIG PLASTIC FREEZER DRAWER ASSY.(54CM)/ 24 1 Meer info
4551630200 743 FAST FREEZER COMPART.DOOR/BLUE DIF/BEKO 16 1 Meer info
4565032400 744 CRISPER COVER AS-WHITE(54_K_CLEAR_SAFE_4 16 1 Meer info
4546860400 747 FREEZER ASSY.GASKET K5270,K5240,K5300DIF 16 1 Meer info
4561812100 749 CRISPER COVER4X300X444.5/CLEAR/G54/K/SAF 14 1 Meer info
4584210400 764 K5240/PUC/ARC P1 44 1 Meer info
4546860600 765 REFRIG ASSY. GASKET K5240 DIFF 17 1 Meer info
4544850110 768 FOAMED FREEZER DOOR K5240 /FLUSH HANDLE 33 1 Meer info
4542030110 769 ASSY. FREEZER DOOR K5240 / FLUSH HANDLE 37 1 Meer info
4544650100 782 FOAMED REFRIG DOOR K5240 /FLUSH HANDLE 0 1 Meer info
4549100100 783 ASSY. REFRIG DOOR K5240_FH_DIFUSSION 34 1 Meer info
4207910100 834 LAMP_THERMOSTAT HOUSING 7 1 Meer info
4207920100 835 LAMP_THERMOSTAT HOUSING COVER 3 1 Meer info
4501200400 849 COMPRESOR HQY75AA 45 0 Meer info
4812690100 864 WINE HOLDER (DIFFUSION) 8 1 Meer info
4805200100 947 ORNAMENT FATA TOP DR. 1 1 Meer info
4805210100 948 HINGE COVER-LEFT_ARCP1 1 1 Meer info
4250680100 975 HINGE HOUSING 1 1 Meer info
4800390100 976 LOWER DOOR STOPPER-LINE 2001_SHORT 2 1 Meer info
4502014400 1218 THERMOSTAT KDF30B1 12 0 Meer info
5635410201 1298 ANLASSER KPL. 18 0 Meer info
4565370300 1328 BIG CRISPER (54CM) DIFFUSION /COMBI/BLUE 19 1 Meer info
5309205241 1331 NTH115MT(230)IHR(R600,R-T-C.A.PL.COMBO 41 1 Meer info
4617500200 1651 GLAS SHELF BACK COVER 54CM 2010 WO_I 7 2 Meer info
4618830500 1849 GLASS SHELF 415X293 SAFETY GLASS (LEFT) 14 2 Meer info
4617490200 1850 GLAS SHELF FRONT COVER 54CM 2010 WO_I 8 2 Meer info
4622750100 1990 ICE TRAY FOR DRAWER 13 1 Meer info
4617920500 2013 GLASS SH W CH ASSY. SAFETY GL 54 CM 17 2 Meer info
4548960100 3187 SLEEVE SCREW M 8X20 ARC P1 3 1 Meer info
4548960200 3188 SLEEVE SCREW M 8X35 ARC P1 3 1 Meer info
4612470100 3235 CONDENSER SPACER. 1 2 Meer info
4502011100 3951 K59 L2683 THERMOSTAT 17 1 Meer info
4528210100 4250 REAR FIXED FOOT 1 2 Meer info
4610110410 8151 CONDENSER D5280/A/K5220NF/K5210(PAINTED) 0 1 Meer info
4559370100 8508 EVAPORATOR PANEL BLOCKING PART(NEW) 1 6 Meer info
4505150001 8538 MOTORCOMPRESSOR FIXING PART 1 2 Meer info
