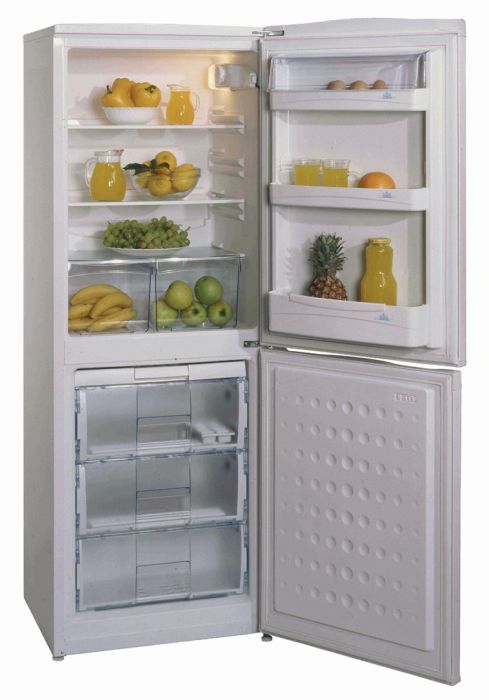

Productomschrijving
**** 165,9x59,5x60 cm-169
| Hoogte | 165.9 |
|---|---|
| Breedte | 59.5 |
| Diepte | 60 |
| Gewicht (Kg) | 57 |
| Jaarlijks verbruik (kWh) | 317 |
| ArtRef | CS29HA |
| AsogemID | 114775 |
| Merk | BEKO |
| Soort | Koelkast 2 deuren (top freezer) |
| ArtEAN | 5944008902452 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 4540030200 | 12 | CONDENSER FIXING PART type 02 | 3 | 2 | Meer info | |||
| 4502020004 | 93 | 3-WAYS DRYER (CAP TUBE FI 1.9mm) | 9 | 1 | Meer info | |||
| 4251600100 | 132 | DRIP TRAY TE150YT | 0 | 1 | Meer info | |||
| 4524500001 | 197 | TRENCHING PART | 1 | 1 | Meer info | |||
| 4521640001 | 204 | REAR SHELF PROFILE_WHITE | 0 | 2 | Meer info | |||
| 4528400200 | 216 | CHARGING TUBE II | 6 | 1 | Meer info | |||
| 4216390100 | 300 | ICE CUBE TRAY_B760 | 5 | 1 | Meer info | |||
| 4239690100 | 331 | FLAP COVER HNGE | 3 | 1 | Meer info | |||
| 4239700100 | 332 | FLAP COVER HNGE | 3 | 1 | Meer info | |||
| 5204201241 | 365 | MTE 130 MT | 0 | 1 | Meer info | |||
| 5605370501 | 370 | ECHIPAMENT ELECTRIC MTE130MT | 9 | 1 | Meer info | |||
| 5505230200 | 371 | COVER - TE 150YT | 5 | 1 | Meer info | |||
| 5525240200 | 372 | CLIP COMPRESSOR-ARCELIK | 1 | 1 | Meer info | |||
| 5525350100 | 373 | SCREW COMPRESSOR ARCELIK | 0 | 1 | Meer info | |||
| 5625100200 | 374 | EARTHING PART COMPRESSOR ARCELIK | 1 | 1 | Meer info | |||
| 4035890300 | 404 | INTERIOR LAMP (15W) | 8 | 1 | Meer info | |||
| 4528340100 | 416 | SERVICE TUBE III (NEW) | 6 | 1 | Meer info | |||
| 4537760100 | 440 | FOAMED DOOR REFRIG KSA29(BEKO HORIZ) | 26 | 1 | Meer info | |||
| 4539140110 | 442 | FOAMED DOOR FREEZER KSA29;(BEKO HORIZ) | 25 | 1 | Meer info | |||
| 4540580100 | 451 | REFRIG ASS. GASKET KSA29 | 13 | 1 | Meer info | |||
| 4589410100 | 452 | KSA29 / PUC/ARC P1 | 39 | 1 | Meer info | |||
| 4540850110 | 455 | FREEZER DOOR ASS.KSA29/(BEKO HORISONTAL | 25 | 1 | Meer info | |||
| 4540030100 | 463 | CONDENSER FIXING PART type 01 | 3 | 2 | Meer info | |||
| 4808370200 | 516 | TOP TRIM(60CM) WITHOUT HOLE/ARC P1 | 8 | 1 | Meer info | |||
| 4540550300 | 521 | BIG PLASTIC FREEZER DRAWER ASS.(190)/L B | 23 | 1 | Meer info | |||
| 4540560300 | 522 | SMALL PLASTIC FZ DRAWER AS(190) LIGHT BL | 23 | 1 | Meer info | |||
| 4541170200 | 523 | FAST-FREEZE COMPART.DOOR/LIGHT BLUE/2717 | 0 | 1 | Meer info | |||
| 4538050000 | 524 | UPPER HINGE | 7 | 1 | Meer info | |||
| 4538340000 | 525 | ICE CUBES TRAY | 14 | 1 | Meer info | |||
| 4540470100 | 527 | FZ ASSY.GASKETKSA29_KSA32_KSA26_KSA3 | 0 | 1 | Meer info | |||
| 4537670100 | 533 | RIGHT STOPER | 3 | 1 | Meer info | |||
| 4537670200 | 534 | LEFT STOPER | 5 | 1 | Meer info | |||
| 4537410200 | 552 | DOOR COVER LEFT BIG TRIM(BEKO) | 1 | 1 | Meer info | |||
| 4537410100 | 554 | DOOR COVER RIGHT BIG TRIM((BEKO) | 2 | 1 | Meer info | |||
| 4537400100 | 555 | DOOR COVER RIGHT SMALL TRIM(BEKO) | 1 | 1 | Meer info | |||
| 4537400200 | 556 | DOOR COVER LEFT SMALL TRIM(BEKO) | 1 | 1 | Meer info | |||
| 4543430100 | 625 | REFRIG. DOOR ASS.KSA29 (BEKO HORISONTA ) | 28 | 1 | Meer info | |||
| 4805200100 | 947 | ORNAMENT FATA TOP DR. | 1 | 1 | Meer info | |||
| 4805210100 | 948 | HINGE COVER-LEFT_ARCP1 | 1 | 1 | Meer info | |||
| 4249880200 | 968 | HANDLE FUSE (ARC 434) | 1 | 2 | Meer info | |||
| 4249890200 | 968 | HANDLE LATERAL TRIM | 1 | 2 | Meer info | |||
| 4310780100 | 1001 | LOWER HINGE ASSY (ARCTIC) | 8 | 1 | Meer info | |||
| 4527440100 | 1028 | HANDLE HOLES TRIM | 1 | 3 | Meer info | |||
| 4537550100 | 1961 | CRISPER COVER TRIM / ARC P1 | 0 | 1 | Meer info | |||
| 4222410200 | 2783 | HORISONTAL HANDLE RANGE 600 | 0 | 2 | Meer info | |||
| 4548960100 | 3187 | SLEEVE SCREW M 8X20 ARC P1 | 3 | 1 | Meer info | |||
| 4528380101 | 3187 | SLEEVE SCREW (M 8X16) | 0 | 1 | Meer info | |||
| 4502040000 | 3201 | LAMP HOLDER E14 | 6 | 1 | Meer info | |||
| 4529640101 | 3235 | CONDENSER SPACER. | 1 | 2 | Meer info | |||
| 4502011100 | 3951 | K59 L2683 THERMOSTAT | 17 | 1 | Meer info | |||
| 4503890001 | 4208 | THERMOSTAT HOUSING WHITE ARC P1 | 9 | 1 | Meer info | |||
| 4504550101 | 4209 | LAMP HOLDER | 0 | 1 | Meer info | |||
| 4504560501 | 4210 | LIGHT BLUE THERMOSTAT BUTTON 2717C | 3 | 1 | Meer info | |||
| 4504540101 | 4211 | SWITCH CAM | 1 | 1 | Meer info | |||
| 4502030100 | 4212 | SWITCH 09 WHITE ARC P1 | 6 | 1 | Meer info | |||
| 4503880001 | 4213 | LAMP FIXING SUPPORT | 0 | 1 | Meer info | |||
| 4311300100 | 4217 | MIDDLE HINGE ASSEMBLY (ARCTIC 60 cm) | 9 | 1 | Meer info | |||
| 4504690101 | 4220 | PIVOT SOCKET | 0 | 4 | Meer info | |||
| 4504930101 | 4221 | HINGES HOLES OBSTRUCTING PLUG | 1 | 4 | Meer info | |||
| 4530350000 | 4228 | SMALL UPPER SHELF/PRINT P 2717C | 0 | 2 | Meer info | |||
| 4510250401 | 4229 | UPPER SHELF COVER LIGHT BLUE | 0 | 1 | Meer info | |||
| 4530340000 | 4230 | BIG LOWER SHELF/PRINT P 2717C | 16 | 1 | Meer info | |||
| 4510230101 | 4231 | BOTTLE SUPPORT WITHE ARC P1 | 0 | 1 | Meer info | |||
| 4537540400 | 4232 | EGGS SUPPORT -TRANSPARENT LIGHT BLUE | 2 | 1 | Meer info | |||
| 4507070101 | 4239 | DOOR COVER OBSTRUCTING PLUG | 0 | 1 | Meer info | |||
| 4510280101 | 4243 | RD29A CONDENSER | 24 | 1 | Meer info | |||
| 4528210100 | 4250 | REAR FIXED FOOT | 1 | 2 | Meer info | |||
| 4521630001 | 4256 | FRONT SHELF PROFILE_WHITE | 0 | 2 | Meer info | |||
| 4543470300 | 4260 | GLASS SHELF 600_KSA_RDA_M16_WHITE | 19 | 2 | Meer info | |||
| 4542290200 | 4262 | GLASS SHEELF 2 RANGE / 4X270X476 /ELIPSE | 14 | 2 | Meer info | |||
| 4510650401 | 4276 | SMALL CRISPER LIGHT BLUE | 17 | 2 | Meer info | |||
| 4542300200 | 4277 | CRISPER COVER 6 / 4X293X506 / M16 | 0 | 1 | Meer info | |||
| 4559370100 | 8508 | EVAPORATOR PANEL BLOCKING PART(NEW) | 1 | 6 | Meer info | |||
| 4541770100 | 8537 | COMPR SUP 60CM 1COMPR WITHOUT ROLL | 16 | 1 | Meer info | |||
| 4505150001 | 8538 | MOTORCOMPRESSOR FIXING PART | 1 | 2 | Meer info |
