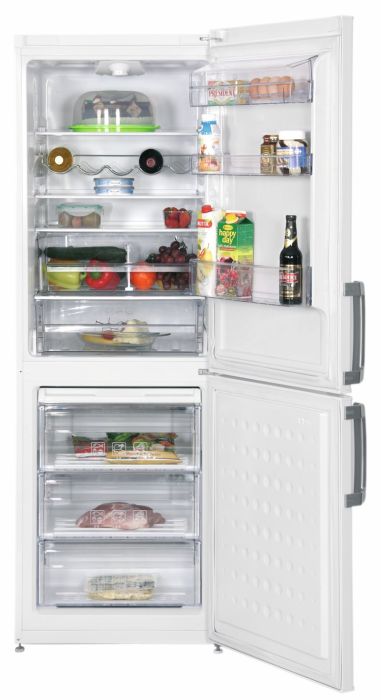

CS232030 KOEL-VRIES COMBINATIE

Artikelnr: 114681
Referentienr: CS232030
Vergelijk

Productomschrijving

**** 175x60x60cm-183/95 L
Meer informatie
Gewicht (Kg) 53
Jaarlijks verbruik (kWh) 225
ArtRef CS232030
AsogemID 114681
MPN 7514720007
Merk BEKO
Soort Koelkast 2 deuren (bottom freezer)
ArtEAN 5944008911690
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4852580100 0 HINGE HOLDER (FF_DOOR_ARC2009_NATURAL) 1 1 Meer info
4094880200 0 INTERIOR LIGHT SWITCH 6 1 Meer info
4312420200 3 THERMOSTAT KNOB ASS. PRINTED (BEKO_UK) 3 1 Meer info
4359160200 13 LOWER HINGE GROUP 5 1 Meer info
4382480100 14 TOP HINGE GROUP 9 1 Meer info
4361196800 30 COMPRESSOR JIAXIPERA_TB1112Y_AL 31 1 Meer info
4361193700 30 COMPRESSOR JIAXIPERA TB 1112 Y 38 0 Meer info
4361191000 30 COMPRESSOR JIAXIPERA NB1112Y 42 0 Meer info
4221152100 30 COMPRESSOR (ELECTROLUX HXK80AA) 37 0 Meer info
5823460200 30 COMPRESSOR JIAXIPERA TB1112YL 3rd 36 0 Meer info
4900440500 39 COMBO UNIT(JIAXPERA)_NB1090Y 17 1 Meer info
4900440300 39 COMBO UNIT(JIAXPERA)_NB1112Y 15 0 Meer info
4900440600 39 COMBO UNIT(JIAXPERA)_NB1090Y 13 0 Meer info
4383070385 39 INTEGRATED PTC STARTING DEVICE 18 0 Meer info
4900441100 39 COMBO UNIT(JIAXPERA)_TB1112Y_3rd 16 0 Meer info
4623980100 132 WATER COLECTOR TRAY JIAXIPERA 13 1 Meer info
4629950100 135 MIDDLE HINGE COVER ARCP1 1 6 Meer info
4652880100 216 Charging tube II 100mm Restrans 0 1 Meer info
4528400100 216 CHARGING TUBE II(new) 6 0 Meer info
4859090600 218 EGG TRAY_ARC_2009_T605-1-3 4 1 Meer info
4055880600 227 DOOR HANDLE PLUG 1 1 Meer info
4880031600 227 MECHANISM COVER FUSE_BYG_ARC745 2 4 Meer info
4852560100 232 PC DOOR LOWER ENDCAP HINGE HOLDER 1 1 Meer info
4852590100 241 PLUG 1 1 Meer info
4900410200 245 DAIRY COMPARTMENT COVER 8 1 Meer info
4875040400 255 60CM DOOR SHELF - 55mm (T605-1-3) 9 2 Meer info
4232250100 300 ICE CUBE TRAY_ARC P1_D 6 1 Meer info
4241520100 403 DULIE LAMPA 4 1 Meer info
5760500100 404 LED BULB 13 1 Meer info
4528340100 416 SERVICE TUBE III (NEW) 6 0 Meer info
4542690100 463 CONDENSER FIXING PART-I _ DIFFUSION 4 3 Meer info
4542690200 464 CONDENSER FIXING PART-I _ DIFFUSION 4 1 Meer info
4659390200 474 CRISPER COVER ASSY_490X360X3.2mm 18 1 Meer info
4657040900 475 GLASS COVER BIOFRESH STATIC_490X360X3.2 16 1 Meer info
4657620100 476 CRISPER COVER TRIM (60CM) 3.2MM 7 1 Meer info
4546851700 487 REFRIG ASSY. GASKET K60295N/DIFF LIGHT G 18 1 Meer info
4546850100 496 FREEZER ASSY. GASKET K6330 K6360 DIFF LI 17 1 Meer info
4358580300 601 MIDDLE HINGE GR.(ARC2009_33mm AXIS) 6 1 Meer info
4207910100 834 LAMP_THERMOSTAT HOUSING 7 1 Meer info
4207920100 835 LAMP_THERMOSTAT HOUSING COVER 3 1 Meer info
4875030200 838 60CM DOOR SHELF - 100mm (T605-1-3) 10 1 Meer info
4891810300 854 WATER DRAN HOSE WTH ADAPTER 6 1 Meer info
4238580100 864 WIRE SHELF (FOR BOTTLE). 15 1 Meer info
4853110100 947 HINGE COVER_RIGHT_ARC2009_ARC P1 4 1 Meer info
4853120100 948 HINGE COVER-LEFT_ARC_2009_(ARC P1 4 1 Meer info
4866690100 971 HANDLE HOLE PLUG (WHITE) 1 8 Meer info
4891180100 984 UPPER DOOR BROW HINGE COVER 1 1 Meer info
4299060200 985 UPPER DOOR HINGE STOPPER (LG) 1 1 Meer info
4397301700 1039 CRISPER GROUP 17 1 Meer info
4844260200 1043 SHELF SUPPORT (LEFT_ARC P1) 1 1 Meer info
4844260100 1044 SHELF SUPPORT (RIGHT_ARC P1) 1 1 Meer info
4501440200 1047 DRIP TRAY HTK 95AA 15 0 Meer info
4502014400 1218 THERMOSTAT KDF30B1 12 0 Meer info
4613500200 1542 CRISPER/T605-1-3 20 1 Meer info
4613960100 1546 ICE CUBES TRAY BEKO 2010 15 1 Meer info
4657600100 1548 GLASS FRONT COVER 60 RANGE 3.2MM 7 3 Meer info
4657580100 1549 GLASS BACK COVER 60CM ARCP1 3.2MM 7 3 Meer info
4615020100 1550 TOP TRIM MECANIC BEKO 2010_ARC P1 9 1 Meer info
4657040100 1551 GLASS SHELF R600_457X285X3.2 22 3 Meer info
4616070200 1552 BIG PLASTIC FZ DRAWER ASS.BEKO2010 60CM 23 1 Meer info
4616070100 1552 BIG PLASTIC FZ DRAWER ASS.BEKO2010 60CM 24 1 Meer info
4616080200 1553 SMALL PLASTIC FR DRAWER ASS.BEKO 2010 60 23 1 Meer info
4659370100 1554 GLASS SH ASSY_G60_WHITE_Safety_3.2 17 3 Meer info
4872691600 1556 EAR HANDLE_ARC745 20 2 Meer info
4873530100 1559 BIOFRESH RAIL BEKO 2010 _RIGHT 10 1 Meer info
4873530200 1560 BIOFRESH RAIL BEKO 2010 _LEFT 10 1 Meer info
4614110120 1563 PU DOOR FZ K60295 BEKO 2010 VH_ARC P1 34 1 Meer info
4620420100 1761 ASS.DOOR FZ K60295N_BNF_ARC P1 33 1 Meer info
4620920100 1762 PU DOOR FF K60295 BEKO 2010 VH 35 1 Meer info
4620950100 1763 ASS.DOOR FF K60295_BNF_MV_BIOF_ARC P1 34 1 Meer info
4622787800 2476 EQUIPPED SUPPLY CORD EU_TB 1112 Y_1.9 m 19 1 Meer info
4622786000 2476 EQ SUP CORD TB1112Y 2.15 m 19 0 Meer info
4652621600 2476 EQUIPPED SUPPLY CORD (EU) 13 0 Meer info
4502020001 3070 2-WAYS DRYER 10 1 Meer info
4548960100 3187 SLEEVE SCREW M 8X20 ARC P1 3 1 Meer info
4548960200 3188 SLEEVE SCREW M 8X35 ARC P1 3 1 Meer info
4612470100 3235 CONDENSER SPACER. 1 2 Meer info
4502011100 3951 K59 L2683 THERMOSTAT 17 1 Meer info
4610120510 4233 CONDENSER K6270NF_KARD_K6330A+ (PAINTED) 25 1 Meer info
4528210100 4250 REAR FIXED FOOT 1 2 Meer info
4559370100 8508 EVAPORATOR PANEL BLOCKING PART(NEW) 1 6 Meer info
4541770100 8537 COMPR SUP 60CM 1COMPR WITHOUT ROLL 16 1 Meer info
4505150001 8538 MOTORCOMPRESSOR FIXING PART 1 2 Meer info
