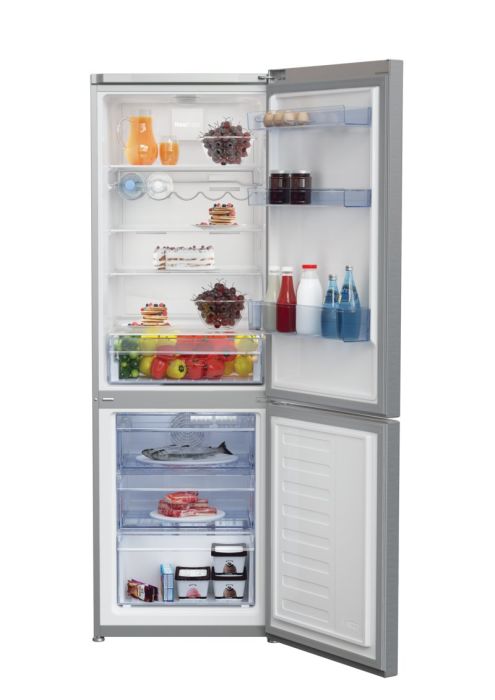

RCNA365E40X KOEL-VRIES COMBI FULL NO FROST INOX

Artikelnr: 114255
Referentienr: RCNA365E40X
Vergelijk

Productomschrijving

**** 185.3x59.5x65 cm- FULL NO FROST 194/30/97L INOX DISPLAY
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4657560100 0 FRZ GLASS SHELF REAR PROFILE 7 2 Meer info
4918650100 13 LOWER HINGE GROUP 4 1 Meer info
4364240100 14 TOP HINGE GROUP 8 1 Meer info
4211680100 23 HOSE DAMPER 1 1 Meer info
4056670000 29 SPACER (NATURAL - SN_T) 1 2 Meer info
5907490100 30 COMPRESSOR_VETB110_VCC 42 1 Meer info
5705910100 51 EVAP. COVER CAP_ARCP1 2 2 Meer info
4924850200 53 CONDANSER_ASSEMBLY_K60360NE_A++ 22 1 Meer info
4502020004 93 3-WAYS DRYER (CAP TUBE FI 1.9mm) 9 1 Meer info
5753350100 132 EVAPORATING TRAY _WANBAO_VETB110 15 1 Meer info
4629950200 135 MIDDLE HINGE COVER RAL7037 1 2 Meer info
5723410100 146 NEW MIDDLE HINGE PLUG 2 2 Meer info
5737560100 211 LOGO 7 1 Meer info
4652880100 216 Charging tube II 100mm Restrans 0 1 Meer info
5734690100 218 EGGCUP 4 1 Meer info
4852560100 232 PC DOOR LOWER ENDCAP HINGE HOLDER 1 1 Meer info
4852580300 239 HINGE HOLDER_ARC 2009_RAL 7037 2 1 Meer info
4852591400 241 PLUG 2 1 Meer info
4658890100 254 SMALL DOOR RACK T605 PROFILE 15 2 Meer info
4634620500 255 DOOR SHELF 100MM B14 ASSY. METAL P_NEW 17 1 Meer info
4232250100 300 ICE CUBE TRAY_ARC P1_D 6 2 Meer info
4657042600 310 GLASS SHELF R600 DEEP_440.5X321X3.2 15 2 Meer info
5710390100 325 ICE TRAY 10 1 Meer info
5704370100 327 BIG FREEZER DRAWER 190mm_WITH HOLES 14 2 Meer info
5704390100 328 DRAWER BODY 15 1 Meer info
4358580300 601 MIDDLE HINGE GR.(ARC2009_33mm AXIS) 6 1 Meer info
4862780100 639 FILTER COVER _ SBS4K 1 1 Meer info
4919820300 716 THERMAL FUSE DUAL GR INCH DAR MLX 220 11 1 Meer info
5931750100 784 U2_CONTROL_BOARD_GR 31 1 Meer info
4930860300 827 CARD BOX COVER GROUP 11 1 Meer info
4884060100 835 LIGHTING COVER 3 1 Meer info
4657130100 840 COMPLETE DISPLAY ASSEMBLY B14 30 1 Meer info
4891810300 854 WATER DRAN HOSE WTH ADAPTER 6 1 Meer info
5711200200 858 FAN PROTECTOR 12 1 Meer info
4656991200 861 GLASS SHELF PROFILE DEEP STAMP 7 4 Meer info
4891100100 864 WINE RACK 15 1 Meer info
5719650100 880 heater K60400 16 1 Meer info
4649260500 947 ELECTR HINGE COVER _RIGHT RAL7039 5 1 Meer info
4853152100 948 TOP TRIM COVER_ RAL 7039_LEFT 4 1 Meer info
4228060400 960 PHOTOCATALYST FILTER 9 1 Meer info
4654160100 973 FRZ FAN ASSY DC 25 1 Meer info
4891181600 984 UPPER DOOR BROW HINGE COVER_RAL_7039 3 1 Meer info
4299060200 985 UPPER DOOR HINGE STOPPER (LG) 1 1 Meer info
4650100100 1036 FRZ Evap Assy Deep 25 1 Meer info
5706020100 1039 CRISPER BODY 18 1 Meer info
4915080100 1041 RAIL GROUP 11 1 Meer info
4915030100 1042 RAIL GROUP 11 1 Meer info
5907940100 1074 WANBAO INVERTER (VETB110) 30 1 Meer info
5724072100 1232 ATK LED BOARD 12V 10 1 Meer info
5724071100 1232 ATK LED BOARD 12V 10 0 Meer info
4884210100 1236 LED CARD PROTECTOR (UPPER INSIDE LIGHT) 1 1 Meer info
4914270100 1495 EVAPORATOR FRONT COVER GROUP 19 1 Meer info
4691660100 1552 DOOR SWITCH 3 CONTACTS G54 9 1 Meer info
4649220100 1630 SENSOR MINISENSOR COVER ARCP1 2 2 Meer info
5710881300 1643 MAGNET COVER 1 1 Meer info
4615030900 1680 TOP TRIM ELEC BEKO RAL 7039 9 1 Meer info
4818490200 1764 BITUM FOR EVAPARATOR TUBES 8 2 Meer info
5712640100 1793 FF Fan_Motor_DC 12 V 17 1 Meer info
5710190100 1793 Refrigerator Fan Motor DC 12 V 17 0 Meer info
4927580800 1794 printed square fan cover 5 1 Meer info
5731610100 1797 SQUARE FAN DAMPER 2 4 Meer info
5704880100 1798 FAN COVER FRAME 2 1 Meer info
4630130100 2182 FF EVAPORATOR COVER GROUP K60360NE 26 1 Meer info
4633080200 2391 ASSEMBLY GASKET K60365 FF LIGHT GRAY 18 1 Meer info
4633080100 2415 ASSEMBLY GASKET COMBI DEEP FZ LIGHT GRAY 17 1 Meer info
4636510400 2429 FZ DRAWER COVER 235MM PROFIL NEW HOTST 18 1 Meer info
4636510300 2430 FZ DRAWER COVER 190MM PROFIL NEW HOTST 16 2 Meer info
4636530300 2432 CRISPER COVER 148MM PROFILE +HOTSTAMP 5 1 Meer info
4637630200 2491 PU FF DOOR K60365 FH B14 DISP VIP INOX 42 1 Meer info
4637640200 2492 PU DOOR FZ COMBI FH DEEP B14 VIP INOX 40 1 Meer info
4637610300 2496 ASSY.DOOR FF K60365NE B14_FH_VIP_INOX 45 1 Meer info
4637620300 2497 ASSY.FZ DOOR K60365_B14_FH_VIP_INOX 43 1 Meer info
4657630100 2555 FF GLASS SHELF REAR PROFILE ARCP1 7 4 Meer info
4657042400 2557 GLASS SHELF R600 DEEP_489X345X3.2 16 3 Meer info
4657042800 2558 GLASS SHELF R600 DEEP_ 489X474X3.2 18 1 Meer info
4641430100 2623 EQ SUPPLY CORD INVERTER VCC VETB110 35 1 Meer info
4548960400 3187 SLEEVE SCREW M 8X20 GREY 3 1 Meer info
4548960500 3188 LEVELLING FOOT M8X35 - GREY 3 1 Meer info
4659340100 3317 GLASS SH ASSY FF 3_2_DEEP HOTST 18 3 Meer info
4659340300 3317 CRISPER COVER ASSY FF 3_2_DEEP HOTSTP 20 1 Meer info
4528210100 4250 REAR FIXED FOOT 1 2 Meer info
4645980100 8537 SUP 1 COMPR_WITH FOOT_60CM 18 1 Meer info
4505150101 8538 MOTORCOMPRESSOR FIXING PART. 1 2 Meer info
Mode d'emploi (846.50 kB)
Handleiding (846.50 kB)
