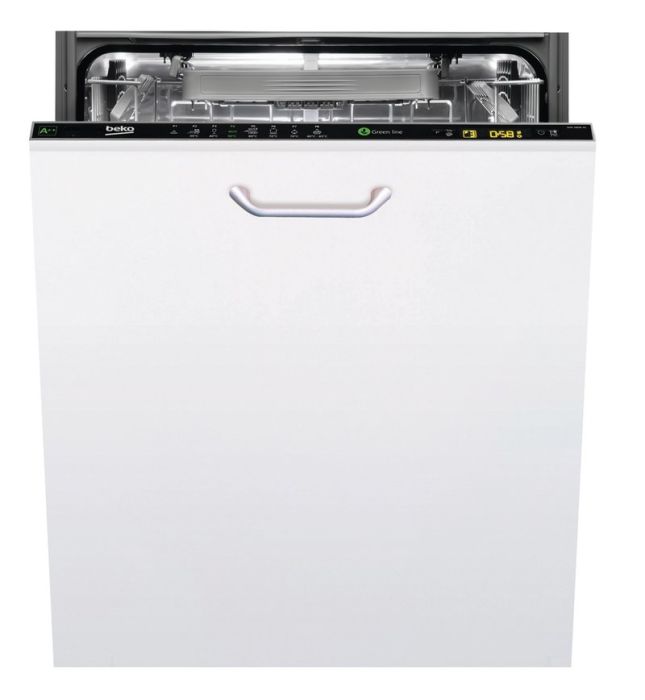

main product photo

DIN5839XL INTEGREERBARE VAATWASSER FULL INTEGRE XL

Artikelnr: 115607
Referentienr: DIN5839XL
Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

8 progr. 6 temp. FULL INTEGRE XL
Meer informatie
Hoogte 86
Breedte 59.8
Diepte 54.8
Gewicht (Kg) 44
ArtRef DIN5839XL
AsogemID 115607
MPN 7673243971
Merk BEKO
Going prijs 999,99
Soort Full intégré vaatwasser
ArtEAN 8690842990274
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
1881820100 13 FOOT SUPPORT PART 4 4 Meer info
1888360300 13 FOOT GROUP-ADJUSTABLE 7 1 Meer info
1888360400 14 FOOT GROUP-ADJUSTABLE-RIGHT-BACK 8 1 Meer info
1888360500 15 FOOT GROUP-ADJUSTABLE-LEFT-FRONT 8 1 Meer info
1888360600 16 Rear feet Adjustable LEFT BACK 8 1 Meer info
1888340300 20 REAR ADJUSTABLE FOOT CONNECTION PART 3 2 Meer info
1888340400 22 REAR ADJUSTABLE FOOT CONNECTION PART 2 2 Meer info
1880080292 40 BOTTOM TRAY 10 1 Meer info
1880350300 110 FOOT GROUP-ADJUSTABLE 2 4 Meer info
1800863200 119 HOSE BETWEEN FAN AND SUMP 2 1 Meer info
1749231701 220 SIDE PANEL-LEFT 15 1 Meer info
1749231801 221 SIDE PANEL-RIGHT 19 1 Meer info
1880012300 240 REAR BOTTOM SUPPORT 10 1 Meer info
1741810202 401 HINGE ARM-RIGHT 8 1 Meer info
1741810102 402 HINGE ARM-LEFT 8 1 Meer info
1888190100 403 HINGE ARM SUPPORT 3 1 Meer info
1881020100 440 HINGE SPRING 4 4 Meer info
1881040300 470 HINGE WHEEL-RED 1 2 Meer info
1881050200 471 HINGE ROPE GROUP-L=390(BLUE) 1 2 Meer info
1747700500 472 DOOR ADJUSTMENT GROUP-LEFT-3MM 4 1 Meer info
1747700600 473 DOOR ADJUSTMENT GROUP-RIGHT-3MM 4 1 Meer info
1747750100 474 DOOR ADJUSTING ADAPTOR 2 2 Meer info
1736760100 530 KICK PLATE SHEET 11 1 Meer info
1880030101 530 KICK PLATE SHEET 9 2 Meer info
1741860100 652 KICK PLATE INSULATION 10 1 Meer info
1884750100 653 DOOR LOCK COTTON FLEECE 2 1 Meer info
1731490100 654 KICK PLATE FELT 6 1 Meer info
1886840100 655 INNER TUB ISOLATION-LEFT 8 1 Meer info
1882420200 656 KICK PLATE FOAM 10 1 Meer info
1886810100 659 DOOR INSULATION 9 1 Meer info
1749270401 1030 OUTER DOOR-WHITE 15 1 Meer info
1782980400 1050 BOARD CONNECTION PART-LEFT-TAL TUB 4 1 Meer info
1782980300 1051 BOARD CONNECTION PART-RIGHT-TALL TUB 4 1 Meer info
1737390800 1200 INNER DOOR BITUMEN GRD 24 1 Meer info
1880020100 1201 LOWER SUPPORT- FRONT 8 1 Meer info
1882270300 1230 DOOR INSULATION 10 1 Meer info
1510600300 1300 SELFRESETING LOCK GROUP 6 1 Meer info
1881970100 1310 DOOR LOCK HOOK 1 1 Meer info
1749190300 1910 DOOR SEALING GASKET L=1861 11 1 Meer info
1882470100 1920 DOOR SEALING GASKET - BOTTOM 7 1 Meer info
1749050500 2001 TOP CORNER BRACKET - LEFT 1 1 Meer info
1749050600 2002 TOP CORNER BRACKET - RIGHT 1 1 Meer info
1751400500 2411 SHELF GROUP-RAL 7016 5 4 Meer info
1751302000 2414 UPPER RACK GR. RAL 7037 25 1 Meer info
1751440800 2417 UPPER BASKET MECHANISM-RIGHT-PURPLE 9 1 Meer info
1733390500 2418 BOTTLE HOLDER 11 1 Meer info
1759001115 2420 LOWER BASKET GROUP 24 1 Meer info
1742960100 2421 lower basket stoper plastic whell gr. 1 2 Meer info
1782020100 2421 GRD LOWER BASKET WHEEL GROUP 4 6 Meer info
1781930200 2423 GRD FOLDABLE PEG LEFT BACK_1 8 1 Meer info
1781910200 2424 GRD FOLDABLE PEG RIGHT BACK 8 1 Meer info
1781860200 2426 GRD LOWER BASKET LONG FOLDING PART 2 4 Meer info
1756391800 2429 LOWER BASKET HANDLE 4 1 Meer info
1751500400 2430 CUTLERY BASKET GROUP 12 1 Meer info
1751520400 2434 CUTLERY BASKET HANDLE 4 1 Meer info
1751530200 2437 CUTLERY BASKET SEPARATOR-7037 8 2 Meer info
1756440800 2438 UPPER BASKET HANDLE-FRONT-7016 4 1 Meer info
1756450400 2439 UPPER BASKET HANDLE-BACK-7016 4 1 Meer info
1781940200 2447 GRD FOLDABLE PEG LEFT BACK_2 8 1 Meer info
1781920200 2450 GRD FOLDABLE PEG RIGHT BACK_2 8 1 Meer info
1759090200 2517 UPPER BASKET CLIPS-RAL 7037 2 5 Meer info
1751370200 2518 FOLDING PART CLIPS-RIGHT-RAL 7037 2 1 Meer info
1781880200 2519 GRD LOWER BASKET LOW CLIPS 1 4 Meer info
1781880100 2520 GRD LOWER BASKET LOW CLIPS 1 4 Meer info
1752600400 2609 RAIL WHEEL GROUP-RAL7037 2 4 Meer info
1880240300 2610 RAIL (430 STAINLESS STEEL) 8 2 Meer info
1732840100 2611 RAIL CAP- FRONT&BACK -RAL7037 2 4 Meer info
1748940200 2613 RAIL WHEEL SCREW 1 8 Meer info
1749910100 2615 RAIL WHEEL HOLDER 2 4 Meer info
1751322400 2715 UPPER BASKET SUPPORT WIRE 10 1 Meer info
1751342400 2716 UPPER BASKET SUPPORT WIRE 9 1 Meer info
1751440700 2716 UPPER BASKET MECHANISM-LEFT-PURPLE 9 1 Meer info
1781790200 2719 MULTISTAGE FOLDING PART-PURPLE 3 1 Meer info
1756850200 3324 DELAY BUTTON - BLACK 4 1 Meer info
1740701800 4000 MOTOR_SPRAY PUMP 31 1 Meer info
1880390100 4001 MOTOR FIXING CAP D3731 D3421 2 1 Meer info
1740150100 4002 MOTOR BRACKET GROUP 4 1 Meer info
1881440200 4003 DAMPENING RUBBER TPV 3 1 Meer info
1740600100 4004 MOTOR BRACKET GROUP 7 1 Meer info
1883790200 4200 CAPACITOR 10 1 Meer info
1883790400 4200 CAPACITOR 9 0 Meer info
1757460100 4210 INTERFERENCE FILTER 12 1 Meer info
1740300300 4300 DRAIN PUMP GROUP 18 0 Meer info
1740301000 4300 DRAIN PUMP GROUP 18 0 Meer info
1748200100 4300 ALUMINIUM WRAPPED DISCHARGE ENGINE 17 1 Meer info
1888130100 4500 FLOW THROUGH HEATER 22 0 Meer info
1888130200 4500 FLOW THROUGH HEATER 21 0 Meer info
1888130300 4500 FLOW THROUGH HEATER 21 0 Meer info
1888150100 4500 FLOW THROUGH HEATER 21 1 Meer info
1719970100 4504 SOLO PUMP INLET HOSE - 2 4 1 Meer info
1745542500 4801 PROGRAM END SIGNAL CABLE 4 1 Meer info
1892101600 4901 MAIN PLUG GROUP 220-230 V smart 1 11 1 Meer info
1749580100 5056 TURBIDITY FRAME_2K 4 1 Meer info
1898900400 5058 TURBIDITY CARD AND LED HOLDER GR-WHITE 11 1 Meer info
1756300100 5073 UPPER TRAY RAIL HOLDER-7037 3 2 Meer info
1756310100 5074 CONNECTING WASHER 2 4 Meer info
1764950100 5750 REGENERATION VALVE GR SNAP FIT 11 1 Meer info
1744290100 5760 over_floating_house_3 1 1 Meer info
1760900100 5830 COUNTER GROUP 9 1 Meer info
1768000100 6160 SALT INDICATOR SWITCH 8 1 Meer info
1718830100 6161 RINSE AID SWITCH 6 1 Meer info
1732090100 6210 ROLD ON OFF SWITCH 2.5 mm 9 1 Meer info
1883240100 6311 OVER FLOW SWITCH (LOW END) D3731 D3421 6 1 Meer info
1760940100 6315 COUNTER PCB_4 7 1 Meer info
1731980300 6330 NEW DOOR SWITCH 7 1 Meer info
1718601700 6800 DETERGENT DISPENSER GROUP 18 1 Meer info
1719000700 6800 DETERGENT DISPENSER GROUP -RAL 7037 22 0 Meer info
1712730100 6801 DETERGENT DISPENSER GASKET 5 0 Meer info
1718670100 6801 DETERGENT DISPENSER GASKET 9 1 Meer info
1831470000 6802 THERMOACTUATOR D3731 D3421 13 1 Meer info
1712710100 6811 RINSE AID GASKET 8 0 Meer info
1718750100 6811 RINSE AID GASKET 3 1 Meer info
1718640100 6812 COVER SPRING 1 2 Meer info
1887740400 6920 NTC GROUP 7 1 Meer info
1760360100 7000 T&P AQUASTOP NEWDESIGN 22 1 Meer info
1889010300 7011 HOSE HOLDER LOWER PART RAL 7037 3 1 Meer info
1889020200 7012 HOSE HOLDER UPPER PART RAL 7037 2 1 Meer info
1764900100 7100 WATER_SOFTENER_ASSY_2012 20 1 Meer info
1742450100 7102 WATER SOFTENER NUT-RAL7037 2 1 Meer info
1766470100 7103 SOFTONER O-RING 2 1 Meer info
1744250100 7104 O-RING - SALT BOX- BELOW 3 2 Meer info
1883910300 7108 WATER SOFTENER CAP GASKET 3 1 Meer info
1766560100 7140 WATER SOFTONER CAP GROUP-RAL7016 5 1 Meer info
1741600500 7160 REGENERATION UNIT GR 11 1 Meer info
1882630200 7161 AIR FUNNEL GASKET 2 2 Meer info
1882620700 7162 air funnel cup 1 2 Meer info
1800862100 7169 HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) 1 1 Meer info
1746100300 7211 LOWER SPRAY ARM GROUP 6 1 Meer info
1746200600 7220 UPPER SPRAY ARM GROUP 7016 8 1 Meer info
1759600100 7221 UPPER SPRAY ARM FEED PIPE -RAL 7037 8 1 Meer info
1800720800 7228 GASKET 3 1 Meer info
1756530100 7232 CEILING SPRAY ARM FEED PIPE 4 1 Meer info
1756370100 7234 CEILING SPRAY GROUP 5 1 Meer info
1756330400 7260 WATER SUPPLY TUBE GROUP 13 1 Meer info
1749490200 7261 UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET 3 1 Meer info
1741502600 7510 SUMP GROUP 11 1 Meer info
1889860400 7514 CORNER PADDING GR-FRONT 13 1 Meer info
1889870200 7515 REAR CORNER PADDING GR TALL TUB-BACK 7 1 Meer info
1788290100 7517 BEKO UPPER PACKAGE COVER - KRAFT 7 1 Meer info
1757320200 7518 PACKAGE STRAFOR - BOTTOM 10 1 Meer info
1738020200 7520 kickplate styropor 5 1 Meer info
1740110100 7550 HOSE BETWEEN SUMP AND HEATER 5 1 Meer info
1888100100 7560 OVERFLOW FLOAT GROUP 8 1 Meer info
1884280100 7561 SIFHON 2 2 Meer info
1740400100 7610 METAL FILTER GROUP (Rv.0.8-1.75) 14 1 Meer info
1740900600 7611 FILTER SUPPORT GROUP-RAL 7037 4 1 Meer info
1760400100 7612 THREE WAY VALVE 18 1 Meer info
1740220700 7620 MICRO FILTER GROUP-7037 10 1 Meer info
1740230400 7630 COARSE FILTER-PURPLE 2 1 Meer info
1740800700 7640 FILTER GROUP 8 1 Meer info
1740160800 7810 DRAIN HOSE-1 8 1 Meer info
1740170100 7831 HOSE (SUMP OUTLET) 10 1 Meer info
1800632000 7835 HOSE BETWEEN COUNTER AND REGENERATION U. 2 1 Meer info
1800866600 7839 HOSE. 4 1 Meer info
1800862300 7844 HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) 2 1 Meer info
1740050300 7910 SUMP GASKET 6 1 Meer info
1719440200 8000 FAN MOTOR GROUP 18 1 Meer info
1719580200 8003 FAN OUTLET PIPE 3 1 Meer info
1754250100 8004 FAN SUCTION TUBE - WELDED 8 1 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 3 Meer info
2002373200 8319 HOSE CLAMP (x 40.0) 1 2 Meer info
2002370800 8353 HOSE CLAMP (x 15.88) 1 3 Meer info
2002371700 8355 HOSE CLAMP (x 28,7) 1 2 Meer info
2002372100 8357 HOSE CLAMP.(Ø 34_1) 1 1 Meer info
2002372200 8358 HOSE CLAMP (├© 35.6) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2002372500 8360 HOSE CLAMP (x 47.0) 1 1 Meer info
2002740100 8365 DRAIN HOSE HOLDER 2 1 Meer info
1732850100 9013 Hose Clamps With Screw Ø40 White 2 1 Meer info
1883170100 9022 MAIN PLUG HOLDER 1 1 Meer info
1889340100 9102 SCREW 4x14 1 5 Meer info
1803430300 9104 SCREW 16mm 2 4 Meer info
1883430100 9105 SCREW (PANEL-DOOR LOCKED) 1 6 Meer info
1889270100 9106 SCREW TERMINAL GROUP - REAR BRACKET 1 2 Meer info
1882820100 9107 INNER DOOR STOPER 1 2 Meer info
1883470100 9113 BOLT M4X8 D3731 D3421 1 16 Meer info
1883460100 9114 SCREW (INNER-OUTER DOOR) 1 4 Meer info
1731640100 9115 WIDE HEADED SCREW 1 2 Meer info
1801080100 9115 SCREW (3.9x9.5) 1 24 Meer info
1802860200 9153 SCREW M5x8 1 4 Meer info
1883440300 9155 SCREW (5x22)(MOTOR) 1 1 Meer info
1803430100 9203 SCREW (4x14) 1 6 Meer info
1831780000 9213 WASHER 1 2 Meer info
1882150100 9520 O-RING (FLOW DIVERTER) 1 2 Meer info
1800681600 9523 O-RING 2 4 Meer info
1882280200 9640 NOISE ISOLATION FOR TUB RAL 7037. 4 1 Meer info
1882281100 9640 NOISE ISOLATION FOR TUB 1 1 Meer info
1880281900 9641 NOISE ISOLATION FOR (B_I) LEFT 6 1 Meer info
1880282000 9642 NOISE ISOLATION FOR (B_I) RIGHT 6 1 Meer info
1732380100 9935 SALT FUNNEL 2 3 1 Meer info
1731480100 9938 KICK PLATE RUBBER 17 1 Meer info
1886364100 9940 ACCESSORIES PACK FD 82_87 TALL TUB EU 10 1 Meer info
1756210101 9943 UPPER TRAY FRAME WIRE 7037 10 1 Meer info
1756260100 9944 UPPER TRAY DRAWER HOLDER-LEFT 7037 4 1 Meer info
1756250100 9945 UPPER TRAY DRAWER HOLDER-RIGHT 7037 4 1 Meer info
1756270101 9946 CEILING RAIL 7037 10 2 Meer info
1756240101 9947 UPPER TRAY HOLDER-7037 13 1 Meer info
1756280100 9948 UPPER TRAY RAIL CAP-RIGHT RAL 7037 2 1 Meer info
1756290100 9949 UPPER TRAY RAIL CAP-LEFT RAL7037 2 1 Meer info
1756220300 9950 UPPER TRAY GROUP 16 1 Meer info
1732060100 9985 DUAL SPRING HOLDER TOP PART 1 2 Meer info
1732070100 9986 DUAL SPRING HOLDER LOWER PART 1 2 Meer info
1733140100 9988 FRAME COVER PART 2 2 Meer info
1718990200 9992 DETERGENT DISPENCER CAB HAR HOLD 7037 1 1 Meer info
Mode d'emploi (12.11 MB)
Handleiding (11.32 MB)
