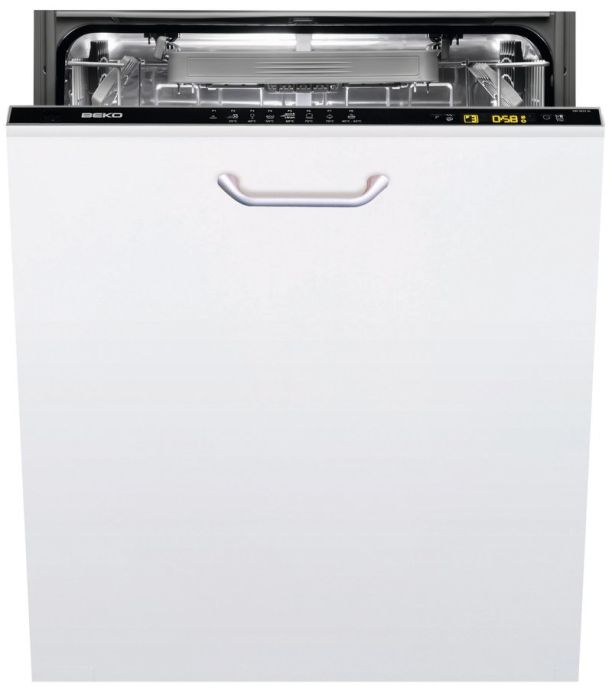

DIN5833XL INTEGREERBARE VAATWASSER FULL INTEGRE XL

Artikelnr: 115424

Referentienr: DIN5833XL

Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)

Productomschrijving

8 progr. 6 temp. FULL INTEGRE XL

Specificaties

Meer informatie
Hoogte	86
Breedte	59.8
Diepte	54.8
Gewicht (Kg)	44
ArtRef	DIN5833XL
AsogemID	115424
MPN	7664733971
Merk	BEKO
Going prijs	999,99
Soort	Full intégré vaatwasser
ArtEAN	8690769382374

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
1881820100	13	FOOT SUPPORT PART	4	4	Meer info
1888360300	13	FOOT GROUP-ADJUSTABLE	7	1	Meer info
1888360400	14	FOOT GROUP-ADJUSTABLE-RIGHT-BACK	8	1	Meer info
1888360500	15	FOOT GROUP-ADJUSTABLE-LEFT-FRONT	8	1	Meer info
1888360600	16	Rear feet Adjustable LEFT BACK	8	1	Meer info
1888340300	20	REAR ADJUSTABLE FOOT CONNECTION PART	3	2	Meer info
1888340400	22	REAR ADJUSTABLE FOOT CONNECTION PART	2	2	Meer info
1880080292	40	BOTTOM TRAY	10	1	Meer info
1880350300	110	FOOT GROUP-ADJUSTABLE	2	4	Meer info
1800863200	119	HOSE BETWEEN FAN AND SUMP	2	1	Meer info
1749231701	220	SIDE PANEL-LEFT	15	1	Meer info
1749231801	221	SIDE PANEL-RIGHT	19	1	Meer info
1887290100	224	TUB COVER (2mm)	7	1	Meer info
1880012300	240	REAR BOTTOM SUPPORT	10	1	Meer info
1741810202	401	HINGE ARM-RIGHT	8	1	Meer info
1741810102	402	HINGE ARM-LEFT	8	1	Meer info
1888190100	403	HINGE ARM SUPPORT	3	1	Meer info
1881030100	440	HINGE SPRING	5	2	Meer info
1881040300	470	HINGE WHEEL-RED	1	2	Meer info
1881050200	471	HINGE ROPE GROUP-L=390(BLUE)	1	2	Meer info
1747700500	472	DOOR ADJUSTMENT GROUP-LEFT-3MM	4	1	Meer info
1747700600	473	DOOR ADJUSTMENT GROUP-RIGHT-3MM	4	1	Meer info
1747750100	474	DOOR ADJUSTING ADAPTOR	2	2	Meer info
1736760100	530	KICK PLATE SHEET	11	1	Meer info
1880030101	530	KICK PLATE SHEET	9	1	Meer info
1741860100	652	KICK PLATE INSULATION	10	1	Meer info
1884750100	653	DOOR LOCK COTTON FLEECE	2	1	Meer info
1886840100	655	INNER TUB ISOLATION-LEFT	8	1	Meer info
1882420200	656	KICK PLATE FOAM	10	1	Meer info
1886810100	659	DOOR INSULATION	9	1	Meer info
1782980400	1050	BOARD CONNECTION PART-LEFT-TAL TUB	4	1	Meer info
1782980300	1051	BOARD CONNECTION PART-RIGHT-TALL TUB	4	1	Meer info
1737390800	1200	INNER DOOR BITUMEN GRD	24	1	Meer info
1880020100	1201	LOWER SUPPORT- FRONT	8	1	Meer info
1882270300	1230	DOOR INSULATION	10	1	Meer info
1750900400	1300	DOOR LOCK GROUP PA6-NAT-I-V0 45-60 CM	7	1	Meer info
1881970100	1310	DOOR LOCK HOOK	1	1	Meer info
1749190300	1910	DOOR SEALING GASKET L=1861	11	1	Meer info
1882470100	1920	DOOR SEALING GASKET - BOTTOM	7	1	Meer info
1749050500	2001	TOP CORNER BRACKET - LEFT	1	1	Meer info
1749050600	2002	TOP CORNER BRACKET - RIGHT	1	1	Meer info
1751400500	2411	SHELF GROUP-RAL 7016	5	4	Meer info
1732500900	2412	MULTI PURPOSE SELF GR.LEFT	5	1	Meer info
1732501000	2412	MULTI PURPOSE SELF GR.RIGHT	5	1	Meer info
1751302000	2414	UPPER RACK GR. RAL 7037	25	1	Meer info
1751440800	2417	UPPER BASKET MECHANISM-RIGHT-PURPLE	9	1	Meer info
1733390500	2418	BOTTLE HOLDER	11	1	Meer info
1758970821	2420	LOWER BASKET GROUP	24	1	Meer info
1742960100	2421	lower basket stoper plastic whell gr.	1	2	Meer info
1782020100	2421	GRD LOWER BASKET WHEEL GROUP	4	6	Meer info
1758980600	2422	MULTI PURPOSE SELF WIRE-7037	14	1	Meer info
1759020200	2423	PLATE HOLDER-LEFT	8	2	Meer info
1759030200	2424	PLATE HOLDER-RIGHT	9	2	Meer info
1758930300	2425	LOWER BASKET FOLDING PART-LEFT-BACK-7037	4	1	Meer info
1758940300	2426	LOWER BASKET FOLDING PART	4	1	Meer info
1756391700	2429	LOWER BASKET HANDLE	4	1	Meer info
1751500400	2430	CUTLERY BASKET GROUP	12	1	Meer info
1751520400	2434	CUTLERY BASKET HANDLE	4	1	Meer info
1751530200	2437	CUTLERY BASKET SEPARATOR-7037	8	2	Meer info
1756440800	2438	UPPER BASKET HANDLE-FRONT-7016	4	1	Meer info
1756450400	2439	UPPER BASKET HANDLE-BACK-7016	4	1	Meer info
1758920200	2444	LOWER BASKET CLIPS-RAL 7037	1	4	Meer info
1759090200	2517	UPPER BASKET CLIPS-RAL 7037	2	5	Meer info
1751370200	2518	FOLDING PART CLIPS-RIGHT-RAL 7037	2	1	Meer info
1752600400	2609	RAIL WHEEL GROUP-RAL7037	2	4	Meer info
1880240300	2610	RAIL (430 STAINLESS STEEL)	8	2	Meer info
1732840100	2611	RAIL CAP- FRONT&BACK -RAL7037	2	4	Meer info
1748940200	2613	RAIL WHEEL SCREW	1	8	Meer info
1749910100	2615	RAIL WHEEL HOLDER	2	4	Meer info
1751322400	2715	UPPER BASKET SUPPORT WIRE	10	1	Meer info
1751342400	2716	UPPER BASKET SUPPORT WIRE	9	1	Meer info
1751440700	2716	UPPER BASKET MECHANISM-LEFT-PURPLE	9	1	Meer info
1781790200	2719	MULTISTAGE FOLDING PART-PURPLE	3	1	Meer info
1740701800	4000	MOTOR_SPRAY PUMP	31	1	Meer info
1880390100	4001	MOTOR FIXING CAP D3731 D3421	2	1	Meer info
1740150100	4002	MOTOR BRACKET GROUP	4	1	Meer info
1881440200	4003	DAMPENING RUBBER TPV	3	1	Meer info
1740600100	4004	MOTOR BRACKET GROUP	7	1	Meer info
1883790200	4200	CAPACITOR	10	1	Meer info
1883790400	4200	CAPACITOR	9	0	Meer info
1757460100	4210	INTERFERENCE FILTER	12	1	Meer info
1740300300	4300	DRAIN PUMP GROUP	18	0	Meer info
1740301000	4300	DRAIN PUMP GROUP	18	0	Meer info
1748200100	4300	ALUMINIUM WRAPPED DISCHARGE ENGINE	17	1	Meer info
1888130100	4500	FLOW THROUGH HEATER	22	0	Meer info
1888130200	4500	FLOW THROUGH HEATER	21	0	Meer info
1888130300	4500	FLOW THROUGH HEATER	21	0	Meer info
1888150100	4500	FLOW THROUGH HEATER	21	1	Meer info
1719970100	4504	SOLO PUMP INLET HOSE - 2	4	1	Meer info
1892101600	4901	MAIN PLUG GROUP 220-230 V smart 1	11	1	Meer info
1749580100	5056	TURBIDITY FRAME_2K	4	1	Meer info
1898900400	5058	TURBIDITY CARD AND LED HOLDER GR-WHITE	11	1	Meer info
1756300100	5073	UPPER TRAY RAIL HOLDER-7037	3	2	Meer info
1756310100	5074	CONNECTING WASHER	2	4	Meer info
1764950100	5750	REGENERATION VALVE GR SNAP FIT	11	1	Meer info
1744290100	5760	over_floating_house_3	1	1	Meer info
1760900100	5830	COUNTER GROUP	9	1	Meer info
1768000100	6160	SALT INDICATOR SWITCH	8	1	Meer info
1718830100	6161	RINSE AID SWITCH	6	1	Meer info
1732090100	6210	ROLD ON OFF SWITCH 2.5 mm	9	1	Meer info
1883240100	6311	OVER FLOW SWITCH (LOW END) D3731 D3421	6	1	Meer info
1760940100	6315	COUNTER PCB_4	7	1	Meer info
1731980300	6330	NEW DOOR SWITCH	7	1	Meer info
1718601700	6800	DETERGENT DISPENSER GROUP	18	1	Meer info
1719000700	6800	DETERGENT DISPENSER GROUP -RAL 7037	22	0	Meer info
1712730100	6801	DETERGENT DISPENSER GASKET	5	0	Meer info
1718670100	6801	DETERGENT DISPENSER GASKET	9	1	Meer info
1831470000	6802	THERMOACTUATOR D3731 D3421	13	1	Meer info
1712710100	6811	RINSE AID GASKET	8	0	Meer info
1718750100	6811	RINSE AID GASKET	3	1	Meer info
1718640100	6812	COVER SPRING	1	2	Meer info
1887740400	6920	NTC GROUP	7	1	Meer info
1760360100	7000	T&P AQUASTOP NEWDESIGN	22	1	Meer info
1889010300	7011	HOSE HOLDER LOWER PART RAL 7037	3	1	Meer info
1889020200	7012	HOSE HOLDER UPPER PART RAL 7037	2	1	Meer info
1764900100	7100	WATER_SOFTENER_ASSY_2012	20	1	Meer info
1742450100	7102	WATER SOFTENER NUT-RAL7037	2	1	Meer info
1766470100	7103	SOFTONER O-RING	2	1	Meer info
1744250100	7104	O-RING - SALT BOX- BELOW	3	2	Meer info
1883910300	7108	WATER SOFTENER CAP GASKET	3	1	Meer info
1766560100	7140	WATER SOFTONER CAP GROUP-RAL7016	5	1	Meer info
1741600500	7160	REGENERATION UNIT GR	11	1	Meer info
1882630200	7161	AIR FUNNEL GASKET	2	2	Meer info
1882620700	7162	air funnel cup	1	2	Meer info
1800862100	7169	HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT)	1	1	Meer info
1746100300	7211	LOWER SPRAY ARM GROUP	6	1	Meer info
1746200600	7220	UPPER SPRAY ARM GROUP 7016	8	1	Meer info
1759600100	7221	UPPER SPRAY ARM FEED PIPE -RAL 7037	8	1	Meer info
1800720800	7228	GASKET	3	1	Meer info
1756530100	7232	CEILING SPRAY ARM FEED PIPE	4	1	Meer info
1756370100	7234	CEILING SPRAY GROUP	5	1	Meer info
1756330400	7260	WATER SUPPLY TUBE GROUP	13	1	Meer info
1749490200	7261	UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET	3	1	Meer info
1741502600	7510	SUMP GROUP	11	1	Meer info
1889860400	7514	CORNER PADDING GR-FRONT	13	1	Meer info
1889870200	7515	REAR CORNER PADDING GR TALL TUB-BACK	7	1	Meer info
1788290100	7517	BEKO UPPER PACKAGE COVER - KRAFT	7	1	Meer info
1757320200	7518	PACKAGE STRAFOR - BOTTOM	10	1	Meer info
1738020200	7520	kickplate styropor	5	1	Meer info
1740110100	7550	HOSE BETWEEN SUMP AND HEATER	5	1	Meer info
1888100100	7560	OVERFLOW FLOAT GROUP	8	1	Meer info
1884280100	7561	SIFHON	2	2	Meer info
1740400100	7610	METAL FILTER GROUP (Rv.0.8-1.75)	14	1	Meer info
1740900600	7611	FILTER SUPPORT GROUP-RAL 7037	4	1	Meer info
1760400100	7612	THREE WAY VALVE	18	1	Meer info
1740220700	7620	MICRO FILTER GROUP-7037	10	1	Meer info
1740230400	7630	COARSE FILTER-PURPLE	2	1	Meer info
1740800700	7640	FILTER GROUP	8	1	Meer info
1740160800	7810	DRAIN HOSE-1	8	1	Meer info
1740170100	7831	HOSE (SUMP OUTLET)	10	1	Meer info
1800632000	7835	HOSE BETWEEN COUNTER AND REGENERATION U.	2	1	Meer info
1800866600	7839	HOSE.	4	1	Meer info
1800862300	7844	HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT)	2	1	Meer info
1740050300	7910	SUMP GASKET	6	1	Meer info
1719440200	8000	FAN MOTOR GROUP	18	1	Meer info
1719580200	8003	FAN OUTLET PIPE	3	1	Meer info
1754250100	8004	FAN SUCTION TUBE - WELDED	8	1	Meer info
2002370900	8318	HOSE CLAMP (├â╦£ 16.4)	1	3	Meer info
2002373200	8319	HOSE CLAMP (x 40.0)	1	2	Meer info
2002370800	8353	HOSE CLAMP (x 15.88)	1	3	Meer info
2002371700	8355	HOSE CLAMP (x 28,7)	1	2	Meer info
2002372100	8357	HOSE CLAMP.(├â╦£ 34_1)	1	1	Meer info
2002372200	8358	HOSE CLAMP (├© 35.6)	1	1	Meer info
2002372400	8359	HOSE CLAMP (├â╦£ 38.8)	1	1	Meer info
2002372500	8360	HOSE CLAMP (x 47.0)	1	1	Meer info
2002740100	8365	DRAIN HOSE HOLDER	2	1	Meer info
1732850100	9013	Hose Clamps With Screw ├â╦£40 White	2	1	Meer info
1883170100	9022	MAIN PLUG HOLDER	1	1	Meer info
1889340100	9102	SCREW 4x14	1	5	Meer info
1803430300	9104	SCREW 16mm	2	4	Meer info
1883430100	9105	SCREW (PANEL-DOOR LOCKED)	1	6	Meer info
1889270100	9106	SCREW TERMINAL GROUP - REAR BRACKET	1	2	Meer info
1882820100	9107	INNER DOOR STOPER	1	2	Meer info
1883470100	9113	BOLT M4X8 D3731 D3421	1	16	Meer info
1883460100	9114	SCREW (INNER-OUTER DOOR)	1	4	Meer info
1801080100	9115	SCREW (3.9x9.5)	1	26	Meer info
1802860200	9153	SCREW M5x8	1	4	Meer info
1883440300	9155	SCREW (5x22)(MOTOR)	1	1	Meer info
1803430100	9203	SCREW (4x14)	1	6	Meer info
1831780000	9213	WASHER	1	2	Meer info
1882150100	9520	O-RING (FLOW DIVERTER)	1	2	Meer info
1800681600	9523	O-RING	2	4	Meer info
1882280200	9640	NOISE ISOLATION FOR TUB RAL 7037.	4	1	Meer info
1882281100	9640	NOISE ISOLATION FOR TUB	1	1	Meer info
1880281900	9641	NOISE ISOLATION FOR (B_I) LEFT	6	1	Meer info
1880282000	9642	NOISE ISOLATION FOR (B_I) RIGHT	6	1	Meer info
1732380100	9935	SALT FUNNEL 2	3	1	Meer info
1886364100	9940	ACCESSORIES PACK FD 82_87 TALL TUB EU	10	1	Meer info
1756210101	9943	UPPER TRAY FRAME WIRE 7037	10	1	Meer info
1756260100	9944	UPPER TRAY DRAWER HOLDER-LEFT 7037	4	1	Meer info
1756250100	9945	UPPER TRAY DRAWER HOLDER-RIGHT 7037	4	1	Meer info
1756270101	9946	CEILING RAIL 7037	10	2	Meer info
1756240101	9947	UPPER TRAY HOLDER-7037	13	1	Meer info
1756280100	9948	UPPER TRAY RAIL CAP-RIGHT RAL 7037	2	1	Meer info
1756290100	9949	UPPER TRAY RAIL CAP-LEFT RAL7037	2	1	Meer info
1756220300	9950	UPPER TRAY GROUP	16	1	Meer info
1718990200	9992	DETERGENT DISPENCER CAB HAR HOLD 7037	1	1	Meer info
