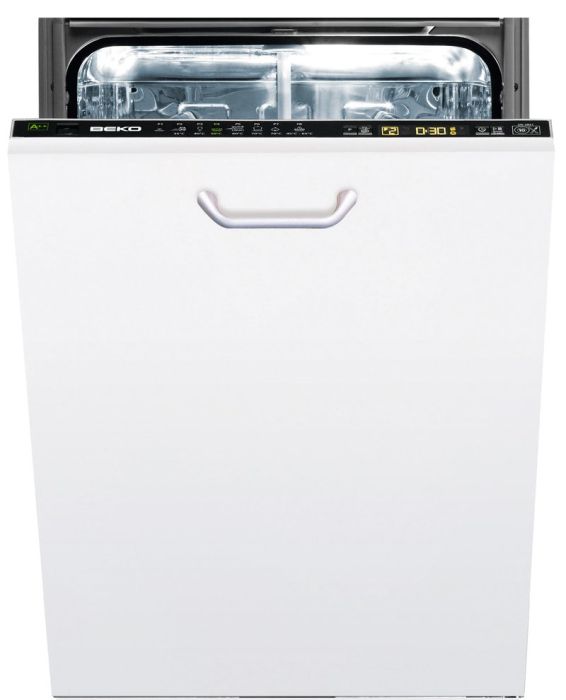

DIS5831 INTEGREERBARE VAATWASSER FULL INTEGRE BLDC 45cm

Artikelnr: 115425
Referentienr: DIS5831
Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

8 progr. 7 temp. FULL INTEGRE 45 cm
Meer informatie
Hoogte 82
Breedte 44.8
Diepte 54.8
Gewicht (Kg) 30.5
ArtRef DIS5831
AsogemID 115425
MPN 7609543945
Merk BEKO
Going prijs 999,99
Soort Full intégré vaatwasser
ArtEAN 8690842357008
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
1881820100 13 FOOT SUPPORT PART 4 4 Meer info
1888360300 13 FOOT GROUP-ADJUSTABLE 7 1 Meer info
1888360400 14 FOOT GROUP-ADJUSTABLE-RIGHT-BACK 8 1 Meer info
1888360500 15 FOOT GROUP-ADJUSTABLE-LEFT-FRONT 8 1 Meer info
1888360600 16 Rear feet Adjustable LEFT BACK 8 1 Meer info
1888340300 20 REAR ADJUSTABLE FOOT CONNECTION PART 3 2 Meer info
1888340400 22 REAR ADJUSTABLE FOOT CONNECTION PART 2 2 Meer info
1743320192 40 BOTTOM TRAY-45 cm 11 1 Meer info
1880350300 110 FOOT GROUP-ADJUSTABLE 2 4 Meer info
1800864700 119 HOSE BETWEEN FAN AND SUMP 2 1 Meer info
1741810202 401 HINGE ARM-RIGHT 8 1 Meer info
1741810102 402 HINGE ARM-LEFT 8 1 Meer info
1743240100 403 HINGE ARM SUPPORT 4 1 Meer info
1880880100 440 HINGE SPRING (DOOR WITH BITUMEN) 4 2 Meer info
1881040300 470 HINGE WHEEL-RED 1 2 Meer info
1881050200 471 HINGE ROPE GROUP-L=390(BLUE) 1 2 Meer info
1747700500 472 DOOR ADJUSTMENT GROUP-LEFT-3MM 4 1 Meer info
1747700600 473 DOOR ADJUSTMENT GROUP-RIGHT-3MM 4 1 Meer info
1747750100 474 DOOR ADJUSTING ADAPTOR 2 2 Meer info
1744970100 649 REAR FRAME COTTON FLEECE 13 1 Meer info
1743930300 650 INNER TUB ISOLATION 11 1 Meer info
1884750200 653 DOOR LOCK COTTON FLEECE 1 1 Meer info
1880170110 1030 OUTER DOOR-ARC744-2 15 1 Meer info
1737370200 1200 INNER DOOR BITUMEN GRD 21 1 Meer info
1743230100 1201 LOWER SUPPORT - FRONT 9 1 Meer info
1510600300 1300 SELFRESETING LOCK GROUP 6 1 Meer info
1881970100 1310 DOOR LOCK HOOK 1 1 Meer info
1749190200 1910 DOOR SEALING GASKET- L=1625 10 1 Meer info
1887560400 1920 DOOR SEALING GASKET - BOTTOM 5 1 Meer info
1750601400 2000 STRUCTURE GROUP 32 1 Meer info
1749050500 2001 TOP CORNER BRACKET - LEFT 1 1 Meer info
1749050600 2002 TOP CORNER BRACKET - RIGHT 1 1 Meer info
1855840700 2006 VAPOUR FOIL GR 3 1 Meer info
1890580500 2411 45 cm shelf-7016 3 4 Meer info
1799101900 2414 UPPER BASKET GROUP 24 1 Meer info
1751750900 2416 HEIGH ADJ. MECHANISM GR-LEFT-PURPLE 9 1 Meer info
1751751000 2417 HEIGH ADJ. MECHANISM GR-RIGHT-PURPLE 9 1 Meer info
1763400317 2420 LOWER BASKET EU2 GROUP 45CM 25 1 Meer info
1763680100 2421 LOWER BASKET WHEEL GROUP 45CM 4 8 Meer info
1763470100 2424 45CM PLATE HOLDER-BACK 1-7016 9 1 Meer info
1763480100 2424 45CM PLATE HOLDER BACK 2-7016 9 1 Meer info
1781870200 2425 L.BASKET SHORT FOLDING PART 742/PURPLE 2 2 Meer info
1758910200 2427 LOWER BASKET CLIPS-7037 1 2 Meer info
1756391800 2429 LOWER BASKET HANDLE 4 1 Meer info
1744500400 2430 CUTLERY BASKET GROUP 10 1 Meer info
1744520200 2437 SEPARATOR-7037 8 1 Meer info
1781890100 2521 GRD LOWER BASKET SHORT CLIPS-RIGHT 1 2 Meer info
1781890200 2522 GRD LOWER BASKET SHORT CLIPS-LEFT 1 2 Meer info
1752600400 2609 RAIL WHEEL GROUP-RAL7037 2 4 Meer info
1880240300 2610 RAIL (430 STAINLESS STEEL) 8 2 Meer info
1732840100 2611 RAIL CAP- FRONT&BACK -RAL7037 2 4 Meer info
1748940200 2613 RAIL WHEEL SCREW 1 8 Meer info
1749910100 2615 RAIL WHEEL HOLDER 2 4 Meer info
1745890013 3010 PANEL GROUP-29 20 1 Meer info
1783900400 4000 ANGORA QUADRO CIRCULATION PUMP GROUP 31 1 Meer info
1757420100 4001 CIRCULATION PUMP DAMPENING RUBBER 2 3 Meer info
1757460100 4210 INTERFERENCE FILTER 12 1 Meer info
1740301000 4300 DRAIN PUMP GROUP 18 0 Meer info
1748200100 4300 ALUMINIUM WRAPPED DISCHARGE ENGINE 17 1 Meer info
1888130100 4500 FLOW THROUGH HEATER 22 0 Meer info
1888130200 4500 FLOW THROUGH HEATER 21 1 Meer info
1888130300 4500 FLOW THROUGH HEATER 21 0 Meer info
1888150100 4500 FLOW THROUGH HEATER 21 0 Meer info
1761610100 4504 PUMP INLET HOSE 5 1 Meer info
1892101600 4901 MAIN PLUG GROUP 220-230 V smart 1 11 1 Meer info
1750010300 5050 MAIN BOARD 22 1 Meer info
1755740100 5051 CARD HOLDER-FRONT 5 1 Meer info
1755750100 5052 CARD HOLDER-BACK 5 1 Meer info
1749580100 5056 TURBIDITY FRAME_2K 4 1 Meer info
1898900400 5058 TURBIDITY CARD AND LED HOLDER GR-WHITE 11 1 Meer info
1764950300 5750 REGENERATION VALVE GR SNAP FIT 11 1 Meer info
1744290100 5760 over_floating_house_3 1 1 Meer info
1760900100 5830 COUNTER GROUP 9 1 Meer info
1718830100 6161 RINSE AID SWITCH 6 1 Meer info
1732090100 6210 ROLD ON OFF SWITCH 2.5 mm 9 1 Meer info
1883240100 6311 OVER FLOW SWITCH (LOW END) D3731 D3421 6 1 Meer info
1760940100 6315 COUNTER PCB_4 7 2 Meer info
1731980300 6330 NEW DOOR SWITCH 7 1 Meer info
1718601700 6800 DETERGENT DISPENSER GROUP 18 1 Meer info
1719000700 6800 DETERGENT DISPENSER GROUP -RAL 7037 22 0 Meer info
1712730100 6801 DETERGENT DISPENSER GASKET 5 0 Meer info
1718670100 6801 DETERGENT DISPENSER GASKET 9 1 Meer info
1831470000 6802 THERMOACTUATOR D3731 D3421 13 1 Meer info
1712710100 6811 RINSE AID GASKET 8 0 Meer info
1718750100 6811 RINSE AID GASKET 3 1 Meer info
1718640100 6812 COVER SPRING 1 2 Meer info
1887740400 6920 NTC GROUP 7 1 Meer info
1760360100 7000 T&P AQUASTOP NEWDESIGN 22 0 Meer info
1885090400 7000 AQUASTOP 22 1 Meer info
1889010300 7011 HOSE HOLDER LOWER PART RAL 7037 3 1 Meer info
1889020200 7012 HOSE HOLDER UPPER PART RAL 7037 2 1 Meer info
1768300100 7100 WATER SOFTENER GROUP 18 1 Meer info
1742450100 7102 WATER SOFTENER NUT-RAL7037 2 1 Meer info
1766470100 7103 SOFTONER O-RING 2 1 Meer info
1744250100 7104 O-RING - SALT BOX- BELOW 3 2 Meer info
1883910300 7108 WATER SOFTENER CAP GASKET 3 1 Meer info
1766560100 7140 WATER SOFTONER CAP GROUP-RAL7016 5 1 Meer info
1741600500 7160 REGENERATION UNIT GR 11 1 Meer info
1882630200 7161 AIR FUNNEL GASKET 2 2 Meer info
1882620700 7162 air funnel cup 1 2 Meer info
1800864400 7169 HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) 1 1 Meer info
1744400200 7211 LOWER SPRAY ARM GROUP-7037 7 1 Meer info
1745300400 7220 UPPER SPRAY ARM GROUP 7037-7016 8 1 Meer info
1759600100 7221 UPPER SPRAY ARM FEED PIPE -RAL 7037 8 1 Meer info
1800720800 7228 GASKET 3 1 Meer info
1737930200 7232 NOZZLE HOLDER FOR TOP SPRAY ARM-7037 2 1 Meer info
1737960200 7234 TOP SPRAY ARM CAP-7037 2 1 Meer info
1738001600 7260 WATER SUPPLY TUBE-7037 12 1 Meer info
1749490200 7261 UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET 3 1 Meer info
1737950200 7332 TOP SPRAY ARM FEED BODY-7037 2 1 Meer info
1741502600 7510 SUMP GROUP 11 1 Meer info
1889860600 7514 CORNER PADDING GR-FRONT 10 1 Meer info
1889870300 7515 REAR CORNER PADDING GR-BACK 10 1 Meer info
1745190100 7516 PACKAGE COVER - BOTTOM 7 1 Meer info
1788430100 7517 PACKAGE COVER - UPPER 6 1 Meer info
1745010200 7518 PACKAGE STRAFOR - BOTTOM 11 1 Meer info
1885480100 7520 SUPPORT SYROPOR OF B_I KICK PLATE 4 1 Meer info
1743650100 7550 HOSE BETWEEN SUMP AND HEATER 8 1 Meer info
1888100100 7560 OVERFLOW FLOAT GROUP 8 1 Meer info
1884280100 7561 SIFHON 2 2 Meer info
1786610200 7610 METAL FILTER HALF 13 1 Meer info
1757830100 7611 HALF FILTER SUPPORT 45CM 6 1 Meer info
1760400100 7612 THREE WAY VALVE 18 1 Meer info
1796080500 7620 MICRO FILTER GROUP_3 NO RING 7 1 Meer info
1740230400 7630 COARSE FILTER-PURPLE 2 1 Meer info
1796090700 7640 FILTER GROUP 3 NO RING 9 1 Meer info
1740160300 7810 DRAIN HOSE 8 1 Meer info
1800632000 7835 HOSE BETWEEN COUNTER AND REGENERATION U. 2 1 Meer info
1800862600 7839 HOSE BETWEEN WATER SOFT AND REJEN. UNIT 3 1 Meer info
1800862300 7844 HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) 2 1 Meer info
1740050300 7910 SUMP GASKET 6 1 Meer info
1754250100 8004 FAN SUCTION TUBE - WELDED 8 1 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 6 Meer info
2002373200 8319 HOSE CLAMP (x 40.0) 1 1 Meer info
2002372100 8357 HOSE CLAMP.(Ø 34_1) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 2 Meer info
2002372500 8360 HOSE CLAMP (x 47.0) 1 1 Meer info
2002740100 8365 DRAIN HOSE HOLDER 2 1 Meer info
1732850100 9013 Hose Clamps With Screw Ø40 White 2 1 Meer info
1757470200 9019 SUMP CLAMP SCREW TYPE 2 1 Meer info
1883170100 9022 MAIN PLUG HOLDER 1 1 Meer info
1889340100 9102 SCREW 4x14 1 3 Meer info
1803430300 9104 SCREW 16mm 2 4 Meer info
1883430100 9105 SCREW (PANEL-DOOR LOCKED) 1 6 Meer info
1883430300 9105 SCREW (FILTER SUPPORT) 1 2 Meer info
1882820100 9107 INNER DOOR STOPER 1 2 Meer info
1883470100 9113 BOLT M4X8 D3731 D3421 1 12 Meer info
1883460100 9114 SCREW (INNER-OUTER DOOR) 1 4 Meer info
1801080100 9115 SCREW (3.9x9.5) 1 24 Meer info
1802860200 9153 SCREW M5x8 1 4 Meer info
1803430100 9203 SCREW (4x14) 1 2 Meer info
1831780000 9213 WASHER 1 2 Meer info
1882150100 9520 O-RING (FLOW DIVERTER) 1 2 Meer info
1882280600 9640 NOISE ISOLATION FOR TUB-7037 3 1 Meer info
1882281100 9640 NOISE ISOLATION FOR TUB 1 1 Meer info
1755880100 9649 CARD HOLDER ALUMINUN FOIL 5 1 Meer info
1732380100 9935 SALT FUNNEL 2 3 1 Meer info
1718990200 9992 DETERGENT DISPENCER CAB HAR HOLD 7037 1 1 Meer info
