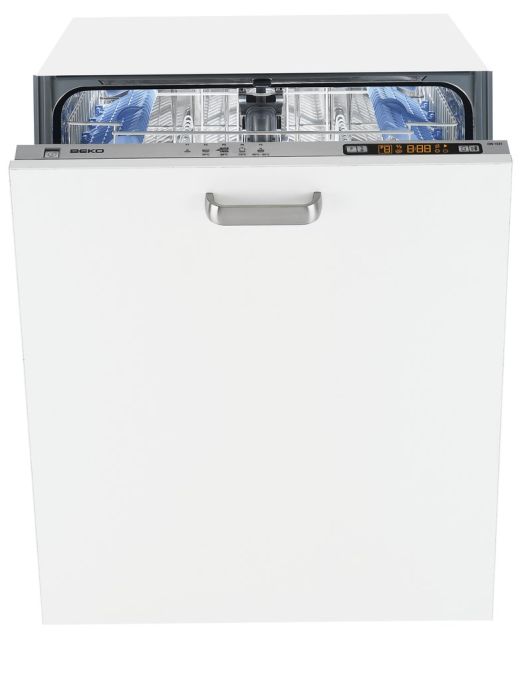

DIN1531 INTEGREERBARE VAATWASSER FULL INTEGRE
Artikelnr:
115439
Referentienr:
DIN1531
Aanbevolen verkoopprijs:
€ 999,99
(BTW & recupel inbegrepen)
Productomschrijving
5 progr. 5 temp. FULL INTEGRE
| Hoogte | 82 |
|---|---|
| Breedte | 59.8 |
| Diepte | 54.8 |
| Gewicht (Kg) | 39 |
| ArtRef | DIN1531 |
| AsogemID | 115439 |
| MPN | 7611843942 |
| Merk | BEKO |
| Going prijs | 999,99 |
| Soort | Full intégré vaatwasser |
| ArtEAN | 8690842354625 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 1881820100 | 13 | FOOT SUPPORT PART | 4 | 4 | Meer info | |||
| 1888360300 | 13 | FOOT GROUP-ADJUSTABLE | 7 | 1 | Meer info | |||
| 1888360400 | 14 | FOOT GROUP-ADJUSTABLE-RIGHT-BACK | 8 | 1 | Meer info | |||
| 1888360500 | 15 | FOOT GROUP-ADJUSTABLE-LEFT-FRONT | 8 | 1 | Meer info | |||
| 1888360600 | 16 | Rear feet Adjustable LEFT BACK | 8 | 1 | Meer info | |||
| 1888340300 | 20 | REAR ADJUSTABLE FOOT CONNECTION PART | 3 | 2 | Meer info | |||
| 1888340400 | 22 | REAR ADJUSTABLE FOOT CONNECTION PART | 2 | 2 | Meer info | |||
| 1880080292 | 40 | BOTTOM TRAY | 10 | 1 | Meer info | |||
| 1880350300 | 110 | FOOT GROUP-ADJUSTABLE | 2 | 4 | Meer info | |||
| 1800863200 | 119 | HOSE BETWEEN FAN AND SUMP | 2 | 1 | Meer info | |||
| 1887290100 | 224 | TUB COVER (2mm) | 7 | 1 | Meer info | |||
| 1880012300 | 240 | REAR BOTTOM SUPPORT | 10 | 1 | Meer info | |||
| 1741810202 | 401 | HINGE ARM-RIGHT | 8 | 1 | Meer info | |||
| 1741810102 | 402 | HINGE ARM-LEFT | 8 | 1 | Meer info | |||
| 1888190100 | 403 | HINGE ARM SUPPORT | 3 | 1 | Meer info | |||
| 1881030100 | 440 | HINGE SPRING | 5 | 2 | Meer info | |||
| 1881040300 | 470 | HINGE WHEEL-RED | 1 | 4 | Meer info | |||
| 1881050200 | 471 | HINGE ROPE GROUP-L=390(BLUE) | 1 | 2 | Meer info | |||
| 1747700500 | 472 | DOOR ADJUSTMENT GROUP-LEFT-3MM | 4 | 1 | Meer info | |||
| 1747700600 | 473 | DOOR ADJUSTMENT GROUP-RIGHT-3MM | 4 | 1 | Meer info | |||
| 1747750100 | 474 | DOOR ADJUSTING ADAPTOR | 2 | 2 | Meer info | |||
| 1736760100 | 530 | KICK PLATE SHEET | 11 | 1 | Meer info | |||
| 1880030101 | 530 | KICK PLATE SHEET | 9 | 1 | Meer info | |||
| 1741860100 | 652 | KICK PLATE INSULATION | 10 | 1 | Meer info | |||
| 1884750100 | 653 | DOOR LOCK COTTON FLEECE | 2 | 1 | Meer info | |||
| 1886840100 | 655 | INNER TUB ISOLATION-LEFT | 8 | 1 | Meer info | |||
| 1882420200 | 656 | KICK PLATE FOAM | 10 | 1 | Meer info | |||
| 1886810100 | 659 | DOOR INSULATION | 9 | 1 | Meer info | |||
| 1880071110 | 1030 | OUTER DOOR-ARC744 | 13 | 1 | Meer info | |||
| 1782980200 | 1050 | BOARD CONNECTION PART-LEFT | 3 | 1 | Meer info | |||
| 1782980100 | 1051 | BOARD CONNECTION PART-RIGHT | 3 | 1 | Meer info | |||
| 1749500300 | 1200 | INNER DOOR GR | 27 | 1 | Meer info | |||
| 1880020100 | 1201 | LOWER SUPPORT- FRONT | 8 | 1 | Meer info | |||
| 1882270300 | 1230 | DOOR INSULATION | 10 | 1 | Meer info | |||
| 1750900400 | 1300 | DOOR LOCK GROUP PA6-NAT-I-V0 45-60 CM | 7 | 1 | Meer info | |||
| 1881970100 | 1310 | DOOR LOCK HOOK | 1 | 1 | Meer info | |||
| 1749190100 | 1910 | DOOR SEALING GASKET- L=1775 | 10 | 1 | Meer info | |||
| 1882470100 | 1920 | DOOR SEALING GASKET - BOTTOM | 7 | 1 | Meer info | |||
| 1749003400 | 2000 | STRUCTURE GROUP | 33 | 1 | Meer info | |||
| 1749050500 | 2001 | TOP CORNER BRACKET - LEFT | 1 | 1 | Meer info | |||
| 1749050600 | 2002 | TOP CORNER BRACKET - RIGHT | 1 | 1 | Meer info | |||
| 1740810400 | 2411 | SHELF GROUP - ADJUSTABLE | 4 | 4 | Meer info | |||
| 1885800600 | 2413 | UPPER BASKET WHEEL GROUP | 4 | 8 | Meer info | |||
| 1799500400 | 2414 | UPPER BASKET GROUP | 22 | 1 | Meer info | |||
| 1759002715 | 2420 | LOWER BASKET GROUP | 24 | 1 | Meer info | |||
| 1742960100 | 2421 | lower basket stoper plastic whell gr. | 1 | 2 | Meer info | |||
| 1782020100 | 2421 | GRD LOWER BASKET WHEEL GROUP | 4 | 6 | Meer info | |||
| 1759020200 | 2423 | PLATE HOLDER-LEFT | 8 | 2 | Meer info | |||
| 1759030200 | 2424 | PLATE HOLDER-RIGHT | 9 | 2 | Meer info | |||
| 1758930300 | 2425 | LOWER BASKET FOLDING PART-LEFT-BACK-7037 | 4 | 1 | Meer info | |||
| 1758940300 | 2426 | LOWER BASKET FOLDING PART | 4 | 1 | Meer info | |||
| 1756391800 | 2429 | LOWER BASKET HANDLE | 4 | 1 | Meer info | |||
| 1751500400 | 2430 | CUTLERY BASKET GROUP | 12 | 1 | Meer info | |||
| 1751520400 | 2434 | CUTLERY BASKET HANDLE | 4 | 1 | Meer info | |||
| 1751530200 | 2437 | CUTLERY BASKET SEPARATOR-7037 | 8 | 2 | Meer info | |||
| 1758920200 | 2444 | LOWER BASKET CLIPS-RAL 7037 | 1 | 4 | Meer info | |||
| 1752600400 | 2609 | RAIL WHEEL GROUP-RAL7037 | 2 | 4 | Meer info | |||
| 1880240300 | 2610 | RAIL (430 STAINLESS STEEL) | 8 | 2 | Meer info | |||
| 1732840100 | 2611 | RAIL CAP- FRONT&BACK -RAL7037 | 2 | 2 | Meer info | |||
| 1887460400 | 2612 | RAIL CAP | 2 | 2 | Meer info | |||
| 1748940200 | 2613 | RAIL WHEEL SCREW | 1 | 8 | Meer info | |||
| 1749910100 | 2615 | RAIL WHEEL HOLDER | 2 | 4 | Meer info | |||
| 1740701800 | 4000 | MOTOR_SPRAY PUMP | 31 | 1 | Meer info | |||
| 1880390100 | 4001 | MOTOR FIXING CAP D3731 D3421 | 2 | 1 | Meer info | |||
| 1740150100 | 4002 | MOTOR BRACKET GROUP | 4 | 1 | Meer info | |||
| 1881440200 | 4003 | DAMPENING RUBBER TPV | 3 | 1 | Meer info | |||
| 1740600100 | 4004 | MOTOR BRACKET GROUP | 7 | 1 | Meer info | |||
| 1883790200 | 4200 | CAPACITOR | 10 | 1 | Meer info | |||
| 1883790400 | 4200 | CAPACITOR | 9 | 0 | Meer info | |||
| 1757460100 | 4210 | INTERFERENCE FILTER | 12 | 1 | Meer info | |||
| 1740300300 | 4300 | DRAIN PUMP GROUP | 18 | 0 | Meer info | |||
| 1740301000 | 4300 | DRAIN PUMP GROUP | 18 | 0 | Meer info | |||
| 1748200100 | 4300 | ALUMINIUM WRAPPED DISCHARGE ENGINE | 17 | 1 | Meer info | |||
| 1888130100 | 4500 | FLOW THROUGH HEATER | 22 | 0 | Meer info | |||
| 1888130200 | 4500 | FLOW THROUGH HEATER | 21 | 0 | Meer info | |||
| 1888130300 | 4500 | FLOW THROUGH HEATER | 21 | 0 | Meer info | |||
| 1888150100 | 4500 | FLOW THROUGH HEATER | 21 | 1 | Meer info | |||
| 1719970100 | 4504 | SOLO PUMP INLET HOSE - 2 | 4 | 1 | Meer info | |||
| 1892101600 | 4901 | MAIN PLUG GROUP 220-230 V smart 1 | 11 | 1 | Meer info | |||
| 1749580100 | 5056 | TURBIDITY FRAME_2K | 4 | 1 | Meer info | |||
| 1898900400 | 5058 | TURBIDITY CARD AND LED HOLDER GR-WHITE | 11 | 1 | Meer info | |||
| 1764950100 | 5750 | REGENERATION VALVE GR SNAP FIT | 11 | 1 | Meer info | |||
| 1744290100 | 5760 | over_floating_house_3 | 1 | 1 | Meer info | |||
| 1760900100 | 5830 | COUNTER GROUP | 9 | 1 | Meer info | |||
| 1768000100 | 6160 | SALT INDICATOR SWITCH | 8 | 1 | Meer info | |||
| 1718830100 | 6161 | RINSE AID SWITCH | 6 | 1 | Meer info | |||
| 1732090100 | 6210 | ROLD ON OFF SWITCH 2.5 mm | 9 | 1 | Meer info | |||
| 1883240100 | 6311 | OVER FLOW SWITCH (LOW END) D3731 D3421 | 6 | 1 | Meer info | |||
| 1760940100 | 6315 | COUNTER PCB_4 | 7 | 1 | Meer info | |||
| 1731980300 | 6330 | NEW DOOR SWITCH | 7 | 1 | Meer info | |||
| 1744950100 | 6506 | INNER TUB ISOLATION-UPPER | 7 | 1 | Meer info | |||
| 1718601700 | 6800 | DETERGENT DISPENSER GROUP | 18 | 1 | Meer info | |||
| 1719000700 | 6800 | DETERGENT DISPENSER GROUP -RAL 7037 | 22 | 0 | Meer info | |||
| 1712730100 | 6801 | DETERGENT DISPENSER GASKET | 5 | 0 | Meer info | |||
| 1718670100 | 6801 | DETERGENT DISPENSER GASKET | 9 | 1 | Meer info | |||
| 1831470000 | 6802 | THERMOACTUATOR D3731 D3421 | 13 | 1 | Meer info | |||
| 1712710100 | 6811 | RINSE AID GASKET | 8 | 0 | Meer info | |||
| 1718750100 | 6811 | RINSE AID GASKET | 3 | 1 | Meer info | |||
| 1718640100 | 6812 | COVER SPRING | 1 | 2 | Meer info | |||
| 1887740400 | 6920 | NTC GROUP | 7 | 1 | Meer info | |||
| 1760360100 | 7000 | T&P AQUASTOP NEWDESIGN | 22 | 1 | Meer info | |||
| 1889010300 | 7011 | HOSE HOLDER LOWER PART RAL 7037 | 3 | 1 | Meer info | |||
| 1889020200 | 7012 | HOSE HOLDER UPPER PART RAL 7037 | 2 | 1 | Meer info | |||
| 1764900100 | 7100 | WATER_SOFTENER_ASSY_2012 | 20 | 1 | Meer info | |||
| 1742450100 | 7102 | WATER SOFTENER NUT-RAL7037 | 2 | 1 | Meer info | |||
| 1766470100 | 7103 | SOFTONER O-RING | 2 | 1 | Meer info | |||
| 1744250100 | 7104 | O-RING - SALT BOX- BELOW | 3 | 2 | Meer info | |||
| 1883910300 | 7108 | WATER SOFTENER CAP GASKET | 3 | 1 | Meer info | |||
| 1766560100 | 7140 | WATER SOFTONER CAP GROUP-RAL7016 | 5 | 1 | Meer info | |||
| 1741600500 | 7160 | REGENERATION UNIT GR | 11 | 1 | Meer info | |||
| 1882630200 | 7161 | AIR FUNNEL GASKET | 2 | 2 | Meer info | |||
| 1882620700 | 7162 | air funnel cup | 1 | 2 | Meer info | |||
| 1800862100 | 7169 | HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) | 1 | 1 | Meer info | |||
| 1746100300 | 7211 | LOWER SPRAY ARM GROUP | 6 | 1 | Meer info | |||
| 1746200600 | 7220 | UPPER SPRAY ARM GROUP 7016 | 8 | 1 | Meer info | |||
| 1759600100 | 7221 | UPPER SPRAY ARM FEED PIPE -RAL 7037 | 8 | 1 | Meer info | |||
| 1800720800 | 7228 | GASKET | 3 | 1 | Meer info | |||
| 1737930200 | 7232 | NOZZLE HOLDER FOR TOP SPRAY ARM-7037 | 2 | 1 | Meer info | |||
| 1737940200 | 7234 | TOP SPRAY ARM NOZZLE-7037 | 3 | 1 | Meer info | |||
| 1738001700 | 7260 | WATER SUPPLY TUBE-7037 | 11 | 1 | Meer info | |||
| 1749490200 | 7261 | UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET | 3 | 1 | Meer info | |||
| 1741502600 | 7510 | SUMP GROUP | 11 | 1 | Meer info | |||
| 1889860600 | 7514 | CORNER PADDING GR-FRONT | 10 | 1 | Meer info | |||
| 1889870300 | 7515 | REAR CORNER PADDING GR-BACK | 10 | 1 | Meer info | |||
| 1788060100 | 7517 | UPPER PACKAGE COVER | 7 | 1 | Meer info | |||
| 1890080200 | 7518 | PACKAGE STRAFOR - BOTTOM | 12 | 1 | Meer info | |||
| 1885480100 | 7520 | SUPPORT SYROPOR OF B_I KICK PLATE | 4 | 1 | Meer info | |||
| 1740110100 | 7550 | HOSE BETWEEN SUMP AND HEATER | 5 | 1 | Meer info | |||
| 1888100100 | 7560 | OVERFLOW FLOAT GROUP | 8 | 1 | Meer info | |||
| 1884280100 | 7561 | SIFHON | 2 | 2 | Meer info | |||
| 1740400100 | 7610 | METAL FILTER GROUP (Rv.0.8-1.75) | 14 | 1 | Meer info | |||
| 1740900600 | 7611 | FILTER SUPPORT GROUP-RAL 7037 | 4 | 1 | Meer info | |||
| 1760400100 | 7612 | THREE WAY VALVE | 18 | 1 | Meer info | |||
| 1740220700 | 7620 | MICRO FILTER GROUP-7037 | 10 | 1 | Meer info | |||
| 1740230400 | 7630 | COARSE FILTER-PURPLE | 2 | 1 | Meer info | |||
| 1740800700 | 7640 | FILTER GROUP | 8 | 1 | Meer info | |||
| 1740160300 | 7810 | DRAIN HOSE | 8 | 1 | Meer info | |||
| 1740170100 | 7831 | HOSE (SUMP OUTLET) | 10 | 1 | Meer info | |||
| 1800632000 | 7835 | HOSE BETWEEN COUNTER AND REGENERATION U. | 2 | 1 | Meer info | |||
| 1800866600 | 7839 | HOSE. | 4 | 1 | Meer info | |||
| 1800862300 | 7844 | HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) | 2 | 1 | Meer info | |||
| 1740050300 | 7910 | SUMP GASKET | 6 | 1 | Meer info | |||
| 1719440200 | 8000 | FAN MOTOR GROUP | 18 | 1 | Meer info | |||
| 1719580200 | 8003 | FAN OUTLET PIPE | 3 | 1 | Meer info | |||
| 1754250100 | 8004 | FAN SUCTION TUBE - WELDED | 8 | 1 | Meer info | |||
| 2002370900 | 8318 | HOSE CLAMP (Ø 16.4) | 1 | 3 | Meer info | |||
| 2002373200 | 8319 | HOSE CLAMP (x 40.0) | 1 | 2 | Meer info | |||
| 2002370800 | 8353 | HOSE CLAMP (x 15.88) | 1 | 3 | Meer info | |||
| 2002372100 | 8357 | HOSE CLAMP.(Ø 34_1) | 1 | 1 | Meer info | |||
| 2002372200 | 8358 | HOSE CLAMP (├© 35.6) | 1 | 1 | Meer info | |||
| 2002372400 | 8359 | HOSE CLAMP (Ø 38.8) | 1 | 1 | Meer info | |||
| 2002372500 | 8360 | HOSE CLAMP (x 47.0) | 1 | 1 | Meer info | |||
| 2002740100 | 8365 | DRAIN HOSE HOLDER | 2 | 1 | Meer info | |||
| 1732850100 | 9013 | Hose Clamps With Screw Ø40 White | 2 | 1 | Meer info | |||
| 1883170100 | 9022 | MAIN PLUG HOLDER | 1 | 1 | Meer info | |||
| 1889340100 | 9102 | SCREW 4x14 | 1 | 5 | Meer info | |||
| 1803430300 | 9104 | SCREW 16mm | 2 | 4 | Meer info | |||
| 1883430100 | 9105 | SCREW (PANEL-DOOR LOCKED) | 1 | 6 | Meer info | |||
| 1889270100 | 9106 | SCREW TERMINAL GROUP - REAR BRACKET | 1 | 2 | Meer info | |||
| 1882820100 | 9107 | INNER DOOR STOPER | 1 | 2 | Meer info | |||
| 1883470100 | 9113 | BOLT M4X8 D3731 D3421 | 1 | 16 | Meer info | |||
| 1883460100 | 9114 | SCREW (INNER-OUTER DOOR) | 1 | 4 | Meer info | |||
| 1801080100 | 9115 | SCREW (3.9x9.5) | 1 | 26 | Meer info | |||
| 1802860200 | 9153 | SCREW M5x8 | 1 | 4 | Meer info | |||
| 1883440300 | 9155 | SCREW (5x22)(MOTOR) | 1 | 1 | Meer info | |||
| 1803430100 | 9203 | SCREW (4x14) | 1 | 4 | Meer info | |||
| 1831780000 | 9213 | WASHER | 1 | 4 | Meer info | |||
| 1882150100 | 9520 | O-RING (FLOW DIVERTER) | 1 | 2 | Meer info | |||
| 1882280200 | 9640 | NOISE ISOLATION FOR TUB RAL 7037. | 4 | 1 | Meer info | |||
| 1882281100 | 9640 | NOISE ISOLATION FOR TUB | 1 | 1 | Meer info | |||
| 1732380100 | 9935 | SALT FUNNEL 2 | 3 | 1 | Meer info | |||
| 1718990200 | 9992 | DETERGENT DISPENCER CAB HAR HOLD 7037 | 1 | 1 | Meer info |
