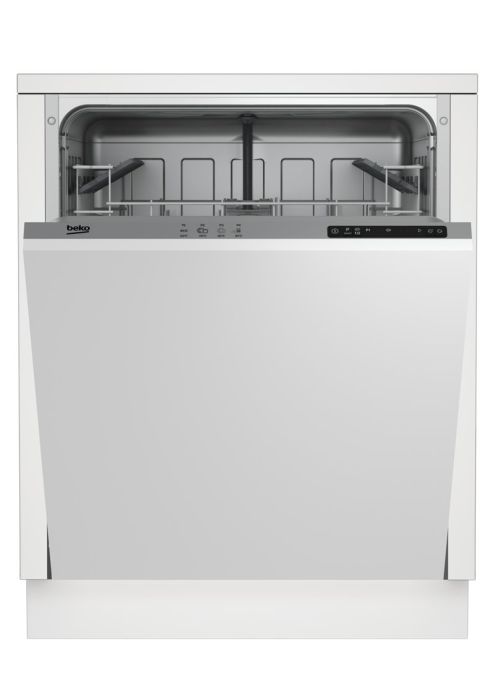

DIN14211 INTEGREERBARE VAATWASSER FULL INTEGRE

Artikelnr: 115677
Referentienr: DIN14211
Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

4 progr. 5 temp. FULL INTEGRE
Meer informatie
Hoogte 82
Breedte 59.8
Diepte 54.8
Gewicht (Kg) 34.3
Hoogte met verpakking 85.9
Breedte met verpakking 64.4
Diepte met verpakking 66.1
Gewicht VPE (Kg) 37.3
ArtRef DIN14211
AsogemID 115677
MPN 7659453942
Merk BEKO
Going prijs 999,99
Soort Full intégré vaatwasser
ArtEAN 8690842108051
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
1783200400 14 angora back side adjustable foot right 7 1 Meer info
1783200300 16 angora back side adjustable foot gr left 7 1 Meer info
1757740200 20 REAR ADJUSTABLE FOOT CONNECTION PART_3 1 2 Meer info
1783130100 40 ANGORA BOTTOM TRAY 11 1 Meer info
1783130200 40 ANGORA BOTTOM TRAY 9 0 Meer info
2906860200 106 WATER INLET HOSE ASSEMBLY L=1550 10 1 Meer info
1783660300 110 ANGORA BUILT UNDER FOOT 2 4 Meer info
1800863200 119 HOSE BETWEEN FAN AND SUMP 2 1 Meer info
1764120102 220 SIDE PANEL-LEFT 15 1 Meer info
1764120202 221 SIDE PANEL-RIGHT 15 1 Meer info
1783030201 401 HINGE ARM-RIGHT 8 1 Meer info
1783030101 402 HINGE ARM-LEFT 8 1 Meer info
1888190100 403 HINGE ARM SUPPORT 3 1 Meer info
1783160300 440 ANGORA HINGE SPRING 5 2 Meer info
1783140100 470 ANGORA U GINGE ROLLER 2 2 Meer info
1881040200 470 HINGE WHEEL 1 2 Meer info
1881050300 471 HINGE ROPE GROUP L=333-PURPLE 4 2 Meer info
1783060200 530 ANGORA BI KICK PLATE STEEL 16 1 Meer info
1882430900 650 INNER TUB INSULATION 11 1 Meer info
1783840100 652 ANGORA BI KICK PLATE PAD 5 1 Meer info
1731490100 654 KICK PLATE FELT 6 1 Meer info
1783950100 660 ANGORA KICK PLATE ISOLATION 12 1 Meer info
1880071110 1030 OUTER DOOR-ARC744 13 1 Meer info
1746970100 1034 HANDLE AUXILARY PART 1 1 Meer info
1782980200 1050 BOARD CONNECTION PART-LEFT 3 1 Meer info
1782980100 1051 BOARD CONNECTION PART-RIGHT 3 1 Meer info
1737380100 1200 INNER DOOR BITUMEN GRD 23 1 Meer info
1783050100 1201 ANGORA FRONT LOWER SUPPORT SHEET 8 1 Meer info
1882270300 1230 DOOR INSULATION 10 1 Meer info
1510600200 1300 SELFRESETING LOCK GROUP 5 1 Meer info
1764130100 1310 HITIT_LOCK_HOOK-7016 2 1 Meer info
1760980100 1311 DOOR LOCK HOOK SUPPORT BI 1 1 Meer info
1749190100 1910 DOOR SEALING GASKET- L=1775 10 1 Meer info
1882470100 1920 DOOR SEALING GASKET - BOTTOM 7 1 Meer info
1783007300 2000 ANGORA STRUCTURE GROUP 35 1 Meer info
1783400100 2001 ANGORA CORNER BRACKET 1 1 Meer info
1783400200 2002 ANGORA CORNER BRACKET 1 1 Meer info
1783700200 2004 ANGORA BUILT-IN BOTTOM TRAY GR 20 1 Meer info
1751308800 2414 UPPER RACK GR. RAL 7035-1 24 1 Meer info
1751440800 2417 UPPER BASKET MECHANISM-RIGHT-PURPLE 9 1 Meer info
1758970900 2420 LOWER BASKET GROUP 21 1 Meer info
1742960100 2421 lower basket stoper plastic whell gr. 1 2 Meer info
1782020100 2421 GRD LOWER BASKET WHEEL GROUP 4 6 Meer info
1769330200 2430 BEKO FIXED CUTLERY BASKET GROUP 2014 14 1 Meer info
1768930100 2431 BEKO FIXED CUTLERY BASKET 2014 10 1 Meer info
1769340100 2437 BEKO 60CM CUTLERY BASKET SEPERATOR 2 2 Meer info
1752600400 2609 RAIL WHEEL GROUP-RAL7037 2 4 Meer info
1880240300 2610 RAIL (430 STAINLESS STEEL) 8 2 Meer info
1732840100 2611 RAIL CAP- FRONT&BACK -RAL7037 2 4 Meer info
1748940200 2613 RAIL WHEEL SCREW 1 8 Meer info
1749910100 2615 RAIL WHEEL HOLDER 2 4 Meer info
1751440700 2716 UPPER BASKET MECHANISM-LEFT-PURPLE 9 1 Meer info
1769570100 3015 PC INLAY-E5-E6 8 1 Meer info
1511290200 3320 ON-OFF BUTTON - BLACK 4 1 Meer info
1511250200 3323 PROGRAM DELAY BUTTON - BLACK 4 1 Meer info
1756850200 3324 DELAY BUTTON - BLACK 4 1 Meer info
1740704500 4000 MOTOR_SPRAY PUMP 30 1 Meer info
1783280100 4001 Angora motor connectıon part2 2 1 Meer info
1783290100 4003 ANGORA DAMPER DISK RUBBER 1 1 Meer info
1883790200 4200 CAPACITOR 10 0 Meer info
1883790400 4200 CAPACITOR 9 1 Meer info
1757160100 4210 Iskra noise filter 10 1 Meer info
1740301000 4300 DRAIN PUMP GROUP 18 0 Meer info
1748200100 4300 ALUMINIUM WRAPPED DISCHARGE ENGINE 17 1 Meer info
1888130100 4500 FLOW THROUGH HEATER 22 0 Meer info
1888130200 4500 FLOW THROUGH HEATER 21 1 Meer info
1888130300 4500 FLOW THROUGH HEATER 21 0 Meer info
1888150100 4500 FLOW THROUGH HEATER 21 0 Meer info
1719970100 4504 SOLO PUMP INLET HOSE - 2 4 1 Meer info
1745691800 4801 CABLE HARNESS 4 1 Meer info
1751590200 4901 MAIN PLUG-CABLE PROTECTION GR 0 1 Meer info
1769510200 5051 E5-E6 CARD HOLDER FRONT PART 6 1 Meer info
1769520200 5052 E5-E6 CARD HOLDER BACK PART 5 1 Meer info
1769530200 5065 E5-E6 BOTTON HOLDER PART 4 1 Meer info
1883550200 5710 WATER INLET VALVE 13 1 Meer info
1883570300 5710 WATER INLET VALVE 11 0 Meer info
1886740200 5710 WATER INLET VALVE 13 0 Meer info
1887760100 5710 WATER INLET VALVE 8 0 Meer info
1764950100 5750 REGENERATION VALVE GR SNAP FIT 11 1 Meer info
1761920100 5760 HITIT OVER FLOATING CASING 2 1 Meer info
1760900100 5830 COUNTER GROUP 9 1 Meer info
1768000100 6160 SALT INDICATOR SWITCH 8 1 Meer info
1718830100 6161 RINSE AID SWITCH 6 1 Meer info
1761940100 6311 hitit_micro_switch 8 1 Meer info
1761940200 6311 hitit_micro_switch_zingear 5 0 Meer info
1760940100 6315 COUNTER PCB_4 7 1 Meer info
1731980300 6330 NEW DOOR SWITCH 7 1 Meer info
1718601700 6800 DETERGENT DISPENSER GROUP 18 1 Meer info
1719000700 6800 DETERGENT DISPENSER GROUP -RAL 7037 22 0 Meer info
1712730100 6801 DETERGENT DISPENSER GASKET 5 0 Meer info
1718670100 6801 DETERGENT DISPENSER GASKET 9 1 Meer info
1831470000 6802 THERMOACTUATOR D3731 D3421 13 1 Meer info
1712710100 6811 RINSE AID GASKET 8 0 Meer info
1718750100 6811 RINSE AID GASKET 3 1 Meer info
1718640100 6812 COVER SPRING 1 2 Meer info
1887740400 6920 NTC GROUP 7 1 Meer info
1764900100 7100 WATER_SOFTENER_ASSY_2012 20 1 Meer info
1742450100 7102 WATER SOFTENER NUT-RAL7037 2 1 Meer info
1766470100 7103 SOFTONER O-RING 2 1 Meer info
1744250100 7104 O-RING - SALT BOX- BELOW 3 2 Meer info
1883910300 7108 WATER SOFTENER CAP GASKET 3 1 Meer info
1766560100 7140 WATER SOFTONER CAP GROUP-RAL7016 5 1 Meer info
1741600500 7160 REGENERATION UNIT GR 11 1 Meer info
1882630200 7161 AIR FUNNEL GASKET 2 2 Meer info
1882620700 7162 air funnel cup 1 2 Meer info
1746100300 7211 LOWER SPRAY ARM GROUP 6 1 Meer info
1746200600 7220 UPPER SPRAY ARM GROUP 7016 8 1 Meer info
1759600100 7221 UPPER SPRAY ARM FEED PIPE -RAL 7037 8 1 Meer info
1800720800 7228 GASKET 3 1 Meer info
1737930200 7232 NOZZLE HOLDER FOR TOP SPRAY ARM-7037 2 1 Meer info
1737940200 7234 TOP SPRAY ARM NOZZLE-7037 3 1 Meer info
1738001700 7260 WATER SUPPLY TUBE-7037 11 1 Meer info
1749490200 7261 UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET 3 1 Meer info
1741503100 7510 SUMP GROUP 11 1 Meer info
1889860600 7514 CORNER PADDING GR-FRONT 10 1 Meer info
1889870300 7515 REAR CORNER PADDING GR-BACK 10 1 Meer info
1788060100 7517 UPPER PACKAGE COVER 7 1 Meer info
1764150100 7518 HÄ°TÄ°T PACKAGING BOTTOM STYROPHOR 12 0 Meer info
1764150400 7518 ATLANTIS PACKAGING BOTTOM STYROPHOR 11 1 Meer info
1885480100 7520 SUPPORT SYROPOR OF B_I KICK PLATE 4 1 Meer info
1740110100 7550 HOSE BETWEEN SUMP AND HEATER 5 1 Meer info
1752350100 7561 ANGORA OWERFLOW SIPHON 1 2 Meer info
1786610200 7610 METAL FILTER HALF 13 1 Meer info
1786790100 7611 HALF FILTER SUPPORT GR 6 1 Meer info
1796080500 7620 MICRO FILTER GROUP_3 NO RING 7 1 Meer info
1740230300 7630 COARSE FILTER-7016 8 1 Meer info
1796092100 7640 FILTER GROUP COMPLETE 3 NO RING 9 1 Meer info
1740161400 7810 DRAIN HOSE 8 1 Meer info
1731840100 7831 HOSE 5 1 Meer info
1800631600 7834 HOSE (VALVE-COUNTER) 2 1 Meer info
1800632000 7835 HOSE BETWEEN COUNTER AND REGENERATION U. 2 1 Meer info
1800866600 7839 HOSE. 4 1 Meer info
1740050300 7910 SUMP GASKET 6 1 Meer info
1754250100 8004 FAN SUCTION TUBE - WELDED 8 1 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 4 Meer info
2002373200 8319 HOSE CLAMP (x 40.0) 1 1 Meer info
2002370800 8353 HOSE CLAMP (x 15.88) 1 3 Meer info
2002372100 8357 HOSE CLAMP.(Ø 34_1) 1 1 Meer info
2002372200 8358 HOSE CLAMP (├© 35.6) 1 2 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2002372500 8360 HOSE CLAMP (x 47.0) 1 1 Meer info
1783370100 8365 ANGORA WATER INLET VALVE HOSE HOLDER 2 2 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 6 Meer info
1732850100 9013 Hose Clamps With Screw Ø40 White 2 1 Meer info
1783180100 9022 ANGORA NETWORK CABLE HOLDER COVER 2 1 Meer info
1831680000 9101 SCREW (WATER INLET VALVE) 1 1 Meer info
1889340100 9102 SCREW 4x14 1 3 Meer info
1883430100 9105 SCREW (PANEL-DOOR LOCKED) 1 6 Meer info
1883430300 9105 SCREW (FILTER SUPPORT) 1 2 Meer info
1882820100 9107 INNER DOOR STOPER 1 2 Meer info
1883470100 9113 BOLT M4X8 D3731 D3421 1 8 Meer info
1883460100 9114 SCREW (INNER-OUTER DOOR) 1 4 Meer info
1731640100 9115 WIDE HEADED SCREW 1 2 Meer info
1801080100 9115 SCREW (3.9x9.5) 1 8 Meer info
1802860200 9153 SCREW M5x8 1 4 Meer info
1883440400 9155 SCREW (5x14) 1 4 Meer info
1883440500 9155 PT screw 1 1 Meer info
1803430100 9203 SCREW (4x14) 1 10 Meer info
1831780000 9213 WASHER 1 4 Meer info
1784160100 9640 ANGORA LARGE UPPER SOUND GASKET 5 1 Meer info
1783720100 9641 ANGORA BUILT IN NOISE INSULATOR 5 1 Meer info
1783720200 9642 ANGORA BUILT IN NOISE INSULATOR 5 1 Meer info
1732380100 9935 SALT FUNNEL 2 3 1 Meer info
1731480100 9938 KICK PLATE RUBBER 17 1 Meer info
1764050100 9971 Hitit rear upper traverse 8 1 Meer info
1764050200 9971 Hitit rear upper traverse 8 0 Meer info
1783190100 9973 ANGORA 1MM NETWORK CABLE LOCK 2 1 Meer info
1761930100 9975 HÄ°TÄ°T FLOAT STYROPOR 1 1 Meer info
1718990200 9992 DETERGENT DISPENCER CAB HAR HOLD 7037 1 1 Meer info
1783410200 9996 BUILT IN CENTERING PLUG-7037 1 2 Meer info
Mode d'emploi (16.46 MB)
Handleiding (13.96 MB)
