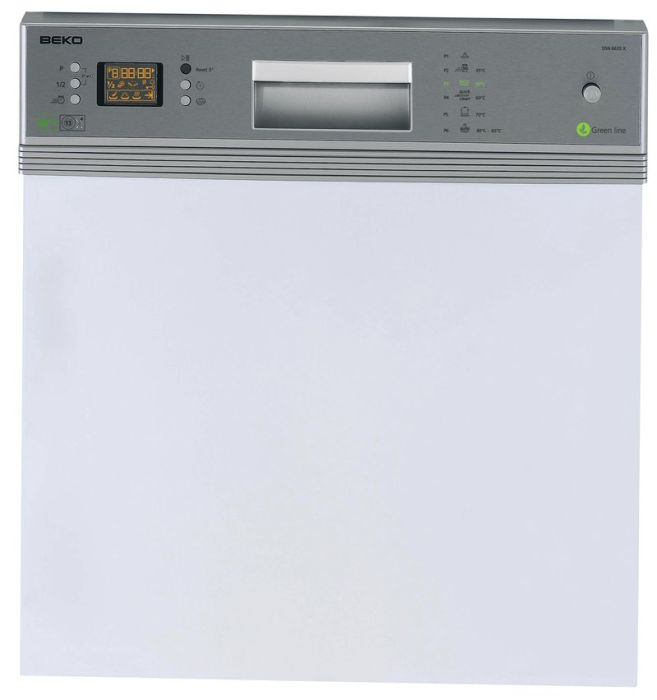

DSN6635X INTEGREERBARE VAATWASSER BLDC

Artikelnr: 115445
Referentienr: DSN6635X
Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

6 progr. 4 temp. INOX paneel
Meer informatie
Hoogte 82
Breedte 59.8
Diepte 54.8
Gewicht (Kg) 40
Jaarlijks verbruik (kWh) 261
ArtRef DSN6635X
AsogemID 115445
MPN 7650733942
Merk BEKO
Going prijs 999,99
Soort Integreerbare vaatwasser
ArtEAN 8690769390119
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
1783200400 14 angora back side adjustable foot right 7 1 Meer info
1783200300 16 angora back side adjustable foot gr left 7 1 Meer info
1757740200 20 REAR ADJUSTABLE FOOT CONNECTION PART_3 1 2 Meer info
1783130100 40 ANGORA BOTTOM TRAY 11 1 Meer info
1783130200 40 ANGORA BOTTOM TRAY 9 0 Meer info
1783660300 110 ANGORA BUILT UNDER FOOT 2 4 Meer info
1800863200 119 HOSE BETWEEN FAN AND SUMP 2 1 Meer info
1764120102 220 SIDE PANEL-LEFT 15 1 Meer info
1764120202 221 SIDE PANEL-RIGHT 15 1 Meer info
1783030201 401 HINGE ARM-RIGHT 8 1 Meer info
1783030101 402 HINGE ARM-LEFT 8 1 Meer info
1888190100 403 HINGE ARM SUPPORT 3 1 Meer info
1783160300 440 ANGORA HINGE SPRING 5 2 Meer info
1783140100 470 ANGORA U GINGE ROLLER 2 2 Meer info
1881040200 470 HINGE WHEEL 1 2 Meer info
1881050300 471 HINGE ROPE GROUP L=333-PURPLE 4 2 Meer info
1783060200 530 ANGORA BI KICK PLATE STEEL 16 1 Meer info
1744930100 649 REAR FRAME COTTON FLEECE 16 1 Meer info
1882430900 650 INNER TUB INSULATION 11 1 Meer info
1783840100 652 ANGORA BI KICK PLATE PAD 5 1 Meer info
1731490100 654 KICK PLATE FELT 6 1 Meer info
1886810100 659 DOOR INSULATION 9 1 Meer info
1880071110 1030 OUTER DOOR-ARC744 13 1 Meer info
1746970100 1034 HANDLE AUXILARY PART 1 1 Meer info
1782980200 1050 BOARD CONNECTION PART-LEFT 3 1 Meer info
1782980100 1051 BOARD CONNECTION PART-RIGHT 3 1 Meer info
1737380300 1200 INNER DOOR BITUMEN GRD 23 1 Meer info
1783050100 1201 ANGORA FRONT LOWER SUPPORT SHEET 8 1 Meer info
1882270300 1230 DOOR INSULATION 10 1 Meer info
1510600300 1300 SELFRESETING LOCK GROUP 6 1 Meer info
1764130100 1310 HITIT_LOCK_HOOK-7016 2 1 Meer info
1760980100 1311 DOOR LOCK HOOK SUPPORT BI 1 1 Meer info
1749190100 1910 DOOR SEALING GASKET- L=1775 10 1 Meer info
1882470100 1920 DOOR SEALING GASKET - BOTTOM 7 1 Meer info
1783000900 2000 ANGORA STRUCTURE GROUP 35 1 Meer info
1783400100 2001 ANGORA CORNER BRACKET 1 1 Meer info
1783400200 2002 ANGORA CORNER BRACKET 1 1 Meer info
1783700200 2004 ANGORA BUILT-IN BOTTOM TRAY GR 20 1 Meer info
1751400500 2411 SHELF GROUP-RAL 7016 5 4 Meer info
1732500900 2412 MULTI PURPOSE SELF GR.LEFT 5 1 Meer info
1732501000 2412 MULTI PURPOSE SELF GR.RIGHT 5 1 Meer info
1751301600 2414 UPPER RACK GR. RAL 7037 25 1 Meer info
1751440800 2417 UPPER BASKET MECHANISM-RIGHT-PURPLE 9 1 Meer info
1759001115 2420 LOWER BASKET GROUP 24 1 Meer info
1742960100 2421 lower basket stoper plastic whell gr. 1 2 Meer info
1782020100 2421 GRD LOWER BASKET WHEEL GROUP 4 6 Meer info
1758980600 2422 MULTI PURPOSE SELF WIRE-7037 14 1 Meer info
1781930200 2423 GRD FOLDABLE PEG LEFT BACK_1 8 1 Meer info
1781910200 2424 GRD FOLDABLE PEG RIGHT BACK 8 1 Meer info
1781860200 2426 GRD LOWER BASKET LONG FOLDING PART 2 4 Meer info
1756391800 2429 LOWER BASKET HANDLE 4 1 Meer info
1751500400 2430 CUTLERY BASKET GROUP 12 1 Meer info
1751520400 2434 CUTLERY BASKET HANDLE 4 1 Meer info
1751530200 2437 CUTLERY BASKET SEPARATOR-7037 8 2 Meer info
1781940200 2447 GRD FOLDABLE PEG LEFT BACK_2 8 1 Meer info
1781920200 2450 GRD FOLDABLE PEG RIGHT BACK_2 8 1 Meer info
1759090200 2517 UPPER BASKET CLIPS-RAL 7037 2 5 Meer info
1751370200 2518 FOLDING PART CLIPS-RIGHT-RAL 7037 2 1 Meer info
1781880200 2519 GRD LOWER BASKET LOW CLIPS 1 4 Meer info
1781880100 2520 GRD LOWER BASKET LOW CLIPS 1 4 Meer info
1752600400 2609 RAIL WHEEL GROUP-RAL7037 2 4 Meer info
1880240300 2610 RAIL (430 STAINLESS STEEL) 8 2 Meer info
1732840100 2611 RAIL CAP- FRONT&BACK -RAL7037 2 4 Meer info
1748940200 2613 RAIL WHEEL SCREW 1 8 Meer info
1749910100 2615 RAIL WHEEL HOLDER 2 4 Meer info
1751322400 2715 UPPER BASKET SUPPORT WIRE 10 1 Meer info
1751342400 2716 UPPER BASKET SUPPORT WIRE 9 1 Meer info
1751440700 2716 UPPER BASKET MECHANISM-LEFT-PURPLE 9 1 Meer info
1781790200 2719 MULTISTAGE FOLDING PART-PURPLE 3 1 Meer info
1755770100 3014 DISPLAY GASKET 2 1 Meer info
1891502200 3050 PANEL LEVEL ADJUSTMENT PART GR. 15 1 Meer info
1783900400 4000 ANGORA QUADRO CIRCULATION PUMP GROUP 31 1 Meer info
1757420100 4001 CIRCULATION PUMP DAMPENING RUBBER 2 3 Meer info
1783090100 4001 ANGORA QUADRO MOTOR HANGING BRACKET 4 1 Meer info
1757460100 4210 INTERFERENCE FILTER 12 1 Meer info
1740301000 4300 DRAIN PUMP GROUP 18 0 Meer info
1748200100 4300 ALUMINIUM WRAPPED DISCHARGE ENGINE 17 1 Meer info
1888130100 4500 FLOW THROUGH HEATER 22 0 Meer info
1888130200 4500 FLOW THROUGH HEATER 21 1 Meer info
1888130300 4500 FLOW THROUGH HEATER 21 0 Meer info
1888150100 4500 FLOW THROUGH HEATER 21 0 Meer info
1761610100 4504 PUMP INLET HOSE 5 1 Meer info
1745690300 4801 CABLE HARNESS 2 1 Meer info
1751590200 4901 MAIN PLUG-CABLE PROTECTION GR 0 1 Meer info
1758020200 5052 B3 DISPLAY KART HOLDER BACK PART 4 1 Meer info
1749580100 5056 TURBIDITY FRAME_2K 4 1 Meer info
1898900400 5058 TURBIDITY CARD AND LED HOLDER GR-WHITE 11 1 Meer info
1761250100 5750 REGENERATION VALVE 12 1 Meer info
1761920100 5760 HITIT OVER FLOATING CASING 2 1 Meer info
1761260100 6160 SALT INDICATOR SWITCH 12 1 Meer info
1718830100 6161 RINSE AID SWITCH 6 1 Meer info
1732090100 6210 ROLD ON OFF SWITCH 2.5 mm 9 1 Meer info
1761940100 6311 hitit_micro_switch 8 1 Meer info
1761940200 6311 hitit_micro_switch_zingear 5 0 Meer info
1760940100 6315 COUNTER PCB_4 7 1 Meer info
1731980300 6330 NEW DOOR SWITCH 7 1 Meer info
1718601700 6800 DETERGENT DISPENSER GROUP 18 1 Meer info
1719000700 6800 DETERGENT DISPENSER GROUP -RAL 7037 22 0 Meer info
1712730100 6801 DETERGENT DISPENSER GASKET 5 0 Meer info
1718670100 6801 DETERGENT DISPENSER GASKET 9 1 Meer info
1831470000 6802 THERMOACTUATOR D3731 D3421 13 1 Meer info
1712710100 6811 RINSE AID GASKET 8 0 Meer info
1718750100 6811 RINSE AID GASKET 3 1 Meer info
1718640100 6812 COVER SPRING 1 2 Meer info
1887740400 6920 NTC GROUP 7 1 Meer info
1760360200 7000 T&P AQUASTOP NEWDESIGN 21 1 Meer info
1783230100 7011 ANGORA AQUASTOP HOLDER 2 2 Meer info
1782500100 7100 GRD SOFTENER GROUP BITRON 21 1 Meer info
1760190100 7101 O-RING WATER SOFTENER AIR BREAKER 2009 3 1 Meer info
1742450100 7102 WATER SOFTENER NUT-RAL7037 2 1 Meer info
1766470100 7103 SOFTONER O-RING 2 1 Meer info
1883910300 7108 WATER SOFTENER CAP GASKET 3 1 Meer info
1766560100 7140 WATER SOFTONER CAP GROUP-RAL7016 5 1 Meer info
1760200200 7160 AIR BREAKER_COUNTER GR 15 1 Meer info
1882630200 7161 AIR FUNNEL GASKET 2 2 Meer info
1882620700 7162 air funnel cup 1 2 Meer info
1746100300 7211 LOWER SPRAY ARM GROUP 6 1 Meer info
1746200600 7220 UPPER SPRAY ARM GROUP 7016 8 1 Meer info
1759600100 7221 UPPER SPRAY ARM FEED PIPE -RAL 7037 8 1 Meer info
1800720800 7228 GASKET 3 1 Meer info
1737930200 7232 NOZZLE HOLDER FOR TOP SPRAY ARM-7037 2 1 Meer info
1737940200 7234 TOP SPRAY ARM NOZZLE-7037 3 1 Meer info
1738001700 7260 WATER SUPPLY TUBE-7037 11 1 Meer info
1749490200 7261 UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET 3 1 Meer info
1741502600 7510 SUMP GROUP 11 1 Meer info
1889860600 7514 CORNER PADDING GR-FRONT 10 1 Meer info
1889870300 7515 REAR CORNER PADDING GR-BACK 10 1 Meer info
1788060100 7517 UPPER PACKAGE COVER 7 1 Meer info
1764150100 7518 HÄ°TÄ°T PACKAGING BOTTOM STYROPHOR 12 0 Meer info
1764150400 7518 ATLANTIS PACKAGING BOTTOM STYROPHOR 11 1 Meer info
1885480100 7520 SUPPORT SYROPOR OF B_I KICK PLATE 4 1 Meer info
1740110100 7550 HOSE BETWEEN SUMP AND HEATER 5 1 Meer info
1752350100 7561 ANGORA OWERFLOW SIPHON 1 2 Meer info
1740400100 7610 METAL FILTER GROUP (Rv.0.8-1.75) 14 1 Meer info
1740900600 7611 FILTER SUPPORT GROUP-RAL 7037 4 1 Meer info
1760400100 7612 THREE WAY VALVE 18 1 Meer info
1740220700 7620 MICRO FILTER GROUP-7037 10 1 Meer info
1740230400 7630 COARSE FILTER-PURPLE 2 1 Meer info
1740800700 7640 FILTER GROUP 8 1 Meer info
1740161400 7810 DRAIN HOSE 8 1 Meer info
1761620100 7831 PUMP OUTLET HOSE 7 1 Meer info
1800865800 7839 HOSE 2 1 Meer info
1740050300 7910 SUMP GASKET 6 1 Meer info
1783300100 8000 ANGORA FAN GROUP 17 1 Meer info
1754250100 8004 FAN SUCTION TUBE - WELDED 8 1 Meer info
2002373200 8319 HOSE CLAMP (x 40.0) 1 1 Meer info
2002370800 8353 HOSE CLAMP (x 15.88) 1 3 Meer info
2002372100 8357 HOSE CLAMP.(Ø 34_1) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 2 Meer info
2002372500 8360 HOSE CLAMP (x 47.0) 1 1 Meer info
1783370100 8365 ANGORA WATER INLET VALVE HOSE HOLDER 2 2 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 8 Meer info
1732850100 9013 Hose Clamps With Screw Ø40 White 2 1 Meer info
1757470200 9019 SUMP CLAMP SCREW TYPE 2 1 Meer info
1783180100 9022 ANGORA NETWORK CABLE HOLDER COVER 2 1 Meer info
1889340100 9102 SCREW 4x14 1 5 Meer info
1803430300 9104 SCREW 16mm 2 4 Meer info
1883430100 9105 SCREW (PANEL-DOOR LOCKED) 1 6 Meer info
1889270100 9106 SCREW TERMINAL GROUP - REAR BRACKET 1 2 Meer info
1882820100 9107 INNER DOOR STOPER 1 2 Meer info
1883470100 9113 BOLT M4X8 D3731 D3421 1 8 Meer info
1883460100 9114 SCREW (INNER-OUTER DOOR) 1 4 Meer info
1731640100 9115 WIDE HEADED SCREW 1 2 Meer info
1801080100 9115 SCREW (3.9x9.5) 1 10 Meer info
1802860200 9153 SCREW M5x8 1 4 Meer info
1883440300 9155 SCREW (5x22)(MOTOR) 1 1 Meer info
1883440400 9155 SCREW (5x14) 1 4 Meer info
1803430100 9203 SCREW (4x14) 1 11 Meer info
1831780000 9213 WASHER 1 4 Meer info
1882150100 9520 O-RING (FLOW DIVERTER) 1 2 Meer info
1784160100 9640 ANGORA LARGE UPPER SOUND GASKET 5 1 Meer info
1783720100 9641 ANGORA BUILT IN NOISE INSULATOR 5 1 Meer info
1783720200 9642 ANGORA BUILT IN NOISE INSULATOR 5 1 Meer info
1732380100 9935 SALT FUNNEL 2 3 1 Meer info
1731480100 9938 KICK PLATE RUBBER 17 1 Meer info
1784430010 9940 ACCESSORIES GROUP 9 1 Meer info
1764050100 9971 Hitit rear upper traverse 8 1 Meer info
1764050200 9971 Hitit rear upper traverse 8 0 Meer info
1783190100 9973 ANGORA 1MM NETWORK CABLE LOCK 2 1 Meer info
1761930100 9975 HÄ°TÄ°T FLOAT STYROPOR 1 1 Meer info
1718990200 9992 DETERGENT DISPENCER CAB HAR HOLD 7037 1 1 Meer info
1783410200 9996 BUILT IN CENTERING PLUG-7037 1 2 Meer info
