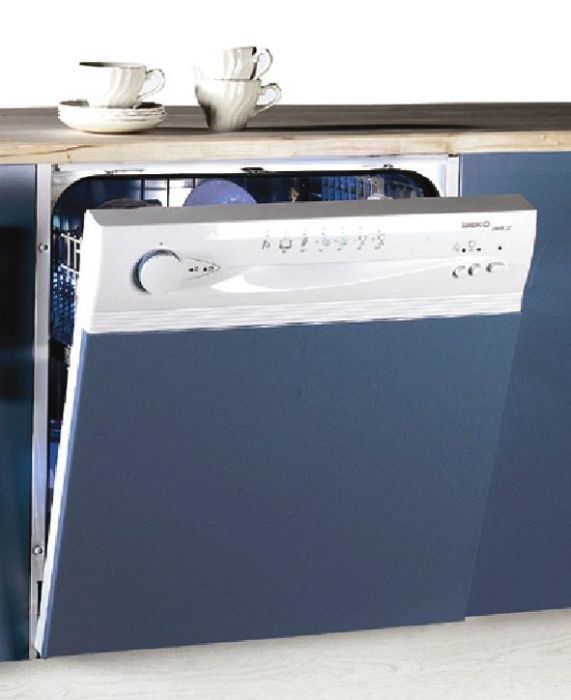

DWB37X INTEGREERBARE VAATWASSER

Artikelnr: 114880

Referentienr: DWB37X

Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)

Productomschrijving

7 progr. 3 temp. 40/55/65°C Wit

Specificaties

Meer informatie
Hoogte	82
Breedte	59.8
Diepte	54.8
Gewicht (Kg)	41
Jaarlijks verbruik (kWh)	1.24
ArtRef	DWB37X
AsogemID	114880
MPN	6258833000
Merk	BEKO
Going prijs	999,99
Soort	Integreerbare vaatwasser

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
1800681300	0	O-RING	2	1	Meer info
1881820100	13	FOOT SUPPORT PART	4	4	Meer info
1880080292	40	BOTTOM TRAY	10	1	Meer info
1880350100	110	FOOT GROUP-ADJUSTABLE	3	4	Meer info
1880090301	220	SIDE PANEL-LEFT	16	1	Meer info
1880090401	221	SIDE PANEL-RIGHT	16	1	Meer info
1880010500	240	REAR BOTTOM SUPPORT	10	1	Meer info
1741810202	401	HINGE ARM-RIGHT	8	1	Meer info
1741810102	402	HINGE ARM-LEFT	8	1	Meer info
1888190100	403	HINGE ARM SUPPORT	3	1	Meer info
1881030100	440	HINGE SPRING	5	2	Meer info
1881040200	470	HINGE WHEEL	1	2	Meer info
1881040300	470	HINGE WHEEL-RED	1	2	Meer info
1881050100	471	HINGE ROPE GROUP L=440(GREY)	4	2	Meer info
1881090100	472	HINGE SPRING HOLDER-LEFT	3	1	Meer info
1881090200	473	HINGE SPRING HOLDER-RIGHT	4	1	Meer info
1880030101	530	KICK PLATE SHEET	9	1	Meer info
1880072701	1030	OUTER DOOR	14	1	Meer info
1782980200	1050	BOARD CONNECTION PART-LEFT	3	1	Meer info
1782980100	1051	BOARD CONNECTION PART-RIGHT	3	1	Meer info
1732600200	1200	INNER DOOR GR	23	1	Meer info
1880020100	1201	LOWER SUPPORT- FRONT	8	1	Meer info
1882270300	1230	DOOR INSULATION	10	1	Meer info
1750900400	1300	DOOR LOCK GROUP PA6-NAT-I-V0 45-60 CM	7	1	Meer info
1881970100	1310	DOOR LOCK HOOK	1	1	Meer info
1884690100	1910	DOOR SEALING GASKET	9	1	Meer info
1882250100	1911	DOOR SEALING END ADDITION PART RIGHT,	3	1	Meer info
1882250200	1912	DOOR SEALING END ADDITION PART LEFT	3	1	Meer info
1882470100	1920	DOOR SEALING GASKET - BOTTOM	7	1	Meer info
1897500500	2000	WELDED MECHANICAL GROUP...	34	1	Meer info
1887590100	2411	SHELF GROUP	3	2	Meer info
1885800100	2413	UPPER RACK ROLLER GROUP	3	8	Meer info
1884002400	2414	UPPER BASKET GROUP	23	1	Meer info
1883100800	2420	LOWER RACK GROUP	22	1	Meer info
1885900100	2421	LOWER RACK WHEEL GROUP	2	8	Meer info
1881640200	2423	FOLDING RACK LONG	0	1	Meer info
1881630200	2424	FOLDING RACK SHORT	15	1	Meer info
1883200400	2430	CUTLERY BASKET GROUP-7037	12	1	Meer info
1881930100	2433	SPOON HOLDER	1	1	Meer info
1881860200	2437	SEPERATOR.	7	1	Meer info
1880240300	2610	RAIL (430 STAINLESS STEEL)	8	2	Meer info
1880580400	2611	RAIL CAP	2	2	Meer info
1887460200	2612	RAIL CAP-7037	1	2	Meer info
1890607200	3010	PANEL GROUP	15	1	Meer info
1891500400	3050	PANEL LEVEL ADJUSTMENT PART GR.	15	1	Meer info
1882802000	3310	PROGRAM KNOB GROUP	5	1	Meer info
1880720100	3320	ON/OFF SWITCH CAP WHITE	2	1	Meer info
1880620100	3321	FUNCTION SWITCH CAP	2	2	Meer info
1887900400	3510	LAMP GROUP	4	3	Meer info
1887900200	3512	LAMP GROUP	4	2	Meer info
1891000400	4000	MOTOR_SPRAY PUMP	30	1	Meer info
1880390100	4001	MOTOR FIXING CAP D3731 D3421	2	1	Meer info
1880380100	4002	MOTOR BRACKET GROUP	6	1	Meer info
1881440200	4003	DAMPENING RUBBER TPV	3	1	Meer info
1884500100	4004	MOTOR BRACKET GROUP	9	1	Meer info
1883790200	4200	CAPACITOR	10	1	Meer info
1883790400	4200	CAPACITOR	9	0	Meer info
1886870100	4210	INTERFERENCE FILTER	8	1	Meer info
1882600300	4300	DRAIN PUMP GROUP COMPLETE	21	1	Meer info
1882100600	4320	DRAIN PUMP GROUP	21	1	Meer info
1804070000	4321	DRAIN PUMP GASKET	6	1	Meer info
1882860100	4322	DRAIN PUMP GASKET HOLDER	2	1	Meer info
1888130100	4500	FLOW THROUGH HEATER	22	0	Meer info
1888130200	4500	FLOW THROUGH HEATER	21	0	Meer info
1888150100	4500	FLOW THROUGH HEATER	21	1	Meer info
1719990100	4504	PUMP INLET HOSE	4	1	Meer info
1730370200	4800	CABLE HARNESS GROUP	0	1	Meer info
1892101600	4901	MAIN PLUG GROUP 220-230 V smart 1	11	1	Meer info
1883630100	5000	TIMER (MECHANICAL)	29	1	Meer info
1883650800	5050	ELECTRONIC CARD TYPE F1	20	1	Meer info
1835900200	5750	REGENERATION VALVE GR	11	1	Meer info
1744290100	5760	over_floating_house_3	1	1	Meer info
1768000100	6160	SALT INDICATOR SWITCH	8	1	Meer info
1718830100	6161	RINSE AID SWITCH	6	1	Meer info
1880640100	6201	BUTTON HOLDER D3731 D3421	5	1	Meer info
1833120100	6210	SINGLE SWITCH D3731 D3421	9	3	Meer info
1883240100	6311	OVER FLOW SWITCH (LOW END) D3731 D3421	6	1	Meer info
1882690100	6315	FLOW METER PCB	9	1	Meer info
1831830001	6330	DOOR SWITCH (LOW END)	4	1	Meer info
1718601000	6800	DETERGENT DISPENSER GROUP	19	1	Meer info
1718670100	6801	DETERGENT DISPENSER GASKET	9	1	Meer info
1831470000	6802	THERMOACTUATOR D3731 D3421	13	1	Meer info
1718750100	6811	RINSE AID GASKET	3	1	Meer info
1718640100	6812	COVER SPRING	1	2	Meer info
1884400100	6920	NTC GROUP	14	1	Meer info
1884400300	6920	NTC GROUP	12	1	Meer info
1885090100	7000	AQUASTOP (SINGLE VALVE) 265 MM	23	1	Meer info
1889010300	7011	HOSE HOLDER LOWER PART RAL 7037	3	1	Meer info
1889020200	7012	HOSE HOLDER UPPER PART RAL 7037	2	1	Meer info
1883800100	7100	WATER SOFTENER GROUP	20	1	Meer info
1888290100	7102	WATER SOFTENER NUT-7035	2	1	Meer info
1800720600	7103	WATER SOFTENER SEAL	1	1	Meer info
1800681000	7106	REGENERATION VALVE GASKET	13	1	Meer info
1883910300	7108	WATER SOFTENER CAP GASKET	3	1	Meer info
1766560100	7140	WATER SOFTONER CAP GROUP-RAL7016	5	1	Meer info
1882610300	7160	REGENERATION UNIT (modified)	28	1	Meer info
1882620300	7162	REGENERATION UNIT COVER	2	1	Meer info
1800862100	7169	HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT)	1	1	Meer info
1746100200	7211	LOWER SPRAY ARM GROUP	7	1	Meer info
1801210000	7215	DRAIN HOSE SPRING	1	1	Meer info
1746200300	7220	UPPER SPRAY GROUP	9	1	Meer info
1759600100	7221	UPPER SPRAY ARM FEED PIPE -RAL 7037	8	1	Meer info
1800720800	7228	GASKET	3	1	Meer info
1881100500	7260	WATER SUPPLY TUBE GROUP	9	1	Meer info
1892300400	7510	SUMP GROUP	10	1	Meer info
1719980100	7550	HOSE BETWEEN SUMP AND HEATER - 2	5	1	Meer info
1888100100	7560	OVERFLOW FLOAT GROUP	8	1	Meer info
1884280100	7561	SIFHON	2	2	Meer info
1881230100	7610	PLASTIC FILTER	6	1	Meer info
1889400200	7611	FILTER SUPPORT GROUP	12	1	Meer info
1882700200	7612	WATER GUIDE GROUP	14	1	Meer info
1894300100	7620	MICRO FILTER GROUP	10	1	Meer info
1882880100	7630	COARSE FILTER	2	1	Meer info
1894600100	7640	FILTER GROUP	0	1	Meer info
1853200200	7810	DRAIN HOSE	8	1	Meer info
1881170100	7831	HOSE (PUMP - SUMP)	6	1	Meer info
1884290100	7836	HOSE BETWEEN WATER SOFT AND REJEN. UNIT	4	1	Meer info
1884290200	7837	HOSE BETWEEN WATER SOFT AND REJEN. UNIT	3	1	Meer info
1884290300	7838	HOSE BETWEEN WATER SOFT AND REJEN. UNIT	3	1	Meer info
1882650200	7839	HOSE (REGENERATION - SUMP)	3	1	Meer info
1800861700	7844	PVC HOSE	2	1	Meer info
1800862300	7844	HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT)	2	1	Meer info
1800861800	7845	PVC HOSE	2	1	Meer info
1880440100	7910	SUMP GASKET	9	1	Meer info
2002373200	8319	HOSE CLAMP (x 40.0)	1	2	Meer info
2002370200	8328	HOSE CLAMP (X 9.1)	1	1	Meer info
2002370800	8353	HOSE CLAMP (x 15.88)	1	7	Meer info
2002371600	8354	HOSE CLAMP (x 27.5)	1	1	Meer info
2002371800	8356	HOSE CLAMP	1	2	Meer info
2002372500	8360	HOSE CLAMP (x 47.0)	1	2	Meer info
2002740100	8365	DRAIN HOSE HOLDER	2	1	Meer info
1732850100	9013	Hose Clamps With Screw ├â╦£40 White	2	2	Meer info
1889280100	9013	SUMP CLAMP SCREW TYPE	7	1	Meer info
1882310100	9021	BI FIXATION RUBBER	4	2	Meer info
1882480100	9022	POWER CORD FIXING PART.	10	1	Meer info
1883430100	9105	SCREW (PANEL-DOOR LOCKED)	1	6	Meer info
1882820100	9107	INNER DOOR STOPER	1	2	Meer info
1880680100	9112	SCREW	1	2	Meer info
1883470100	9113	BOLT M4X8 D3731 D3421	1	18	Meer info
1883460100	9114	SCREW (INNER-OUTER DOOR)	1	4	Meer info
1801080100	9115	SCREW (3.9x9.5)	1	16	Meer info
1883410100	9118	SCREW (SIDE WALLS - INNER TUB)	1	4	Meer info
1801080200	9123	SCREW	1	1	Meer info
1802860200	9153	SCREW M5x8	1	4	Meer info
1882290100	9154	SCREW CAP-SIDE PANELS-WHITE	1	4	Meer info
1883440300	9155	SCREW (5x22)(MOTOR)	1	1	Meer info
1803430100	9203	SCREW (4x14)	1	2	Meer info
1831780000	9213	WASHER	1	4	Meer info
1882150100	9520	O-RING (FLOW DIVERTER)	1	2	Meer info
1800680700	9521	O-RING (DRAIN PUMP) D371-D341_	2	1	Meer info
1800680100	9522	O-RING (DRAIN HOSE)	2	2	Meer info
1882280400	9640	NOISE ISOLATION FOR TUB Ral 7037 Blomber	2	1	Meer info
1732380100	9935	SALT FUNNEL 2	3	1	Meer info
