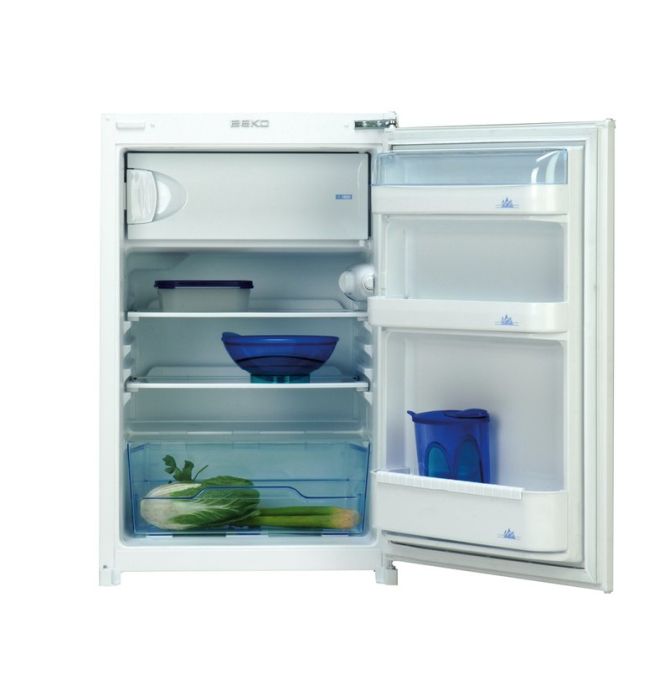

Productomschrijving
**** 104L
| Gewicht (Kg) | 31.4 |
|---|---|
| Jaarlijks verbruik (kWh) | 224 |
| ArtRef | B1353HCA |
| AsogemID | 115449 |
| Merk | BEKO |
| Soort | Koelkast integreerbaar |
| ArtEAN | 8690842068492 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 4811830200 | 0 | SCREW(M5x12) | 1 | 2 | Meer info | |||
| 4223430100 | 0 | CHARGING TUBE | 3 | 1 | Meer info | |||
| 4138470800 | 3 | THERMOSTAT KNOB | 4 | 1 | Meer info | |||
| 9002752685 | 4 | THERMOSTAT ASSY.(K59L2700_RANCO) | 16 | 1 | Meer info | |||
| 5124101001 | 4 | THERMOSTAT (B-6169) | 16 | 0 | Meer info | |||
| 4224090085 | 12 | INTERIOR LIGHT SWITCH(DEKA-B 30) | 7 | 1 | Meer info | |||
| 4211850100 | 12 | DOOR SWITCH(METALFLEX HL404 G) | 3 | 0 | Meer info | |||
| 4202600100 | 13 | LOWER HINGE ASSY. (RIGHT) | 3 | 1 | Meer info | |||
| 4303940100 | 14 | UPPER HINGE GROUP | 4 | 1 | Meer info | |||
| 4243120200 | 19 | DRYER (5 GR) | 4 | 1 | Meer info | |||
| 4207050100 | 20 | AIR GRILLE (BUILT-IN) | 5 | 1 | Meer info | |||
| 4308500000 | 30 | COMPRESSOR (EMBRACO EMT 26 CLC/220-240V) | 37 | 1 | Meer info | |||
| 4234450000 | 31 | TERMINAL COVER EMBRACO | 4 | 1 | Meer info | |||
| 4847070100 | 33 | COMPRESSOR RUBBER GROMMET | 1 | 8 | Meer info | |||
| 4057080200 | 34 | COMPRESSOR WASHER | 1 | 3 | Meer info | |||
| 4133841185 | 38 | POWER CORD GROUP | 10 | 1 | Meer info | |||
| 4144670085 | 39 | TERMINAL BOX | 6 | 1 | Meer info | |||
| 4137912300 | 41 | CABLE ASSEMBLY | 11 | 1 | Meer info | |||
| 4234590100 | 43 | INTEGRATED PTC STARTING DEVICE | 11 | 1 | Meer info | |||
| 4234600800 | 44 | OVERLOAD PROTECTOR | 9 | 1 | Meer info | |||
| 4121071186 | 48 | CAPACITOR | 11 | 0 | Meer info | |||
| 111200110 | 50 | BOLT (AM3_5X6 DIN 7985) | 1 | 1 | Meer info | |||
| 4145450200 | 58 | FREEZER DOOR ASSY | 10 | 1 | Meer info | |||
| 4123280100 | 64 | EVAPORATOR / FREEZER DOOR GASKET | 12 | 1 | Meer info | |||
| 4215650200 | 79 | CABLE RETAINER | 1 | 1 | Meer info | |||
| 4232090100 | 80 | COMPRESSOR TRAVERSE LIFTING PART | 1 | 2 | Meer info | |||
| 4079820400 | 82 | FREEZER DOOR HANDLE | 2 | 1 | Meer info | |||
| 4079750100 | 94 | FREEZER DOOR HINGE | 1 | 1 | Meer info | |||
| 4079810100 | 98 | FREEZER DOOR HANDLE SPRING | 3 | 1 | Meer info | |||
| 4047900400 | 100 | PLASTIC WASHER | 1 | 1 | Meer info | |||
| 4092610400 | 108 | UPPER HINGE PIN (BUILT-IN) | 1 | 1 | Meer info | |||
| 4024820100 | 125 | CHARGING TUBE | 3 | 1 | Meer info | |||
| 4236450100 | 132 | EVAPORATING PAN | 9 | 1 | Meer info | |||
| 130500600 | 148 | SERRATED LOCK WASHER (A6.4 DIN6798) | 1 | 1 | Meer info | |||
| 4216640100 | 154 | CABLE HOLDER | 1 | 2 | Meer info | |||
| 4079760100 | 155 | FREEZER DOOR LOCK | 1 | 1 | Meer info | |||
| 4083640100 | 202 | COMPRESSOR TRAVERSE(54CM) | 8 | 1 | Meer info | |||
| 4109811700 | 205 | GROUND CABLE ASSEMBLY | 9 | 1 | Meer info | |||
| 4343180100 | 210 | FOAMED DOOR ASS_Y (B-185 BI) | 30 | 1 | Meer info | |||
| 4807910300 | 211 | NAME PLATE | 9 | 1 | Meer info | |||
| 4138560700 | 214 | DOOR SHELF ASSY. | 10 | 1 | Meer info | |||
| 4285520600 | 218 | EGG TRAY (LG_LEFT_TRANSPARENT BLUE_DIF.) | 4 | 1 | Meer info | |||
| 4220190100 | 222 | BOTTLE SUPPORT WHITE | 5 | 1 | Meer info | |||
| 4091040500 | 245 | DAIRY COMPARTMENT COVER | 8 | 1 | Meer info | |||
| 4089670200 | 250 | HINGE BUSHING | 1 | 4 | Meer info | |||
| 4142141000 | 252 | DOOR GASKET | 13 | 1 | Meer info | |||
| 4138540300 | 255 | DOOR SHELF ASSY | 8 | 2 | Meer info | |||
| 4203990100 | 275 | UPPER HINGE HOLE PLUG | 1 | 1 | Meer info | |||
| 4202340101 | 276 | SLIDING GUIDE (BUILT-IN) | 1 | 2 | Meer info | |||
| 4230850100 | 277 | SLIDING PART(BUILT-IN) | 3 | 2 | Meer info | |||
| 4227831000 | 279 | DECORATIVE SEALING | 10 | 1 | Meer info | |||
| 4202870100 | 280 | LOWER HINGE ASSY. (LEFT/BUILT-IN) | 5 | 1 | Meer info | |||
| 4233530100 | 281 | WOODEN SCREW (4*14) | 1 | 9 | Meer info | |||
| 4232250100 | 300 | ICE CUBE TRAY_ARC P1_D | 6 | 1 | Meer info | |||
| 4084600600 | 311 | CRISPER | 15 | 1 | Meer info | |||
| 4140580485 | 400 | THERMOSTAT CABLE ASS. | 6 | 1 | Meer info | |||
| 4091970200 | 401 | LAMP_THERMOSTAT HOUSING | 7 | 1 | Meer info | |||
| 4241520185 | 403 | LAMP HOLDER | 3 | 1 | Meer info | |||
| 4035890385 | 404 | INTERIOR LAMP (15W) | 5 | 1 | Meer info | |||
| 4092010100 | 406 | LAMP/THERMOSTAT HOUSING COVER | 4 | 1 | Meer info | |||
| 4092020200 | 413 | INTERIOR LIGHT SWITCH BUTTON | 1 | 1 | Meer info | |||
| 4215890100 | 414 | INTERIOR LIGHT SWITCH SPRING | 1 | 1 | Meer info | |||
| 4137880385 | 415 | I.L.S/LAMP.SOCKET CABLE ASSEMBLY | 1 | 1 | Meer info | |||
| 4220340200 | 416 | INTERIOR LIGHT SWITCH RETAINER | 1 | 1 | Meer info | |||
| 4214902500 | 510 | CRISPER COVER GLASS | 11 | 1 | Meer info | |||
| 4057030100 | 604 | PLASTIC PLUNGER (DRAIN HOLE) | 1 | 1 | Meer info | |||
| 4233500100 | 861 | GLASS SHELF PROFILE(FRONT) | 5 | 2 | Meer info | |||
| 4233510100 | 862 | GLASS SHELF PROFILE(REAR).. | 5 | 2 | Meer info | |||
| 4146140600 | 863 | GLASS SHELF GROUP | 11 | 2 | Meer info | |||
| 4079860100 | 887 | FREEZER DOOR BUSHING | 3 | 1 | Meer info | |||
| 4048590500 | 971 | HANDLE HOLE PLUG | 1 | 4 | Meer info | |||
| 4202620100 | 1010 | TOP CONNECT PIECES | 5 | 1 | Meer info | |||
| 4205850100 | 1011 | LOWER HINGE PIN | 3 | 1 | Meer info |
