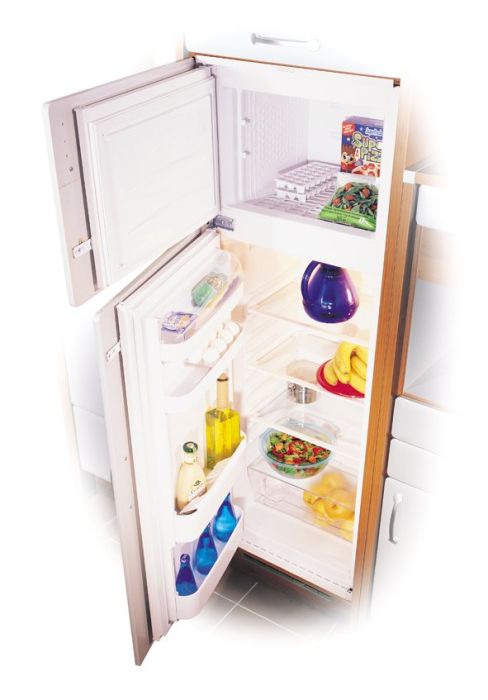

B2650 INTEGREERBARE COMBI KOELKAST

Artikelnr: 115454

Referentienr: B2650

Productomschrijving

**** 201

Meer informatie
Hoogte	158.5
Breedte	54
Diepte	52.5
Gewicht (Kg)	52
Jaarlijks verbruik (kWh)	365
ArtRef	B2650
AsogemID	115454
Merk	BEKO
Soort	Koelkast integreerbaar 2 deuren
ArtEAN	8690842100499

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
4223430100	0	CHARGING TUBE	3	1	Meer info
4816160100	0	CONDENSER PAINT_BLACK	0	1	Meer info
9320200	0	4.76 uncoated steel tube	3	15	Meer info
4990021030	0	RAW_GLASS	0	35	Meer info
4340410885	0	B265/FOAMED CABINET/SN/B-IN/PLUS	25	1	Meer info
4832754800	0	-	0	1	Meer info
4138470900	3	THERMOSTAT KNOB ASSEMBLY	4	1	Meer info
9002752685	4	THERMOSTAT ASSY.(K59L2700_RANCO)	16	1	Meer info
4224090085	12	INTERIOR LIGHT SWITCH(DEKA-B 30)	7	1	Meer info
4202600100	13	LOWER HINGE ASSY. (RIGHT)	3	1	Meer info
4243120400	19	DOUBLE ENTRY DRAYER	4	1	Meer info
4207050100	20	AIR GRILLE (BUILT-IN)	5	1	Meer info
5064104011	30	COMPRESSOR (THA 90YT/230V/R134)	35	1	Meer info
4072680200	31	COVER COMPRESSOR-ARCELIK	2	1	Meer info
4847070100	33	COMPRESSOR RUBBER GROMMET	1	4	Meer info
4070700000	35	TERMINAL COVER SPRING	2	1	Meer info
4133840485	38	POWER CABLE ASSY_	9	1	Meer info
4072610200	39	BOX	3	1	Meer info
4137912785	41	THERM.-CABLE with SOCKET ASSY.	11	1	Meer info
4829730185	43	PTC RELAY (150M3_JAHWA)	8	0	Meer info
4059050685	43	PTC RELAY (8EA 19C3)	11	1	Meer info
4085521885	44	OVERLOAD PROTECTOR(T 0125_17 AMF)	8	0	Meer info
9000815285	44	OVERLOAD PROTECTOR (MRP 332 AMK 3119)	8	0	Meer info
4121070386	48	CAPASITOR ASSEMBLY (5mF_FAST FIX)	12	0	Meer info
4215650200	79	CABLE RETAINER	1	1	Meer info
4232090100	80	COMPRESSOR TRAVERSE LIFTING PART	1	2	Meer info
4815330100	100	PLASTIC WASHER( 6.2x4)	1	1	Meer info
4231370100	108	HINGE PIN	2	1	Meer info
4024820100	125	CHARGING TUBE	3	1	Meer info
4239570200	132	EVAPORATING PAN	6	1	Meer info
4047840400	135	MIDDLE HINGE PLUG	1	3	Meer info
4216640100	154	CABLE HOLDER	1	1	Meer info
4083640100	202	COMPRESSOR TRAVERSE(54CM)	8	1	Meer info
4109811185	205	GROUND CABLE ASSEMBLY	8	1	Meer info
4307960200	210	FOAMED DOOR ASSY.(FRESH-FOOD_B-265BI)	27	1	Meer info
4807910300	211	NAME PLATE	9	1	Meer info
4226090100	214	BOTTLE SHELF (100MM).	9	1	Meer info
4838490100	218	EGG TRAY (NTT_OPAC ARC-P1)	2	2	Meer info
4220190100	222	BOTTLE SUPPORT WHITE	5	1	Meer info
4091040100	245	DAIRY COMPARTMENT COVER(NATURAL/CLEAR)	10	1	Meer info
4089670200	250	HINGE BUSHING	1	6	Meer info
4117886100	251	DOOR GASKET (FREEZER/B-225,265)	13	1	Meer info
4091670100	255	DOOR SHELF (50 MM.BIG)	7	1	Meer info
4091660100	258	DOOR SHELF (50 MM.SMALL)	7	4	Meer info
4226850100	273	UPPER CONNECTION FRAME	0	1	Meer info
4230830100	274	UPPER HINGE PIN HOUSE	3	1	Meer info
4233550100	275	HINGE HOLE PLUG	2	1	Meer info
4202870100	280	LOWER HINGE ASSY. (LEFT/BUILT-IN)	5	1	Meer info
4232230100	300	ICE CUBE TRAY (ARC-P1) (NEW)	5	1	Meer info
4084600100	311	CRISPER	15	1	Meer info
4139190485	400	THERMOSTAT CABLE ASSEMBLY...	8	1	Meer info
4299710100	401	LAMP_THERMOSTAT HOUSING	9	1	Meer info
4241520185	403	LAMP HOLDER	3	1	Meer info
5760500100	404	LED BULB	13	1	Meer info
5760500200	404	LED BULB	9	0	Meer info
5760500300	404	LED BULB	13	0	Meer info
5760500400	404	LAMP(15 WATTS E 14 SCREW )	10	0	Meer info
4092010100	406	LAMP/THERMOSTAT HOUSING COVER	4	1	Meer info
4137870185	412	CABLE ASSEMBLY	4	1	Meer info
4242440100	413	INTERIOR LIGHT SWITCH BUTTON	5	1	Meer info
4215890100	414	INTERIOR LIGHT SWITCH SPRING	1	1	Meer info
4137880185	415	I.L,S/LAMP SOCKET CABLE ASSY	3	1	Meer info
4220340200	416	INTERIOR LIGHT SWITCH RETAINER	1	1	Meer info
4214902500	510	CRISPER COVER GLASS	11	1	Meer info
4841080500	511	CRISPER COVER EDGE PROFILE.	2	1	Meer info
4226390200	516	EVAPORATOR WIRE SHELF	10	1	Meer info
4218050500	517	WIRE SHELF PROFILE	2	1	Meer info
4343220200	600	FOAMED UPPER DOOR ASSY.(B-265 BUILT IN)	19	1	Meer info
4143860100	601	MIDDLE HINGE ASSEMBLY	7	1	Meer info
4057030100	604	PLASTIC PLUNGER (DRAIN HOLE)	1	1	Meer info
4233500100	861	GLASS SHELF PROFILE(FRONT)	5	3	Meer info
4233510100	862	GLASS SHELF PROFILE(REAR)..	5	3	Meer info
4146141400	863	GLASS SHELF ASS...	12	3	Meer info
4811830100	955	SERRATED SCREW (M5x20)	1	6	Meer info
4205850100	1011	LOWER HINGE PIN	3	1	Meer info
