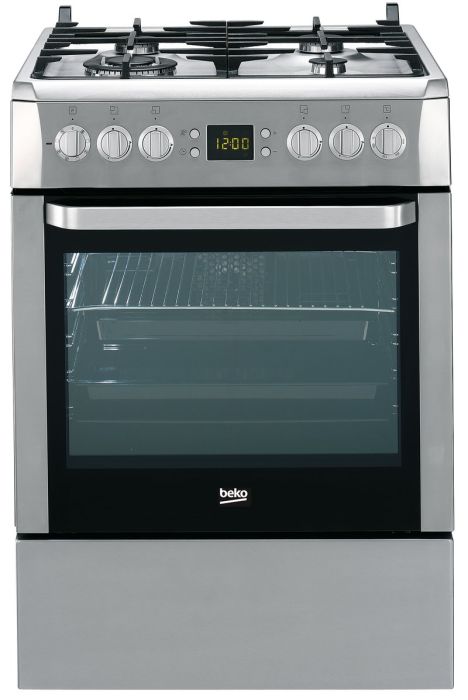

main product photo

CSM61320DX GEMENGD FORNUIS INOX

Artikelnr: 115269
Referentienr: CSM61320DX
Vergelijk

Productomschrijving

60x60cm multi functie oven 60 cm
Meer informatie
Gewicht (Kg) 47
ArtRef CSM61320DX
AsogemID 115269
MPN 7786188603
Merk BEKO
Soort Fornuis gemengd gasbranders/elektrische oven
ArtEAN 8690842364914
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
412930090 0 CAVITY SIDE HINGE HOUSING 4 1 Meer info
412930089 0 CAVITY SIDE HINGE HOUSING 4 1 Meer info
210301710 1 GLASS TOP LID GROUP 23 1 Meer info
250300013 2 HINGE HOUSING LEFT 4 1 Meer info
242100090 4 GLASS TOP LID HINGE SPRING GROUP-RIGHT. 7 1 Meer info
210300098 6 BURNER PLATE 29 1 Meer info
255300019 7 GLASS TOP LID STOPPER. 5 2 Meer info
218315004 9 DECORATIVE CONTROL PANEL. 15 1 Meer info
250315068 10 TAP KNOB- 11 4 Meer info
215300022 11 OVEN REAR WALL. 15 1 Meer info
218300882 12 SIDE WALL 18 2 Meer info
250300010 14 OVEN FOOT GROUP 1 4 Meer info
215300061 15 60X60 FS 14 1 Meer info
166900015 19 TERMINAL BOX 7 1 Meer info
166900158 19 TERMINAL BLOCK 8 0 Meer info
210440417 20 OVEN BODY_MULTI_USA 27 1 Meer info
291300010 21 GLASS WOOL_PERIPHERAL 16 1 Meer info
291300011 22 GLASS WOOL_ REAR_60ANK_15MM 9 1 Meer info
215300015 23 TURBO MOTOR CONNECTION SHEET 9 1 Meer info
210301844 24 ELECTRICAL FLUE GROUP 8 1 Meer info
240440243 27 INTERNAL WIRE FRY STOPER RAFLI_BAR_AVUST 15 1 Meer info
219440101 28 BLACK ENAMELED ST TRAY(W_462xD_365xH_39) 15 2 Meer info
419900057 28 BAKING TRAY 15 1 Meer info
255440101 29 MAIN OVEN _O_ SEAL 12 1 Meer info
289300001 36 COUNTER WEIGHT_RIGHT.. 9 1 Meer info
215300014 39 OVEN BODY BOTTOM PROTECTION SHEET 12 1 Meer info
290440376 40 INNER FRONT GLASS_65LT 17 1 Meer info
250440395 41 PLACTIC DECOR 10 1 Meer info
218440102 44 DOOR BOTTOM COVER SHEET 8 1 Meer info
210440591 45 60_60 FRONT DOOR HINGE_SHORTER TYPE_ 12 2 Meer info
210300351 47 HANDLE 22 1 Meer info
217300003 48 BOTTOM DOOR OUTER SHEET 16 1 Meer info
268900028 62 SPARK PLUG WOK 800 MM 9 1 Meer info
268900035 62 SPARK PLUG 650 MM 5 2 Meer info
268900046 62 SPARK PLUG_REAR LEFT 380 MM 4 1 Meer info
242900003 68 SPARK PLUG CLIPS 2 4 Meer info
110241216 70 GAS IGNITOR GR 15 1 Meer info
268100065 70 GAS IGNITOR. 12 1 Meer info
415920131 71 IGNITION FIXING SHEET 4 1 Meer info
255100012 72 NOZZLE SEAL 1 2 Meer info
255440112 72 FRONT DOOR STOPER PLASTIC 1 2 Meer info
133900003 81 RUBBER HOLDER REF 1052LPG 5 1 Meer info
263100032 93 MULTIFUNCTION COMMUTATOR_8 POSITIONS 16 1 Meer info
267000061 96 ADORA DIGITAL TIMER-T 120 AMBER 25 1 Meer info
219440102 97 FAN PROTECTING SHEET 14 1 Meer info
262900074 98 CIRCULAR HEATING ELEMENT_1800W-230V 15 1 Meer info
264440148 101 OVEN CIRCULATION BLOWER-220V-240V 18 1 Meer info
262900132 106 OVEN HEATING ELEMENT-230 16 1 Meer info
262900064 107 GRILL HEATING ELEMENT_(1100+1100)W_230V 19 1 Meer info
215440109 108 HEATING ELEMENT HOLDER SHEET 12 1 Meer info
260305043 118 SERVICE CABLE GROUP. 19 1 Meer info
161100026 119 SUPPLY CORD 12 1 Meer info
255900017 124 SPARK PLUG SEAL WOK BURNER 11 1 Meer info
255900028 124 BURNER NOZZLE SEAL 1 KW - 0690 1 1 Meer info
255900029 124 BURNER NOZZLE SEAL 2 KW - 0690 2 2 Meer info
173100022 140 KNOB PROTECTING SHEET CLIP WASHER 2 2 Meer info
250910071 144 DRAWER ROLLER. 1 2 Meer info
210300046 145 DRAWER RAIL GROUP ? RIGHT ? BARFS 6 1 Meer info
210300047 145 DRAWER RAIL GROUP ? LEFT ? BARFS 6 1 Meer info
252300001 148 PLASTIC DRAWER TANK WHELL-FREE 19 1 Meer info
230100028 155 TERMOCOUPLE_SHORT_350mm 11 1 Meer info
230100030 155 TERMOCOUPLE_SHORT_400mm(WOK) 10 1 Meer info
230100032 155 TERMOCOUPLE_SHORT_520mm 9 2 Meer info
415100017 165 Q 16 TAP CONNECTING PIPE CLIP 1 4 Meer info
131261014 240 THERMOCOUPLE FIXING NUT 2 4 Meer info
240300012 243 WIRE SHELF_3 PART.EXT.TELES_ZEUS 11 1 Meer info
240300013 243 WIRE SHELF_3 PART.EXT.TELES_ZEUS 11 1 Meer info
210444742 243 WIRE SHELF GROUP. 15 1 Meer info
371900003 245 M 4 X 10 SCREW 1 2 Meer info
250315873 246 OVEN THERMOSTAT KNOB 9 1 Meer info
264440132 252 OVEN CIRCULATION BLOWER 18 1 Meer info
172100017 256 M8 NUT 1 2 Meer info
450300012 261 HANDLE BOTTOM PLASTIC 2 2 Meer info
263100015 263 EGO THERMOSTAT 551705303_280 HUAYI 285 C 16 1 Meer info
258300063 300 TIMER BUTTON 14 4 Meer info
258300111 300 TIMER BUTTON 12 4 Meer info
4431900116 328 G30-30 INJECTOR GR ( LPG ) 8 1 Meer info
4431910134 328 G20_25_M BAR_4G_2.KW_NG KIT_ 9 1 Meer info
219910072 338 BURNER CAP 1 KW 8 1 Meer info
219910071 339 BURNER CAP 2 KW. 8 2 Meer info
423920044 342 BURNER HEAD 1 KW_SABAF 8 1 Meer info
423920045 343 BURNER HEAD 2 KW_SABAF 9 2 Meer info
223900092 346 BURNER GROUP (SABAF 1 KW). 8 1 Meer info
223900091 347 BURNER GROUP (SABAF 2 KW). 8 2 Meer info
431900027 350 SABAF INJ G20-20MBAR 1KW_M072 3 1 Meer info
431900026 351 SABAF INJ G20-20MBAR 2KW_M103 3 2 Meer info
431920142 353 SABAF ENJ G20-20MBAR 3.3 KW_M140 3 1 Meer info
218300003 368 SIDE PROFILE-BLACK-LEFT 8 1 Meer info
218300004 369 SIDE PROFILE -BLACK-RIGHT 9 1 Meer info
265900012 374 OVEN LAMP 15 W-230 V 6 1 Meer info
265900026 374 OVEN LAMP 7 0 Meer info
265100022 375 OVEN LAMP GROUP 12 1 Meer info
410930196 376 CAST IRON PAN SUPPORT GROUP 28 2 Meer info
223900109 378 MUSLUK_SOURDI_0.51_Ø7_PROG+T.ELE 19 1 Meer info
223900110 379 MUSLUK_SOURDI_0.51_Ø7_PROG+T.ELE 19 2 Meer info
221300001 384 FEEDING TUBE-REAR RIGHT 5 1 Meer info
221300002 385 FEEDING TUBE- FRONT RIGHT 5 1 Meer info
221300004 386 FEEDING TUBE.REAR LEFT 5 1 Meer info
151900001 400 TIP OF THE PLASTIC HOSE_NG 2 1 Meer info
231900047 400 MUFF 9 1 Meer info
258300019 412 TIMER BODY PLASTIC RECTANGULAR 7 1 Meer info
268100034 432 SWITCH HARNESS 4F MS 925 PO7 16 1 Meer info
215300215 452 GAS BURNER SUPPORT -4G 4 1 Meer info
215300216 452 GAS BURNER SUPPORT -WOK 4 1 Meer info
250920069 460 CABLE TIE-BIG_M TYPE_A20 1 7 Meer info
165930011 475 SINGNAL LAMP_YELLOW 6 1 Meer info
290440431 479 MIDDLE_GLASS 18 1 Meer info
4480300003 533 CHAIN GROUP 8 1 Meer info
263410017 557 BODY BIMETAL THERMOSTAT ABNORMAL CONDITI 9 1 Meer info
155261009 566 PAN SUPPORT BOTTOM PLASTIC 2 8 Meer info
258300133 583 TOP LID HINGE PLASTIC COVER RIGHT_BLACK 2 1 Meer info
258300134 583 TOP LID HINGE PLASTIC COVER LEFT_BLACK 2 1 Meer info
218440178 584 CONDENSATION SHEET-BLACK 6 1 Meer info
250300012 598 HINGE HOUSING LEFT 4 1 Meer info
242100091 599 GLASS TOP LID HINGE SPRING GROUP-LEFT. 7 1 Meer info
215300062 612 DRAWER CONNECTION SHEET-PLACTIC DRW. 5 2 Meer info
210300219 618 FLUE SHEET GR. BARFS 16 1 Meer info
250315691 635 COMMUTATOR KNOB 9 1 Meer info
255900015 654 SPRAK PLUG SEAL. 4 1 Meer info
260100005 657 SAP CABLE GROUP 4 1 Meer info
210300384 727 HANDLE 6 1 Meer info
210300385 728 HANDLE SUPPORT GR.WHITE 7 1 Meer info
473920003 774 SPARK PLUG WASHER.. 2 1 Meer info
223900104 775 BURNER HEAD 3.3 KW. 21 1 Meer info
223910023 776 BURNER GROUP (SABAF 3.3 KW). 18 1 Meer info
219910109 777 BURNER CAP (INNER).. 10 1 Meer info
219910111 777 BURNER CAP (OUTER).. 14 1 Meer info
221300003 816 FEEDING TUBE-FRONT LEFT WOK 7 1 Meer info
223900112 822 MUSLUK_SOURDI_0.51_Ø7_PROG+T.ELE 18 1 Meer info
409300001 857 ADAPTOR 3 1 Meer info
250440102 883 DOOR GR SIDE HINGE PLASTIC HOUSING_LEFT 3 1 Meer info
250440103 883 DOOR GR SIDE HINGE PLASTIC HOUSING_RIGHT 3 1 Meer info
210300904 884 FRONT INNER DOOR INNER GLASS GROUP 24 1 Meer info
263410018 889 thermal cutout 70 degrees 8 1 Meer info
258300015 894 TIMER BUTTON 12 2 Meer info
210440105 902 THERMOSTAT BULB CLIP 5 1 Meer info
215300225 912 OVEN REAR SUPPORT_72CM 6 2 Meer info
255300004 916 WARMER DRAWER STOPPER 1 2 Meer info
255440118 916 FRONT DOOR STOPER PLASTIC_BOTTOM_Ø8 1 2 Meer info
215300006 944 REAR CONNECTION SHEET 5 2 Meer info
250300055 945 BACA ADAPTOR PLASTIGI _ELEKTRIKLI_60X60 5 1 Meer info
258300086 946 SIDE DECOR DOOR -LEFT-BLACK 13 1 Meer info
258300087 947 SIDE DECOR DOOR -RIGHT-BLACK 13 1 Meer info
210441936 950 COOLING MOTOR PROPELLER 5 1 Meer info
217440103 950 BAR TURBO FAN BLADE 6 1 Meer info
258300021 1005 TIMER HEAT PROTECTER PLASTIC 8 1 Meer info
215440434 1008 OVEN COOLING FAN MOUNTING SHEET 4 1 Meer info
215440258 1027 BI METAL HIT PROTECTION SHEET 2 1 Meer info
4431920051 1088 HOSE NOZZLE KIT 9 1 Meer info
258300040 1127 YELLOW SIGNAL LAMP HOLDER PLASTIC GR 5 1 Meer info
255440126 1179 FRONT DOOR GAP SEAL 2 2 Meer info
250440819 1334 CALL RIGHT COVER GLASS PLASTIC 3 1 Meer info
250440817 1335 CALL LEFT COVER GLASS PLASTIC 3 1 Meer info
272100001 1541 M 6 NUT- DIRECTION OF BOLD IS LEFT 1 1 Meer info
217300231 1888 BURNER PLATE FRONT FIXING SPRING 1 2 Meer info
