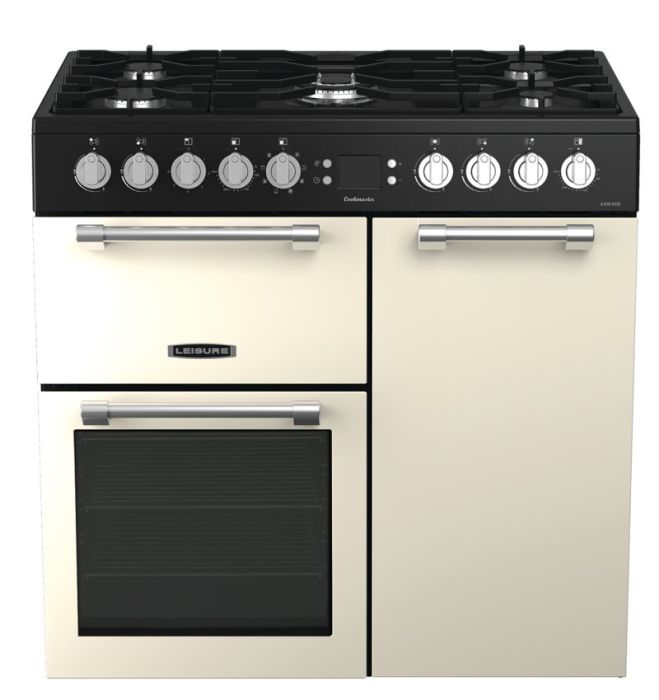

CK90F322C GEMENGD FORNUIS COOKMASTER

Artikelnr: 116003
Referentienr: CK90F322C
Vergelijk

Productomschrijving

Cream - 90 cm - 4 gas + 1 wok - 3 ovens
Meer informatie
Hoogte 90
Breedte 90
Diepte 60
Gewicht VPE (Kg) 106.5
Bijkomende kenmerken
  • Spatrand (H 11cm)
  • Butaansproeiers meegeleverd
    		•
    ArtRef CK90F322C
    AsogemID 116003
    MPN 7727788601
    Merk LEISURE
    Soort Fornuis gemengd gasbranders/elektrische oven L
    ArtEAN 8690842007958
    EXPLODED VIEWS
    ONDERDELEN
    Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
    255300017 0 BURNER PLATE FIXING TAMPON_BAR FS 3 2 Meer info
    419376002 6 BURNER TABLE 29 1 Meer info
    418375023 9 DECORATIVE CONTROL PANEL. 18 1 Meer info
    250371043 10 OVEN CONTROL KNOB 12 4 Meer info
    415376008 11 PROTECTION SHEET WITHOUT TERMINAL COVER 16 1 Meer info
    415300022 11 PROTECTION SHEET 16 1 Meer info
    218300202 12 SIDE WALL 16 2 Meer info
    418300090 13 OVEN DOOR HINGE UPPER RIGHT OPENING-50Cm 7 1 Meer info
    418371002 13 OVEN DOOR HINGE UPPER RIGHT OPENING-40Cm 7 1 Meer info
    250371047 14 foot group 6 8 Meer info
    415376003 15 BOTTOM SHEET 50X60TUNA 12 1 Meer info
    415300036 15 BOTTOM SHEET 50X60TUNA 14 1 Meer info
    266920003 19 TERMINAL BLOCK. 10 1 Meer info
    266920004 19 TERMINAL BLOCK. 11 1 Meer info
    410440034 20 OVEN BODY-50 Cm OVEN 24 1 Meer info
    410440032 20 OVEN BODY - 40 Cm OVEN 31 1 Meer info
    491300055 21 BODY GLASS WOOL- 55 Lt OVEN 15 1 Meer info
    491300021 21 BODY GLASS WOOL-25 Lt TOP OVEN 9 1 Meer info
    491920014 21 BODY GLASS WOOL - 40 Cm OVEN 19 1 Meer info
    491300025 22 GLASS WOOL_PERIPHERAL 25LT 11 1 Meer info
    491300038 22 BACK GLASS WOOL - 40 Cm OVEN 13 1 Meer info
    491300036 22 BACK GLASS WOOL - 55 Lt OVEN 8 1 Meer info
    415100007 23 REAR FIXING SHEET-55 Lt OVEN 5 1 Meer info
    415300083 23 TURBO MOTOR CONNECTION SHEET 8 1 Meer info
    210300166 24 ELECTRICAL FLUE GROUP 16 1 Meer info
    224300016 24 ELECTRICAL FLUE GROUP 10 1 Meer info
    410920592 24 40 CM CAVITY FLUE GROUP - 170 MM 15 1 Meer info
    440920014 27 INNER SHELF FOR TALL OVEN 13 2 Meer info
    440300002 27 GRILL SHELF 15 2 Meer info
    419100001 28 TRAY 15 2 Meer info
    419920299 28 TRAY-WIDE SKIRTED 13 1 Meer info
    455376001 29 OVEN BODY SEAL - 40cm OVEN 12 1 Meer info
    455373003 29 OVEN BODY SEAL- 25 Lt TOP OVEN 11 1 Meer info
    455373001 29 OVEN BODY SEAL - 55 Lt MAIN OVEN 12 1 Meer info
    418371001 31 OVEN DOOR HINGE UPPER RIGHT OPENING-40Cm 6 1 Meer info
    418300091 31 OVEN DOOR HINGE LOWER PART RIGHT OPENING 7 1 Meer info
    490300020 40 FRONT DOOR INNER GLASS - 55 Lt OVEN 19 1 Meer info
    490376003 40 SIDE OPENING DOOR OUTER GR 16 1 Meer info
    418300235 41 OVEN DOOR UPPER SHEET DECOR-55 Lt OVEN 6 1 Meer info
    418376002 41 OVEN DOOR UPPER SHEET DECOR-40cm OVEN 6 1 Meer info
    210441121 45 TOP OVEN FRONT DOOR HINGE 12 2 Meer info
    210371010 47 HANDLE PIPE GROUP 24 2 Meer info
    410376001 47 HANDLE PIPE GROUP-40 Cm OVEN 23 1 Meer info
    168244004 62 SPARK PLUG_LEFT_FRONT_200 MM 7 2 Meer info
    168244010 62 SPARK PLUG GROUP 900 MM 8 2 Meer info
    168244011 62 SPARK PLUG WOK MIDDLE 600 MM 10 1 Meer info
    410376033 67 MAIN GAS PIPE 15 1 Meer info
    242900003 68 SPARK PLUG CLIPS 2 12 Meer info
    242900013 68 DEFENDI WOK BURNER SPARK PLUG KLIPS 2 1 Meer info
    268100070 70 GAS IGNITOR. 13 1 Meer info
    468930007 70 GAS IGNITOR GROUP 16 1 Meer info
    255100012 72 NOZZLE SEAL 1 3 Meer info
    255440112 72 FRONT DOOR STOPER PLASTIC 1 4 Meer info
    133900003 81 RUBBER HOLDER REF 1052LPG 5 1 Meer info
    133900001 82 1_2 PLUG 4 1 Meer info
    242100036 89 THERMOSTAT CLIPS. 1 1 Meer info
    263100004 93 TURBO COMMUTATOR 12 2 Meer info
    263100032 93 MULTIFUNCTION COMMUTATOR_8 POSITIONS 16 1 Meer info
    267000061 96 ADORA DIGITAL TIMER-T 120 AMBER 25 1 Meer info
    419300054 97 FAN PROTECTING SHEET_CATALYTIC 12 1 Meer info
    419920337 97 FAN PROTECTING SHEET - 40 Cm OVEN 16 1 Meer info
    262900067 98 CIRCULAR HEATING ELEMENT. 16 1 Meer info
    462900010 98 CIRCULAR HEATING ELEMENT-1800 W_40cmOven 15 1 Meer info
    264440148 101 OVEN CIRCULATION BLOWER-220V-240V 18 1 Meer info
    264440157 101 OVEN CIRCULATION BLOWER 22 1 Meer info
    462300001 106 OVEN BOTTOM RESISTANCE 16 1 Meer info
    462300002 107 OVEN TOP RESISTANCE 19 1 Meer info
    462300004 107 GRILL HEATING RESISTANCE 17 1 Meer info
    415300039 108 BOTTOM RESISTANCE SUPPORT SHEET 11 1 Meer info
    260505023 118 SERVICE CABLE GROUP-50 Cm OVEN 23 1 Meer info
    260550008 118 CABLE GROUP 23 1 Meer info
    260555008 118 SERVICE CABLE GROUP-40 Cm OVEN 19 1 Meer info
    226900005 119 3 PHASE SYSTEM WIRING DIAGRAM 3 1 Meer info
    255244001 124 BURNER NOZZLE SEAL 1 KW 3 1 Meer info
    255244002 124 BURNER NOZZLE SEAL 2 KW 4 2 Meer info
    255244003 124 BURNER NOZZLE SEAL 3 KW 5 1 Meer info
    255244004 124 DEFENDI WOK BURNER NOZZLE SEAL 5 KW 8 1 Meer info
    173100022 140 KNOB PROTECTING SHEET CLIP WASHER 2 14 Meer info
    230244012 155 TERMOCOUPLE SHORT 10 4 Meer info
    415300030 160 SWITCH FIXATION SHEET 4 1 Meer info
    415100017 165 Q 16 TAP CONNECTING PIPE CLIP 1 5 Meer info
    140954006 205 DC200.GRILL SHELF 10 1 Meer info
    410920509 209 TRAY HANDLE GROUP. 12 1 Meer info
    210371018 230 CAST IRON PAN SUPPORT TWICE BURNER 28 2 Meer info
    131261014 240 THERMOCOUPLE FIXING NUT 2 1 Meer info
    219440108 242 REMOVABLE CATALYTIC LINER-RIGHT 14 1 Meer info
    219440109 242 REMOVABLE CATALYTIC LINER-LEFT 14 1 Meer info
    240440116 243 WIRE SHELF RIGHT - 55 Lt OVEN 12 1 Meer info
    240440117 243 WIRE SHELF LEFT - 55 Lt OVEN 12 1 Meer info
    240440156 243 WIRE SHELF LEFT-35 Lt OVEN 10 1 Meer info
    240440157 243 WIRE SHELF RIGHT - 35 Lt OVEN 10 1 Meer info
    440920016 243 WIRE SHELF-40 cm OVEN 15 2 Meer info
    264440128 252 OVEN CIRCULATION BLOWER(100cm-RIGHT) 20 1 Meer info
    264440133 252 OVEN CIRCULATION BLOWER(100cm-LEFT) 18 1 Meer info
    172100017 256 M8 NUT 1 2 Meer info
    250440222 261 handle plastıc 2 6 Meer info
    450300013 261 HANDLE BOTTOM PLASTIC_5.2_BLACK 2 2 Meer info
    263100015 263 EGO THERMOSTAT 551705303_280 HUAYI 285 C 16 2 Meer info
    263100016 263 EGO THERMOSTAT 55.17042.030_250_TOP OVEN 16 1 Meer info
    490300021 276 25 LT FRONT DOOR INNER GLASS 10 1 Meer info
    250000009 279 SWITCH AND SHEET GROUP 12 1 Meer info
    290390003 290 OVEN DOOR INNER GLASS - 55 Lt OVEN 17 1 Meer info
    490376001 290 OVEN DOOR INNER GLASS - 40 Cm OVEN 18 1 Meer info
    410440025 294 TOP OVEN BODY-25 Lt 23 1 Meer info
    258300204 300 TIMER BUTTON 3 4 Meer info
    410920198 304 KNOCKING GROUP WITH PLASTICROLLER 7 1 Meer info
    434300004 305 FRONT DOOR REFERACE PIN 3 2 Meer info
    4431930043 328 G30_28-30-INJECTOR GR-4G+W 10 1 Meer info
    4431910139 328 G20_25_M BAR NG KIT_NETHERLANDS 8 1 Meer info
    219244002 338 DEFENDI 1 KW BURNER CAP 8 1 Meer info
    219244005 339 DEFENDI 2 KW BURNER CAP 9 2 Meer info
    219244008 341 DEFENDI 3 KW BURNER CAP 10 1 Meer info
    223244001 342 DEFENDI 1KW BURNER 7 1 Meer info
    223244002 343 DEFENDI 2 KW BURNER 8 2 Meer info
    223244003 345 DEFENDI 3 KW BURNER 9 1 Meer info
    223244018 346 DEFENDI 1 KW BURNER GR 9 1 Meer info
    223244068 347 DEFENDI 2 KW BURNER GR 9 2 Meer info
    223244022 349 DEFENDI 3 KW BURNER GR 10 1 Meer info
    231244001 350 DEFENDI INJ G20-20MBAR 1KW_M78 3 1 Meer info
    231244002 350 DEFENDI INJ G30-28_30MBAR 1KW_M50 4 1 Meer info
    231244005 350 DEFENDI INJECTOR G-30-29 3 2 Meer info
    231244040 351 DEFENDI INJECTOR 2 KW G30 -29 4 2 Meer info
    231244004 353 DEFENDI INJ G20-20MBAR 2.9KW_M125 3 1 Meer info
    231244006 353 DEFENDI INJ G30-28_30MBAR 2.9KW_M85 4 1 Meer info
    131954001 356 HINGE PIN HOUSING 1 2 Meer info
    250371045 365 TAB KNOB 12 5 Meer info
    242100057 370 BURNER PLATE FRONT FIXING SPRING 2 2 Meer info
    265900026 374 OVEN LAMP 7 3 Meer info
    265900025 375 DUY+CAM+AMPUL_25_W_BJB_CERAMIC 13 3 Meer info
    223910156 378 SABAF COAXIAL GAS TAP_1 KW_. 19 1 Meer info
    223910157 379 SABAF COAXIAL GAS TAP 2 KW_. 19 2 Meer info
    223910158 381 SABAF COAXIAL GAS TAP_3 KW_. 19 1 Meer info
    221371001 386 TOP OVEN GRILL LEFT REAR GNB 6 1 Meer info
    221371002 387 TOP OVEN GRILL LEFT FRONT GNB 8 1 Meer info
    150240067 400 END OF HOSE PLASTIC 1 1 Meer info
    231900047 400 MUFF 9 1 Meer info
    258300019 412 TIMER BODY PLASTIC RECTANGULAR 7 1 Meer info
    455920037 417 DOOR BUMPER. 2 1 Meer info
    415300029 428 OVEN BODY FIXITION PART 2 2 Meer info
    415376012 428 40 OVEN BODY FIXITION PART 8 2 Meer info
    468376001 432 IGNITION ELECTRIC SWITCH 15 1 Meer info
    250920069 460 CABLE TIE-BIG_M TYPE_A20 1 6 Meer info
    165930022 475 SINGNAL LAMP_YELLOW 5 3 Meer info
    434300003 531 HINGE PIN HOUSING 3 2 Meer info
    263410017 557 BODY BIMETAL THERMOSTAT ABNORMAL CONDITI 9 3 Meer info
    155261009 566 PAN SUPPORT BOTTOM PLASTIC 2 12 Meer info
    250100045 576 SWITCH PLASTIC COVER 1 2 Meer info
    415390004 579 BACK COVER SHEET 6 1 Meer info
    418300199 584 BOTTOM CONDENSATION SHEET 50*60 4 1 Meer info
    410300196 618 AIR CONDITION SHEET 14 2 Meer info
    168240008 657 BUTTON IGNITION CABLE + GROUND CABLE 3 1 Meer info
    260100005 657 SAP CABLE GROUP 4 1 Meer info
    170100017 664 SCREW 3.9 X 9,5 YSB 1 2 Meer info
    418376003 665 SPLASHBACK 90CM 21 1 Meer info
    431371002 720 ENAMAL BADGE 8 1 Meer info
    450300024 740 TOP MIDDLE GLASS SUPPORTER 4 4 Meer info
    223244004 775 DEFENDI 3.3 WOK BURNER 19 1 Meer info
    223244063 776 DEFENDI WOK BURNER GR 20 1 Meer info
    219244010 777 DEFENDI WOK BURNER CAP 9 1 Meer info
    219244011 777 DEFENDI WOK BURNER CAP OUT 13 1 Meer info
    223910163 822 SABAF COAXIAL GAS TAP 2 KW_. 19 1 Meer info
    271100018 856 SABAF YAY SABITLEME VIDASI_WOK BUR_0400 1 12 Meer info
    271100027 856 M4X8 OX_SPECIAL PLATED SCREW 1 15 Meer info
    119240080 857 PAN SUPPORT WOK ADAPTER 22 1 Meer info
    450300003 883 DOOR GR SIDE HINGE PLASTIC HOUSING_LEFT 4 3 Meer info
    450300008 883 DOOR GR SIDE HINGE PLASTIC HOUSING_RIGHT 4 3 Meer info
    263410018 889 thermal cutout 70 degrees 8 2 Meer info
    258300015 894 TIMER BUTTON 12 2 Meer info
    210370001 898 THERMAL CUT-OUT+SHEET+SCREW GROUP 8 1 Meer info
    210440105 902 THERMOSTAT BULB CLIP 5 3 Meer info
    473930001 911 OVEN FOOT NUT WASHER_14_5-90SINGLE 2 8 Meer info
    215300004 912 OVEN REAR SUPPORT_72CM 6 2 Meer info
    415300015 912 OVEN REAR SUPPORT SHEET 11 2 Meer info
    255440116 916 FRONT DOOR STOPER PLASTIC 1 1 Meer info
    471920006 934 40 CM WIRE SHELF FIXING SCREW 5 4 Meer info
    415920075 940 FLUE OUT PROTECTION SHEET 1 1 Meer info
    215300213 944 REAR CONNECTION SHEET 2 2 Meer info
    250300034 945 FLUE ADAPTOR PLACTIC 7 1 Meer info
    172440103 949 WIRE SHELF FIXING NUT 4 4 Meer info
    116100007 950 FAN BLADE 8 1 Meer info
    210441936 950 COOLING MOTOR PROPELLER 5 2 Meer info
    217440195 950 TURBO MOTOR FAN BLADE 13 1 Meer info
    215300068 957 FLUE FIXING SHEET 2 2 Meer info
    210300860 978 SPLASHBACK SCREW GR. 3 1 Meer info
    234300025 984 SHEET TOP LID FIXING SPECIAL SCREW 3 2 Meer info
    250300613 985 SHEET TOP LID HINGE HOLDER PLASTIC PART_ 2 2 Meer info
    258300021 1005 TIMER HEAT PROTECTER PLASTIC 8 1 Meer info
    215440434 1008 OVEN COOLING FAN MOUNTING SHEET 4 2 Meer info
    215440258 1027 BI METAL HIT PROTECTION SHEET 2 3 Meer info
    258300014 1064 BURNER PLATE WITHOUT TOP LID PLA DECOR 5 2 Meer info
    415390001 1076 SIDE OPENING DOOR FIXATION SHEET-LEFT 3 1 Meer info
    415390002 1077 SIDE OPENING DOOR FIXATION SHEET-RIGHT 3 1 Meer info
    450390001 1078 SIDE OPENING HINGE FIXATON PLASTIC 2 2 Meer info
    415373002 1079 SIDE OPENING DOOR FIXING SHEET 4 1 Meer info
    415390003 1079 SIDE OPENING DOOR FIXING SHEET 5 1 Meer info
    415300012 1087 CONTROL PANEL FIXING SHEET 4 2 Meer info
    4431920051 1088 HOSE NOZZLE KIT 9 1 Meer info
    450390002 1093 COIL PROTECTION PLACTIC 8 1 Meer info
    450390003 1094 COIL PROTECTION PLACTIC CAP 5 1 Meer info
    231244064 1109 DEFENDI WOK INJECTOR 3.3 KW G20 20 5 1 Meer info
    231244068 1109 DEFENDI WOK INJECTOR 3 1 Meer info
    258300038 1127 RED SIGNAL LAMP HOLDER PLASTIC GR. 5 3 Meer info
    210371103 1194 FRONT DOOR OUTER GR-25 LT OVEN 23 1 Meer info
    415376005 1197 REAR STRUT 10 1 Meer info
    418373001 1198 FRONT STRUT 8 1 Meer info
    215371005 1200 CONNECTING BASE PLATE 7 1 Meer info
    410376014 1247 CAST RON PAN SUPPORT 29 1 Meer info
    450300025 1251 BOTTOM MIDDLE GLASS SUPPORTER 1 4 Meer info
    410376029 1282 SIDE DOOR GR_ 40Cm OVEN 25 1 Meer info
    221376001 1283 90CM WOK GNB MIDDLE 6 1 Meer info
    221376003 1284 RIGHT FRONT GNB TUBE 5 1 Meer info
    221376002 1285 RIGHT REAR GNB TUBE 5 1 Meer info
    172930001 1501 M10_6 EDGE FOOT NUT 3 8 Meer info
    272100001 1541 M 6 NUT- DIRECTION OF BOLD IS LEFT 1 2 Meer info
    300180439 3154 THERMAL SWITCH 110C _ 250V. 8 1 Meer info
    Mode d'emploi (4.73 MB)
    Handleiding (4.47 MB)
    Accessoires
