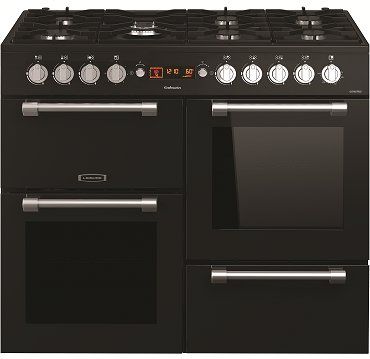

CK100F732K GEMENGD FORNUIS COOKMASTER

Artikelnr: 116020
Referentienr: CK100F732K
Vergelijk

Productomschrijving

Zwart - 100 cm - 6 gas + 1 wok - 3 ovens
Meer informatie
Hoogte 90
Breedte 100
Diepte 60
Gewicht (Kg) 96.7
Hoogte met verpakking 107
Breedte met verpakking 106
Diepte met verpakking 70
Gewicht VPE (Kg) 107
ArtRef CK100F732K
AsogemID 116020
MPN 7726588601
Merk LEISURE
Soort Fornuis gemengd gasbranders/elektrische oven L
ArtEAN 8690842082627
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
255300017 0 BURNER PLATE FIXING TAMPON_BAR FS 3 2 Meer info
419373002 6 BURNER TABLE 29 1 Meer info
218375074 9 DECORATIVE CONTROL PANEL. 20 1 Meer info
250371043 10 OVEN CONTROL KNOB 12 2 Meer info
415300022 11 PROTECTION SHEET 16 1 Meer info
218300202 12 SIDE WALL 16 2 Meer info
418300090 13 OVEN DOOR HINGE UPPER RIGHT OPENING-50Cm 7 1 Meer info
250371047 14 foot group 6 8 Meer info
415300036 15 BOTTOM SHEET 50X60TUNA 14 2 Meer info
415300033 17 HINGE FIXING SHEET-LEFT 5 1 Meer info
415373007 17 HINCE FIXING SHEET-LEFT 9 1 Meer info
266920003 19 TERMINAL BLOCK. 10 1 Meer info
266920004 19 TERMINAL BLOCK. 11 1 Meer info
410440004 20 OVEN BODY 27 1 Meer info
410440041 20 MAIN OVEN BODY 26 1 Meer info
491300055 21 BODY GLASS WOOL- 55 Lt OVEN 15 2 Meer info
491300021 21 BODY GLASS WOOL-25 Lt TOP OVEN 9 1 Meer info
491300006 22 GLASS WOOL_ REAR 8 1 Meer info
491300025 22 GLASS WOOL_PERIPHERAL 25LT 11 1 Meer info
491300036 22 BACK GLASS WOOL - 55 Lt OVEN 8 1 Meer info
415300083 23 TURBO MOTOR CONNECTION SHEET 8 1 Meer info
210300166 24 ELECTRICAL FLUE GROUP 16 1 Meer info
224300016 24 ELECTRICAL FLUE GROUP 10 1 Meer info
440300002 27 GRILL SHELF 15 3 Meer info
419100001 28 TRAY 15 2 Meer info
455373003 29 OVEN BODY SEAL- 25 Lt TOP OVEN 11 1 Meer info
455373001 29 OVEN BODY SEAL - 55 Lt MAIN OVEN 12 2 Meer info
418300091 31 OVEN DOOR HINGE LOWER PART RIGHT OPENING 7 1 Meer info
490300020 40 FRONT DOOR INNER GLASS - 55 Lt OVEN 19 2 Meer info
418300239 41 COVER TOP DECOR OPENS TO THE LEFT 6 1 Meer info
418300240 41 UPPER COVER SHEET_ROLL FORMING_BLACK 6 3 Meer info
418300201 44 CONDENSATION SHEET-FRONT DOOR 5 1 Meer info
210441121 45 TOP OVEN FRONT DOOR HINGE 12 4 Meer info
210441511 45 60_60 FRONT DOOR HINGE_SHORTER TYPE_ 12 2 Meer info
210371010 47 HANDLE PIPE GROUP 24 4 Meer info
168244004 62 SPARK PLUG_LEFT_FRONT_200 MM 7 2 Meer info
168244010 62 SPARK PLUG GROUP 900 MM 8 2 Meer info
168244011 62 SPARK PLUG WOK MIDDLE 600 MM 10 1 Meer info
410373047 67 MAIN GAS PIPE 16 1 Meer info
242900003 68 SPARK PLUG CLIPS 2 6 Meer info
242900012 68 SPARK PLUG CLIPS-DEFENDI 2 10 Meer info
242900013 68 DEFENDI WOK BURNER SPARK PLUG KLIPS 2 1 Meer info
468920020 70 IGNITION BOBIN 18 1 Meer info
468930008 70 GAS IGNITOR. 21 1 Meer info
255100012 72 NOZZLE SEAL 1 2 Meer info
255440112 72 FRONT DOOR STOPER PLASTIC 1 8 Meer info
133900001 82 1_2 PLUG 4 1 Meer info
242100036 89 THERMOSTAT CLIPS. 1 1 Meer info
263100004 93 TURBO COMMUTATOR 12 2 Meer info
267000092 96 KORU TIMER DIPLAY GR_ROTARY_BAR FS 27 1 Meer info
419300054 97 FAN PROTECTING SHEET_CATALYTIC 12 1 Meer info
262900067 98 CIRCULAR HEATING ELEMENT. 16 1 Meer info
264440148 101 OVEN CIRCULATION BLOWER-220V-240V 18 1 Meer info
462300001 106 OVEN BOTTOM RESISTANCE 16 2 Meer info
462300002 107 OVEN TOP RESISTANCE 19 1 Meer info
462300004 107 GRILL HEATING RESISTANCE 17 1 Meer info
462300003 107 STATIC HEAT RESISTANCE 15 1 Meer info
415300039 108 BOTTOM RESISTANCE SUPPORT SHEET 11 2 Meer info
260505021 118 SERVICE CABLE GROUP. 28 1 Meer info
260555003 118 SERVICE CABLE GROUP. 17 1 Meer info
255244001 124 BURNER NOZZLE SEAL 1 KW 3 2 Meer info
255244002 124 BURNER NOZZLE SEAL 2 KW 4 2 Meer info
255244003 124 BURNER NOZZLE SEAL 3 KW 5 2 Meer info
255244004 124 DEFENDI WOK BURNER NOZZLE SEAL 5 KW 8 1 Meer info
173100022 140 KNOB PROTECTING SHEET CLIP WASHER 2 16 Meer info
168244012 155 SPARK PLUG GROUP 900 MM 8 2 Meer info
230244012 155 TERMOCOUPLE SHORT 10 6 Meer info
415300030 160 SWITCH FIXATION SHEET 4 2 Meer info
415100017 165 Q 16 TAP CONNECTING PIPE CLIP 1 7 Meer info
210371018 230 CAST IRON PAN SUPPORT TWICE BURNER 28 3 Meer info
131261014 240 THERMOCOUPLE FIXING NUT 2 7 Meer info
219440108 242 REMOVABLE CATALYTIC LINER-RIGHT 14 2 Meer info
219440109 242 REMOVABLE CATALYTIC LINER-LEFT 14 2 Meer info
210440363 243 TELESCOPIC RIGHT SIDE RACK 2 LEVEL 21 1 Meer info
210440364 243 TELESCOPIC LEFT SIDE RACK 2 LEVEL 21 1 Meer info
240440116 243 WIRE SHELF RIGHT - 55 Lt OVEN 12 1 Meer info
240440117 243 WIRE SHELF LEFT - 55 Lt OVEN 12 1 Meer info
240440156 243 WIRE SHELF LEFT-35 Lt OVEN 10 1 Meer info
240440157 243 WIRE SHELF RIGHT - 35 Lt OVEN 10 1 Meer info
264440128 252 OVEN CIRCULATION BLOWER(100cm-RIGHT) 20 1 Meer info
264440133 252 OVEN CIRCULATION BLOWER(100cm-LEFT) 18 1 Meer info
172100017 256 M8 NUT 1 4 Meer info
250440222 261 handle plastıc 2 8 Meer info
263100015 263 EGO THERMOSTAT 551705303_280 HUAYI 285 C 16 2 Meer info
490300021 276 25 LT FRONT DOOR INNER GLASS 10 1 Meer info
250000009 279 SWITCH AND SHEET GROUP 12 1 Meer info
290390003 290 OVEN DOOR INNER GLASS - 55 Lt OVEN 17 1 Meer info
410440025 294 TOP OVEN BODY-25 Lt 23 1 Meer info
434300004 305 FRONT DOOR REFERACE PIN 3 1 Meer info
4431930027 328 G30_28-30-INJECTOR GR-4G+W 11 1 Meer info
4431910138 328 G20_25_M BAR NG KIT_NETHERLANDS 9 1 Meer info
219244002 338 DEFENDI 1 KW BURNER CAP 8 2 Meer info
219244005 339 DEFENDI 2 KW BURNER CAP 9 2 Meer info
219244008 341 DEFENDI 3 KW BURNER CAP 10 2 Meer info
223244001 342 DEFENDI 1KW BURNER 7 2 Meer info
223244002 343 DEFENDI 2 KW BURNER 8 2 Meer info
223244003 345 DEFENDI 3 KW BURNER 9 2 Meer info
223244018 346 DEFENDI 1 KW BURNER GR 9 2 Meer info
223244068 347 DEFENDI 2 KW BURNER GR 9 2 Meer info
223244022 349 DEFENDI 3 KW BURNER GR 10 2 Meer info
231244001 350 DEFENDI INJ G20-20MBAR 1KW_M78 3 2 Meer info
231244002 350 DEFENDI INJ G30-28_30MBAR 1KW_M50 4 2 Meer info
231244005 350 DEFENDI INJECTOR G-30-29 3 2 Meer info
231244040 351 DEFENDI INJECTOR 2 KW G30 -29 4 2 Meer info
231244004 353 DEFENDI INJ G20-20MBAR 2.9KW_M125 3 2 Meer info
231244006 353 DEFENDI INJ G30-28_30MBAR 2.9KW_M85 4 2 Meer info
131954001 356 HINGE PIN HOUSING 1 1 Meer info
250371045 365 TAB KNOB 12 7 Meer info
242100057 370 BURNER PLATE FRONT FIXING SPRING 2 2 Meer info
265900026 374 OVEN LAMP 7 3 Meer info
265900025 375 DUY+CAM+AMPUL_25_W_BJB_CERAMIC 13 3 Meer info
223910156 378 SABAF COAXIAL GAS TAP_1 KW_. 19 2 Meer info
223910157 379 SABAF COAXIAL GAS TAP 2 KW_. 19 2 Meer info
223910158 381 SABAF COAXIAL GAS TAP_3 KW_. 19 2 Meer info
221371006 384 TOP OVEN GRILL RIGHT REAR GNB 8 1 Meer info
221371007 385 TOP OVEN GRILL RIGHT FRONT GNB 6 1 Meer info
221371001 386 TOP OVEN GRILL LEFT REAR GNB 6 2 Meer info
221371002 387 TOP OVEN GRILL LEFT FRONT GNB 8 2 Meer info
151900001 400 TIP OF THE PLASTIC HOSE_NG 2 1 Meer info
415300029 428 OVEN BODY FIXITION PART 2 4 Meer info
268930011 432 IGNITION ELECTRIC SWITCH 17 1 Meer info
250920069 460 CABLE TIE-BIG_M TYPE_A20 1 6 Meer info
165930012 475 SINGNAL LAMP_YELLOW 6 1 Meer info
165930022 475 SINGNAL LAMP_YELLOW 5 1 Meer info
434300003 531 HINGE PIN HOUSING 3 1 Meer info
263410017 557 BODY BIMETAL THERMOSTAT ABNORMAL CONDITI 9 3 Meer info
155261009 566 PAN SUPPORT BOTTOM PLASTIC 2 16 Meer info
250100045 576 SWITCH PLASTIC COVER 1 2 Meer info
415390004 579 BACK COVER SHEET 6 4 Meer info
418300199 584 BOTTOM CONDENSATION SHEET 50*60 4 1 Meer info
263410022 587 PT 500 TEMPERATURE SENSOR KORU TIMER 19 1 Meer info
410300196 618 AIR CONDITION SHEET 14 2 Meer info
168240008 657 BUTTON IGNITION CABLE + GROUND CABLE 3 1 Meer info
260100005 657 SAP CABLE GROUP 4 1 Meer info
170100017 664 SCREW 3.9 X 9,5 YSB 1 2 Meer info
418373039 665 SPLASHBACK 21 1 Meer info
431371002 720 ENAMAL BADGE 8 1 Meer info
450300024 740 TOP MIDDLE GLASS SUPPORTER 4 2 Meer info
421373002 755 TOP OVEN GRILL WOK GNB 6 1 Meer info
255371001 760 DOOR BUMPER. 1 2 Meer info
223244004 775 DEFENDI 3.3 WOK BURNER 19 1 Meer info
223244063 776 DEFENDI WOK BURNER GR 20 1 Meer info
219244010 777 DEFENDI WOK BURNER CAP 9 1 Meer info
219244011 777 DEFENDI WOK BURNER CAP OUT 13 1 Meer info
223910163 822 SABAF COAXIAL GAS TAP 2 KW_. 19 1 Meer info
271100015 856 STAINLESS SCREW 1 15 Meer info
271100018 856 SABAF YAY SABITLEME VIDASI_WOK BUR_0400 1 4 Meer info
271100027 856 M4X8 OX_SPECIAL PLATED SCREW 1 15 Meer info
119240080 857 PAN SUPPORT WOK ADAPTER 22 1 Meer info
450300003 883 DOOR GR SIDE HINGE PLASTIC HOUSING_LEFT 4 4 Meer info
450300008 883 DOOR GR SIDE HINGE PLASTIC HOUSING_RIGHT 4 4 Meer info
234300013 885 OTOMAT_BEKO BW 2 KISA AL TUTAMAK BEKO 4 2 Meer info
263410018 889 thermal cutout 70 degrees 8 2 Meer info
210370001 898 THERMAL CUT-OUT+SHEET+SCREW GROUP 8 1 Meer info
210440105 902 THERMOSTAT BULB CLIP 5 2 Meer info
263410016 904 KORU TIMER ELECTRONIC COD SWITCH ±30 13 2 Meer info
473930001 911 OVEN FOOT NUT WASHER_14_5-90SINGLE 2 8 Meer info
415300015 912 OVEN REAR SUPPORT SHEET 11 4 Meer info
255440116 916 FRONT DOOR STOPER PLASTIC 1 5 Meer info
415300032 935 HINGE FIXING SHEET-RIGHT 5 1 Meer info
415373008 935 HINCE FIXING SHEET 2 1 Meer info
215300213 944 REAR CONNECTION SHEET 2 2 Meer info
250300034 945 FLUE ADAPTOR PLACTIC 7 1 Meer info
250300055 945 BACA ADAPTOR PLASTIGI _ELEKTRIKLI_60X60 5 2 Meer info
172440103 949 WIRE SHELF FIXING NUT 4 6 Meer info
210441936 950 COOLING MOTOR PROPELLER 5 2 Meer info
217440195 950 TURBO MOTOR FAN BLADE 13 1 Meer info
215300068 957 FLUE FIXING SHEET 2 2 Meer info
210300860 978 SPLASHBACK SCREW GR. 3 1 Meer info
234300025 984 SHEET TOP LID FIXING SPECIAL SCREW 3 4 Meer info
250300613 985 SHEET TOP LID HINGE HOLDER PLASTIC PART_ 2 2 Meer info
258300152 1005 TIMER HEAT PROTECTER PLASTIC 9 1 Meer info
215440434 1008 OVEN COOLING FAN MOUNTING SHEET 4 2 Meer info
215440258 1027 BI METAL HIT PROTECTION SHEET 2 3 Meer info
267000093 1039 KORU TIMER CARD GR_12 KON_NO PYR 30 1 Meer info
258300078 1040 KORU TIMER CARD FIXING PLASTIC 10 1 Meer info
258300014 1064 BURNER PLATE WITHOUT TOP LID PLA DECOR 5 2 Meer info
415390001 1076 SIDE OPENING DOOR FIXATION SHEET-LEFT 3 1 Meer info
450390001 1078 SIDE OPENING HINGE FIXATON PLASTIC 2 1 Meer info
415390003 1079 SIDE OPENING DOOR FIXING SHEET 5 1 Meer info
415300012 1087 CONTROL PANEL FIXING SHEET 4 2 Meer info
450390002 1093 COIL PROTECTION PLACTIC 8 1 Meer info
450390003 1094 COIL PROTECTION PLACTIC CAP 5 1 Meer info
231244064 1109 DEFENDI WOK INJECTOR 3.3 KW G20 20 5 1 Meer info
231244068 1109 DEFENDI WOK INJECTOR 3 1 Meer info
258300038 1127 RED SIGNAL LAMP HOLDER PLASTIC GR. 5 3 Meer info
210371005 1195 FRONT DOOR OUTER GR 25 LT 23 2 Meer info
210371180 1196 SIDE OPENING DOOR OUTER GR_TOP RIGHT 24 1 Meer info
415373001 1197 REAR STRUT 11 1 Meer info
418373001 1198 FRONT STRUT 8 1 Meer info
215371010 1199 SUB CHASSIS SIDE PLATE OFF 4 1 Meer info
215371005 1200 CONNECTING BASE PLATE 7 1 Meer info
410373014 1247 PAN SUPPORT 30 1 Meer info
450300025 1251 BOTTOM MIDDLE GLASS SUPPORTER 1 2 Meer info
215371027 1254 KEEP TIME CARD PROTECTION RING 11 1 Meer info
258400017 1256 ROTARY KNOB INOX 4 2 Meer info
240440109 1381 SLIDE RACK RIGHT 19 1 Meer info
172930001 1501 M10_6 EDGE FOOT NUT 3 8 Meer info
272100001 1541 M 6 NUT- DIRECTION OF BOLD IS LEFT 1 1 Meer info
258300031 1742 TIMER CONNECTION CASE 6 1 Meer info
300180439 3154 THERMAL SWITCH 110C _ 250V. 8 1 Meer info
2963390200 4210 INTERFERENCE FILTER 13 1 Meer info
Mode d'emploi (5.57 MB)
Handleiding (5.33 MB)
Accessoires
