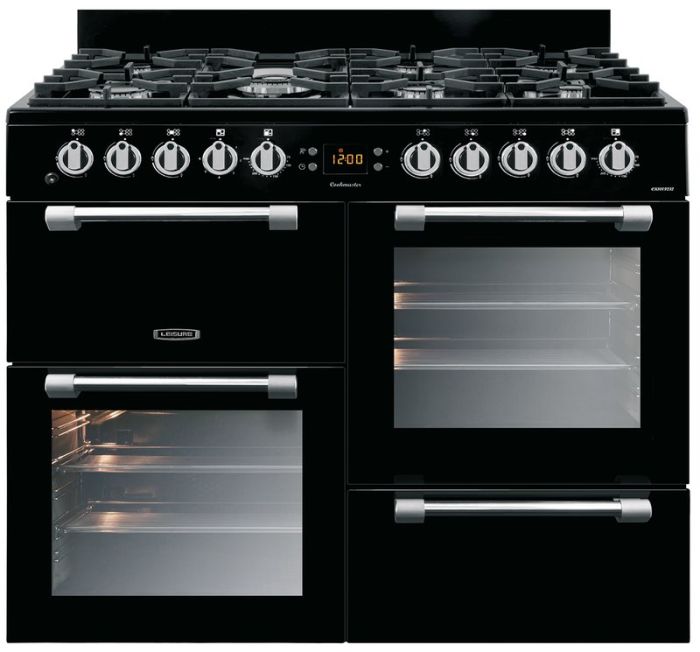

CK100F332K GEMENGD FORNUIS COOKMASTER

Artikelnr: 116005
Referentienr: CK100F332K
Vergelijk

Productomschrijving

Zwart - 100 cm - 6 gas + 1 wok - 3 ovens
Meer informatie
ArtRef CK100F332K
AsogemID 116005
MPN 7726588601
Merk LEISURE
Soort Fornuis gemengd gasbranders/elektrische oven L
ArtEAN 8690842010637
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
159954002 0 BLACK LEXAN WASHER 1 2 Meer info
255300017 0 BURNER PLATE FIXING TAMPON_BAR FS 3 2 Meer info
419373002 6 BURNER TABLE 29 1 Meer info
218375060 9 DECORATIVE CONTROL PANEL. 19 1 Meer info
250371043 10 OVEN CONTROL KNOB 12 3 Meer info
415300022 11 PROTECTION SHEET 16 1 Meer info
415300077 11 PROTECTION SHEET 15 1 Meer info
218300202 12 SIDE WALL 16 2 Meer info
418300090 13 OVEN DOOR HINGE UPPER RIGHT OPENING-50Cm 7 1 Meer info
250371047 14 foot group 6 8 Meer info
415300036 15 BOTTOM SHEET 50X60TUNA 14 2 Meer info
415300033 17 HINGE FIXING SHEET-LEFT 5 1 Meer info
415373007 17 HINCE FIXING SHEET-LEFT 9 1 Meer info
266920003 19 TERMINAL BLOCK. 10 1 Meer info
266920004 19 TERMINAL BLOCK. 11 1 Meer info
410440013 20 MAIN OVEN BODY 26 1 Meer info
410440004 20 OVEN BODY 27 1 Meer info
491300055 21 BODY GLASS WOOL- 55 Lt OVEN 15 2 Meer info
491300021 21 BODY GLASS WOOL-25 Lt TOP OVEN 9 1 Meer info
491300006 22 GLASS WOOL_ REAR 8 1 Meer info
491300025 22 GLASS WOOL_PERIPHERAL 25LT 11 1 Meer info
491300036 22 BACK GLASS WOOL - 55 Lt OVEN 8 1 Meer info
415300083 23 TURBO MOTOR CONNECTION SHEET 8 1 Meer info
210300166 24 ELECTRICAL FLUE GROUP 16 1 Meer info
224300016 24 ELECTRICAL FLUE GROUP 10 1 Meer info
440300002 27 GRILL SHELF 15 3 Meer info
419100001 28 TRAY 15 2 Meer info
455373003 29 OVEN BODY SEAL- 25 Lt TOP OVEN 11 1 Meer info
455373001 29 OVEN BODY SEAL - 55 Lt MAIN OVEN 12 2 Meer info
418300091 31 OVEN DOOR HINGE LOWER PART RIGHT OPENING 7 1 Meer info
490300020 40 FRONT DOOR INNER GLASS - 55 Lt OVEN 19 2 Meer info
418300239 41 COVER TOP DECOR OPENS TO THE LEFT 6 1 Meer info
418300240 41 UPPER COVER SHEET_ROLL FORMING_BLACK 6 3 Meer info
418300201 44 CONDENSATION SHEET-FRONT DOOR 5 1 Meer info
210441121 45 TOP OVEN FRONT DOOR HINGE 12 4 Meer info
210441511 45 60_60 FRONT DOOR HINGE_SHORTER TYPE_ 12 2 Meer info
210371010 47 HANDLE PIPE GROUP 24 4 Meer info
168244004 62 SPARK PLUG_LEFT_FRONT_200 MM 7 2 Meer info
168244010 62 SPARK PLUG GROUP 900 MM 8 2 Meer info
168244011 62 SPARK PLUG WOK MIDDLE 600 MM 10 1 Meer info
410373047 67 MAIN GAS PIPE 16 1 Meer info
242900003 68 SPARK PLUG CLIPS 2 6 Meer info
242900012 68 SPARK PLUG CLIPS-DEFENDI 2 10 Meer info
242900013 68 DEFENDI WOK BURNER SPARK PLUG KLIPS 2 1 Meer info
468920020 70 IGNITION BOBIN 18 1 Meer info
468930008 70 GAS IGNITOR. 21 1 Meer info
255100012 72 NOZZLE SEAL 1 3 Meer info
255440112 72 FRONT DOOR STOPER PLASTIC 1 8 Meer info
133900001 82 1_2 PLUG 4 1 Meer info
242100036 89 THERMOSTAT CLIPS. 1 1 Meer info
263100004 93 TURBO COMMUTATOR 12 3 Meer info
267000061 96 ADORA DIGITAL TIMER-T 120 AMBER 25 1 Meer info
419300054 97 FAN PROTECTING SHEET_CATALYTIC 12 1 Meer info
262900067 98 CIRCULAR HEATING ELEMENT. 16 1 Meer info
264440148 101 OVEN CIRCULATION BLOWER-220V-240V 18 1 Meer info
462300001 106 OVEN BOTTOM RESISTANCE 16 1 Meer info
462300004 107 GRILL HEATING RESISTANCE 17 1 Meer info
462300003 107 STATIC HEAT RESISTANCE 15 1 Meer info
415300039 108 BOTTOM RESISTANCE SUPPORT SHEET 11 1 Meer info
260505022 118 SERVICE CABLE GROUP. 21 1 Meer info
260555003 118 SERVICE CABLE GROUP. 17 1 Meer info
255244001 124 BURNER NOZZLE SEAL 1 KW 3 2 Meer info
255244002 124 BURNER NOZZLE SEAL 2 KW 4 2 Meer info
255244003 124 BURNER NOZZLE SEAL 3 KW 5 2 Meer info
255244004 124 DEFENDI WOK BURNER NOZZLE SEAL 5 KW 8 1 Meer info
173100022 140 KNOB PROTECTING SHEET CLIP WASHER 2 16 Meer info
168244012 155 SPARK PLUG GROUP 900 MM 8 2 Meer info
230244012 155 TERMOCOUPLE SHORT 10 6 Meer info
415300030 160 SWITCH FIXATION SHEET 4 1 Meer info
415100017 165 Q 16 TAP CONNECTING PIPE CLIP 1 7 Meer info
210371018 230 CAST IRON PAN SUPPORT TWICE BURNER 28 3 Meer info
131261014 240 THERMOCOUPLE FIXING NUT 2 7 Meer info
219440108 242 REMOVABLE CATALYTIC LINER-RIGHT 14 2 Meer info
219440109 242 REMOVABLE CATALYTIC LINER-LEFT 14 2 Meer info
210440363 243 TELESCOPIC RIGHT SIDE RACK 2 LEVEL 21 1 Meer info
210440364 243 TELESCOPIC LEFT SIDE RACK 2 LEVEL 21 1 Meer info
240440116 243 WIRE SHELF RIGHT - 55 Lt OVEN 12 1 Meer info
240440117 243 WIRE SHELF LEFT - 55 Lt OVEN 12 1 Meer info
240440156 243 WIRE SHELF LEFT-35 Lt OVEN 10 1 Meer info
240440157 243 WIRE SHELF RIGHT - 35 Lt OVEN 10 1 Meer info
264440132 252 OVEN CIRCULATION BLOWER 18 1 Meer info
264440133 252 OVEN CIRCULATION BLOWER(100cm-LEFT) 18 1 Meer info
172100017 256 M8 NUT 1 4 Meer info
250440222 261 handle plastıc 2 8 Meer info
263100015 263 EGO THERMOSTAT 551705303_280 HUAYI 285 C 16 3 Meer info
490300021 276 25 LT FRONT DOOR INNER GLASS 10 1 Meer info
250000009 279 SWITCH AND SHEET GROUP 12 1 Meer info
410440025 294 TOP OVEN BODY-25 Lt 23 1 Meer info
258300204 300 TIMER BUTTON 3 4 Meer info
434300004 305 FRONT DOOR REFERACE PIN 3 1 Meer info
4431930027 328 G30_28-30-INJECTOR GR-4G+W 11 1 Meer info
4431910138 328 G20_25_M BAR NG KIT_NETHERLANDS 9 1 Meer info
219244002 338 DEFENDI 1 KW BURNER CAP 8 2 Meer info
219244005 339 DEFENDI 2 KW BURNER CAP 9 2 Meer info
219244008 341 DEFENDI 3 KW BURNER CAP 10 2 Meer info
223244001 342 DEFENDI 1KW BURNER 7 2 Meer info
223244002 343 DEFENDI 2 KW BURNER 8 2 Meer info
223244003 345 DEFENDI 3 KW BURNER 9 2 Meer info
223244018 346 DEFENDI 1 KW BURNER GR 9 2 Meer info
223244068 347 DEFENDI 2 KW BURNER GR 9 2 Meer info
223244022 349 DEFENDI 3 KW BURNER GR 10 2 Meer info
231244001 350 DEFENDI INJ G20-20MBAR 1KW_M78 3 2 Meer info
231244002 350 DEFENDI INJ G30-28_30MBAR 1KW_M50 4 2 Meer info
231244005 350 DEFENDI INJECTOR G-30-29 3 2 Meer info
231244040 351 DEFENDI INJECTOR 2 KW G30 -29 4 2 Meer info
231244004 353 DEFENDI INJ G20-20MBAR 2.9KW_M125 3 2 Meer info
231244006 353 DEFENDI INJ G30-28_30MBAR 2.9KW_M85 4 2 Meer info
131954001 356 HINGE PIN HOUSING 1 1 Meer info
250371045 365 TAB KNOB 12 7 Meer info
242100057 370 BURNER PLATE FRONT FIXING SPRING 2 2 Meer info
265900026 374 OVEN LAMP 7 3 Meer info
265900025 375 DUY+CAM+AMPUL_25_W_BJB_CERAMIC 13 3 Meer info
223910156 378 SABAF COAXIAL GAS TAP_1 KW_. 19 2 Meer info
223910157 379 SABAF COAXIAL GAS TAP 2 KW_. 19 2 Meer info
223910158 381 SABAF COAXIAL GAS TAP_3 KW_. 19 2 Meer info
221371006 384 TOP OVEN GRILL RIGHT REAR GNB 8 1 Meer info
221371007 385 TOP OVEN GRILL RIGHT FRONT GNB 6 1 Meer info
221371001 386 TOP OVEN GRILL LEFT REAR GNB 6 2 Meer info
221371002 387 TOP OVEN GRILL LEFT FRONT GNB 8 2 Meer info
151900001 400 TIP OF THE PLASTIC HOSE_NG 2 1 Meer info
231900047 400 MUFF 9 1 Meer info
258300019 412 TIMER BODY PLASTIC RECTANGULAR 7 1 Meer info
415300029 428 OVEN BODY FIXITION PART 2 4 Meer info
268930011 432 IGNITION ELECTRIC SWITCH 17 1 Meer info
250920069 460 CABLE TIE-BIG_M TYPE_A20 1 5 Meer info
165930022 475 SINGNAL LAMP_YELLOW 5 3 Meer info
434300003 531 HINGE PIN HOUSING 3 1 Meer info
263410017 557 BODY BIMETAL THERMOSTAT ABNORMAL CONDITI 9 3 Meer info
155261009 566 PAN SUPPORT BOTTOM PLASTIC 2 16 Meer info
250100045 576 SWITCH PLASTIC COVER 1 3 Meer info
415390004 579 BACK COVER SHEET 6 2 Meer info
418300199 584 BOTTOM CONDENSATION SHEET 50*60 4 1 Meer info
410300196 618 AIR CONDITION SHEET 14 2 Meer info
168240008 657 BUTTON IGNITION CABLE + GROUND CABLE 3 1 Meer info
260100005 657 SAP CABLE GROUP 4 1 Meer info
170100017 664 SCREW 3.9 X 9,5 YSB 1 2 Meer info
418373039 665 SPLASHBACK 21 1 Meer info
431371002 720 ENAMAL BADGE 8 1 Meer info
421373002 755 TOP OVEN GRILL WOK GNB 6 1 Meer info
255371001 760 DOOR BUMPER. 1 2 Meer info
223244004 775 DEFENDI 3.3 WOK BURNER 19 1 Meer info
223244063 776 DEFENDI WOK BURNER GR 20 1 Meer info
219244010 777 DEFENDI WOK BURNER CAP 9 1 Meer info
219244011 777 DEFENDI WOK BURNER CAP OUT 13 1 Meer info
223910163 822 SABAF COAXIAL GAS TAP 2 KW_. 19 1 Meer info
271100015 856 STAINLESS SCREW 1 15 Meer info
271100018 856 SABAF YAY SABITLEME VIDASI_WOK BUR_0400 1 4 Meer info
271100027 856 M4X8 OX_SPECIAL PLATED SCREW 1 15 Meer info
119240080 857 PAN SUPPORT WOK ADAPTER 22 1 Meer info
450300003 883 DOOR GR SIDE HINGE PLASTIC HOUSING_LEFT 4 4 Meer info
450300008 883 DOOR GR SIDE HINGE PLASTIC HOUSING_RIGHT 4 4 Meer info
263410018 889 thermal cutout 70 degrees 8 2 Meer info
258300015 894 TIMER BUTTON 12 2 Meer info
210370001 898 THERMAL CUT-OUT+SHEET+SCREW GROUP 8 1 Meer info
210440105 902 THERMOSTAT BULB CLIP 5 3 Meer info
473930001 911 OVEN FOOT NUT WASHER_14_5-90SINGLE 2 8 Meer info
415300015 912 OVEN REAR SUPPORT SHEET 11 4 Meer info
255440116 916 FRONT DOOR STOPER PLASTIC 1 5 Meer info
415300032 935 HINGE FIXING SHEET-RIGHT 5 1 Meer info
415373008 935 HINCE FIXING SHEET 2 1 Meer info
215300213 944 REAR CONNECTION SHEET 2 2 Meer info
250300034 945 FLUE ADAPTOR PLACTIC 7 1 Meer info
250300055 945 BACA ADAPTOR PLASTIGI _ELEKTRIKLI_60X60 5 2 Meer info
172440103 949 WIRE SHELF FIXING NUT 4 6 Meer info
210441936 950 COOLING MOTOR PROPELLER 5 2 Meer info
217440195 950 TURBO MOTOR FAN BLADE 13 1 Meer info
215300068 957 FLUE FIXING SHEET 2 2 Meer info
210300860 978 SPLASHBACK SCREW GR. 3 1 Meer info
234300025 984 SHEET TOP LID FIXING SPECIAL SCREW 3 4 Meer info
250300613 985 SHEET TOP LID HINGE HOLDER PLASTIC PART_ 2 2 Meer info
258300021 1005 TIMER HEAT PROTECTER PLASTIC 8 1 Meer info
215440434 1008 OVEN COOLING FAN MOUNTING SHEET 4 2 Meer info
215440258 1027 BI METAL HIT PROTECTION SHEET 2 3 Meer info
258300014 1064 BURNER PLATE WITHOUT TOP LID PLA DECOR 5 2 Meer info
415390001 1076 SIDE OPENING DOOR FIXATION SHEET-LEFT 3 1 Meer info
450390001 1078 SIDE OPENING HINGE FIXATON PLASTIC 2 1 Meer info
415390003 1079 SIDE OPENING DOOR FIXING SHEET 5 1 Meer info
415300012 1087 CONTROL PANEL FIXING SHEET 4 2 Meer info
450390002 1093 COIL PROTECTION PLACTIC 8 1 Meer info
450390003 1094 COIL PROTECTION PLACTIC CAP 5 1 Meer info
231244064 1109 DEFENDI WOK INJECTOR 3.3 KW G20 20 5 1 Meer info
231244068 1109 DEFENDI WOK INJECTOR 3 1 Meer info
258300038 1127 RED SIGNAL LAMP HOLDER PLASTIC GR. 5 3 Meer info
210371179 1193 SIDE OPENING DOOR OUTER GR 22 1 Meer info
210371005 1195 FRONT DOOR OUTER GR 25 LT 23 2 Meer info
210371180 1196 SIDE OPENING DOOR OUTER GR_TOP RIGHT 24 1 Meer info
415373001 1197 REAR STRUT 11 1 Meer info
418373001 1198 FRONT STRUT 8 1 Meer info
215371010 1199 SUB CHASSIS SIDE PLATE OFF 4 1 Meer info
215371005 1200 CONNECTING BASE PLATE 7 1 Meer info
410373014 1247 PAN SUPPORT 30 1 Meer info
240440109 1381 SLIDE RACK RIGHT 19 1 Meer info
172930001 1501 M10_6 EDGE FOOT NUT 3 8 Meer info
300180439 3154 THERMAL SWITCH 110C _ 250V. 8 1 Meer info
