Productomschrijving

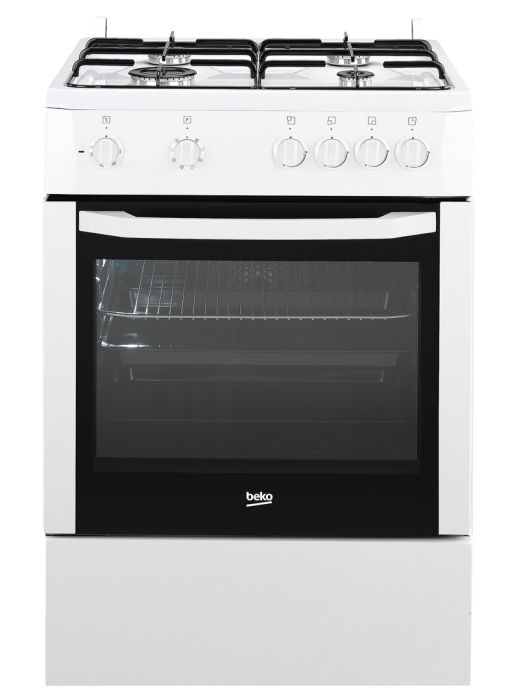

60x60cm multi functie oven oven
| Gewicht (Kg) | 47 |
|---|---|
| ArtRef | CSM62010DW |
| AsogemID | 115270 |
| MPN | 7786188602 |
| Merk | BEKO |
| Soort | Fornuis gemengd gasbranders/elektrische oven |
| ArtEAN | 8690842364631 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 412930090 | 0 | CAVITY SIDE HINGE HOUSING | 4 | 1 | Meer info | |||
| 412930089 | 0 | CAVITY SIDE HINGE HOUSING | 4 | 1 | Meer info | |||
| 218300076 | 1 | TOP LID | 21 | 1 | Meer info | |||
| 210301215 | 2 | HINGE GROUP_LEFT_SHEET TOP LID | 7 | 2 | Meer info | |||
| 219300152 | 6 | BURNER PLATE | 21 | 1 | Meer info | |||
| 255300008 | 7 | TOP LID STOPPER WHITE | 2 | 2 | Meer info | |||
| 218315113 | 9 | DECORATIVE CONTROL PANEL. | 11 | 1 | Meer info | |||
| 250315004 | 10 | TAP KNOB-47 | 6 | 4 | Meer info | |||
| 215300022 | 11 | OVEN REAR WALL. | 15 | 1 | Meer info | |||
| 218300010 | 12 | SIDE WALL -WHITE -60X60 | 16 | 2 | Meer info | |||
| 250300010 | 14 | OVEN FOOT GROUP | 1 | 4 | Meer info | |||
| 215300061 | 15 | 60X60 FS | 14 | 1 | Meer info | |||
| 166900015 | 19 | TERMINAL BOX | 7 | 1 | Meer info | |||
| 166900158 | 19 | TERMINAL BLOCK | 8 | 0 | Meer info | |||
| 219441001 | 20 | OVEN BODY | 27 | 1 | Meer info | |||
| 291300010 | 21 | GLASS WOOL_PERIPHERAL | 16 | 1 | Meer info | |||
| 291300011 | 22 | GLASS WOOL_ REAR_60ANK_15MM | 9 | 1 | Meer info | |||
| 215300015 | 23 | TURBO MOTOR CONNECTION SHEET | 9 | 1 | Meer info | |||
| 210301844 | 24 | ELECTRICAL FLUE GROUP | 8 | 1 | Meer info | |||
| 240440236 | 27 | GRILL SHELF | 15 | 1 | Meer info | |||
| 219440101 | 28 | BLACK ENAMELED ST TRAY(W_462xD_365xH_39) | 15 | 2 | Meer info | |||
| 419900057 | 28 | BAKING TRAY | 15 | 1 | Meer info | |||
| 255440101 | 29 | MAIN OVEN _O_ SEAL | 12 | 1 | Meer info | |||
| 289300001 | 36 | COUNTER WEIGHT_RIGHT.. | 9 | 1 | Meer info | |||
| 215300014 | 39 | OVEN BODY BOTTOM PROTECTION SHEET | 12 | 1 | Meer info | |||
| 218440102 | 44 | DOOR BOTTOM COVER SHEET | 8 | 1 | Meer info | |||
| 210440591 | 45 | 60_60 FRONT DOOR HINGE_SHORTER TYPE_ | 12 | 2 | Meer info | |||
| 258300159 | 47 | HANDLE-WHITE-BTB1-417-BEKO | 12 | 1 | Meer info | |||
| 218300001 | 48 | BOTTOM DOOR SHEET- WHITE | 12 | 1 | Meer info | |||
| 119100057 | 58 | PAN ADAPTOR. | 5 | 1 | Meer info | |||
| 268900035 | 62 | SPARK PLUG 650 MM | 5 | 2 | Meer info | |||
| 268900046 | 62 | SPARK PLUG_REAR LEFT 380 MM | 4 | 2 | Meer info | |||
| 210300888 | 67 | MAIN GAS PIPE GROUP | 13 | 1 | Meer info | |||
| 242900003 | 68 | SPARK PLUG CLIPS | 2 | 4 | Meer info | |||
| 110241215 | 70 | SPARKING PLUG+IGNITOR GR 4 OUTLETS | 16 | 1 | Meer info | |||
| 268100065 | 70 | GAS IGNITOR. | 12 | 1 | Meer info | |||
| 415920131 | 71 | IGNITION FIXING SHEET | 4 | 1 | Meer info | |||
| 255100012 | 72 | NOZZLE SEAL | 1 | 2 | Meer info | |||
| 133900003 | 81 | RUBBER HOLDER REF 1052LPG | 5 | 1 | Meer info | |||
| 263100032 | 93 | MULTIFUNCTION COMMUTATOR_8 POSITIONS | 16 | 1 | Meer info | |||
| 219440102 | 97 | FAN PROTECTING SHEET | 14 | 1 | Meer info | |||
| 262900074 | 98 | CIRCULAR HEATING ELEMENT_1800W-230V | 15 | 1 | Meer info | |||
| 264440148 | 101 | OVEN CIRCULATION BLOWER-220V-240V | 18 | 1 | Meer info | |||
| 262900061 | 106 | OVEN HEATING ELEMENT-230 | 16 | 1 | Meer info | |||
| 262900064 | 107 | GRILL HEATING ELEMENT_(1100+1100)W_230V | 19 | 1 | Meer info | |||
| 215440109 | 108 | HEATING ELEMENT HOLDER SHEET | 12 | 1 | Meer info | |||
| 260305024 | 118 | SERVICE CABLE GROUP. | 16 | 1 | Meer info | |||
| 161100026 | 119 | SUPPLY CORD | 12 | 1 | Meer info | |||
| 255900028 | 124 | BURNER NOZZLE SEAL 1 KW - 0690 | 1 | 1 | Meer info | |||
| 255900029 | 124 | BURNER NOZZLE SEAL 2 KW - 0690 | 2 | 2 | Meer info | |||
| 255900030 | 124 | BURNER NOZZLE SEAL 3 KW - 0690 | 3 | 1 | Meer info | |||
| 171100083 | 150 | M4X6 HANDLE TO PIN CONNECTION SCREW | 1 | 2 | Meer info | |||
| 230100028 | 155 | TERMOCOUPLE_SHORT_350mm | 11 | 2 | Meer info | |||
| 230100032 | 155 | TERMOCOUPLE_SHORT_520mm | 9 | 2 | Meer info | |||
| 415100017 | 165 | Q 16 TAP CONNECTING PIPE CLIP | 1 | 4 | Meer info | |||
| 131261014 | 240 | THERMOCOUPLE FIXING NUT | 2 | 4 | Meer info | |||
| 250315006 | 246 | THERMOSTAT KNOB | 5 | 1 | Meer info | |||
| 172100017 | 256 | M8 NUT | 1 | 2 | Meer info | |||
| 263100015 | 263 | EGO THERMOSTAT 551705303_280 HUAYI 285 C | 16 | 1 | Meer info | |||
| 155955703 | 286 | HANDLE SEAL | 1 | 2 | Meer info | |||
| 4431910130 | 328 | G20_25_M BAR_4G_2.KW_NG KIT_ | 8 | 1 | Meer info | |||
| 4431900115 | 328 | G30-30 INJECTOR GR ( LPG ) | 8 | 1 | Meer info | |||
| 419920278 | 338 | BURNER CUP 1 KW | 6 | 1 | Meer info | |||
| 419920279 | 339 | BURNER CUP 2 KW | 7 | 2 | Meer info | |||
| 419920280 | 341 | BURNER CUP 3 KW | 9 | 1 | Meer info | |||
| 423920044 | 342 | BURNER HEAD 1 KW_SABAF | 8 | 1 | Meer info | |||
| 423920045 | 343 | BURNER HEAD 2 KW_SABAF | 9 | 2 | Meer info | |||
| 423920046 | 345 | BURNER HEAD 3 KW_SABAF | 11 | 1 | Meer info | |||
| 223900092 | 346 | BURNER GROUP (SABAF 1 KW). | 8 | 1 | Meer info | |||
| 223900091 | 347 | BURNER GROUP (SABAF 2 KW). | 8 | 2 | Meer info | |||
| 223900090 | 349 | BURNER GROUP (SABAF 3 KW). | 10 | 1 | Meer info | |||
| 431900027 | 350 | SABAF INJ G20-20MBAR 1KW_M072 | 3 | 1 | Meer info | |||
| 431920052 | 350 | SABAF INJ G30_28-30BAR 1KW_M50 | 3 | 1 | Meer info | |||
| 431900026 | 351 | SABAF INJ G20-20MBAR 2KW_M103 | 3 | 2 | Meer info | |||
| 431920051 | 351 | SABAF-BRAND ENJ G30.28-30 2.XKW_M72 | 3 | 2 | Meer info | |||
| 431900028 | 353 | SABAF INJ G20-20MBAR 3KW_M115 | 3 | 1 | Meer info | |||
| 431920050 | 353 | G_30_SABAF_ENJ_LPG_2.9_KW | 3 | 1 | Meer info | |||
| 218300003 | 368 | SIDE PROFILE-BLACK-LEFT | 8 | 1 | Meer info | |||
| 218300004 | 369 | SIDE PROFILE -BLACK-RIGHT | 9 | 1 | Meer info | |||
| 265900012 | 374 | OVEN LAMP 15 W-230 V | 6 | 1 | Meer info | |||
| 265900026 | 374 | OVEN LAMP | 7 | 0 | Meer info | |||
| 265100022 | 375 | OVEN LAMP GROUP | 12 | 1 | Meer info | |||
| 210300020 | 376 | PAN SUPPORT GROUP_60x60 | 15 | 2 | Meer info | |||
| 231900102 | 378 | SAFETY TAP 0.32 Ø7 | 19 | 1 | Meer info | |||
| 231900103 | 379 | SAFETY TAP 0.34 Ø7 | 19 | 2 | Meer info | |||
| 231900104 | 381 | SAFETY TAP 0.41 Ø7 | 19 | 1 | Meer info | |||
| 221300119 | 384 | FEEDING TUBE REAR RIGHT | 5 | 1 | Meer info | |||
| 221300118 | 385 | FEEDING TUBE-REAR RIGHT | 5 | 1 | Meer info | |||
| 221300120 | 386 | FEEDING TUBE REAR RIGHT | 6 | 1 | Meer info | |||
| 221300121 | 387 | FEEDING TUBE REAR RIGHT | 5 | 1 | Meer info | |||
| 150240067 | 400 | END OF HOSE PLASTIC | 1 | 1 | Meer info | |||
| 231900047 | 400 | MUFF | 9 | 1 | Meer info | |||
| 268100111 | 432 | SWITCH HARNESS 4F MS 925 PO7 | 12 | 1 | Meer info | |||
| 215300215 | 452 | GAS BURNER SUPPORT -4G | 4 | 2 | Meer info | |||
| 250920069 | 460 | CABLE TIE-BIG_M TYPE_A20 | 1 | 4 | Meer info | |||
| 165930011 | 475 | SINGNAL LAMP_YELLOW | 6 | 1 | Meer info | |||
| 290440150 | 479 | FRONT MIDDLE DOOR GLASS.. | 13 | 1 | Meer info | |||
| 4480300003 | 533 | CHAIN GROUP | 8 | 1 | Meer info | |||
| 263410017 | 557 | BODY BIMETAL THERMOSTAT ABNORMAL CONDITI | 9 | 1 | Meer info | |||
| 255100015 | 566 | SUPPORTING TAMPON FOR PAN SUPPORT | 1 | 8 | Meer info | |||
| 218440178 | 584 | CONDENSATION SHEET-BLACK | 6 | 1 | Meer info | |||
| 250315005 | 635 | COMMUTATOR KNOB | 5 | 1 | Meer info | |||
| 260100005 | 657 | SAP CABLE GROUP | 4 | 1 | Meer info | |||
| 250440102 | 883 | DOOR GR SIDE HINGE PLASTIC HOUSING_LEFT | 3 | 1 | Meer info | |||
| 250440103 | 883 | DOOR GR SIDE HINGE PLASTIC HOUSING_RIGHT | 3 | 1 | Meer info | |||
| 210300902 | 884 | FRONT INNER DOOR INNER GLASS GROUP | 26 | 1 | Meer info | |||
| 234300008 | 885 | HANDLE REFERANCE PIM GR | 3 | 2 | Meer info | |||
| 250300120 | 886 | PROFILE AIR CONDITION SIDE DECOR _ BLACK | 16 | 2 | Meer info | |||
| 210440105 | 902 | THERMOSTAT BULB CLIP | 5 | 1 | Meer info | |||
| 215300225 | 912 | OVEN REAR SUPPORT_72CM | 6 | 2 | Meer info | |||
| 255440103 | 916 | FRONT DOOR STOPPER SEAL_50X50_BLACK | 1 | 2 | Meer info | |||
| 255440116 | 916 | FRONT DOOR STOPER PLASTIC | 1 | 2 | Meer info | |||
| 218300009 | 938 | SIDE DECOR PROFILE | 8 | 2 | Meer info | |||
| 215300006 | 944 | REAR CONNECTION SHEET | 5 | 2 | Meer info | |||
| 250300055 | 945 | BACA ADAPTOR PLASTIGI _ELEKTRIKLI_60X60 | 5 | 1 | Meer info | |||
| 258300066 | 946 | SIDE DECOR DOOR -LEFT_WHITE | 14 | 1 | Meer info | |||
| 258300067 | 947 | SIDE DECOR DOOR -RIGHT_WHITE | 14 | 1 | Meer info | |||
| 250300022 | 948 | PANEL BOTTOM PLASTIC | 9 | 1 | Meer info | |||
| 217440103 | 950 | BAR TURBO FAN BLADE | 6 | 1 | Meer info | |||
| 210301304 | 982 | FLAPE COVER HINGE GROUP_LEFT_65LT | 7 | 1 | Meer info | |||
| 210301305 | 983 | FLAPE COVER HINGE GROUP_RIGHT-65LT | 7 | 1 | Meer info | |||
| 234300025 | 984 | SHEET TOP LID FIXING SPECIAL SCREW | 3 | 2 | Meer info | |||
| 250300612 | 985 | SHEET TOP LID HINGE HOLDER PLASTIC PART | 2 | 2 | Meer info | |||
| 215440258 | 1027 | BI METAL HIT PROTECTION SHEET | 2 | 1 | Meer info | |||
| 4431920051 | 1088 | HOSE NOZZLE KIT | 9 | 1 | Meer info | |||
| 258300040 | 1127 | YELLOW SIGNAL LAMP HOLDER PLASTIC GR | 5 | 1 | Meer info | |||
| 258440164 | 1187 | MIDDLE GLASS CARRIER PLASTIC | 8 | 1 | Meer info | |||
| 272100001 | 1541 | M 6 NUT- DIRECTION OF BOLD IS LEFT | 1 | 1 | Meer info | |||
| 217300231 | 1888 | BURNER PLATE FRONT FIXING SPRING | 1 | 2 | Meer info |
