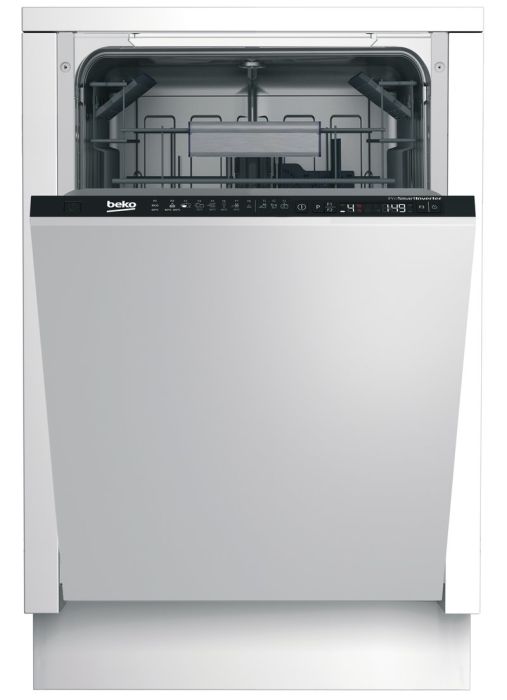

DIS28020 FULL INTEGREERBARE VAATWASSER BLDC 45cm

Artikelnr: 115621
Referentienr: DIS28020
Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

8 progr. 6 temp. FULL INTEGRE 45 cm
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
1881820100 13 FOOT SUPPORT PART 4 4 Meer info
1888360300 13 FOOT GROUP-ADJUSTABLE 7 1 Meer info
1888360400 14 FOOT GROUP-ADJUSTABLE-RIGHT-BACK 8 1 Meer info
1888360500 15 FOOT GROUP-ADJUSTABLE-LEFT-FRONT 8 1 Meer info
1888360600 16 Rear feet Adjustable LEFT BACK 8 1 Meer info
1888340300 20 REAR ADJUSTABLE FOOT CONNECTION PART 3 2 Meer info
1888340400 22 REAR ADJUSTABLE FOOT CONNECTION PART 2 2 Meer info
1743320192 40 BOTTOM TRAY-45 cm 11 1 Meer info
1880350300 110 FOOT GROUP-ADJUSTABLE 2 4 Meer info
1800864700 119 HOSE BETWEEN FAN AND SUMP 2 1 Meer info
1741810202 401 HINGE ARM-RIGHT 8 1 Meer info
1741810102 402 HINGE ARM-LEFT 8 1 Meer info
1743240100 403 HINGE ARM SUPPORT 4 1 Meer info
1880880100 440 HINGE SPRING (DOOR WITH BITUMEN) 4 2 Meer info
1881040300 470 HINGE WHEEL-RED 1 2 Meer info
1881050200 471 HINGE ROPE GROUP-L=390(BLUE) 1 2 Meer info
1747700500 472 DOOR ADJUSTMENT GROUP-LEFT-3MM 4 1 Meer info
1747700600 473 DOOR ADJUSTMENT GROUP-RIGHT-3MM 4 1 Meer info
1747750100 474 DOOR ADJUSTING ADAPTOR 2 2 Meer info
1744970100 649 REAR FRAME COTTON FLEECE 13 1 Meer info
1743930300 650 INNER TUB ISOLATION 11 1 Meer info
1884750200 653 DOOR LOCK COTTON FLEECE 1 1 Meer info
1731490200 654 FELT 5 1 Meer info
1882420200 656 KICK PLATE FOAM 10 1 Meer info
1880170110 1030 OUTER DOOR-ARC744-2 15 1 Meer info
1737370200 1200 INNER DOOR BITUMEN GRD 21 1 Meer info
1743230100 1201 LOWER SUPPORT - FRONT 9 1 Meer info
1510600200 1300 SELFRESETING LOCK GROUP 5 1 Meer info
1881970100 1310 DOOR LOCK HOOK 1 1 Meer info
1749190200 1910 DOOR SEALING GASKET- L=1625 10 1 Meer info
1882470200 1920 DOOR SEALING GASKET - BOTTOM 4 1 Meer info
1749050500 2001 TOP CORNER BRACKET - LEFT 1 1 Meer info
1749050600 2002 TOP CORNER BRACKET - RIGHT 1 1 Meer info
1855840700 2006 VAPOUR FOIL GR 3 1 Meer info
1768940200 2411 BEKO TOP BASKET SHELF EU1 45CM-7016 4 4 Meer info
1751750900 2416 HEIGH ADJ. MECHANISM GR-LEFT-PURPLE 9 1 Meer info
1751751000 2417 HEIGH ADJ. MECHANISM GR-RIGHT-PURPLE 9 1 Meer info
1763680100 2421 LOWER BASKET WHEEL GROUP 45CM 4 8 Meer info
1763470100 2424 45CM PLATE HOLDER-BACK 1-7016 9 1 Meer info
1763480100 2424 45CM PLATE HOLDER BACK 2-7016 9 1 Meer info
1781870200 2425 L.BASKET SHORT FOLDING PART 742/PURPLE 2 2 Meer info
1758910200 2427 LOWER BASKET CLIPS-7037 1 2 Meer info
1769250600 2428 LOWER BASKET HANDLE/INOX-PURPLE 12 1 Meer info
1782100900 2430 CUTLERY BASKET GROUP 45CM PURPLE HANDLE 12 1 Meer info
1782120100 2437 GRD CUTLERY BASKET SEPERATOR 2 2 Meer info
1769230500 2438 LOWER BASKET HANDLE BACK PART/PURPLE 2 1 Meer info
1768830500 2439 Top basket handle back part-PURPLE 3 1 Meer info
1769350500 2440 BEKO TOP BASKET HANDLE-INOX/PURPLE 12 1 Meer info
1781890100 2521 GRD LOWER BASKET SHORT CLIPS-RIGHT 1 2 Meer info
1781890200 2522 GRD LOWER BASKET SHORT CLIPS-LEFT 1 2 Meer info
1752600400 2609 RAIL WHEEL GROUP-RAL7037 2 4 Meer info
1880240300 2610 RAIL (430 STAINLESS STEEL) 8 2 Meer info
1732840100 2611 RAIL CAP- FRONT&BACK -RAL7037 2 4 Meer info
1748940200 2613 RAIL WHEEL SCREW 1 8 Meer info
1749910100 2615 RAIL WHEEL HOLDER 2 4 Meer info
1745890017 3010 PANEL GROUP-30 18 1 Meer info
1511290200 3320 ON-OFF BUTTON - BLACK 4 1 Meer info
1511210200 3321 F1-F2 FUNCTION BUTTON - BLACK 4 1 Meer info
1511220200 3322 F3-F4 FUNCTION BUTTON- BLACK 4 1 Meer info
1511250200 3323 PROGRAM DELAY BUTTON - BLACK 4 1 Meer info
1756850200 3324 DELAY BUTTON - BLACK 4 1 Meer info
1783900400 4000 ANGORA QUADRO CIRCULATION PUMP GROUP 31 1 Meer info
1757420100 4001 CIRCULATION PUMP DAMPENING RUBBER 2 3 Meer info
1757190100 4210 AMERICA BOBBIN TERFERENCE FILTER 16 1 Meer info
1740301000 4300 DRAIN PUMP GROUP 18 0 Meer info
1748200100 4300 ALUMINIUM WRAPPED DISCHARGE ENGINE 17 1 Meer info
1888130100 4500 FLOW THROUGH HEATER 22 0 Meer info
1888130200 4500 FLOW THROUGH HEATER 21 1 Meer info
1888130300 4500 FLOW THROUGH HEATER 21 0 Meer info
1888150100 4500 FLOW THROUGH HEATER 21 0 Meer info
1761610100 4504 PUMP INLET HOSE 5 1 Meer info
1745542500 4801 PROGRAM END SIGNAL CABLE 4 1 Meer info
1892101600 4901 MAIN PLUG GROUP 220-230 V smart 1 11 1 Meer info
1769510200 5051 E5-E6 CARD HOLDER FRONT PART 6 1 Meer info
1769520200 5052 E5-E6 CARD HOLDER BACK PART 5 1 Meer info
1749580100 5056 TURBIDITY FRAME_2K 4 1 Meer info
1898900400 5058 TURBIDITY CARD AND LED HOLDER GR-WHITE 11 1 Meer info
1769530200 5065 E5-E6 BOTTON HOLDER PART 4 1 Meer info
1764950300 5750 REGENERATION VALVE GR SNAP FIT 11 1 Meer info
1744290100 5760 over_floating_house_3 1 1 Meer info
1760900100 5830 COUNTER GROUP 9 1 Meer info
1718830100 6161 RINSE AID SWITCH 6 1 Meer info
1883240100 6311 OVER FLOW SWITCH (LOW END) D3731 D3421 6 1 Meer info
1760940100 6315 COUNTER PCB_4 7 2 Meer info
1731980300 6330 NEW DOOR SWITCH 7 1 Meer info
1718601700 6800 DETERGENT DISPENSER GROUP 18 1 Meer info
1719000700 6800 DETERGENT DISPENSER GROUP -RAL 7037 22 0 Meer info
1712730100 6801 DETERGENT DISPENSER GASKET 5 0 Meer info
1718670100 6801 DETERGENT DISPENSER GASKET 9 1 Meer info
1831470000 6802 THERMOACTUATOR D3731 D3421 13 1 Meer info
1712710100 6811 RINSE AID GASKET 8 0 Meer info
1718750100 6811 RINSE AID GASKET 3 1 Meer info
1718640100 6812 COVER SPRING 1 2 Meer info
1887740400 6920 NTC GROUP 7 1 Meer info
1760360100 7000 T&P AQUASTOP NEWDESIGN 22 1 Meer info
1889010300 7011 HOSE HOLDER LOWER PART RAL 7037 3 1 Meer info
1889020200 7012 HOSE HOLDER UPPER PART RAL 7037 2 1 Meer info
1768300100 7100 WATER SOFTENER GROUP 18 1 Meer info
1742450100 7102 WATER SOFTENER NUT-RAL7037 2 1 Meer info
1766470100 7103 SOFTONER O-RING 2 1 Meer info
1744250100 7104 O-RING - SALT BOX- BELOW 3 2 Meer info
1883910300 7108 WATER SOFTENER CAP GASKET 3 1 Meer info
1766560100 7140 WATER SOFTONER CAP GROUP-RAL7016 5 1 Meer info
1741600700 7160 REGENERATION UNIT GR 11 1 Meer info
1882630200 7161 AIR FUNNEL GASKET 2 2 Meer info
1882620700 7162 air funnel cup 1 2 Meer info
1800864400 7169 HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) 1 1 Meer info
1744400200 7211 LOWER SPRAY ARM GROUP-7037 7 1 Meer info
1745300400 7220 UPPER SPRAY ARM GROUP 7037-7016 8 1 Meer info
1759600100 7221 UPPER SPRAY ARM FEED PIPE -RAL 7037 8 1 Meer info
1800720800 7228 GASKET 3 1 Meer info
1737930200 7232 NOZZLE HOLDER FOR TOP SPRAY ARM-7037 2 1 Meer info
1737960200 7234 TOP SPRAY ARM CAP-7037 2 1 Meer info
1738001600 7260 WATER SUPPLY TUBE-7037 12 1 Meer info
1749490200 7261 UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET 3 1 Meer info
1737950200 7332 TOP SPRAY ARM FEED BODY-7037 2 1 Meer info
1741502600 7510 SUMP GROUP 11 1 Meer info
1889860600 7514 CORNER PADDING GR-FRONT 10 1 Meer info
1889870300 7515 REAR CORNER PADDING GR-BACK 10 1 Meer info
1745190100 7516 PACKAGE COVER - BOTTOM 7 1 Meer info
1788430100 7517 PACKAGE COVER - UPPER 6 1 Meer info
1745010200 7518 PACKAGE STRAFOR - BOTTOM 11 1 Meer info
1885480100 7520 SUPPORT SYROPOR OF B_I KICK PLATE 4 1 Meer info
1743650100 7550 HOSE BETWEEN SUMP AND HEATER 8 1 Meer info
1888100100 7560 OVERFLOW FLOAT GROUP 8 1 Meer info
1884280100 7561 SIFHON 2 2 Meer info
1786610200 7610 METAL FILTER HALF 13 1 Meer info
1757830100 7611 HALF FILTER SUPPORT 45CM 6 1 Meer info
1760400100 7612 THREE WAY VALVE 18 1 Meer info
1796080500 7620 MICRO FILTER GROUP_3 NO RING 7 1 Meer info
1740230400 7630 COARSE FILTER-PURPLE 2 1 Meer info
1796090700 7640 FILTER GROUP 3 NO RING 9 1 Meer info
1740160300 7810 DRAIN HOSE 8 1 Meer info
1800632000 7835 HOSE BETWEEN COUNTER AND REGENERATION U. 2 1 Meer info
1800862600 7839 HOSE BETWEEN WATER SOFT AND REJEN. UNIT 3 1 Meer info
1800862300 7844 HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) 2 1 Meer info
1740050300 7910 SUMP GASKET 6 1 Meer info
1754250100 8004 FAN SUCTION TUBE - WELDED 8 1 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 6 Meer info
2002373200 8319 HOSE CLAMP (x 40.0) 1 1 Meer info
2002372100 8357 HOSE CLAMP.(Ø 34_1) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 2 Meer info
2002372500 8360 HOSE CLAMP (x 47.0) 1 1 Meer info
2002740100 8365 DRAIN HOSE HOLDER 2 1 Meer info
1732850100 9013 Hose Clamps With Screw Ø40 White 2 1 Meer info
1757470200 9019 SUMP CLAMP SCREW TYPE 2 1 Meer info
1883170100 9022 MAIN PLUG HOLDER 1 1 Meer info
1889340100 9102 SCREW 4x14 1 3 Meer info
1803430300 9104 SCREW 16mm 2 4 Meer info
1883430100 9105 SCREW (PANEL-DOOR LOCKED) 1 6 Meer info
1883430300 9105 SCREW (FILTER SUPPORT) 1 2 Meer info
1882820100 9107 INNER DOOR STOPER 1 2 Meer info
1883470100 9113 BOLT M4X8 D3731 D3421 1 12 Meer info
1883460100 9114 SCREW (INNER-OUTER DOOR) 1 4 Meer info
1731640100 9115 WIDE HEADED SCREW 1 2 Meer info
1801080100 9115 SCREW (3.9x9.5) 1 22 Meer info
1802860200 9153 SCREW M5x8 1 4 Meer info
1803430100 9203 SCREW (4x14) 1 2 Meer info
1831780000 9213 WASHER 1 2 Meer info
1882150100 9520 O-RING (FLOW DIVERTER) 1 2 Meer info
1882280600 9640 NOISE ISOLATION FOR TUB-7037 3 1 Meer info
1882281100 9640 NOISE ISOLATION FOR TUB 1 1 Meer info
1732380100 9935 SALT FUNNEL 2 3 1 Meer info
1731470300 9938 KICK PLATE RUBBER 17 1 Meer info
1718990200 9992 DETERGENT DISPENCER CAB HAR HOLD 7037 1 1 Meer info
