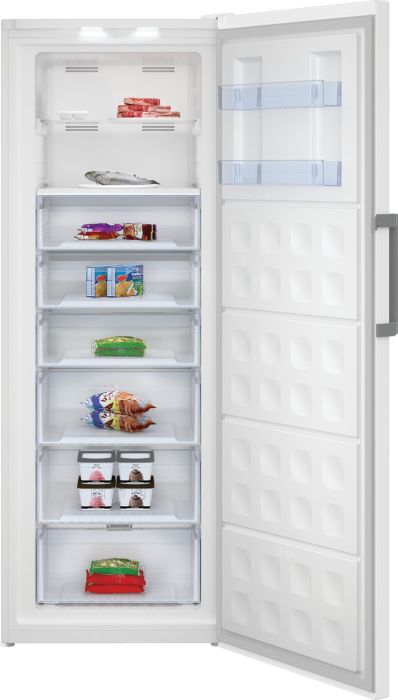

RFNE448E41W DIEPVRIEZER NO FROST
Selective
Artikelnr:
111175
Referentienr:
RFNE448E41W
Aanbevolen verkoopprijs:
€ 999,99
(BTW & recupel inbegrepen)
Productomschrijving
****192 x 70 x 77 cm - 448 L NO FROST DISPLAY
Afmetingen (H x B x D) | 192 x 70 x 77 cm |
---|---|
Breedte (cm) | 70,00 |
Totaal volume (L) | 448,00 |
Netto inhoud (L) | 404 |
NO FROST | |
Invriescapaciteit (kg/24u) | 24 |
Autonomie (u) | 20 |
Geluidsniveau (dBA) | 38 dBA |
Koelgas | R600a |
ProSmart Inverter compressor | 10 jaar garantie |
Eco mode | |
Freezer Guard | |
Klimaatklasse | SN-T |
Aantal laden | 8 |
Antibacterieel handvat | |
Snelvries compartiment | |
Digitale display | ON DOOR |
Omkeerbare deur | |
Energieverbruik (kW/24u) | 0.575 |
Jaarlijks energieverbruik (kWu) | 233.00 |
Energy Efficency Index (EEI) | 79.9 |
Energieklasse | D |
Hoogte | 192 |
Breedte | 70 |
Diepte | 77 |
Gewicht (Kg) | 82.5 |
Kleur | Wit |
Jaarlijks verbruik (kWh) | 233.00 |
Hoogte met verpakking | 200 |
Breedte met verpakking | 76 |
Diepte met verpakking | 90 |
Gewicht VPE (Kg) | 90 |
ArtRef | RFNE448E41W |
AsogemID | 111175 |
MPN | 7283640813 |
Merk | BEKO |
Going prijs | 999,99 |
Soort | Diepvrieskast |
ProductLine | Selective |
ArtEAN | 8690842398643 |
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
---|---|---|---|---|---|---|---|---|
4811830200 | 0 | SCREW(M5x12) | 1 | 1 | Meer info | |||
4223430100 | 0 | CHARGING TUBE | 3 | 1 | Meer info | |||
5716210100 | 0 | GAS LEAK CONTROL PLUG | 5 | 1 | Meer info | |||
5941810200 | 0 | FRONT PANEL CONNECTING PLATE | 3 | 1 | Meer info | |||
5941810100 | 0 | FRONT PANEL CONNECTING PLATE | 4 | 1 | Meer info | |||
5797750100 | 0 | DEEP HNGE PLUG | 1 | 1 | Meer info | |||
4227510100 | 0 | REAR HANDLE (RIGHT) | 3 | 1 | Meer info | |||
5967190200 | 5 | DISPLAY ASSEMBLY | 14 | 1 | Meer info | |||
4930830900 | 13 | LOWER HINGE ASSEMBLY | 8 | 1 | Meer info | |||
5966270300 | 14 | TOP HINGE ASSEMBLY | 6 | 1 | Meer info | |||
4939371000 | 15 | ADJUSTABLE GLIDER GROUP | 3 | 2 | Meer info | |||
4243121600 | 19 | DOUBLE ENTRY DRAYER | 8 | 1 | Meer info | |||
4243120400 | 19 | DOUBLE ENTRY DRAYER | 4 | 0 | Meer info | |||
5843980100 | 23 | TRUNK CLAMP | 1 | 1 | Meer info | |||
4151232500 | 30 | VCC COMPRESSOR (EMBRACO_VESF11C) | 43 | 1 | Meer info | |||
4847070100 | 33 | COMPRESSOR RUBBER GROMMET | 1 | 4 | Meer info | |||
4057080200 | 34 | COMPRESSOR WASHER | 1 | 3 | Meer info | |||
4133843000 | 38 | POWER CORD GROUP | 12 | 1 | Meer info | |||
4049730100 | 40 | SCREW 3.9x12 | 1 | 3 | Meer info | |||
4825490100 | 40 | CONLOK SCREW | 1 | 3 | Meer info | |||
5705910100 | 51 | EVAP. COVER CAP_ARCP1 | 2 | 1 | Meer info | |||
4890180100 | 55 | CONDENSER+FAN HOLDER | 8 | 1 | Meer info | |||
5789902500 | 81 | VCC INVERTER | 32 | 1 | Meer info | |||
5781220100 | 101 | SELF WASHERED BOLT | 1 | 4 | Meer info | |||
4832460100 | 114 | SELF WASHERED BOLT (M6x16) | 1 | 3 | Meer info | |||
4024820400 | 125 | CHARGING TUBE | 3 | 1 | Meer info | |||
5755270100 | 132 | EVAPORATING_PAN | 9 | 1 | Meer info | |||
5794330100 | 193 | ICEBOX_COVER | 6 | 1 | Meer info | |||
4048860200 | 200 | WHEEL | 1 | 2 | Meer info | |||
4048870200 | 201 | WHEEL PIN (50MM) | 1 | 2 | Meer info | |||
4365040100 | 202 | COMPRESSOR TRAVERSE GROUP | 13 | 1 | Meer info | |||
4109812900 | 205 | GROUND CABLE GROUP | 2 | 1 | Meer info | |||
5964400200 | 210 | DOOR GROUP | 44 | 1 | Meer info | |||
5786590600 | 211 | BEKO SELECTIVE PETINOX LOGO | 16 | 1 | Meer info | |||
4803860700 | 237 | TORX BOLT STAINLESS INOX M4x12 | 1 | 2 | Meer info | |||
5727670100 | 250 | UPPER HINGE HOLE | 1 | 2 | Meer info | |||
5928103500 | 252 | DOOR_GASKET | 16 | 1 | Meer info | |||
5819570200 | 255 | DOOR SHELF | 10 | 2 | Meer info | |||
5819680100 | 265 | FRONT PROFILE FOR GLASS SHELF | 4 | 1 | Meer info | |||
5757310100 | 300 | ICEBOX | 4 | 1 | Meer info | |||
5743757800 | 310 | GLASS SHELF | 13 | 3 | Meer info | |||
5966340200 | 314 | VEGETABLE GROUP | 21 | 1 | Meer info | |||
5977630100 | 326 | CEKMECE COVER PRINTED GR BEKO | 13 | 3 | Meer info | |||
5966330200 | 327 | VEGETABLE GROUP | 21 | 2 | Meer info | |||
5966310200 | 328 | VEGETABLE GROUP | 21 | 1 | Meer info | |||
4929821300 | 361 | CABLE GROUP | 8 | 1 | Meer info | |||
5730685300 | 364 | SENSOR | 9 | 1 | Meer info | |||
4295210300 | 375 | BITUM | 1 | 1 | Meer info | |||
4212777900 | 405 | ALUMINIUM FOIL TAPE 70mmx70mm | 1 | 1 | Meer info | |||
4211691700 | 405 | ALUMINIUM FOIL TAPE | 3 | 5 | Meer info | |||
5752030100 | 618 | SCREW (M5_16) | 0 | 2 | Meer info | |||
4824410100 | 712 | HEATER SPRING | 2 | 4 | Meer info | |||
4860360100 | 712 | HEATER SPRING (ANTE) | 1 | 4 | Meer info | |||
4919820300 | 716 | THERMAL FUSE DUAL GR INCH DAR MLX 220 | 11 | 1 | Meer info | |||
4385620385 | 716 | THERMAL FUSE DIAL GR 72C MLX 180mm | 10 | 0 | Meer info | |||
4385910200 | 730 | Air Grill Cover | 5 | 1 | Meer info | |||
5998660100 | 741 | EVAPORATOR COVER ASS | 26 | 0 | Meer info | |||
5984214501 | 784 | U2_CONTROL_BOARD_GR | 30 | 1 | Meer info | |||
5984214500 | 784 | U2_CONTROL_BOARD_GR | 31 | 0 | Meer info | |||
5733280300 | 789 | REED SWITCH CARD | 8 | 1 | Meer info | |||
5938860100 | 809 | ICEBOX GROUP | 9 | 1 | Meer info | |||
4930860200 | 827 | CARD BOX COVER GROUP | 11 | 1 | Meer info | |||
4227520100 | 828 | REAR HANDLE (LEFT) | 3 | 1 | Meer info | |||
4920750500 | 831 | COMPRESSOR BACK COVER GROUP | 13 | 1 | Meer info | |||
4877214600 | 842 | SENSOR | 0 | 0 | Meer info | |||
4877204600 | 842 | SENSOR | 15 | 0 | Meer info | |||
4216604600 | 842 | SENSOR | 10 | 1 | Meer info | |||
5964140300 | 843 | DISPLAY GROUP | 26 | 1 | Meer info | |||
5990400100 | 848 | CONDANSER_ASSEMBLY_4MM_F70 | 17 | 1 | Meer info | |||
5738200200 | 857 | SENSOR_COVER | 1 | 1 | Meer info | |||
5737360500 | 862 | Extrusion Back Profile | 10 | 1 | Meer info | |||
5727660100 | 947 | UPPER HINGE COVER | 2 | 1 | Meer info | |||
4240620100 | 959 | CABLE HOLDER | 2 | 1 | Meer info | |||
5916511400 | 972 | NEW_EASY_OPEN_HANDLE | 23 | 1 | Meer info | |||
4852570100 | 975 | HINGE HOUSING | 1 | 1 | Meer info | |||
4839420300 | 976 | LOWER DOOR STOPER-LINE 2001 | 3 | 1 | Meer info | |||
5727680100 | 984 | UPPER DOOR BROW BIG COVER | 2 | 1 | Meer info | |||
5727690100 | 984 | UPPER DOOR BROW SMALL COVER | 2 | 1 | Meer info | |||
4299880100 | 989 | SELF WASHERED BOLT | 1 | 4 | Meer info | |||
9000130400 | 995 | RUBBER HOLDER | 1 | 1 | Meer info | |||
9000130500 | 995 | RUBBER HOLDER | 1 | 1 | Meer info | |||
9000130300 | 995 | RUBBER HOLDER | 1 | 1 | Meer info | |||
4880030400 | 997 | MECHANISM COVER FUSE | 1 | 2 | Meer info | |||
5999810100 | 1036 | EVAPORATOR_FINNED_ASSEMBLY_F70 | 25 | 1 | Meer info | |||
5977630200 | 1054 | CRISPER COVER GROUP | 13 | 3 | Meer info | |||
5743757700 | 1068 | GLASS SHELF | 12 | 1 | Meer info | |||
5970515300 | 1074 | VCC INVERTER ASSY(WITH SUPPLY CORD)_CHIN | 33 | 1 | Meer info | |||
5743757900 | 1139 | GLASS SHELF | 13 | 2 | Meer info | |||
4819430200 | 1204 | SBS PIPE CLAMP | 2 | 1 | Meer info | |||
4825250185 | 1221 | MAGNET FOR SIGNAL | 3 | 2 | Meer info | |||
5743757600 | 1337 | GLASS SHELF WITH GROOVE | 14 | 1 | Meer info | |||
4858340185 | 1353 | AXIAL FAN CCW_145MM (ROHS) | 6 | 1 | Meer info | |||
5956370200 | 1372 | EVAPORATOR COVER ASS | 30 | 1 | Meer info | |||
5824710100 | 1403 | LED CARD F70 | 10 | 1 | Meer info | |||
5985360100 | 1475 | UST EVA COVER GROUP | 15 | 1 | Meer info | |||
9003270700 | 1497 | PLASTIC SCREW (DIA 4 MM * 16) | 1 | 2 | Meer info | |||
5966320200 | 1592 | VEGETABLE GROUP | 21 | 2 | Meer info | |||
5710880100 | 1643 | MAGNET COVER_ARCP1 | 2 | 2 | Meer info | |||
4397620100 | 1705 | FAN MOTOR GROUP | 20 | 0 | Meer info | |||
4397620400 | 1705 | FAN MOTOR GROUP | 21 | 1 | Meer info | |||
4818490200 | 1764 | BITUM FOR EVAPARATOR TUBES | 8 | 2 | Meer info | |||
5812600100 | 1797 | RUBBER | 1 | 4 | Meer info | |||
5818540100 | 1798 | FAN FIXING PART | 4 | 1 | Meer info | |||
5996240100 | 1866 | SOUND SUMMER SQUARE FAN GROUP | 6 | 1 | Meer info | |||
5738890100 | 2111 | FEERIT | 7 | 1 | Meer info | |||
9001230300 | 8419 | PLASTIC CLAMP 100 mm | 1 | 2 | Meer info |
