Promotie
A+

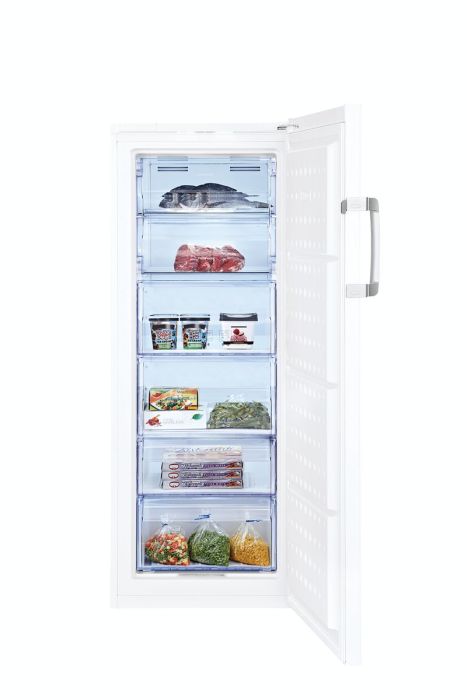

main product photo

FN127920 DIEPVRIEZER NO FROST

Artikelnr: 114475
Referentienr: FN127920
Vergelijk

Productomschrijving

****151x59.5x65 cm - 210 L NO FROST
Meer informatie
Gewicht (Kg) 63
Jaarlijks verbruik (kWh) 282
ArtRef FN127920
AsogemID 114475
MPN 7285947215
Merk BEKO
Soort Diepvrieskast
ArtEAN 8690842870736
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4250010400 0 MOTOR HOUSE SUPPORT-LINE 2001. 2 2 Meer info
4811830200 0 SCREW(M5x12) 1 1 Meer info
5716210100 0 GAS LEAK CONTROL PLUG 5 1 Meer info
4117650300 0 ADJUSTABLE GLIDER GROUP 2 1 Meer info
4859580100 3 THERMOSTAT KNOB 1 1 Meer info
4364383300 5 FRONT PANEL ASSY 21 1 Meer info
5972160100 6 REED SW CABLE ASSEMBLY F60 5 1 Meer info
4359160200 13 LOWER HINGE GROUP 5 1 Meer info
4382480100 14 TOP HINGE GROUP 9 1 Meer info
4243120300 19 SINGLE ENTRY DRAYER 6 0 Meer info
4243121500 19 SINGLE ENTRY DRAYER 7 1 Meer info
4887740100 23 DRAIN DAMPER 1 1 Meer info
4117650400 26 ADJUSTABLE GLIDER GROUP 2 1 Meer info
4056670000 29 SPACER (NATURAL - SN_T) 1 2 Meer info
4913131200 30 COMPRESSOR_PZ75E1B (220-240 V) 32 1 Meer info
5739010100 31 TERMINAL COVER PZ GMCC 11 1 Meer info
4847070100 33 COMPRESSOR RUBBER GROMMET 1 4 Meer info
4057080200 34 COMPRESSOR WASHER 1 3 Meer info
4133843000 38 POWER CORD GROUP 12 1 Meer info
5731440500 39 COMBO_PTC_RELAY_GMCC_PZ75E1B 15 0 Meer info
4930970800 39 COMBO UNIT_PZ99H1C_PZ75E1B_GMCC_AL 15 1 Meer info
4049730100 40 SCREW 3.9x12 1 2 Meer info
4825490100 40 CONLOK SCREW 1 2 Meer info
5739020100 45 CABLE_HOLDER 3 1 Meer info
5739030100 45 CABLE_HOLDER-1 1 1 Meer info
5739040100 45 CABLE HOLDER_2 1 1 Meer info
4121077486 48 CAPASITOR GROUP 9 0 Meer info
4121077485 48 CAPASITOR GROUP 10 1 Meer info
5705910100 51 EVAP. COVER CAP_ARCP1 2 2 Meer info
4933120400 53 CONDENSER GROUP 18 1 Meer info
5781220100 101 SELF WASHERED BOLT 1 4 Meer info
4832460100 114 SELF WASHERED BOLT (M6x16) 1 3 Meer info
4024820100 125 CHARGING TUBE 3 1 Meer info
4623980100 132 WATER COLECTOR TRAY JIAXIPERA 13 0 Meer info
5810470100 132 EVAPORATING PAN 9 0 Meer info
5975780100 132 EVAPORATING PAN GROUP 9 1 Meer info
4216620700 152 ADJUSTABLE GLIDER CAP 1 1 Meer info
4048860200 200 WHEEL 1 2 Meer info
4048870200 201 WHEEL PIN (50MM) 1 2 Meer info
4152660500 202 COMPRESSOR TRAVERSE GROUP 11 1 Meer info
4349800100 205 GROUND CABLE GROUP 2 1 Meer info
4930741600 210 FOAMED_DOOR_ASS_B565_WHITE 35 1 Meer info
5737560100 211 LOGO 7 1 Meer info
4880031600 227 MECHANISM COVER FUSE_BYG_ARC745 2 2 Meer info
4830680100 250 TOP HINGE HOUSING. ( NATURAL) 1 2 Meer info
5958251000 252 DOOR GASKET GROUP 14 1 Meer info
4227831700 279 COVERING ADHESVE PROFILE 6 1 Meer info
4232250100 300 ICE CUBE TRAY_ARC P1_D 6 2 Meer info
5709000100 314 DRAWER 235MM 16 1 Meer info
5710390100 325 ICE TRAY 10 1 Meer info
4397311100 326 DRAWER COVER GROUP 12 2 Meer info
5704370200 327 BIG FREEZER DRAWER 190mm WITHOUT HOLES 16 2 Meer info
5704390300 328 DRAWER BODY 14 1 Meer info
5776260100 331 cover hinge 2 2 Meer info
5776260200 332 cover hinge 2 2 Meer info
4295210300 375 BITUM 1 1 Meer info
4212777900 405 ALUMINIUM FOIL TAPE 70mmx70mm 1 1 Meer info
5808880100 712 HEATER SPIRNG 3 2 Meer info
5709700100 713 EVAPORATOR HEATER 16 1 Meer info
4919820300 716 THERMAL FUSE DUAL GR INCH DAR MLX 220 11 1 Meer info
4385620385 716 THERMAL FUSE DIAL GR 72C MLX 180mm 10 0 Meer info
5808890100 718 HEATER SPIRNG 3 2 Meer info
4888520100 720 Fan blade 5 1 Meer info
4249690100 723 FAN MOTOR FRONT BACK COVER 5 1 Meer info
4884573185 724 FAN MOTOR. 16 0 Meer info
5720995400 724 FAN MOTOR 20 1 Meer info
5720980600 724 FAN MOTOR 18 0 Meer info
5720980400 724 FAN MOTOR 16 0 Meer info
5720996400 724 FAN MOTOR 18 0 Meer info
4939450500 784 CONTROL BOARD GROUP 20 1 Meer info
4939455500 784 CONTROL BOARD GROUP 22 0 Meer info
5733280300 789 REED SWITCH CARD 8 1 Meer info
5714830100 827 CARD BOX COVER 9 1 Meer info
4216600285 842 SENSOR 8 1 Meer info
4877210285 842 SENSOR 6 0 Meer info
4877200285 842 SENSOR 8 0 Meer info
4365690185 843 DISPLAY CARD GROUP 17 1 Meer info
4822290200 851 SUPPRESSION FILTER 8 1 Meer info
5715970100 857 SENSOR HOUSING COVER 2 1 Meer info
5719650200 880 heater K60400 12 1 Meer info
4853110100 947 HINGE COVER_RIGHT_ARC2009_ARC P1 4 1 Meer info
4853120100 948 HINGE COVER-LEFT_ARC_2009_(ARC P1 4 1 Meer info
4818990100 949 EVAPORATOR HOLDER 1 4 Meer info
4811830100 955 SERRATED SCREW (M5x20) 1 2 Meer info
4240620100 959 CABLE HOLDER 2 1 Meer info
4397251000 972 HANDLE GROUP_EOH_BYG_ARC528 17 1 Meer info
4305895500 973 FAN GROUP 18 1 Meer info
4852570100 975 HINGE HOUSING 1 1 Meer info
4800390200 976 LOWER DOOR STOPER-LINE 2001 1 1 Meer info
4891180100 984 UPPER DOOR BROW HINGE COVER 1 1 Meer info
4923570100 987 REAR SUPPORT GROUP 1 2 Meer info
9000130400 995 RUBBER HOLDER 1 2 Meer info
4880030200 997 MECHANISM COVER FUSE_BYG_ARC434 1 2 Meer info
4920650100 1036 FINNED EVAPORATOR GROUP 26 1 Meer info
4397312800 1054 FREEZER COVER_60CM 13 2 Meer info
4397311300 1066 DRAWER COVER GROUP 12 1 Meer info
4397311600 1067 DRAWER COVER GROUP 12 1 Meer info
4881690100 1207 SOCKET HOUSING FRONT COVER 4 1 Meer info
4825250185 1221 MAGNET FOR SIGNAL 3 1 Meer info
4914380100 1372 EVAPORATOR COVER GROUP 22 1 Meer info
4859630100 1380 insulating plate 1 1 Meer info
4936741700 1401 DOOR KIT GROUP 6 1 Meer info
5906383500 1431 COMPRESSOR TERMINAL GROUP 22 1 Meer info
5716150200 1475 FREEZER EVAPORATOR COVER TOP 9 1 Meer info
5716150100 1475 FREEZER EVAPARATOR COVER TOP 10 0 Meer info
4821900100 1477 Filter Box 5 1 Meer info
5710880100 1643 MAGNET COVER_ARCP1 2 1 Meer info
4818490200 1764 BITUM FOR EVAPARATOR TUBES 8 1 Meer info
4934250100 2178 ICEBOX TRAY GROUP 15 1 Meer info
Mode d'emploi (740.39 kB)
Handleiding (1.06 MB)
