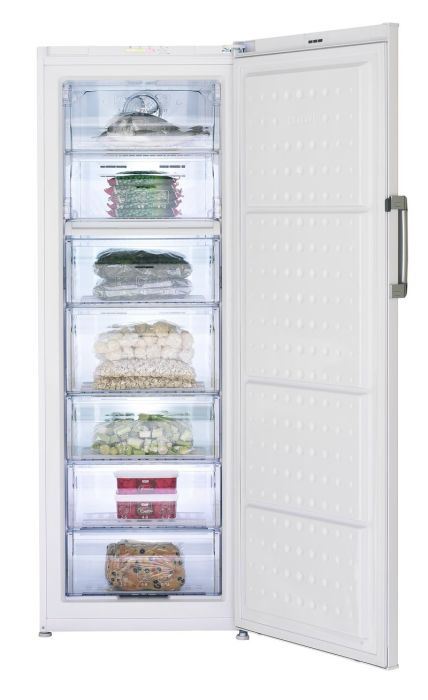

FN126920 DIEPVRIEZER NO FROST

Artikelnr: 114671
Referentienr: FN126920
Vergelijk

Productomschrijving

****171x59.5x60 cm - 260 L NO FROST
Meer informatie
Gewicht (Kg) 50
Jaarlijks verbruik (kWh) 291
ArtRef FN126920
AsogemID 114671
MPN 7252548715
Merk BEKO
Soort Diepvrieskast
ArtEAN 8690842365638
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4250010400 0 MOTOR HOUSE SUPPORT-LINE 2001. 2 2 Meer info
4117650300 0 ADJUSTABLE GLIDER GROUP 2 1 Meer info
4859580100 3 THERMOSTAT KNOB 1 1 Meer info
4364380300 5 FRONT PANEL GROUP 18 1 Meer info
4359160200 13 LOWER HINGE GROUP 5 1 Meer info
4382480100 14 TOP HINGE GROUP 9 1 Meer info
4243120300 19 SINGLE ENTRY DRAYER 6 1 Meer info
4887740100 23 DRAIN DAMPER 1 1 Meer info
4117650400 26 ADJUSTABLE GLIDER GROUP 2 1 Meer info
4056670000 29 SPACER (NATURAL - SN_T) 1 2 Meer info
5233100011 30 COMPRESSOR (NTU 150 MT 220-240V)(R600a) 41 1 Meer info
4848610100 31 TERMINAL COVER 5 1 Meer info
4847070100 33 COMPRESSOR RUBBER GROMMET 1 4 Meer info
4057080200 34 COMPRESSOR WASHER 1 3 Meer info
4133841585 38 POWER CORD GROUP 11 1 Meer info
5736330100 43 COMBO PTC 11 0 Meer info
4846470185 43 PTC RELAY_SENSATA_8EA19E61 10 0 Meer info
5731010100 43 PTC RELAY 9 1 Meer info
5736330200 43 COMBO PTC 11 0 Meer info
4853840185 43 PTC RELAY_Arylux 10 0 Meer info
4085523185 44 OVERLOAD PROTECTOR(4TM189 NFBYY-73) 9 1 Meer info
4121071786 48 CAPASITOR GROUP 10 0 Meer info
4121071785 48 CAPASITOR GROUP 10 0 Meer info
4121072985 48 CAPASITOR GROUP 8 1 Meer info
4121072986 48 CAPASITOR GROUP 11 0 Meer info
4810520100 51 EVAP. COVER STOPPER 1 4 Meer info
4811180100 52 ISOLATION SPONGE_B-570_575 7 1 Meer info
4394460300 53 CONDENSER GROUP 20 1 Meer info
4869490100 100 PLASTIC WASHER 1 1 Meer info
4024820100 125 CHARGING TUBE 3 1 Meer info
4846070100 132 EVAPORATING PAN _ EMBRACO MTS 10 1 Meer info
4216620700 152 ADJUSTABLE GLIDER CAP 1 1 Meer info
4048860200 200 WHEEL 1 2 Meer info
4048870200 201 WHEEL PIN (50MM) 1 2 Meer info
4109812000 205 GROUND CABLE GROUP 1 1 Meer info
4390050109 210 FOAMED_DOOR_ASS_B570 37 0 Meer info
4390050100 210 FOAMED DOOR GROUP 37 1 Meer info
5737560100 211 LOGO 7 1 Meer info
4880031600 227 MECHANISM COVER FUSE_BYG_ARC745 2 2 Meer info
4830680100 250 TOP HINGE HOUSING. ( NATURAL) 1 2 Meer info
5999772000 252 DOOR GASKET GROUP 16 1 Meer info
4227831700 279 COVERING ADHESVE PROFILE 6 1 Meer info
4232230100 300 ICE CUBE TRAY (ARC-P1) (NEW) 5 1 Meer info
4883980200 309 WIRE SHELF ASSY. 10 1 Meer info
4857200100 314 DRAWER BODY 15 1 Meer info
4878080100 325 ICEBOX TRAY 10 1 Meer info
4397311100 326 DRAWER COVER GROUP 12 4 Meer info
4857570100 327 DRAWER BODY 16 3 Meer info
4858250100 328 DRAWER BODY 14 1 Meer info
4809900200 331 COVER HINGE (LEFT) 2 2 Meer info
4809900100 332 COVER HINGE (RIGHT) 2 2 Meer info
4919820300 716 THERMAL FUSE DUAL GR INCH DAR MLX 220 11 1 Meer info
4385620385 716 THERMAL FUSE DIAL GR 72C MLX 180mm 10 0 Meer info
4397270100 727 FAST FREEZE WIRE SHELF 16 1 Meer info
4360622285 784 CONTROL BOARD ASSY_KARDELEN_F60285N 20 1 Meer info
4926830100 827 THERMOSTAT CARD BOX COVER GROUP 6 1 Meer info
4216600285 842 SENSOR 8 1 Meer info
4365690185 843 DISPLAY CARD GROUP 17 1 Meer info
4216601785 846 SENSOR 8 0 Meer info
4807360200 856 WIRE SHELF ASSY. 10 3 Meer info
5715970100 857 SENSOR HOUSING COVER 2 1 Meer info
4802300300 858 WIRE FAN PROTECTOR 13 1 Meer info
4882280185 879 TUBULAR HEATER(B575)YSS 19 1 Meer info
4887900185 880 heater 14 1 Meer info
4853110100 947 HINGE COVER_RIGHT_ARC2009_ARC P1 4 1 Meer info
4805210100 948 HINGE COVER-LEFT_ARCP1 1 1 Meer info
4853120100 948 HINGE COVER-LEFT_ARC_2009_(ARC P1 4 1 Meer info
4818990100 949 EVAPORATOR HOLDER 1 4 Meer info
4811830100 955 SERRATED SCREW (M5x20) 1 2 Meer info
4846480100 959 CABLE HOLDER 2 1 Meer info
4397250700 972 HANDLE GROUP_EOH_BYG_ARC528 16 1 Meer info
4305893885 973 FAN ASS.B-576_B-566 19 1 Meer info
4852570100 975 HINGE HOUSING 1 1 Meer info
4800390200 976 LOWER DOOR STOPER-LINE 2001 1 1 Meer info
4891180100 984 UPPER DOOR BROW HINGE COVER 1 1 Meer info
9000130400 995 RUBBER HOLDER 1 2 Meer info
4880030200 997 MECHANISM COVER FUSE_BYG_ARC434 1 2 Meer info
4397311200 1054 DRAWER COVER GROUP 13 1 Meer info
4397311300 1066 DRAWER COVER GROUP 12 1 Meer info
4397311600 1067 DRAWER COVER GROUP 12 1 Meer info
4884573085 1078 FAN MOTOR. 17 0 Meer info
5728020100 1078 FAN MOTOR 16 1 Meer info
4881690100 1207 SOCKET HOUSING FRONT COVER 4 1 Meer info
4395320100 1372 EVAPORATOR COVER ASSY. 16 1 Meer info
4878070100 1373 FEEZER BOTTOM EVAPORATOR COVER (B565) 16 1 Meer info
4859630100 1380 insulating plate 1 1 Meer info
4936741700 1401 DOOR KIT GROUP 6 1 Meer info
4929692700 1431 COMPRESSOR TERMINAL GROUP 18 0 Meer info
4391790600 1564 EVAPORATOR ASS_WOT_NF_F60265N_NTU150 32 1 Meer info
5710880100 1643 MAGNET COVER_ARCP1 2 1 Meer info
