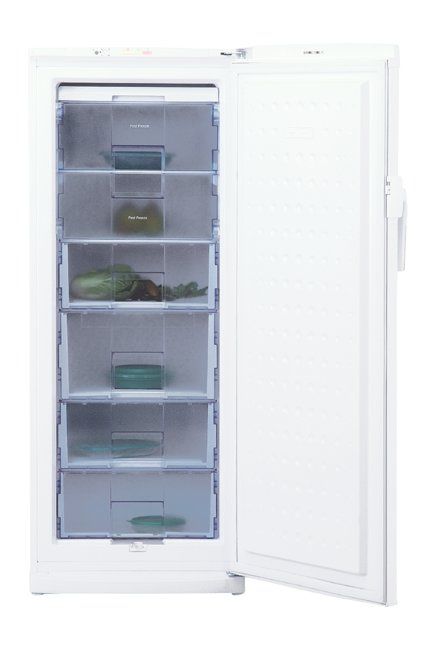

Productomschrijving
****156x60,5x60 cm - 240 L
| Hoogte | 135 |
|---|---|
| Breedte | 60 |
| Diepte | 60 |
| Gewicht (Kg) | 50 |
| Jaarlijks verbruik (kWh) | 263 |
| ArtRef | FSE24300 |
| AsogemID | 114781 |
| Merk | BEKO |
| Soort | Diepvrieskast |
| ArtEAN | 8690842185465 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 4223430100 | 0 | CHARGING TUBE | 3 | 1 | Meer info | |||
| 4810440100 | 0 | UPPER DOOR BROW HINGE COVER-LEFT | 1 | 1 | Meer info | |||
| 4345790100 | 0 | - | 0 | 1 | Meer info | |||
| 4316411385 | 0 | B560/FOAMED CABINET/HCA | 31 | 1 | Meer info | |||
| 4212780100 | 3 | THERMOSTAT KNOB_MECHANIC | 2 | 1 | Meer info | |||
| 4852180985 | 4 | THERMOSTAT (KXF29P-Z)_FOSHAN | 14 | 1 | Meer info | |||
| 9002770985 | 4 | THERMOSTAT (K56-L1944_RANCO). | 16 | 0 | Meer info | |||
| 4212750200 | 5 | FRONT PANEL(60CM/COMBI/ELECTRONIC | 6 | 1 | Meer info | |||
| 4312890585 | 5 | FRONT PANEL ASSY_B570_560. | 0 | 1 | Meer info | |||
| 4334080100 | 13 | LOWER HINGE GROUP | 7 | 1 | Meer info | |||
| 4203930100 | 15 | ADJUSTABLE GLIDER (LONG)(PLS+CIV) B-650 | 3 | 1 | Meer info | |||
| 4243120400 | 19 | DOUBLE ENTRY DRAYER | 4 | 1 | Meer info | |||
| 4807200100 | 25 | BULB HOLDER | 4 | 1 | Meer info | |||
| 4203930200 | 26 | ADJUSTABLE GLIDER (SHORT)(PLS+CIV) B-650 | 3 | 1 | Meer info | |||
| 4056670000 | 29 | SPACER (NATURAL - SN_T) | 1 | 2 | Meer info | |||
| 5309103011 | 30 | COMPRESSOR (NTH115MT 230V)COMBO | 30 | 1 | Meer info | |||
| 4847070100 | 33 | COMPRESSOR RUBBER GROMMET | 1 | 4 | Meer info | |||
| 4057080200 | 34 | COMPRESSOR WASHER | 1 | 3 | Meer info | |||
| 4133841185 | 38 | POWER CORD GROUP | 10 | 1 | Meer info | |||
| 5736330100 | 43 | COMBO PTC | 11 | 0 | Meer info | |||
| 4846470185 | 43 | PTC RELAY_SENSATA_8EA19E61 | 10 | 0 | Meer info | |||
| 5731010100 | 43 | PTC RELAY | 9 | 1 | Meer info | |||
| 5736330200 | 43 | COMBO PTC | 11 | 0 | Meer info | |||
| 4853840185 | 43 | PTC RELAY_Arylux | 10 | 0 | Meer info | |||
| 4085525185 | 44 | OVERLOAD PROTECTOR (4TM110NFBYY-73) | 8 | 1 | Meer info | |||
| 4121072985 | 48 | CAPASITOR GROUP | 8 | 1 | Meer info | |||
| 4121072986 | 48 | CAPASITOR GROUP | 11 | 0 | Meer info | |||
| 4345680100 | 57 | EVAPORATOR ASSY. | 31 | 1 | Meer info | |||
| 4313030500 | 83 | FRONT COVER ASSB.. | 5 | 1 | Meer info | |||
| 4827150100 | 100 | PLASTIC WASHER | 1 | 1 | Meer info | |||
| 4829520100 | 120 | EVAPORATOR TRIM LOCK | 3 | 12 | Meer info | |||
| 4024820100 | 125 | CHARGING TUBE | 3 | 1 | Meer info | |||
| 4094560200 | 150 | SUCTION TUBE GROMMET | 1 | 1 | Meer info | |||
| 4216620700 | 152 | ADJUSTABLE GLIDER CAP | 1 | 1 | Meer info | |||
| 4223740200 | 166 | THERMOSTAT SPINDLE | 6 | 1 | Meer info | |||
| 4801380100 | 169 | DRAIN PLUG/B-560/570ARC P1 | 4 | 1 | Meer info | |||
| 4048860200 | 200 | WHEEL | 1 | 2 | Meer info | |||
| 4048870200 | 201 | WHEEL PIN (50MM) | 1 | 2 | Meer info | |||
| 4109812000 | 205 | GROUND CABLE GROUP | 1 | 1 | Meer info | |||
| 4322022600 | 210 | FOAMED DOOR AS_B560 | 33 | 1 | Meer info | |||
| 4807910300 | 211 | NAME PLATE | 9 | 1 | Meer info | |||
| 4804560100 | 250 | BIG HINGE HOUSING. | 1 | 2 | Meer info | |||
| 5958251000 | 252 | DOOR GASKET GROUP | 14 | 1 | Meer info | |||
| 4232230100 | 300 | ICE CUBE TRAY (ARC-P1) (NEW) | 5 | 1 | Meer info | |||
| 4806150100 | 301 | WOT EVAPORATOR TRIM (438mm_B560_570_760) | 4 | 6 | Meer info | |||
| 4357320100 | 325 | ICE BANK GR (B-570 BEKO/UK) | 10 | 1 | Meer info | |||
| 4312611000 | 326 | DRAWER COVER ASS_Y | 14 | 3 | Meer info | |||
| 4801120100 | 327 | BASKET _250 mm_HIPS_ARCP1_ | 17 | 1 | Meer info | |||
| 4801110100 | 328 | BASKET _190 mm_HIPS_ARCP1_DELIKLI | 16 | 2 | Meer info | |||
| 4809900200 | 331 | COVER HINGE (LEFT) | 2 | 2 | Meer info | |||
| 4809900100 | 332 | COVER HINGE (RIGHT) | 2 | 2 | Meer info | |||
| 4209230200 | 336 | FULL DEPTH BASKET_HIPS_ARCP1_WITHOUTHOLE | 13 | 1 | Meer info | |||
| 4315750185 | 784 | B-761 MECHANIC DISPLAY CARD(HUALIAN | 13 | 1 | Meer info | |||
| 4332080200 | 827 | CARD COVER ASSY MECHAHICAL | 5 | 1 | Meer info | |||
| 4801670185 | 934 | NOT ILLUMUNATED SWITCH (GRAY) | 9 | 1 | Meer info | |||
| 4888850100 | 934 | SWITCH | 8 | 0 | Meer info | |||
| 4815100100 | 947 | HINGE COVER | 0 | 1 | Meer info | |||
| 4805210100 | 948 | HINGE COVER-LEFT_ARCP1 | 1 | 1 | Meer info | |||
| 4811830100 | 955 | SERRATED SCREW (M5x20) | 1 | 3 | Meer info | |||
| 4048590500 | 971 | HANDLE HOLE PLUG | 1 | 2 | Meer info | |||
| 4397250400 | 972 | HANDLE GROUP_EOH_BYG_ARC528 | 20 | 1 | Meer info | |||
| 4250670100 | 975 | HINGE HOUSING | 1 | 1 | Meer info | |||
| 4845680100 | 976 | DOOR STOPER(DIFFUSION) | 3 | 1 | Meer info | |||
| 4880030800 | 997 | MECHANISM COVER FUSE_BYG_WHITE | 1 | 2 | Meer info | |||
| 4203970100 | 1020 | VACUUM PREVENTER OUTSIDE PART | 1 | 1 | Meer info | |||
| 4203980100 | 1021 | VACUUM PREVENTER INSIDE PART | 1 | 1 | Meer info | |||
| 4205910200 | 1022 | VACUUM PREVENTER TOP PART | 5 | 1 | Meer info | |||
| 4312611100 | 1054 | DRAWER COVER ASS_Y | 13 | 1 | Meer info | |||
| 4308801800 | 1066 | FREEZER TOP COVER (B-570_575).. | 12 | 1 | Meer info | |||
| 4308801900 | 1067 | FREEZER TOP COVER (B-570_575) | 12 | 1 | Meer info | |||
| 4295210100 | 1283 | BITUM_125x120x2 | 2 | 1 | Meer info |
