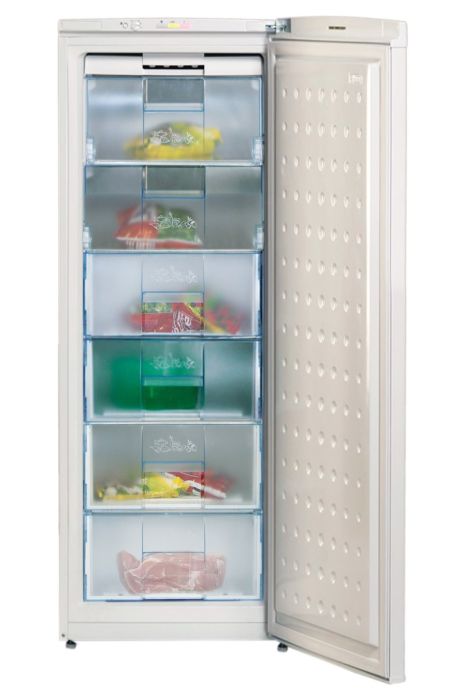

FSA21320 DIEPVRIEZER

Artikelnr: 114651

Referentienr: FSA21320

Productomschrijving

****136x54x60 cm - 210 L

Specificaties

Meer informatie
Gewicht (Kg)	61
Jaarlijks verbruik (kWh)	230
ArtRef	FSA21320
AsogemID	114651
MPN	7502920041
Merk	BEKO
Soort	Diepvrieskast
ArtEAN	5944008909178

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
4810440100	0	UPPER DOOR BROW HINGE COVER-LEFT	1	1	Meer info
4859580100	3	THERMOSTAT KNOB	1	1	Meer info
4343420100	13	LOWER HINGE GROUP	6	1	Meer info
4328140200	14	TOP HINGE ASSEMBLY (LINE 2001).	7	1	Meer info
4913130400	30	COMPRESSOR_PZ75H1X_220-240 V_R600a	36	0	Meer info
4221152600	30	COMPRESSOR_HKK80AA_R600_ACC	37	0	Meer info
4361192500	30	COMPRESSOR JIAXIPERA NX1112 Y	44	0	Meer info
4361194200	30	COMPRESSOR JIAXIPERA TX1112Y	42	0	Meer info
5930870300	39	COMBO UNIT 10LPC GMCC	18	0	Meer info
4930970400	39	COMBO UNIT GMCC	19	0	Meer info
4346040485	39	COMBO UNIT(JIAXPERA)	13	0	Meer info
4346040385	39	COMBO UNIT(JIAXPERA)	13	0	Meer info
4652880100	216	Charging tube II 100mm Restrans	0	1	Meer info
4528400100	216	CHARGING TUBE II(new)	6	0	Meer info
4830680100	250	TOP HINGE HOUSING. ( NATURAL)	1	2	Meer info
4216390100	300	ICE CUBE TRAY_B760	5	1	Meer info
4239690100	331	FLAP COVER HNGE	3	2	Meer info
4239700100	332	FLAP COVER HNGE	3	2	Meer info
4501140901	370	PTC_HKK 80AA	25	0	Meer info
4528340100	416	SERVICE TUBE III (NEW)	6	0	Meer info
4541970800	471	SMALL PLASTIC FREEZER DRAWER ASS(54C)/DI	22	1	Meer info
4628530100	515	PRINTED TOP TRIM FZ G54 ECODESIGN ARP1VX	9	1	Meer info
4610700100	515	TOP TRIM SEALING GASKET G54/ARC P1	5	1	Meer info
4551680100	655	SENSOR FIXING PART	1	1	Meer info
4542680100	698	CONDENSER FIXING PART-I_ DIFFUSION	4	2	Meer info
4542680200	699	CONDENSER FIXING PART-II_ DIFFUSION	4	2	Meer info
4541850100	716	COMPRESSOR SUPPORT (NEW)/ 54CM	13	1	Meer info
4541850300	716	COMPRESSOR SUPPORT (NEW)_ 54CM	16	0	Meer info
4541440100	740	ICE CUBE TRAY_ DIFFUSION_ OPAQUE	16	1	Meer info
4541960700	741	BIG PLASTIC FREEZER DRAWER ASSY.(54CM)/	24	3	Meer info
4551630200	743	FAST FREEZER COMPART.DOOR/BLUE DIF/BEKO	16	2	Meer info
5937512000	784	CONTROL_BOARD_GR_K3_F5130_K6330	0	1	Meer info
4550160100	804	HINGE COVER-LEFT WHITE/DIFFUSION	1	1	Meer info
4936680100	827	CARD BOX COVER GROUP	11	1	Meer info
4365690185	843	DISPLAY CARD GROUP	17	1	Meer info
4546861000	924	FREEZER ASSY. GASKET F5210 DIFFUSION	19	1	Meer info
4583811200	927	F5210_PUC_ARC P1_KARDELEN_CLASSA A+	41	0	Meer info
4815100100	947	HINGE COVER	0	1	Meer info
4805210100	948	HINGE COVER-LEFT_ARCP1	1	1	Meer info
4250680100	975	HINGE HOUSING	1	1	Meer info
4800390200	976	LOWER DOOR STOPER-LINE 2001	1	1	Meer info
4810430100	1073	UPPER DOOR BROW HINGE COVER-RIGHT	2	1	Meer info
4859630100	1380	insulating plate	1	1	Meer info
5635430300	2198	TERMINAL ASSY.	25	1	Meer info
4653870100	2919	FZ PU DOOR F5210 FH NO SMILE DIFF ARCP1	33	1	Meer info
4502020001	3070	2-WAYS DRYER	10	1	Meer info
4548960100	3187	SLEEVE SCREW M 8X20 ARC P1	3	1	Meer info
4548960200	3188	SLEEVE SCREW M 8X35 ARC P1	3	1	Meer info
4612470100	3235	CONDENSER SPACER.	1	2	Meer info
4528210100	4250	REAR FIXED FOOT	1	2	Meer info
4610110110	8076	CONDENSEUR D5240 A+/F5210/A+/A / PAINTED	0	1	Meer info
4559370100	8508	EVAPORATOR PANEL BLOCKING PART(NEW)	1	12	Meer info
4505150001	8538	MOTORCOMPRESSOR FIXING PART	1	2	Meer info
