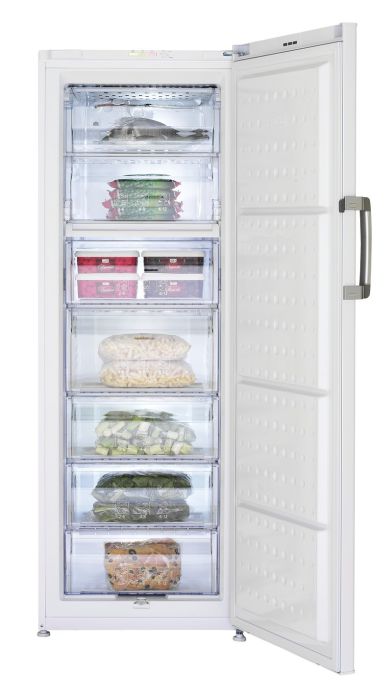

FS127930 DIEPVRIEZER

Artikelnr: 114673

Referentienr: FS127930

Productomschrijving

****171x60.5x60 cm - 270 L

Specificaties

Meer informatie
Gewicht (Kg)	61
Jaarlijks verbruik (kWh)	186
ArtRef	FS127930
AsogemID	114673
MPN	7264248716
Merk	BEKO
Soort	Diepvrieskast
ArtEAN	8690842364457

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
4811830200	0	SCREW(M5x12)	1	1	Meer info
4388850900	0	LOWER DOOR_LOWER COVER_GROUP	9	1	Meer info
4394100100	0	FRONT PANEL GROUP	14	1	Meer info
4859580100	3	THERMOSTAT KNOB	1	1	Meer info
4364380300	5	FRONT PANEL GROUP	18	1	Meer info
4359160200	13	LOWER HINGE GROUP	5	1	Meer info
4382480100	14	TOP HINGE GROUP	9	1	Meer info
4203930100	15	ADJUSTABLE GLIDER (LONG)(PLS+CIV) B-650	3	1	Meer info
4243120300	19	SINGLE ENTRY DRAYER	6	1	Meer info
4203930200	26	ADJUSTABLE GLIDER (SHORT)(PLS+CIV) B-650	3	1	Meer info
4056670000	29	SPACER (NATURAL - SN_T)	1	2	Meer info
5232116011	30	COMPRESSOR (NTU 120 MT 220-240V)(R600a)	37	1	Meer info
4848610100	31	TERMINAL COVER	5	1	Meer info
4847070100	33	COMPRESSOR RUBBER GROMMET	1	4	Meer info
4057080200	34	COMPRESSOR WASHER	1	3	Meer info
4133841585	38	POWER CORD GROUP	11	1	Meer info
4049730100	40	SCREW 3.9x12	1	2	Meer info
5535540300	43	Electronic PTC (Tianyin)	16	1	Meer info
4085523685	44	OVERLOAD PROTECTOR (4TM149NFBYY-73)	8	1	Meer info
4121072985	48	CAPASITOR GROUP	8	1	Meer info
4121072986	48	CAPASITOR GROUP	11	0	Meer info
4811182900	52	ISOLATION SPONGE_F60265	7	1	Meer info
4394460400	53	CONDENSER GROUP	19	1	Meer info
4869490100	100	PLASTIC WASHER	1	1	Meer info
5781220100	101	SELF WASHERED BOLT	1	4	Meer info
4832460100	114	SELF WASHERED BOLT (M6x16)	1	4	Meer info
4829520100	120	EVAPORATOR TRIM LOCK	3	14	Meer info
4024820100	125	CHARGING TUBE	3	1	Meer info
4094560200	150	SUCTION TUBE GROMMET	1	1	Meer info
4216620700	152	ADJUSTABLE GLIDER CAP	1	1	Meer info
4048860200	200	WHEEL	1	2	Meer info
4048870200	201	WHEEL PIN (50MM)	1	2	Meer info
4152660500	202	COMPRESSOR TRAVERSE GROUP	11	1	Meer info
4109812000	205	GROUND CABLE GROUP	1	1	Meer info
4390050900	210	FOAMED DOOR GROUP	42	1	Meer info
5786590200	211	BEKO LOGO	7	1	Meer info
4880031600	227	MECHANISM COVER FUSE_BYG_ARC745	2	2	Meer info
5801100100	237	BOLT M4x15	1	2	Meer info
4830680100	250	TOP HINGE HOUSING. ( NATURAL)	1	2	Meer info
5999772000	252	DOOR GASKET GROUP	16	1	Meer info
4227831700	279	COVERING ADHESVE PROFILE	6	1	Meer info
4232230100	300	ICE CUBE TRAY (ARC-P1) (NEW)	5	1	Meer info
4806150100	301	WOT EVAPORATOR TRIM (438mm_B560_570_760)	4	7	Meer info
4857200100	314	DRAWER BODY	15	1	Meer info
4878080100	325	ICEBOX TRAY	10	1	Meer info
5993150900	326	COVER	12	4	Meer info
4857570100	327	DRAWER BODY	16	3	Meer info
4858250100	328	DRAWER BODY	14	1	Meer info
5776260100	331	cover hinge	2	2	Meer info
5776260200	332	cover hinge	2	2	Meer info
4212777900	405	ALUMINIUM FOIL TAPE 70mmx70mm	1	1	Meer info
4360621085	784	CONTROL BOARD GROUP	20	1	Meer info
4360626085	784	CONTROL BOARD GROUP	0	0	Meer info
4926830100	827	THERMOSTAT CARD BOX COVER GROUP	6	1	Meer info
4365690185	843	DISPLAY CARD GROUP	17	1	Meer info
4853110100	947	HINGE COVER_RIGHT_ARC2009_ARC P1	4	1	Meer info
4853120100	948	HINGE COVER-LEFT_ARC_2009_(ARC P1	4	1	Meer info
4811830100	955	SERRATED SCREW (M5x20)	1	1	Meer info
4846480100	959	CABLE HOLDER	2	1	Meer info
4397250700	972	HANDLE GROUP_EOH_BYG_ARC528	16	1	Meer info
4852570100	975	HINGE HOUSING	1	1	Meer info
4800390200	976	LOWER DOOR STOPER-LINE 2001	1	1	Meer info
4891180100	984	UPPER DOOR BROW HINGE COVER	1	1	Meer info
4923570100	987	REAR SUPPORT GROUP	1	2	Meer info
9000130400	995	RUBBER HOLDER	1	2	Meer info
4880030200	997	MECHANISM COVER FUSE_BYG_ARC434	1	2	Meer info
5993151000	1054	COVER	12	1	Meer info
5993151100	1066	COVER	12	2	Meer info
4859630100	1380	insulating plate	1	1	Meer info
4936741700	1401	DOOR KIT GROUP	6	1	Meer info
4924840200	1431	COMPRESSOR TERMINAL GROUP	21	1	Meer info
4903830300	1564	TOS EVAPORATOR GROUP	33	1	Meer info
5710880100	1643	MAGNET COVER_ARCP1	2	1	Meer info
4818490200	1764	BITUM FOR EVAPARATOR TUBES	8	2	Meer info

Documenten

Mode d'emploi (923.95 kB)

Handleiding (1.24 MB)

Bedienungsanleitung (948.64 kB)
